20 110mm hot water PPR pipe production making machine line
- Category: >>>
- Supplier: Zhangjiagang Shangyi Machinery Co. Ltd.
Share on (1601280224541):
Product Overview
Description
Product Description
Color | selectable |
Production Capacity | 1-15m/min |
Pipe range | 20-63mm |
Length | 24-32m |
Material | stainless steel |
Temperature controller | OMRON |
Converter | ABB Inventer |
Motor brand | SIMENS |
Plastic Processed | PPR |
Voltage | 3phase 380v 50hz |
Product Display
The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new stype grooves.
All of these offer good plastification and mixing effect.

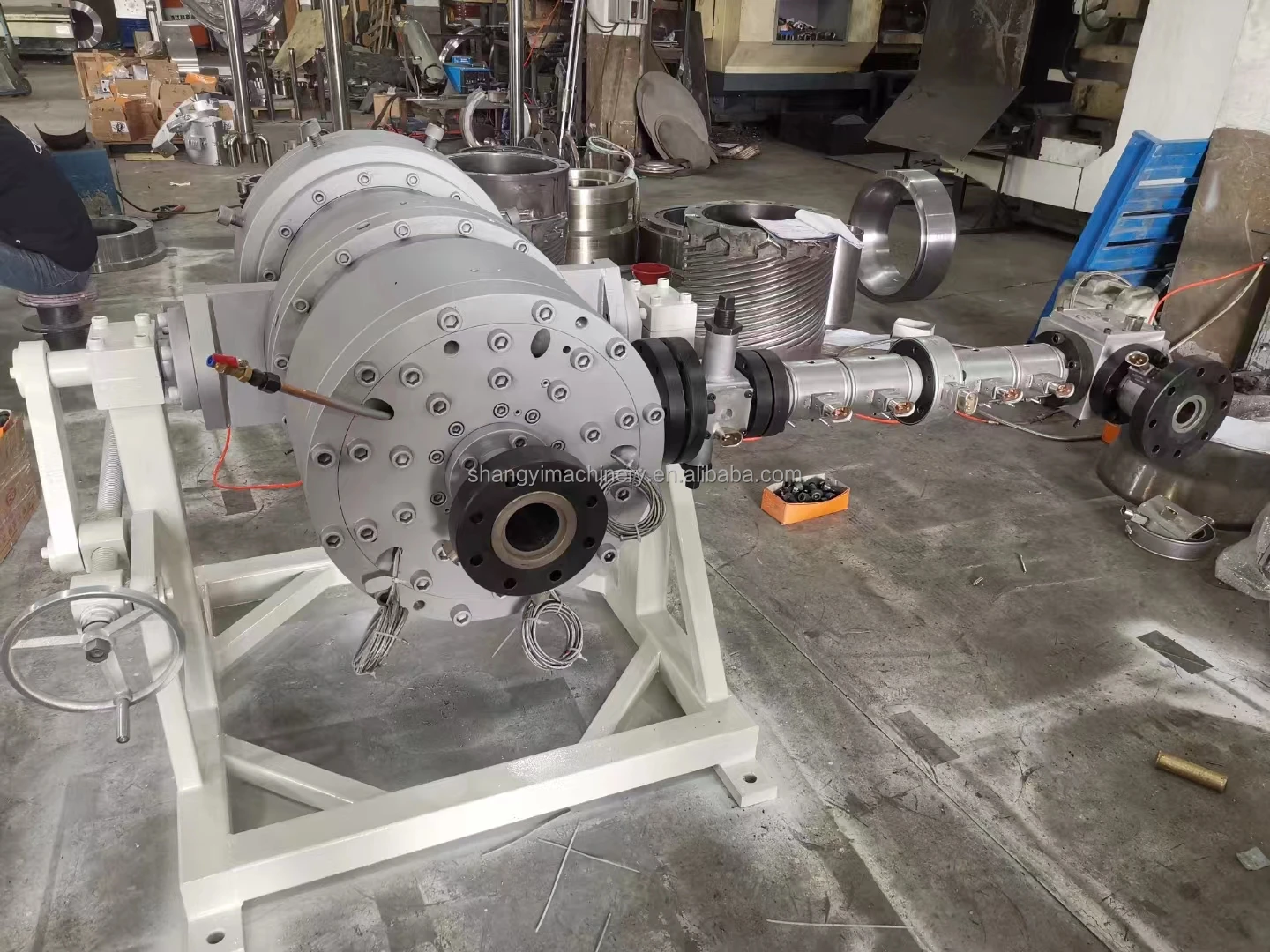

Special design of basket die head of for PPR large diameter pipe withi thick wall offer lower melting temperature, good mixing,
lower pressure of cavity, and stable production.
1. This production line aim at the characteristic of the PPR pipes.

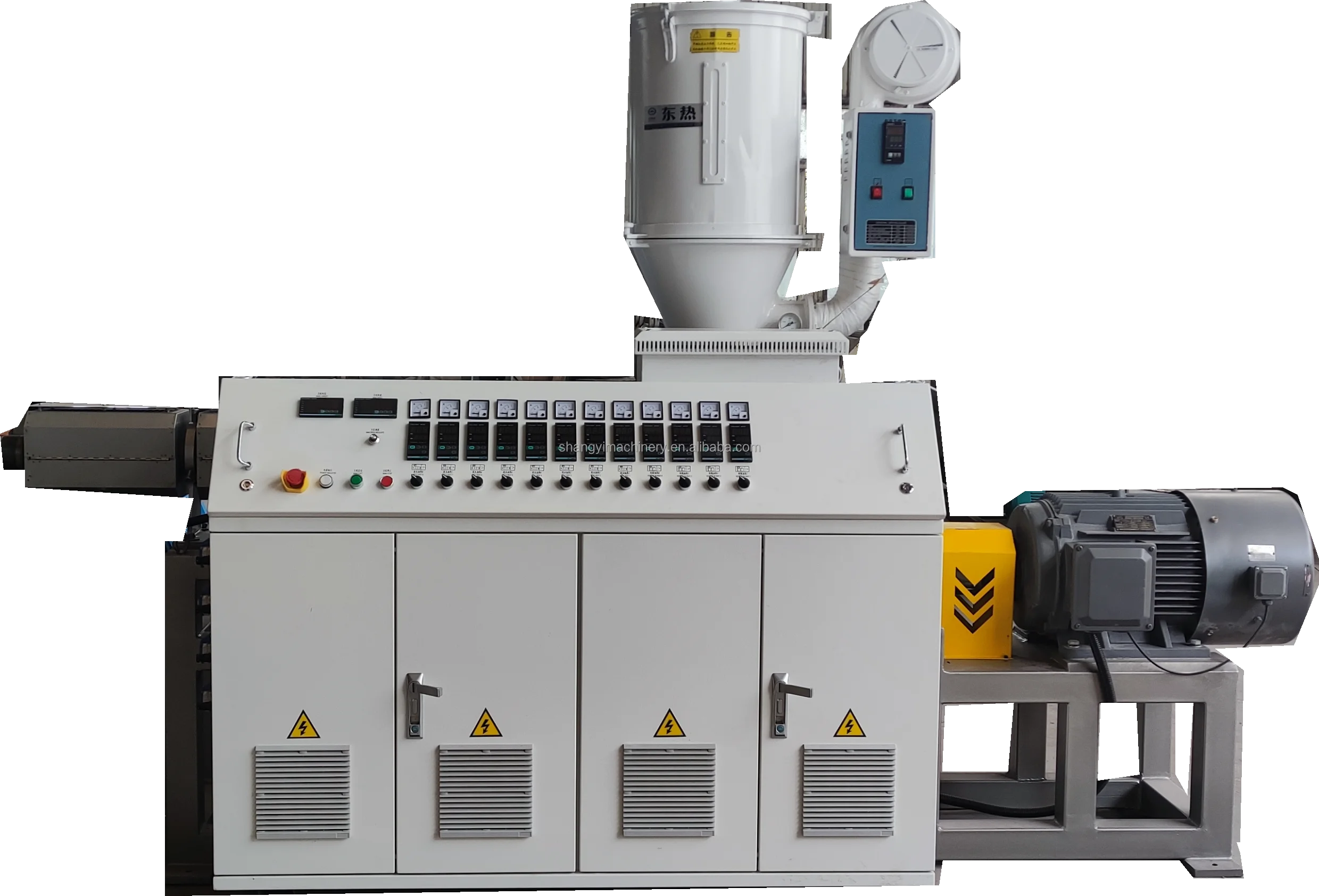

2. It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system
3. It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of differentunits could realize the production job of PE-RT, PEX, PB pipe.
Details Images
Model | Screw Dia | L/D | Extruder Qty | Pipe Range | Capacity | Main Motor Power | Total Power | Line Length |
FR-PPR-63A | 50mm | 33:01:00 | 4 | 20-63 | 100-200 | 22*3 | 120 | 30 |
FR-PPR-63B | 65mm,50mm | 33:01:00 | 3 | 20-63 | 100-180 | 37*1,22*1 | 110 | 30 |
FR-PPR-110A | 65mm | 33:01:00 | 4 | 20-110 | 180-300 | 37*3 | 190 | 38 |
FR=PPR-110B | 75mm,65mm | 33:01:00 | 3 | 20-110 | 150-300 | 55*1,37* 1 | 180 | 38 |
PB,PPR Pipe Processing Flow:
Raw material+master batches → Mixing → vacuum feeding → material dryness → single screw extruder →color string extruder → spiral
mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter
→ pipe rack → finished product inspecting &packing
mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter
→ pipe rack → finished product inspecting &packing
