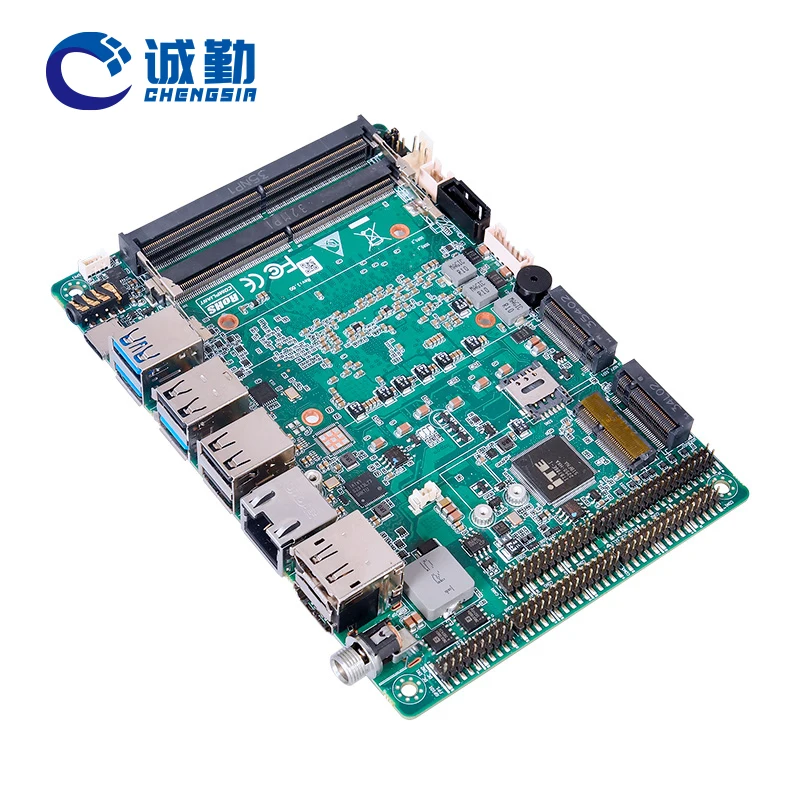

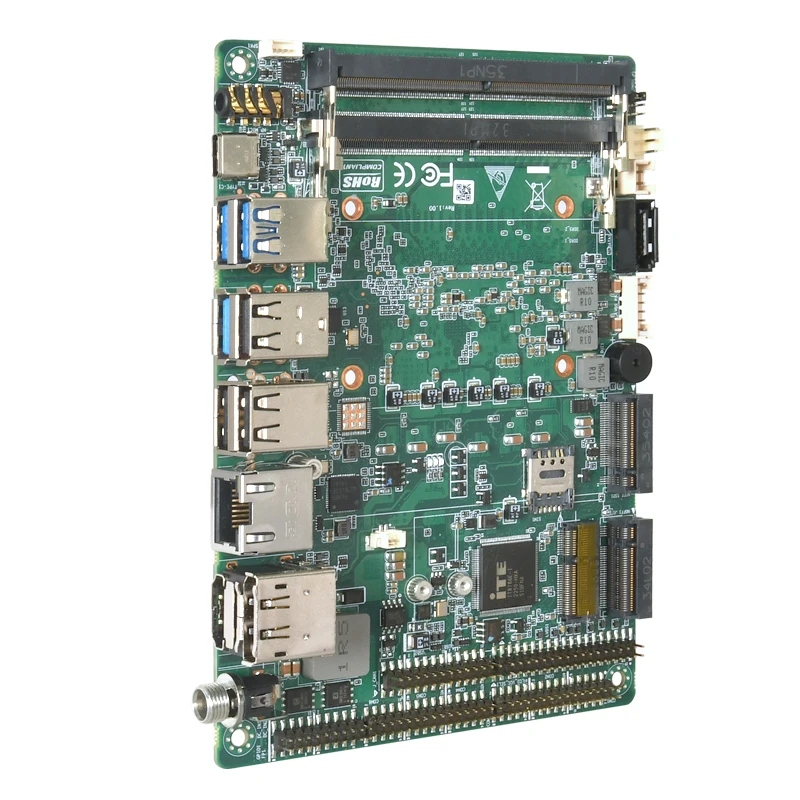

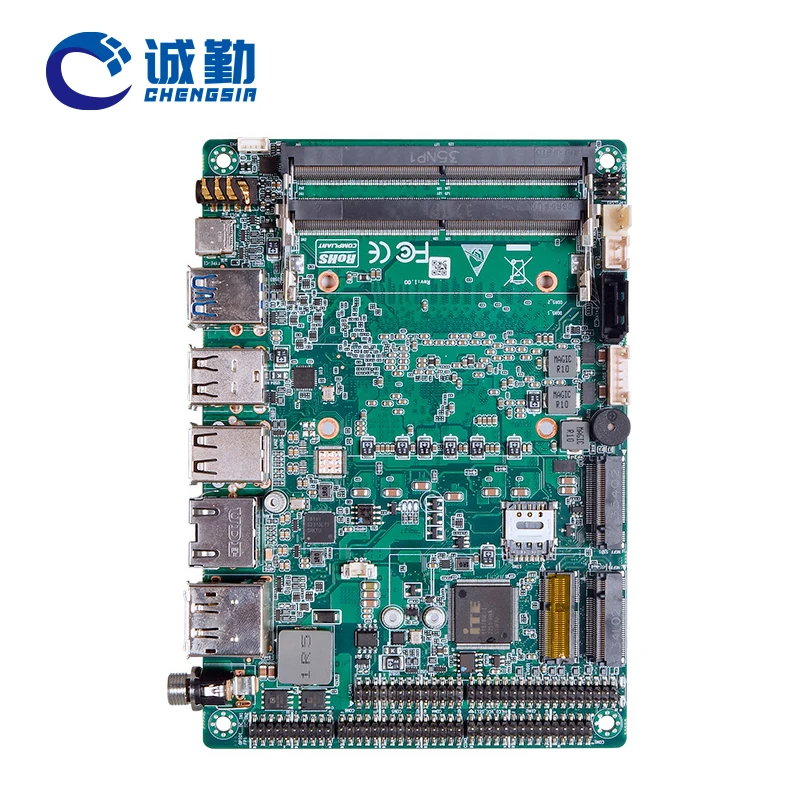

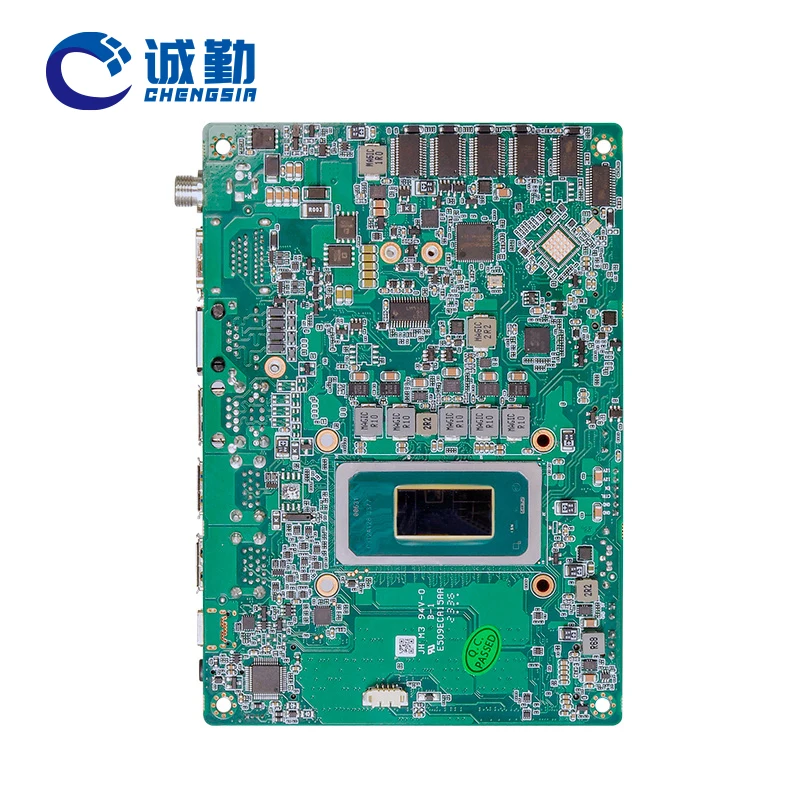

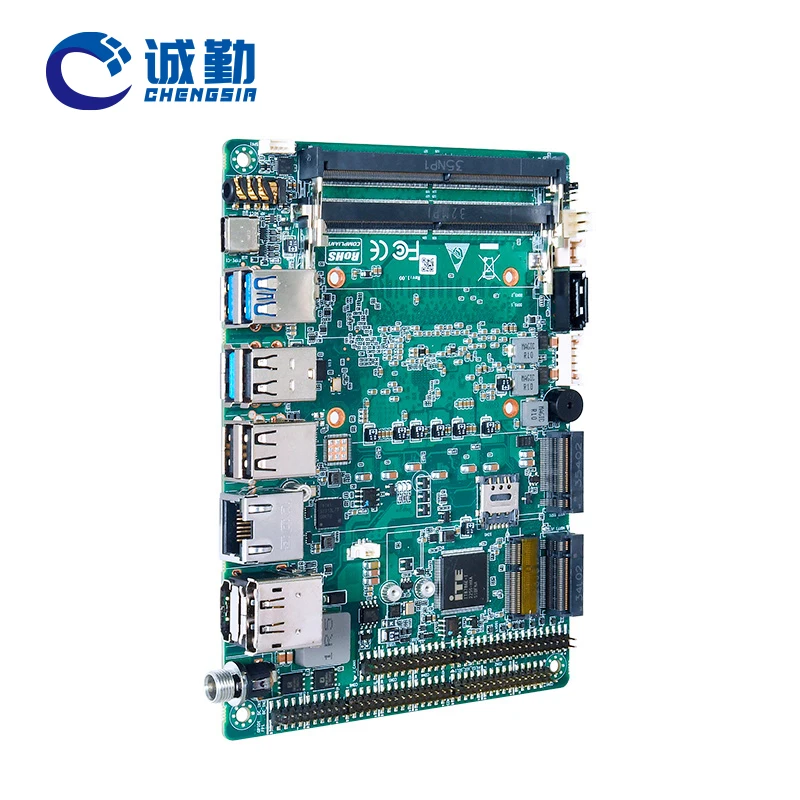

OEM ODM 12th/13th Gen Ultra 9 185H AI PC Single Board Computer 2 Lan 6 COM 3.5 inch X86 Fanless Embedded Industrial Motherboard
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1601280261981):
Product Overview
Description
* Intel core Ultra -U/H Series Processors (U-15W, H-28W)
* 2 x DDR5 SO-DIMM memory slots, up to 96GB
* TPM2.0 optional, 1TPYE-C (supports DP), 1DP, 1HD, 1EDP/LVDS choose one
* 2LAN/6COM/8USB/8GPIO/3M.2 (SSD/WIFI/4G/5G)
* DC9-36V wide voltage
* 2 x DDR5 SO-DIMM memory slots, up to 96GB
* TPM2.0 optional, 1TPYE-C (supports DP), 1DP, 1HD, 1EDP/LVDS choose one
* 2LAN/6COM/8USB/8GPIO/3M.2 (SSD/WIFI/4G/5G)
* DC9-36V wide voltage
Product Description
Processor | Intel core Ultra -U/H Series Processors (U-15W, H-28W) |
EFI BIOS | |
Memory | 2 x DDR5 SO-DIMM memory slots, up to 96GB |
Display | 1 x HD2.1; 1 x 24-bit LVDS (LVDS/ EDP alternative); 1 x DP 2.1; 1 x TYPE-C (support 4K) |
Storage | 1 x M.2 KEY-M 2280 (PCIe_X4 NVMe) |
1 x 7Pin SATA3.0, SATA power supply 5V 2Pin | |

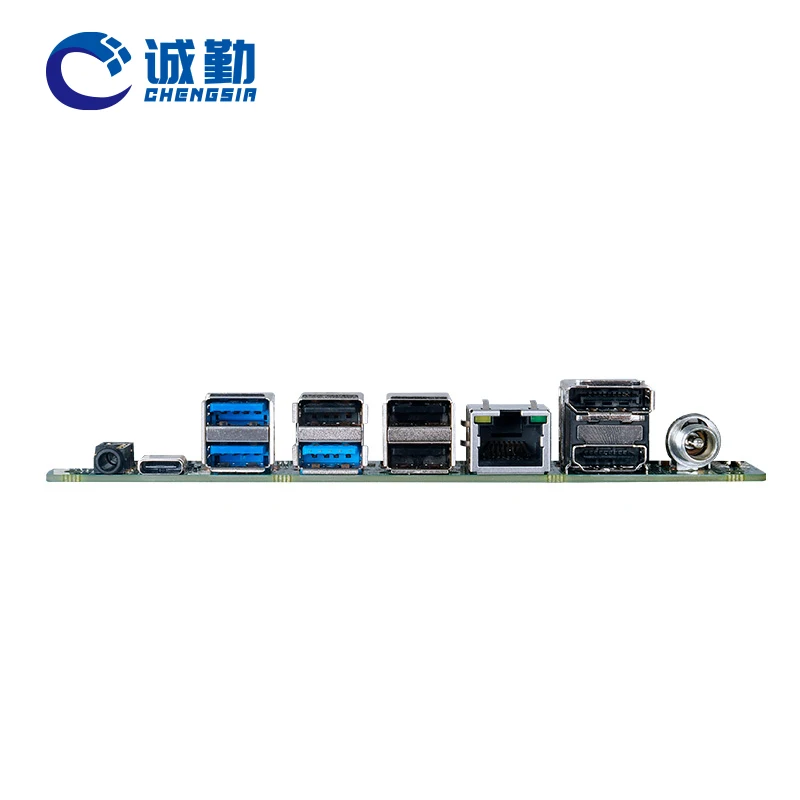

Board edge I/O interface | 1 x DC interface, 1 x DP 2.1, 1 x HD2.1, 4 x USB3, 2 x RJ45 network cards (1 x i226-V, 1 x i226-LM, supports AMT) / one of them,can be optional 2 x USB2, 1 x 2-in-1 audio, USB TYPE-C 4K |
Extended interface/function | TPM2.0 optional, not available by default |
1 x M.2 KEY-B (PCIe +USB3.0, 4G/5G module), 1 x SIM card slot | |
1 x M.2 KEY-E (PCIe +USB WIFI module) | |
1 x CAN, 2 x 3PIN, pitch 2.0 | |
6 x COM pin header, 2x5Pin, pitch 2.0 mm (COM1 and COM2 can be selected as RS232/ RS485/RS422 through BIOS, RS232 by default, and the other 4COM are RS232) | |
1 x SPK, 1x4pin, pitch 1.25 | |
1 x CL_CMOS, 1x2Pin, pitch 2.0 | |
2 sets USB pin headers, 2x5Pin, pitch 2.0 (4 x USB2.0) | |
1 x CPU Smart FAN, 4Pin; 1 x system fan, 3Pin, pitch 2.54 | |
1 x F_Panel, 2 x 5 Pin, pitch 2.0mm; | |
1 x 8-bit GPIO pin, 2x5Pin, pitch 2.0; | |
1 x AT/ATX, 1x2Pin, pitch 2.0 | |
Power Supply | DC9-36V wide voltage |
Working Environment | Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, no condensation | |
Operating System | Win10, Win11, etc. |
Size | 146 x 102 mm |
Weight | Excluding heatsink 160g; |
We Can Also Provide Induistrial Computer Chassis for you As Below
OEM/ODM is Available
Company Profile

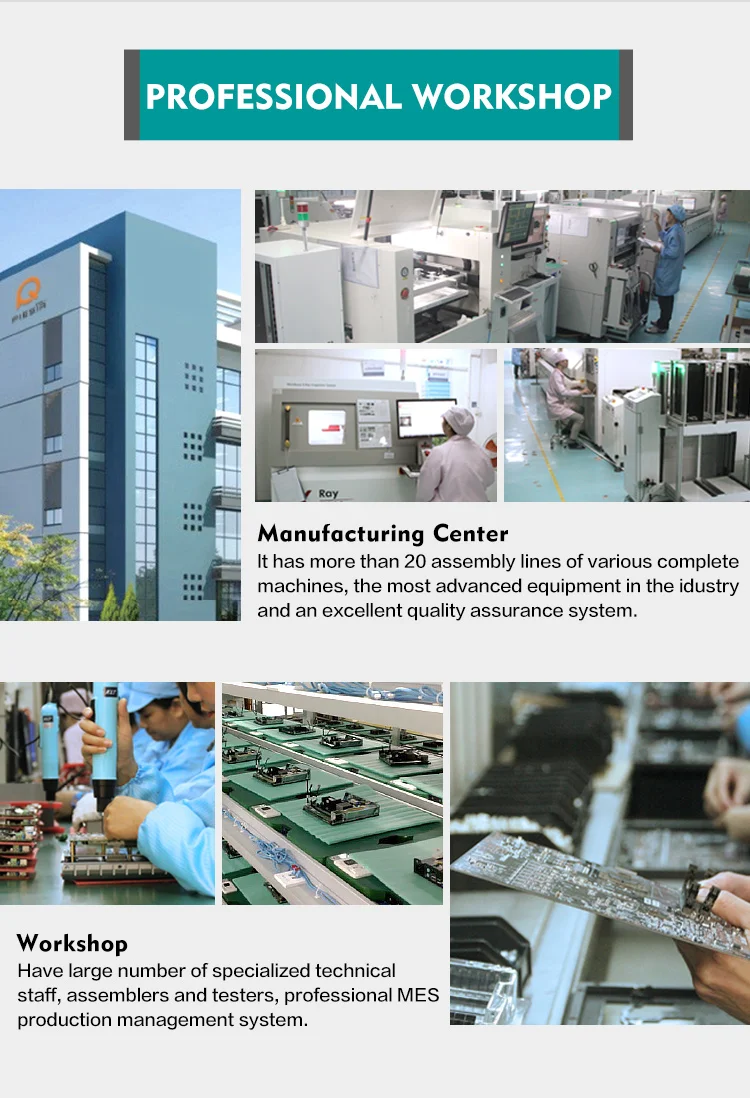

Workflow
