Product Overview
Description

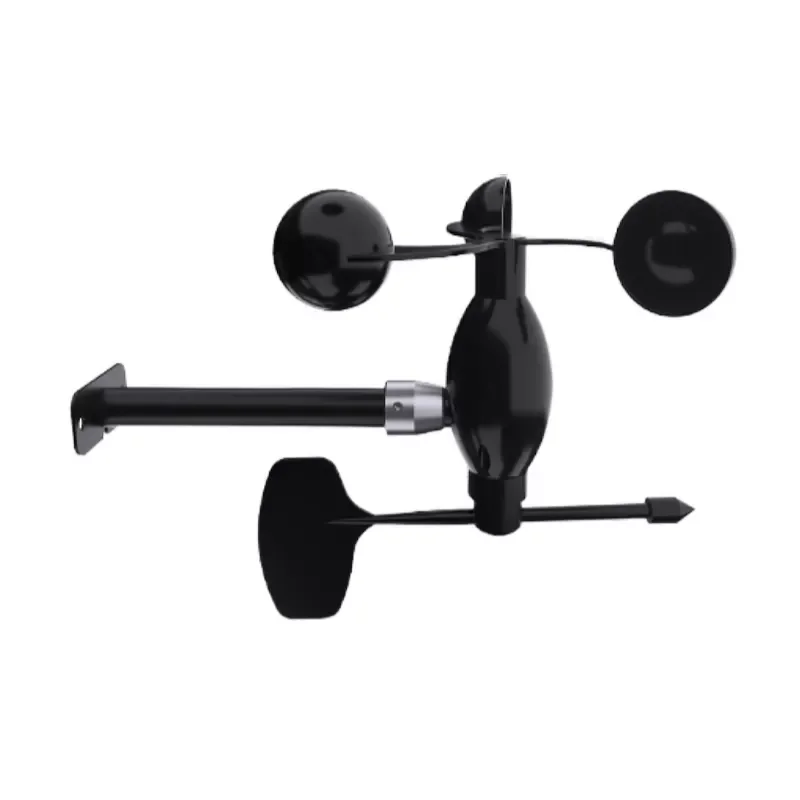

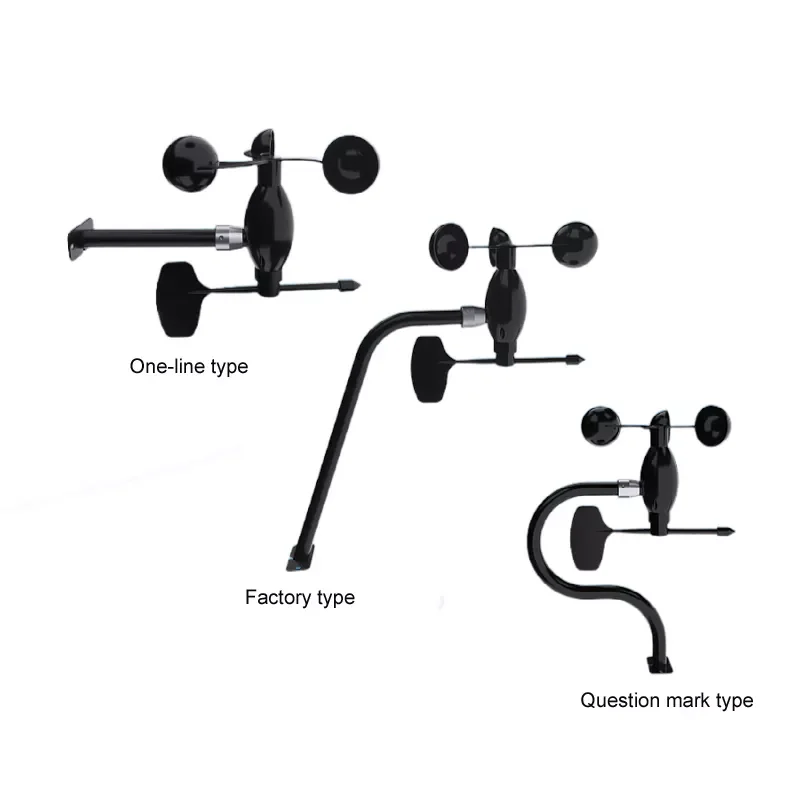

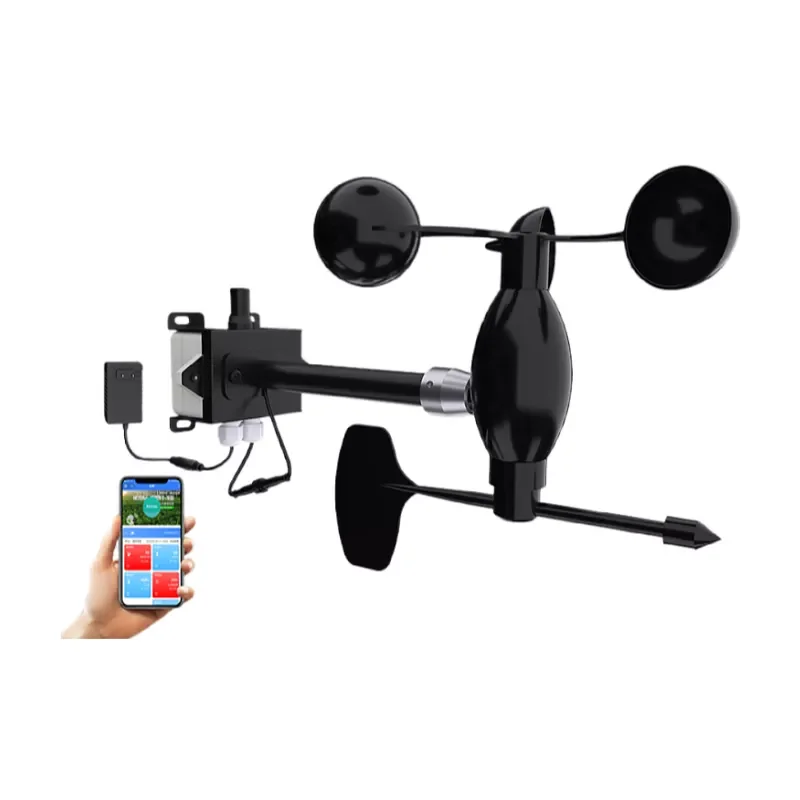

WSD304 is used to measure the wind speed and direction value, and convert it into an electrical signal, which can be
directly transmitted to the acquisition equipment for processing.

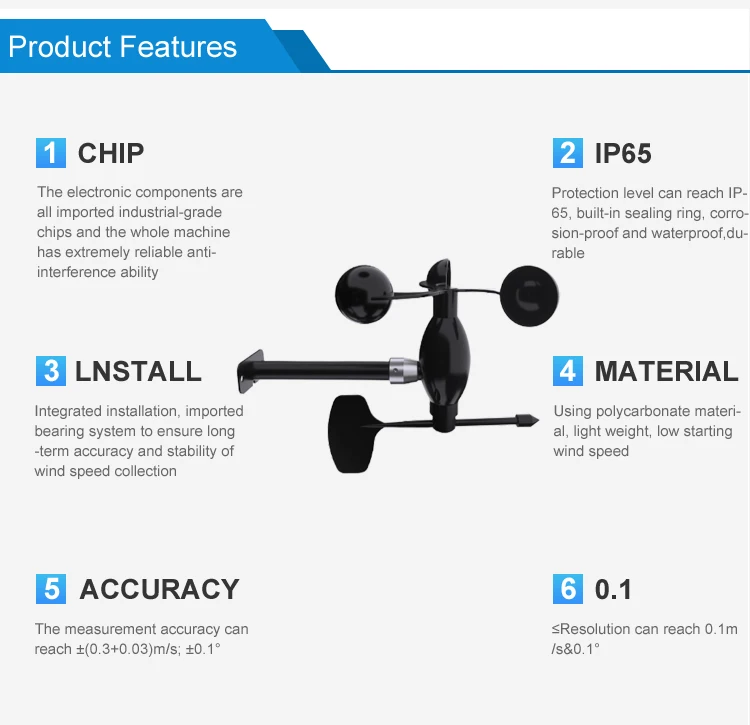

The sensor housing is made of aluminum alloy, using a special die precision die-casting process. The dimensional tolerance is very small, the surface accuracy is very high, and it has high weather resistance, high strength, corrosion resistance and water resistance. Adaptability to harsh environments. The cable connector is a military plug with good anti-corrosion and anti-erosion performance, which can ensure long-term use of the instrument. At the same time, it cooperates with the internal imported bearing system to ensure the accuracy of wind speed and wind direction collection. The circuit module PCB uses military-grade A-grade materials to ensure the stability of the parameters and the quality of electrical performance; the electronic components are imported industrial-grade chips, making the whole have extremely reliable anti-electromagnetic interference ability.
directly transmitted to the acquisition equipment for processing.
The sensor housing is made of aluminum alloy, using a special die precision die-casting process. The dimensional tolerance is very small, the surface accuracy is very high, and it has high weather resistance, high strength, corrosion resistance and water resistance. Adaptability to harsh environments. The cable connector is a military plug with good anti-corrosion and anti-erosion performance, which can ensure long-term use of the instrument. At the same time, it cooperates with the internal imported bearing system to ensure the accuracy of wind speed and wind direction collection. The circuit module PCB uses military-grade A-grade materials to ensure the stability of the parameters and the quality of electrical performance; the electronic components are imported industrial-grade chips, making the whole have extremely reliable anti-electromagnetic interference ability.
Item | Parameter | ||
Measuring range | Wind speed | Wind direction | |
0~30m/s, 0~60m/s | 16-directions, 8-directions (0~360°) | ||
Output signal | Wind speed | Wind direction | |
0~2V/5V/10V, 4~20mA, RS485 | 0.4~2V/0~2V/1~5V/0~5V, 4~20mA, RS485 | ||
Starting wind-force | Wind speed | Wind direction | |
0.4~≥0.8m/s | ≥0.8m/s | ||
Maximum power consumption (24VDC) | Current type: ≤700mW | ||
Voltage type: ≤300mW | |||
RS485 type: ≤300mW | |||
Working environment | -20℃~55℃ (35~85%RH, No condensation) | ||
Load capacity | ≤500Ω≥2KΩ | ||
Weight | ≤0.5KG | ||
The specific price is subject to the parameters, please contact us for the quotation
