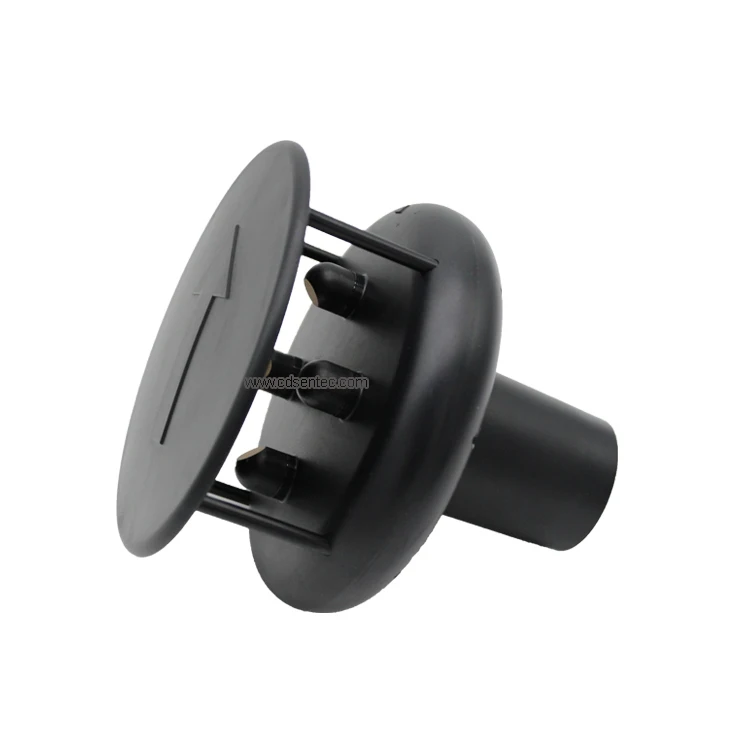

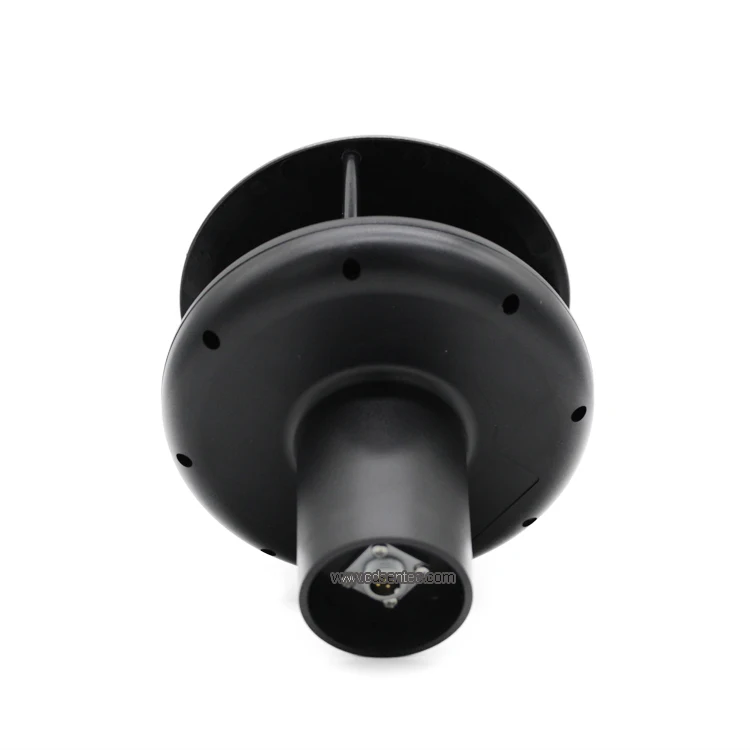

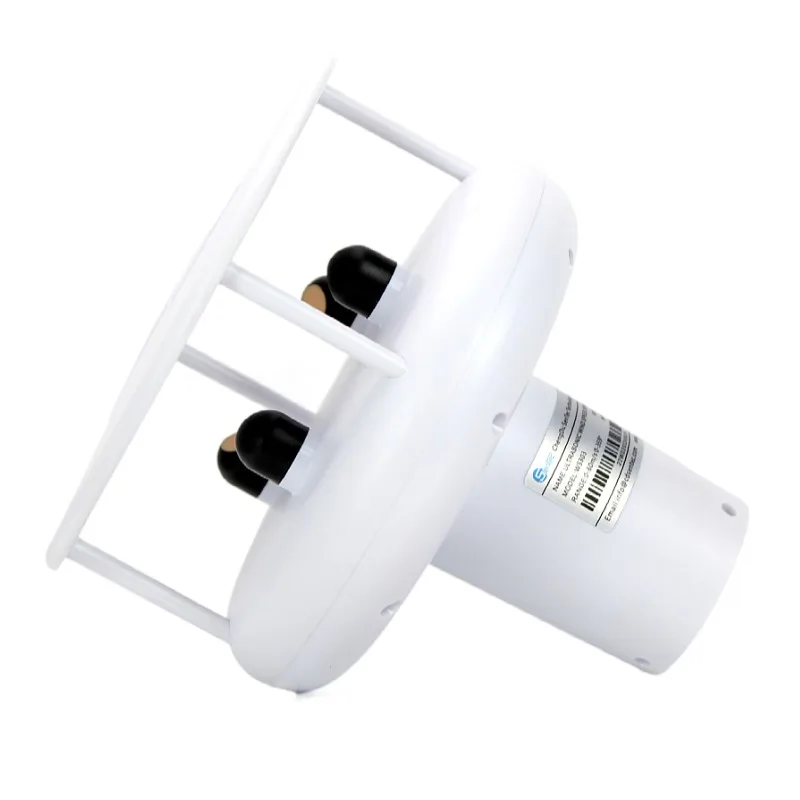

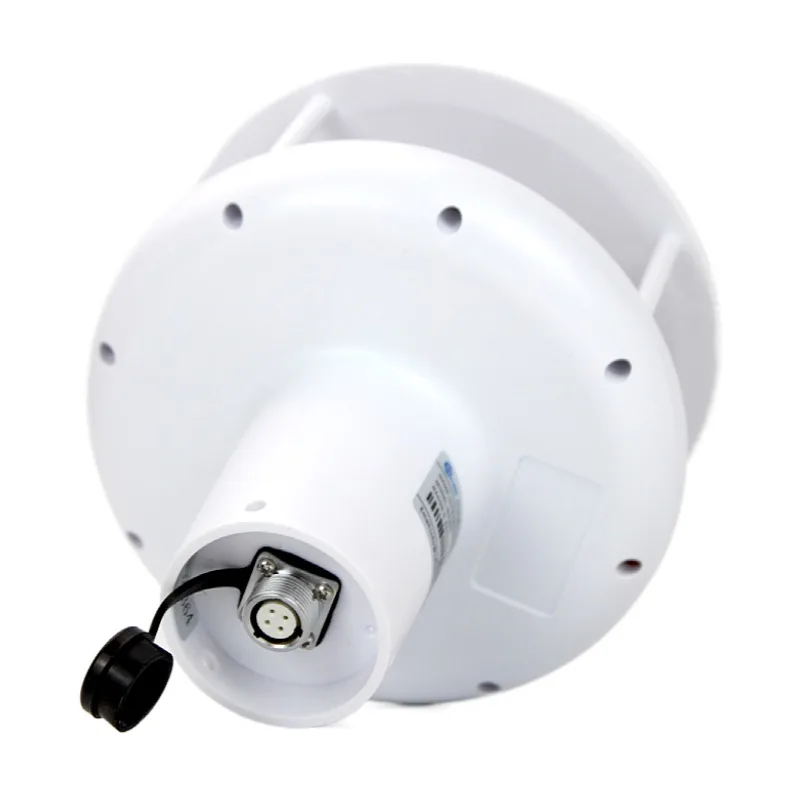

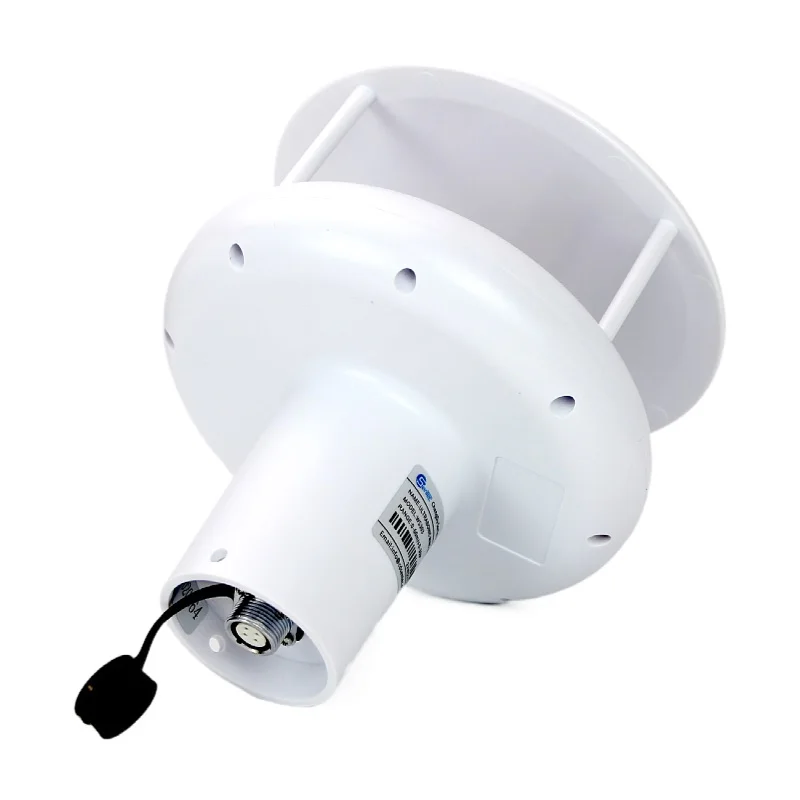

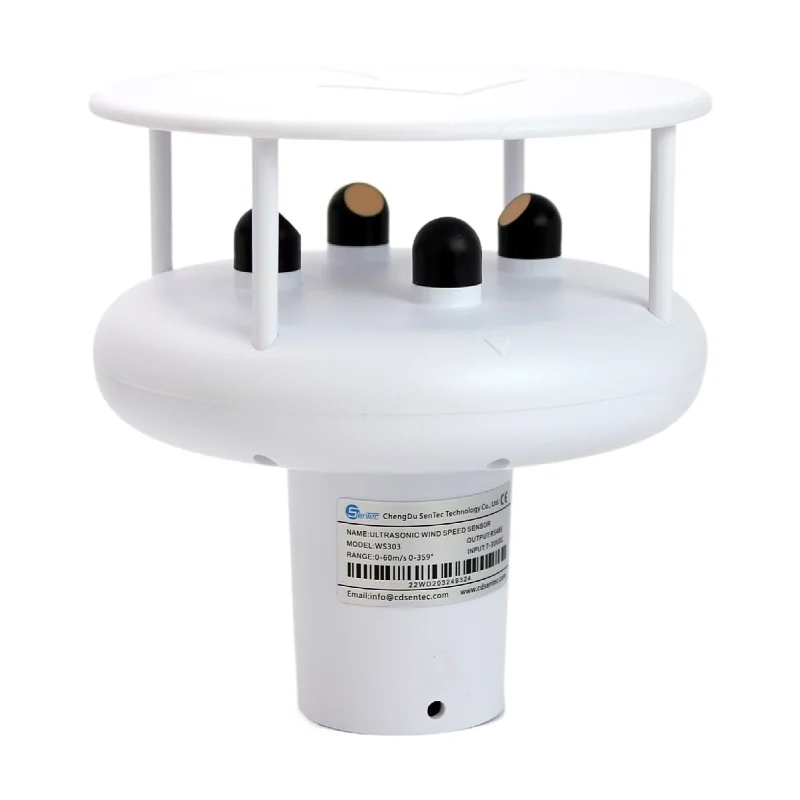

Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
- Category: Speed Measuring Instruments >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (62040924619):
Product Overview
Description

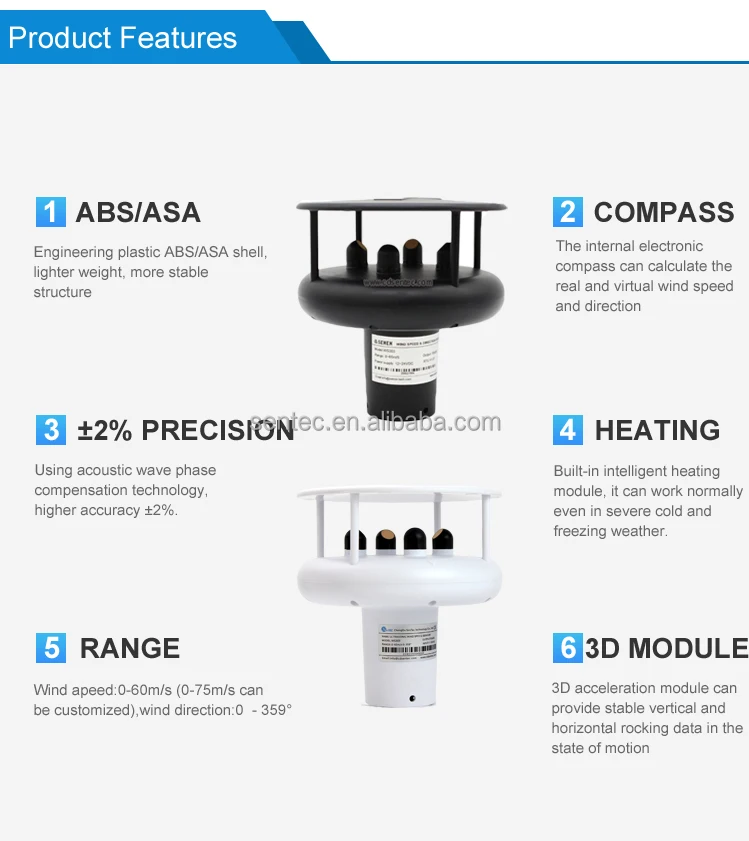

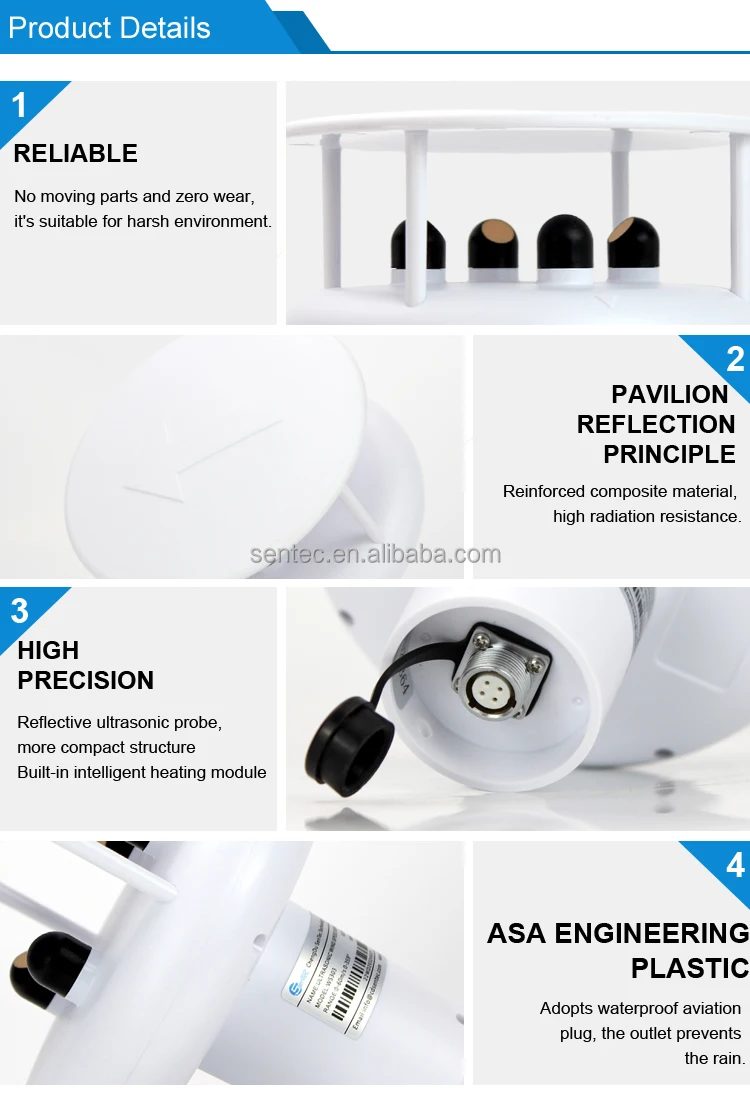

WS303 anemometer is a kind of instrument which can measure the wind speed, wind direction and acoustic
temperature by using the time difference of ultrasonic propagation in the air. Compact space structure makes the
volume smaller and the appearance more beautiful; all aluminum alloy shell makes the weight lighter; integral
heating can work normally in cold and frozen weather. It is recommended for wind power, tunnels, high-altitude
buildings and other fifields.

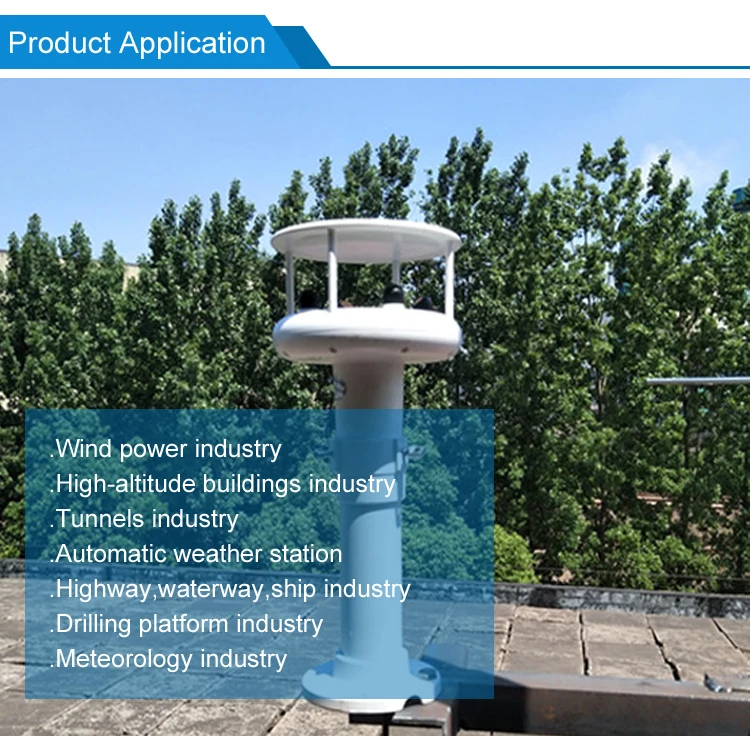

It is mainly used in highway, meteorology, drilling platform, waterway, port, wind power generation, ship, automatic
weather station and other industries.
temperature by using the time difference of ultrasonic propagation in the air. Compact space structure makes the
volume smaller and the appearance more beautiful; all aluminum alloy shell makes the weight lighter; integral
heating can work normally in cold and frozen weather. It is recommended for wind power, tunnels, high-altitude
buildings and other fifields.
It is mainly used in highway, meteorology, drilling platform, waterway, port, wind power generation, ship, automatic
weather station and other industries.
Product Name | High precision and high range ultrasonic wind speed and direction sensor |
Wind speed | 0 - 60m / S (customizable 0-75m / s) |
Wind direction | 0 - 359° |
Accuracy | wind speed: 0.01m/s, wind direction: 1° |
Power suppy | wind speed: 12~24VDC, wind direction: 5~30VDC |
Power consumption | wind speed:1.2W 0.12W (normal mode) 2.9w (heating state), wind direction: 0.12W (normal mode) 1.6W (heating state) 0.008W (sleep mode) |
Analog output | Two 4 - 20mA impedance less than 500 ohms (including cable impedance) |
Digital output | RS232, RS485, SDI-12 |
Protection level | IP65 |
Operating environment | -40℃- +70℃, 0 - 100% |
Storage temperature | -40℃- +80℃ |
EMC (electromagnetic compatibility) | EN61326 |

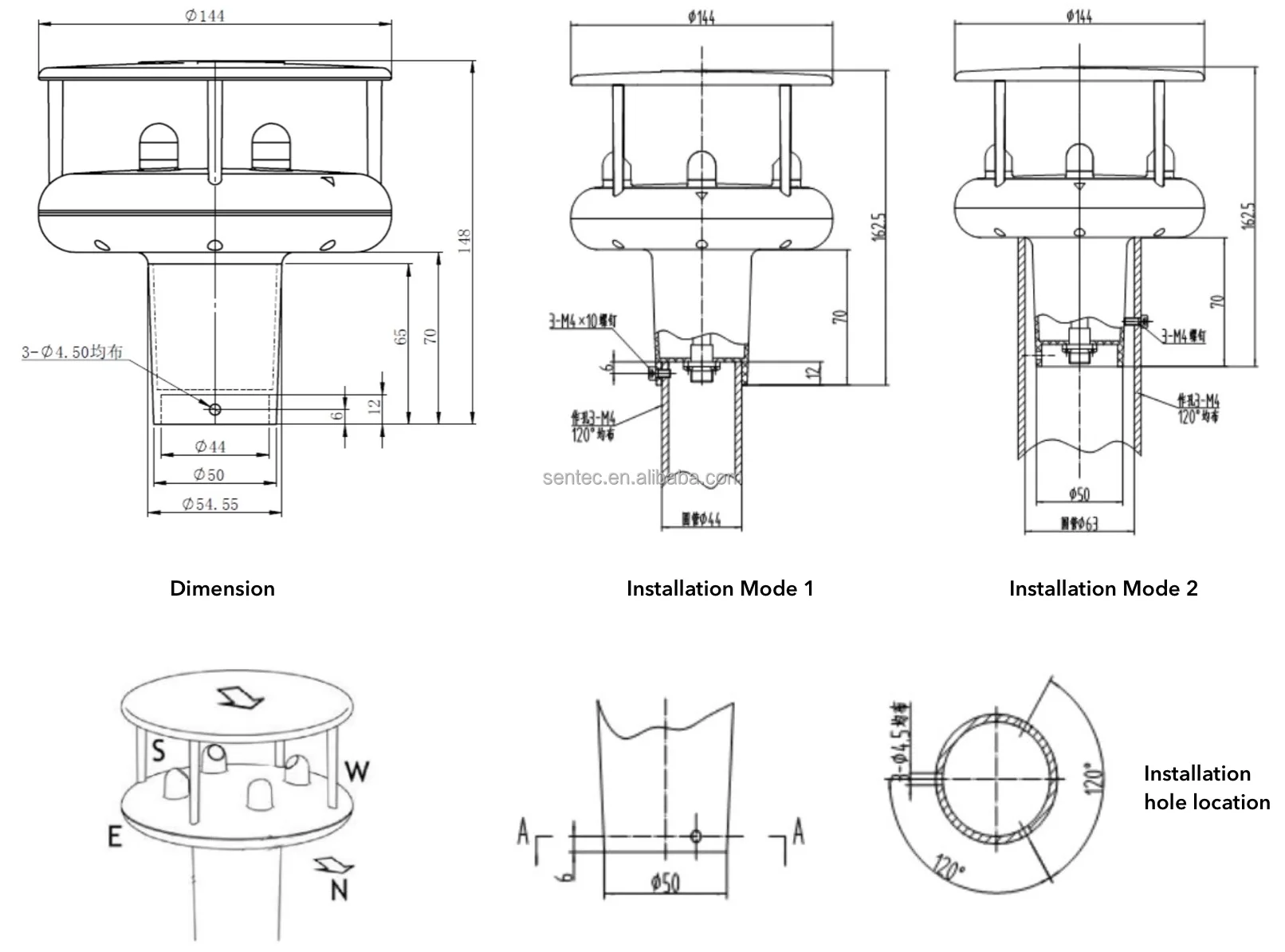

External dimension/weight | Φ144×148mm, 0.38kg |
Material | ASA engineering plastics / white, black |
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Ultrasonic high accuracy wind speed wind direction transmitter industrial anemometer sensor
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
