2024 new Hualong Machinery 5 axis cnc stone cutting machine Italian ESA CNC system for marble granite precise cuts
- Category: >>>
- Supplier: Fujian Province Hualong Machinery Co. Ltd.
Share on (1601280343785):
Product Overview
Description

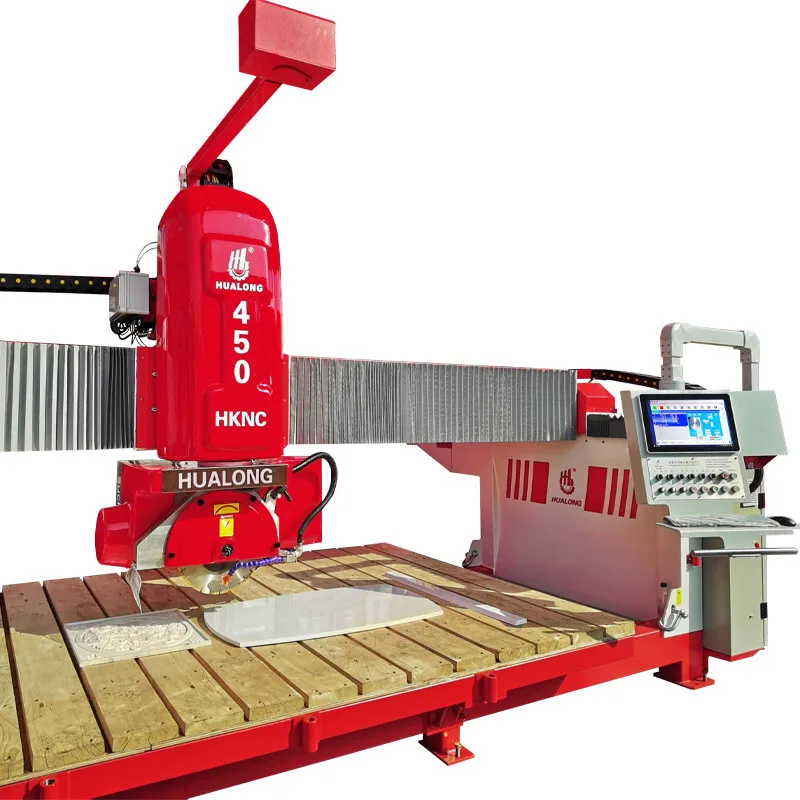

CNC Stone Machine
HKNC-450+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engaving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.

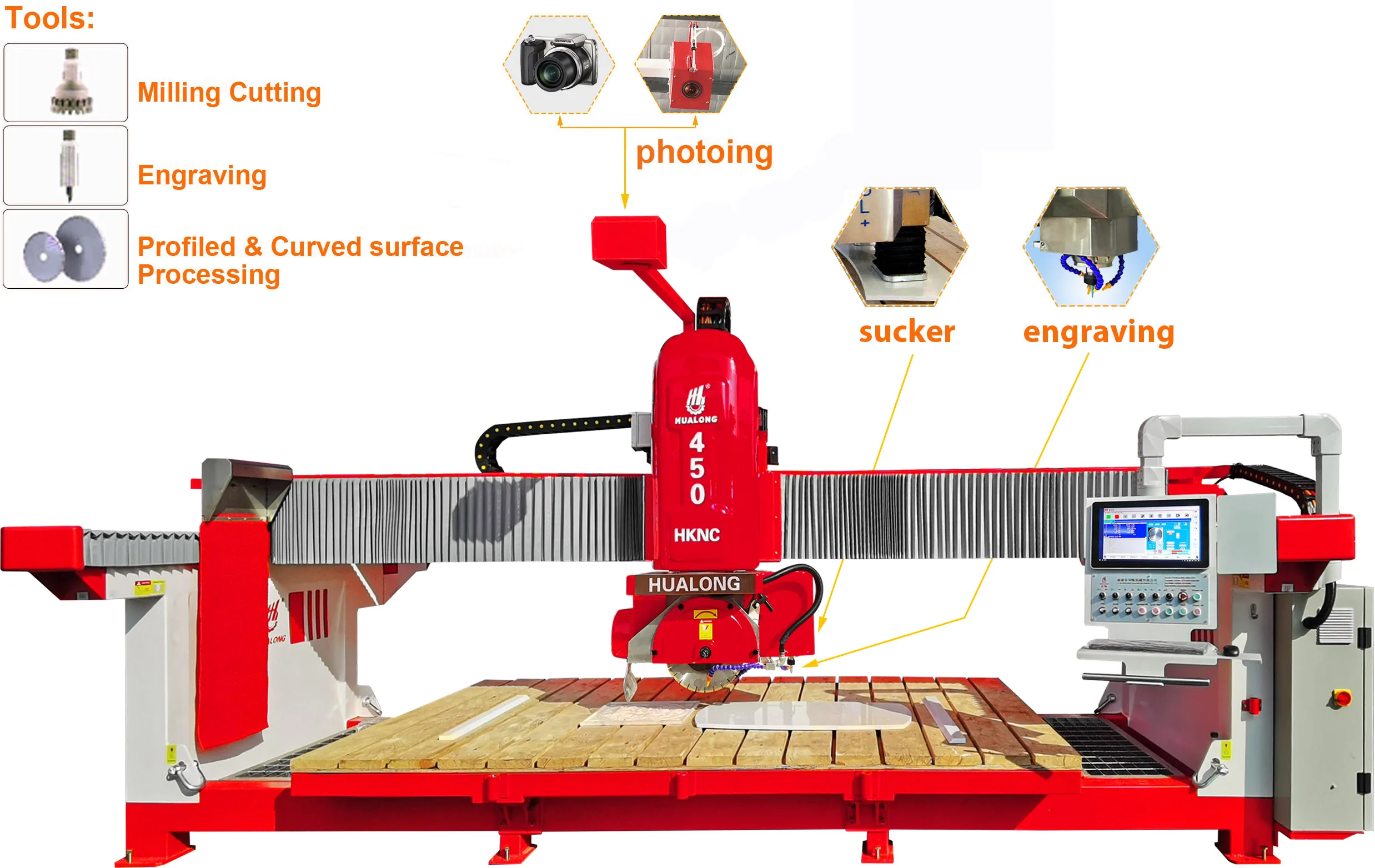

Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features
1) 5 axis lnterpolation with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.

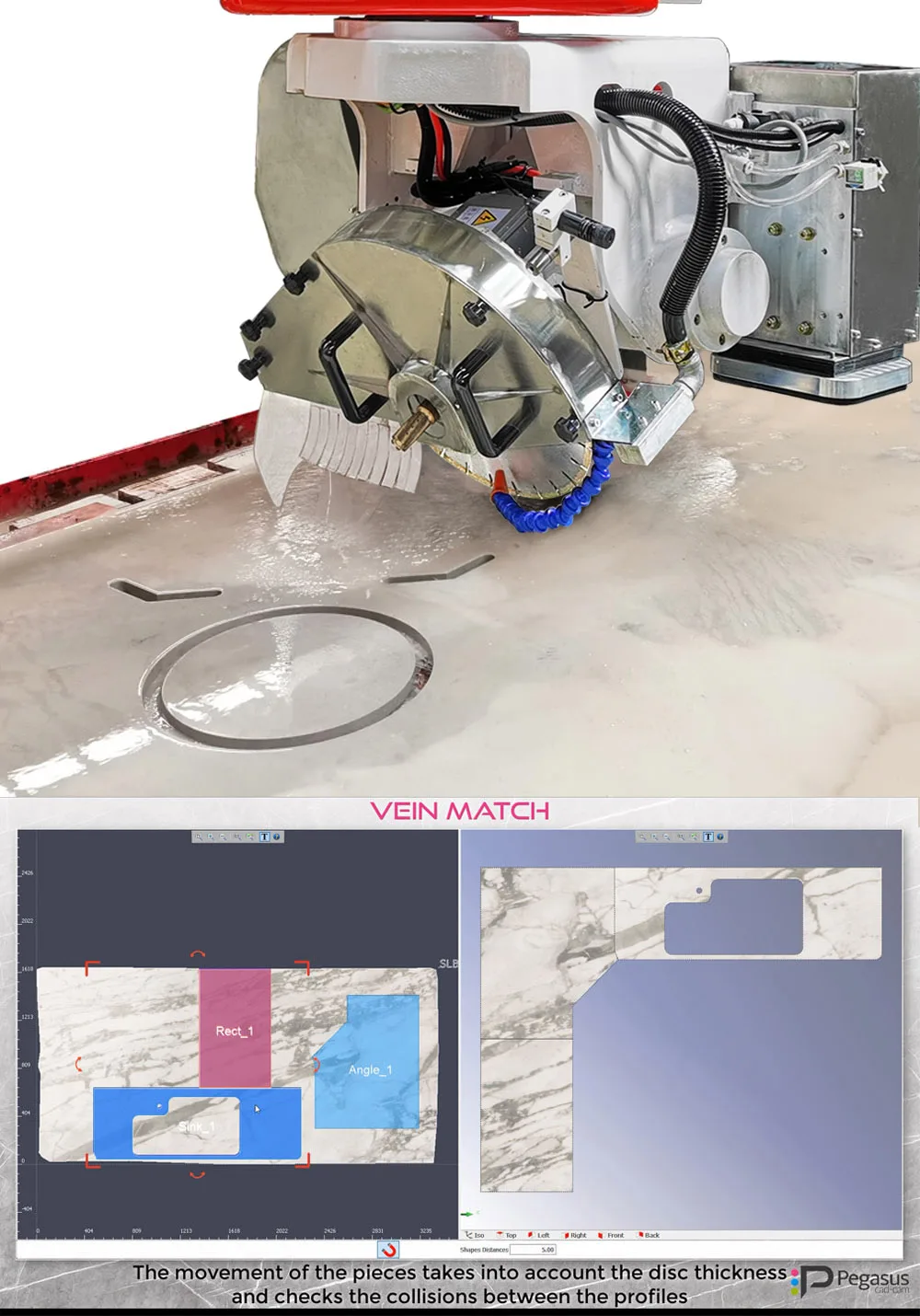

10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
6) Manual cuts available for simple machining.

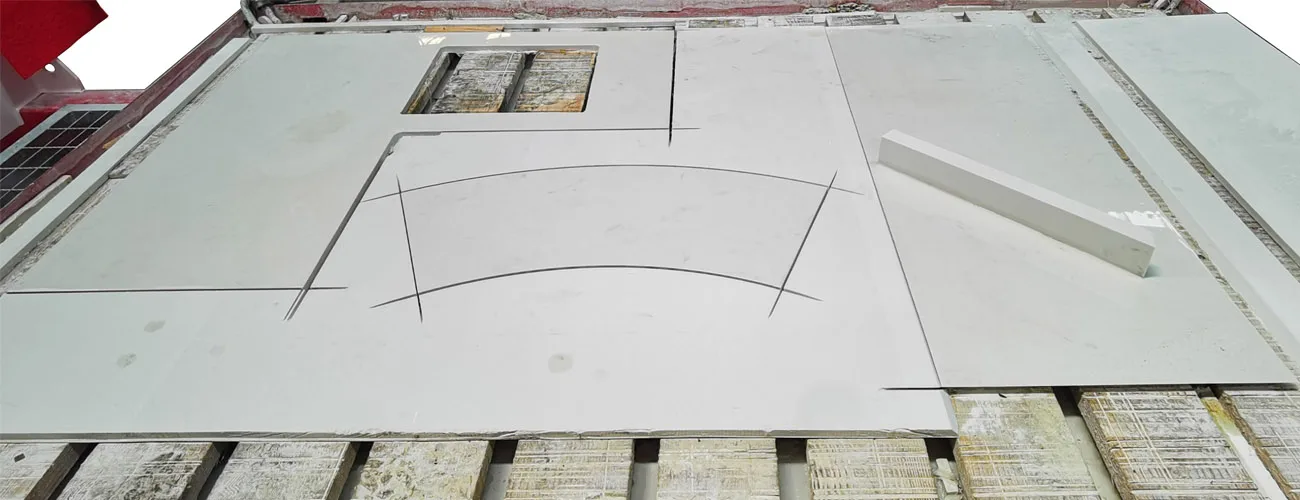

7) Nesting manual / automatic to optimize slab surface usage
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system
TECHNICAL DATA FOR HKNC-450 | ||||
Diameter of saw blade | ø350-ø450 | mm | ||
Dimension of working platform | 3500x2100 | mm | ||
Max. cutting length | 3500 | mm | ||
Max. cutting thickness | 95 | mm | ||
Max. lifting stroke | 250 | mm | ||
Max. lifting weight by sunction cups | 200 | kg | ||
Power of main motor | 15 | kw | ||
Power of cutter frame reciproctating motor | 2 | kw | ||
Power of crossbeam shifting motor | 1.1 | kw | ||
Power of hydraulic station motor | 2.2 | kw | ||
Power of lifting motor | 0.85 | kw | ||
Gross power | 22 | kw | ||
Water consumption | 2 | m3/h | ||
Gross weight | 4000 | kg | ||
Dimensions (L x W x H) | 5900x3380x2950 | mm | ||
Application Fileds:
* 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades

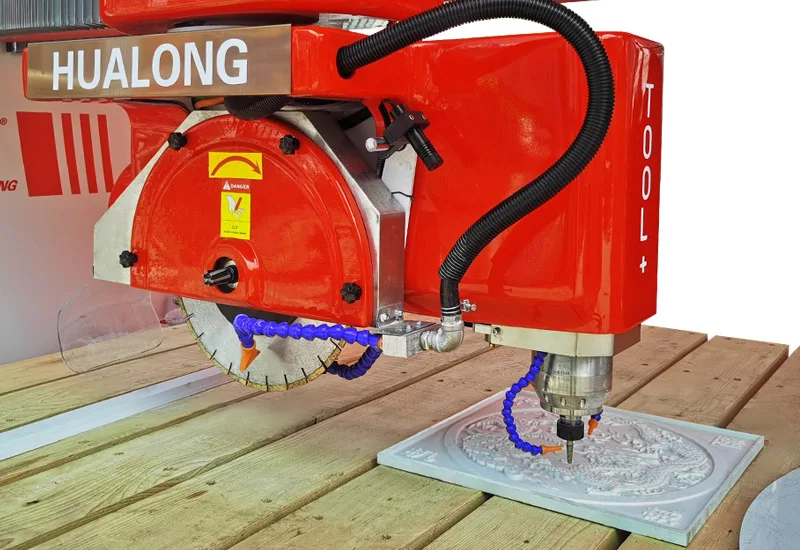

Sole Engraving Module (Optional)
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Power: 5.5 kw
Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or makes curve cutting, corner cutting by milling much faster too.
* Power: 5.5 kw
Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or makes curve cutting, corner cutting by milling much faster too.

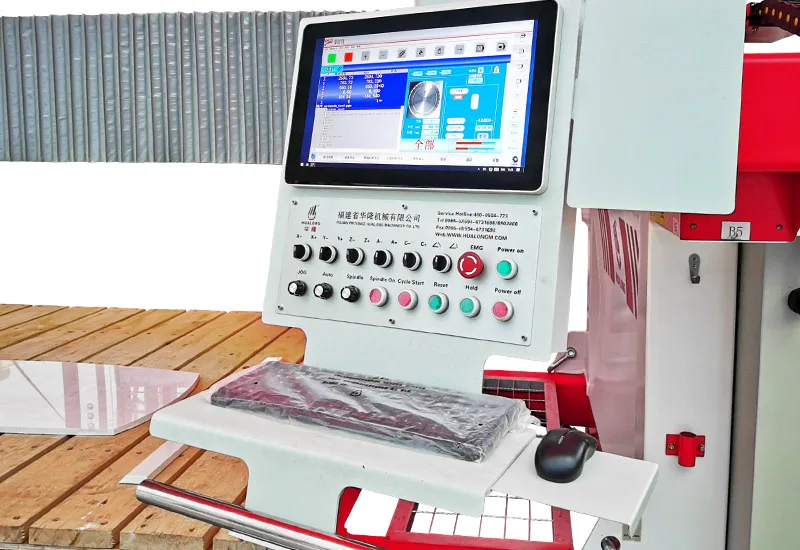

Control system -- CNC
Brand: ESA
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Software - Pegasus CAD/CAM
Brand: Pegasus
Original: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
Slab Image Capture
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Slab Thickness Detector (optional)
Origin: China
System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Rubber Platform (Optional)
Waterproof and no deformation
Safeguard Door (Optional)
Safe light curtain is recommended for preventing work-related injuries.
Galvanization (Optional)
Galvanizing can prevent the immersion of air, water and other corrosive media to steel, improve the corrosion resistance of the
machine, enhance mechanical strength, and extend the service life.
machine, enhance mechanical strength, and extend the service life.
Electric Cabinet
Branded electric companets such ESA, Schneider, Sanch are adopted to ensure stable performance.
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
VR
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
