Professional total station surveying instrument Non prism 800m
- Category: >>>
- Supplier: Changzhou BNF Advertising Equipment Co. Ltd.
Share on (1601280377790):
Product Overview
Description
Product Description
Produce | prism less total station | |
Telesope | ||
Image | Erect | |
Magnification | 30X | |
Effective aperture | 45mm | |
Resolving power | 4" | |
Field of view | 1°30' | |
Minimum focus distance | 1.5m | |
Distance measurement (under good weather condition) | ||
1P | 5.0km | |
3P | 7.5km | |
Reflectorless | 500m | |
Reflective sheet | 800m | |
Accuracy | Prism mode: ±2mm+2ppmxD | |
Without prism mode: ±5mm+3ppmxD | ||
Minimum count | 1mm | |
Distance unit | ft. or m selectable Measuring speed | |
Measuring Time | ||
Fine | 1.8sec (first time 2.5sec). | |
Tracking | 0.4sec | |
Maximum display | 999999.999m | |
Atmospheric correction | manual input or auto correction | |
Temperature | °C or F | |
Atmospheric pressure | manual input or auto correction | |
Atmospheric deflection & earth curvature correction | on(k=0.14/0.20)/off | |
Electronic angle | ||
Measurement method | Absolutely Encoding | |
Accuracy | 2" | |
Minimum reading | 1"/5"/10" | |
Plate level | 30"/2mm | |
Circular level | 8'/ 2mm | |
Vertical tilt sensor | available | |
Type | electronic | |
Compensation range | ±3' | |
Resolution | 1" | |
Plummet | laser plummet | |
Display | double side LCD display | |
Data port | RS-232 | |
Memory points | 50,000 points | |
Power | rechargeable battery pack | |
Working temperature | -20°C ~ +50°C | |
Net weight | 5.4kg | |
Package | plastic tool box with carton box | |
Shipment | Custom choice | |
MOQ | 1 set | |

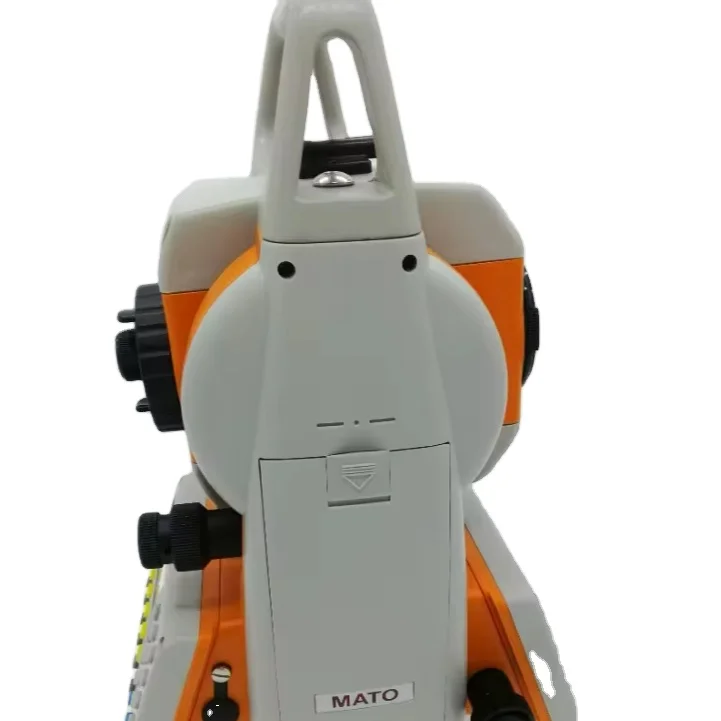

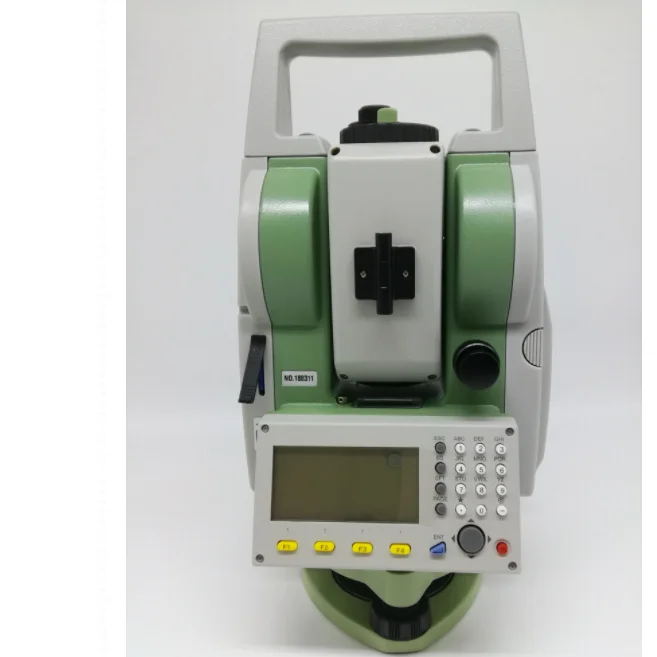

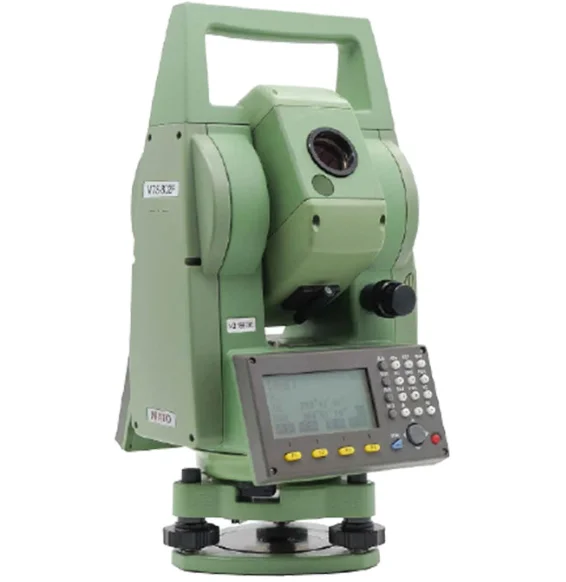

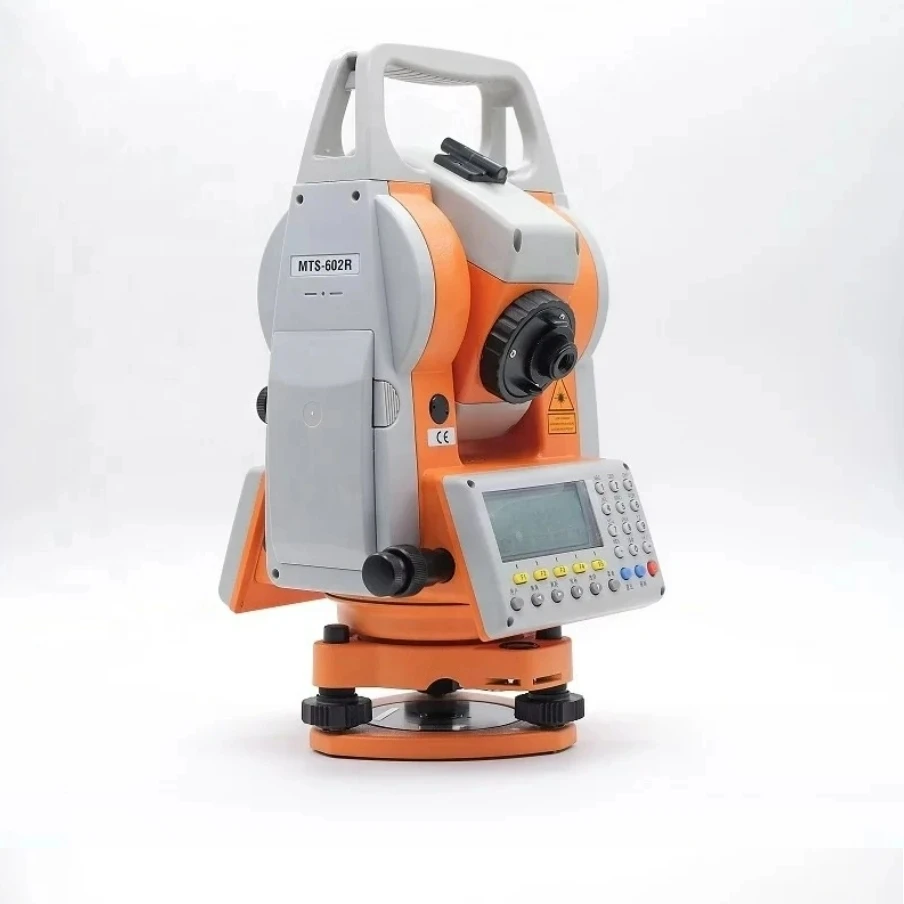

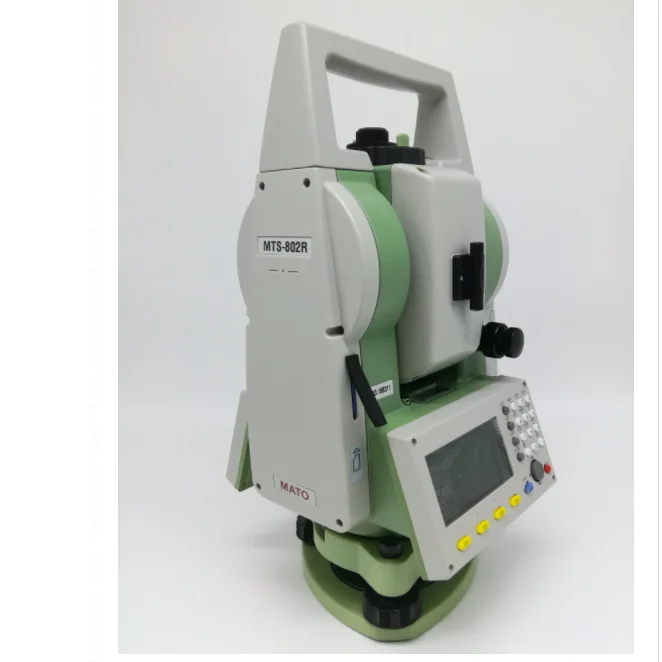

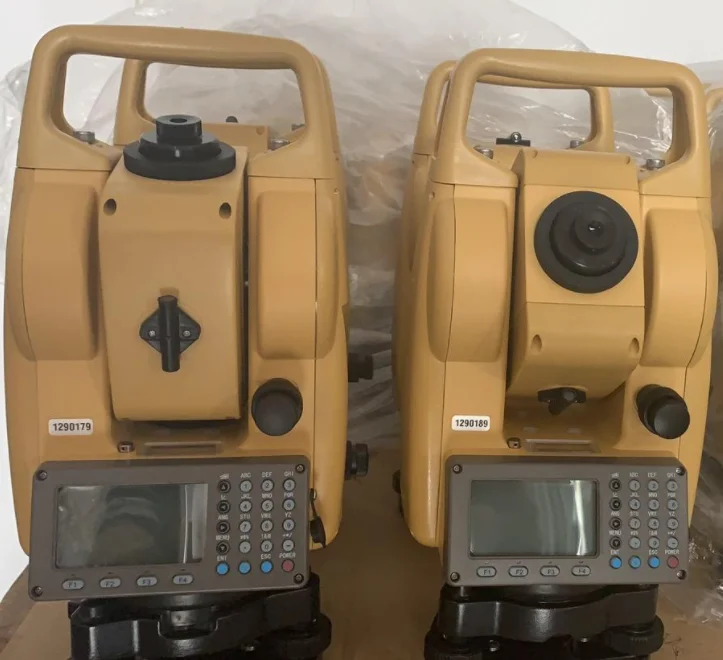

Detailed Images

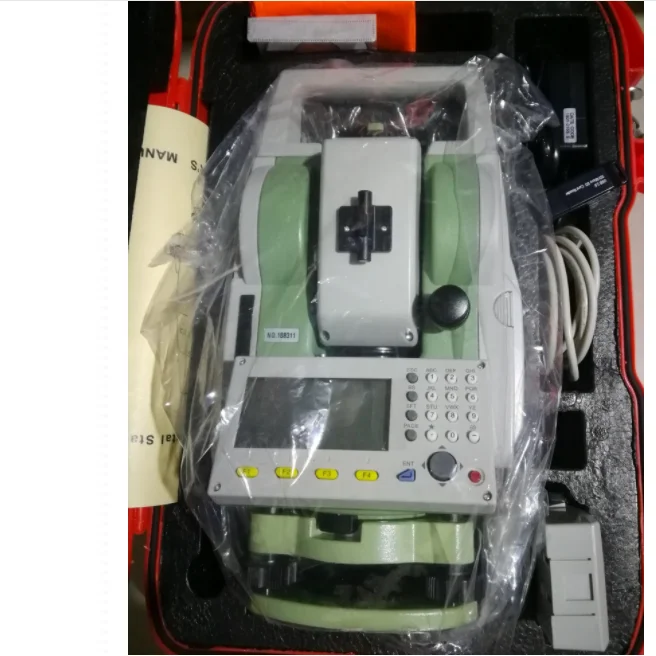

Packing & Delivery
Model | PCS/CTN | Weight | MOQ |
MTS800 | 1 | 5.4kg | 1 set |
