Industrial Grade Hydrostatic Water Tank Level Transmitter 3m Range 5m Cable 43mm OD Indicator Probe Sensor Liquid Applications

Share on (1601280535962):


Price:$25.00 - $85.00

Quantity:


Product Overview

Description



Product Description





AOBO 100m 200m Well Water Depth Level Meter Sensor Price

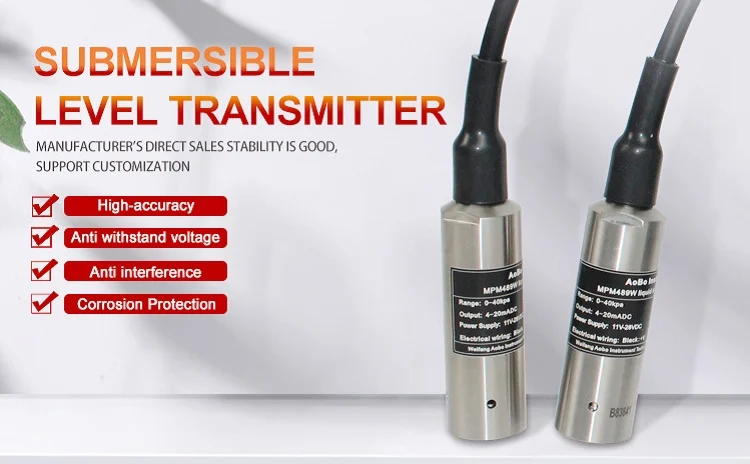

AOBO Hydrostatic Level meter sensor uses high performance pressure sensor as sensing element, which could measure liquid static pressure that is positive proportional to level depth precisely, and transform pressure signal into standard current/voltage signal output by amplifier circuit to measure accurate level depth. The product has high accuracy, compact size, easy installation, can be submersible into the liquid directly to measure level from transmitter bottom to the liquid surface.

It can be widely used for water and level measure and control of petroleum, chemiindustry, power station, city water supply and drainage and hydrology, etc.

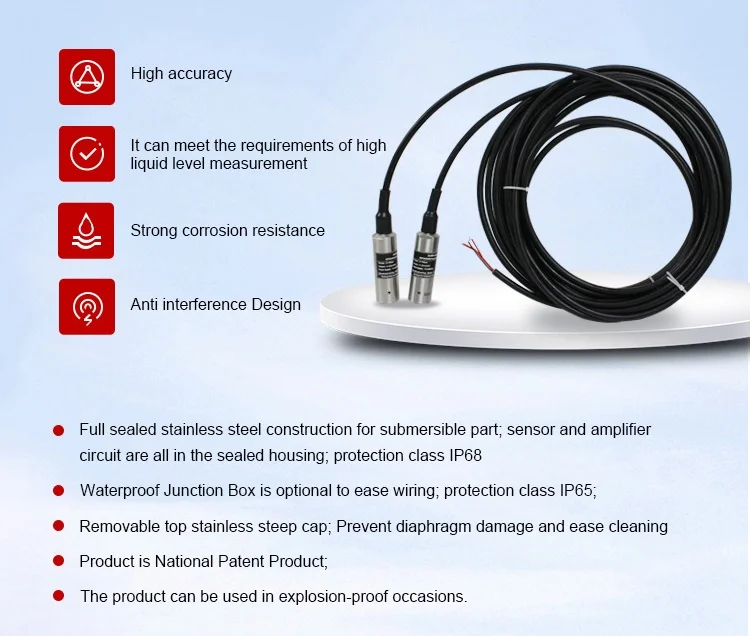

Product Features



Charateristics of AOBO Hydrostatic Level Transmitter

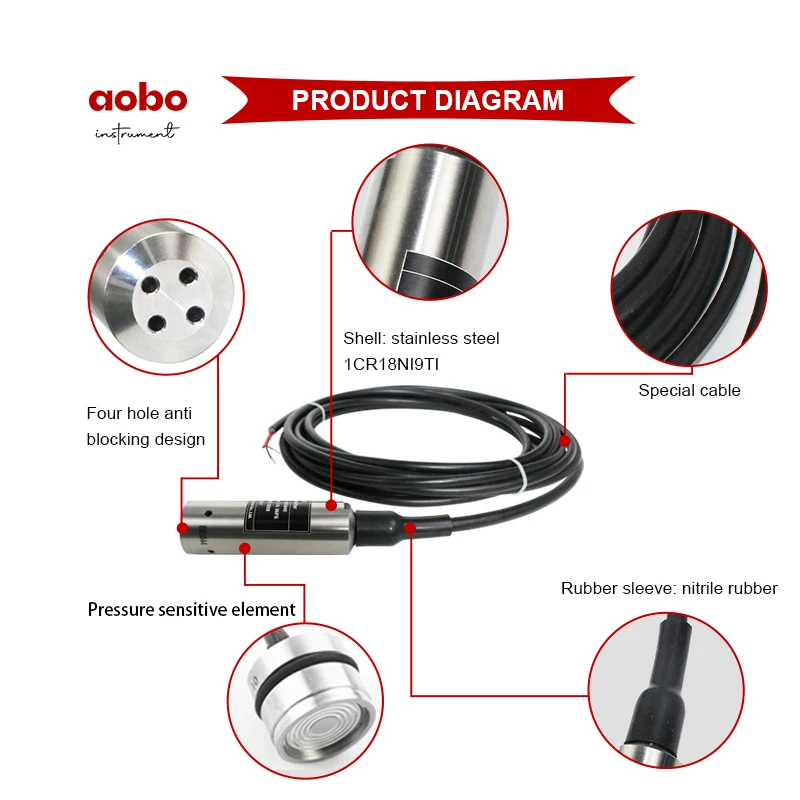

1)Full sealed stainless steel construction for submersible part; sensor and amplifier circuit are all in the sealed housing; protection class IP68;
2)Waterproof Junction Box is optional to ease wiring; protection class IP65;
3)Removable top stainless steep cap; Prevent diaphragm damage and ease cleaning;
4)The product can be used in explosion-proof occasions





Product Paramenters




Item
Hydrostatic Level Transmitter
Measuring Range
1,2,5,10,20,50,100,200....500 m
Accuracy
±0.5%, ±1%
Power Supply
DC 24V (12-32V)
Temperature Compensation Range
0℃ - 60℃
Output Signal
(4-20)mA, (1-5)V
Measure Medium
Oil, water, gas and other media compatible
Material
Stainless steel
Protection Grade
IP68

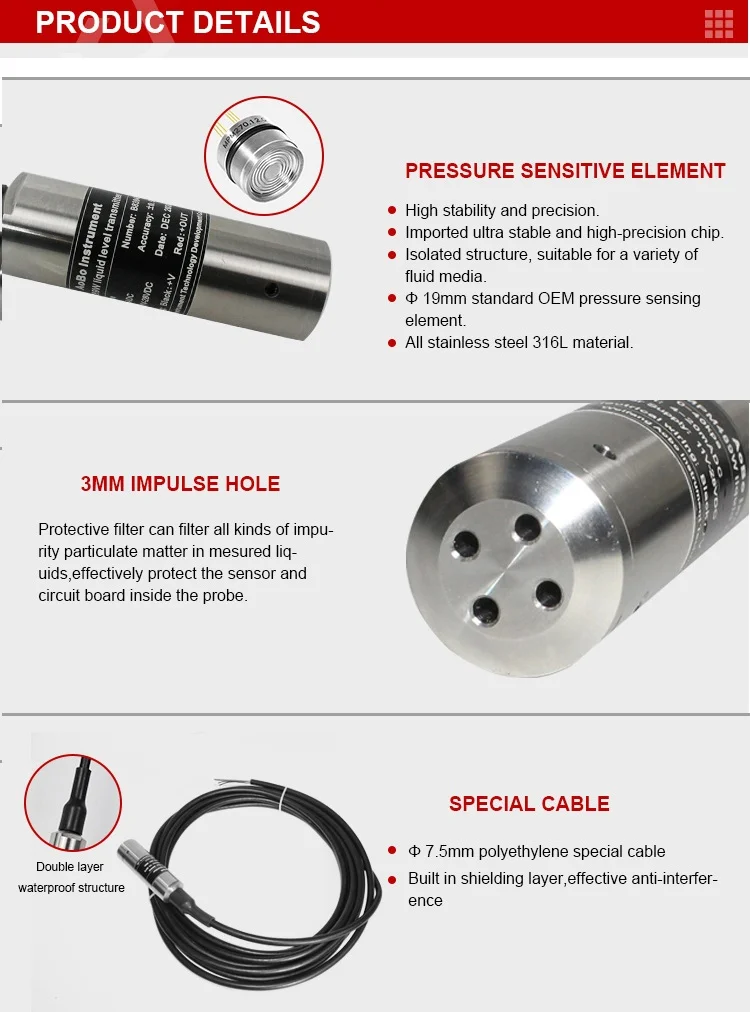

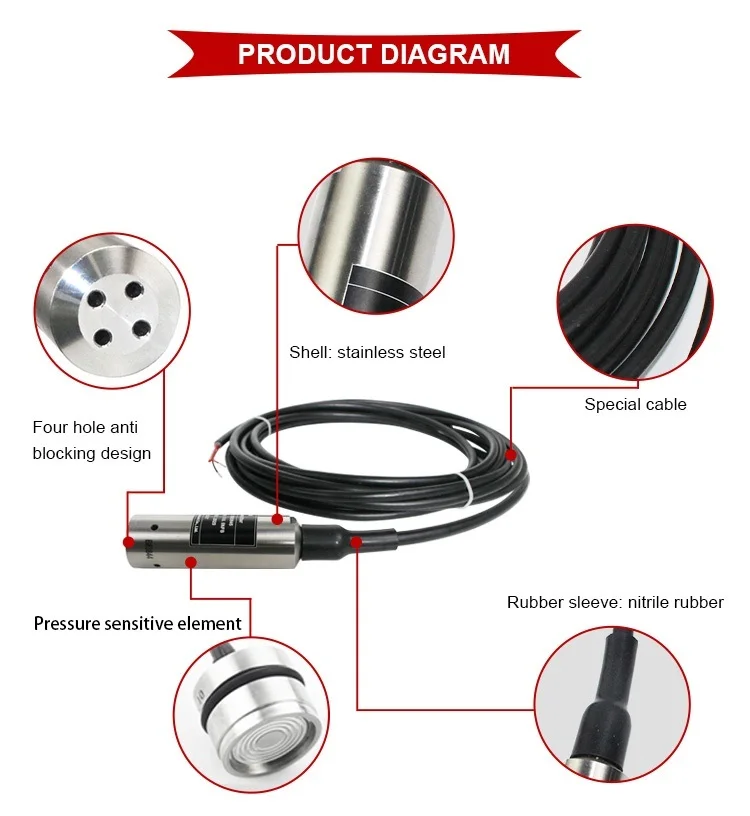

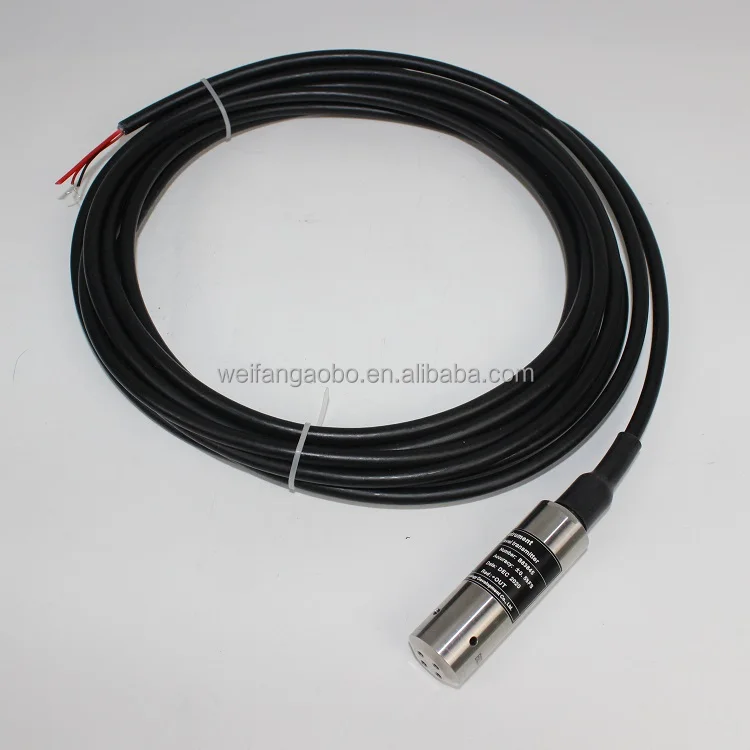

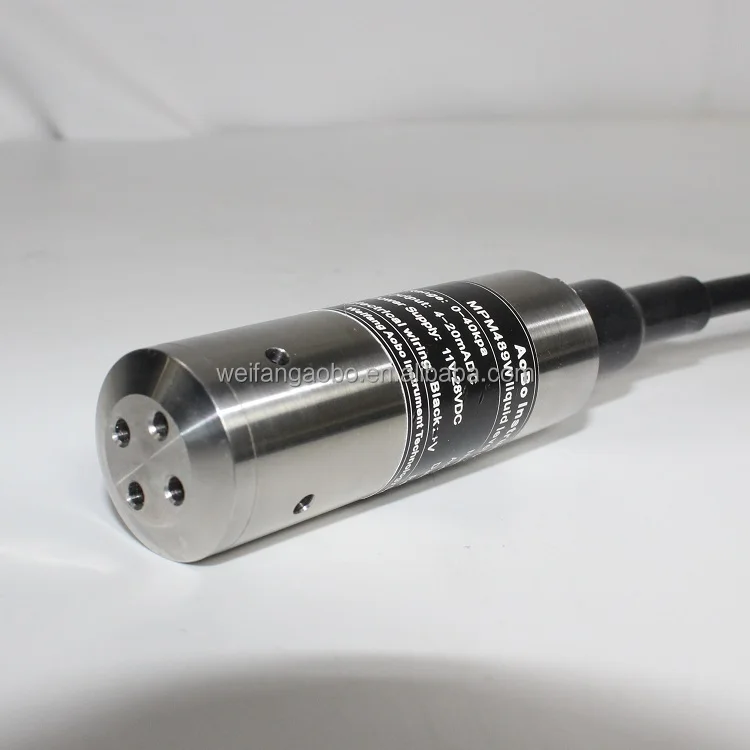

Product Detail

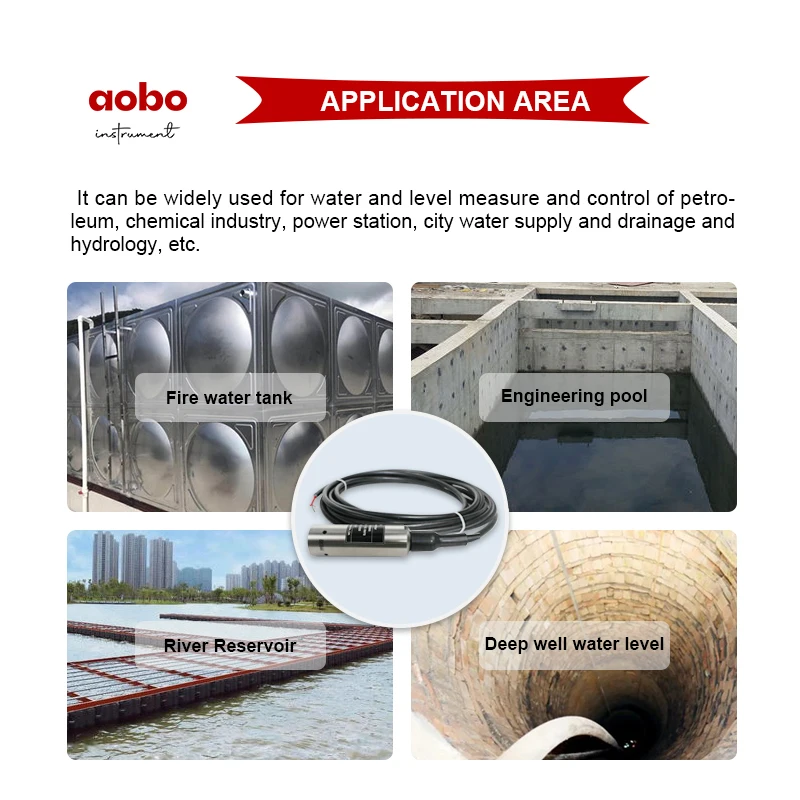

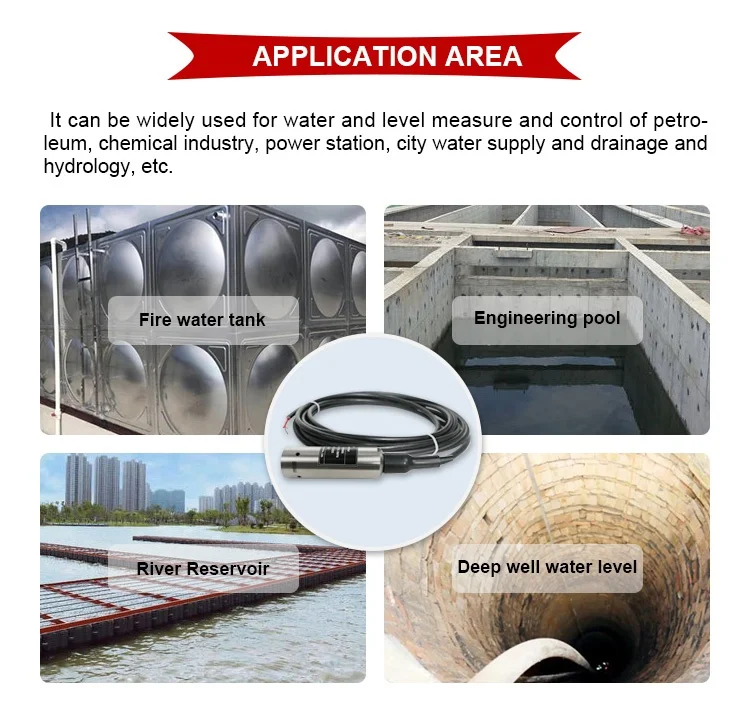

Product Application



The Hydrostatic level transmitter is widely used for water and level measure and control of petro-leum, chemical industry, power station, city water supply and drainage and hydrology etc.







Company Profile

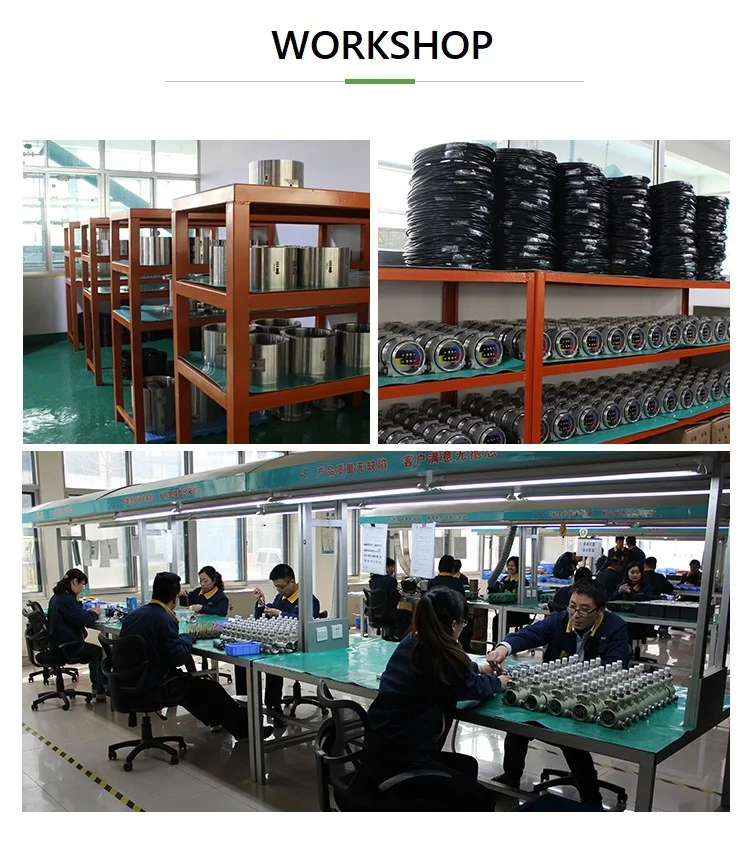

Weifang AOBO Instrumentation Technology Development Co., Ltd. is a high-tech enterprise established in 2002 and is specialized in the development and production of flow meters and measurement of the control systems.

These products are widely used in the measurement, monitoring and data management of liquid, gas and steam in all professions and trades. With advanced technology, reliable quality, good service and good reputation, our company wins praise from numerous customers and has become the fixed supply factory for many large enterprises.

Our company adheres to the service motto of "science, fairness, justice and accuracy", bases on the solid foundation of quality and is dedicated to providing high-quality services to meet the needs of customers.
AOBO 100m 200m Well Water Depth Level Meter Sensor Price
