Algae Tubular Separator Centrifuge
US $6800
Disc centrifugal coconut oil separator, virgin coconut oil centrifuge
- Category: >>>
- Supplier: Liaoyang Xianglong Pharmaceutical Machinery Co. Ltd.
Share on (1601280965485):
Product Overview
Description
Product Description

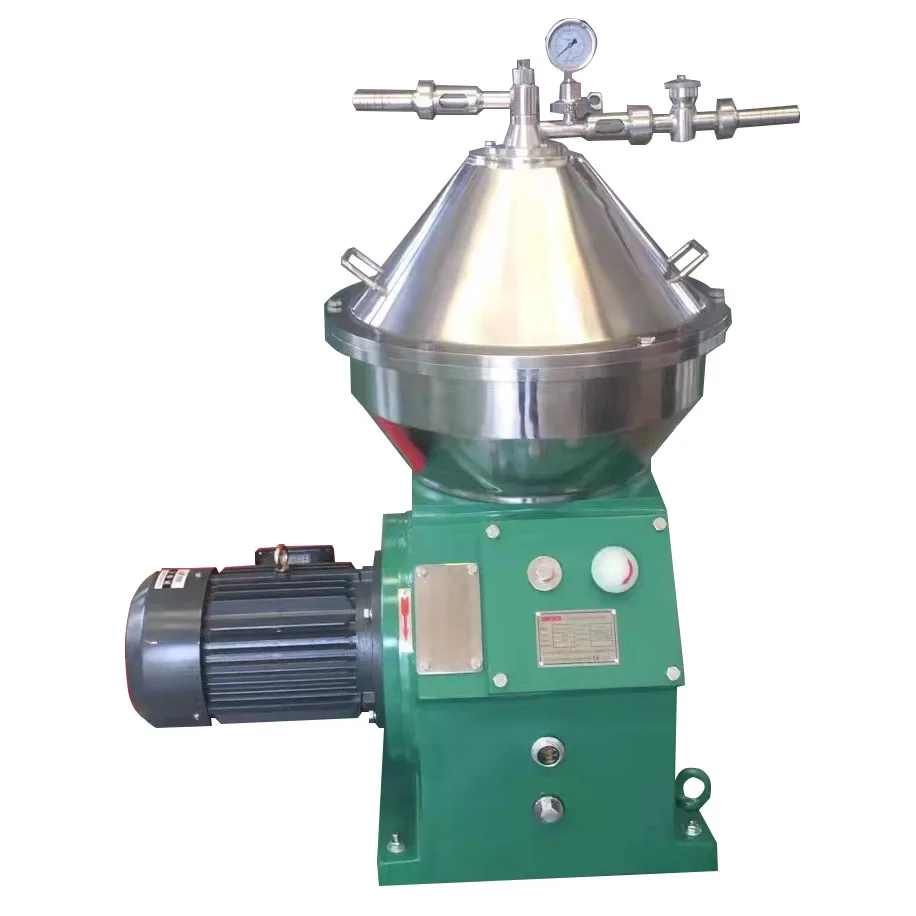

NRSDH5 disc stack centrifuge for milk separating
NRSKH series of disc stack centrifugal separator is widely applied for the milk skimming, whey protein separating, production of butter or casein, or anhydrous butter concentration, etc. in those medium/ large enterprises. In the machine, the closed structure is adopted, and all contact parts are made of stainless steel, which meets the food hygiene standard.
As user’s demand, the machine can be used for the separating for milk, residue, casein or whey protein, etc., and have the clarifying and purifying for whey.
As user’s demand, the machine can be used for the separating for milk, residue, casein or whey protein, etc., and have the clarifying and purifying for whey.
Features
* All contact parts are made of stainless steel, which meets the food hygiene standard.
* With the friction clutch, the start is reliable, the noise is low, and there is no overloading.
* With SKF bearing, the working precision is ensured.
* With the PLC control, the automation is high.
* With the friction clutch, the start is reliable, the noise is low, and there is no overloading.
* With SKF bearing, the working precision is ensured.
* With the PLC control, the automation is high.
Technical specifications
Model | NRSDH5 | NRSDH10 | NRSDH30 | NRSDH50 |
Product capacity ( L/h) | 500 | 1000 | 3000 | 5000 |
Bowl diameter ( mm) | 230 | 300 | 400 | 475 |
Rotary speed (rpm) | 8000 | 7320 | 6500 | 6000 |
Motor power (KW) | 1.5 | 4 | 7.5 | 11 |
Sludging-mode | PLC automatic control | PLC automatic control | PLC automatic control | PLC automatic control |
Output pressure (KPa) | 100-350 | 100-350 | 100-350 | 100-350 |
Temperature (°C) | 40-45 | 40-45 | 40-45 | 40-45 |
Fat in skim milk(%) | ≤0.04 | ≤0.04 | ≤0.04 | ≤0.04 |
Weight(KG) | 120 | 450 | 650 | 1100 |
Dimension(mm) | 700*550*800 | 800*600*1250 | 1100*650*1550 | 1100*700*1600 |
Model | NRSDH100 | NRSDH150 | NRSDH200 |
Product capacity (L/h) | 10000 | 15000 | 20000 |
Bowl diameter (mm) | 540 | 620 | 800 |
Rotary speed (rpm) | 6000 | 5800 | 5000 |
Motor power (KW) | 15 | 22 | 30 |
Sludging-mode | PLC automatic control | PLC automatic control | PLC automatic control |
Output pressure (KPa) | 100-350 | 100-350 | 100-350 |
Temperature (°C) | 40-45 | 40-45 | 40-45 |
Fat in skim milk (%) | ≤0.04 | ≤0.04 | ≤0.04 |
Weight (KG) | 1500 | 1800 | 2200 |
Dimension (mm) | 1400*1000*1800 | 1600*1400*1850 | 1800*1500*1900 |
Details Images
Related products
Our Company
NRSKH series of disc stack centrifugal separator is widely applied for the milk skimming, whey protein separating, production of butter or casein, or anhydrous butter concentration, etc. in those medium/ large enterprises. In the machine, the closed structure is adopted, and all contact parts are made of stainless steel, which meets the food hygiene standard.
As user’s demand, the machine can be used for the separating for milk, residue, casein or whey protein, etc., and have the
clarifying and purifying for whey.
As user’s demand, the machine can be used for the separating for milk, residue, casein or whey protein, etc., and have the
clarifying and purifying for whey.
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
