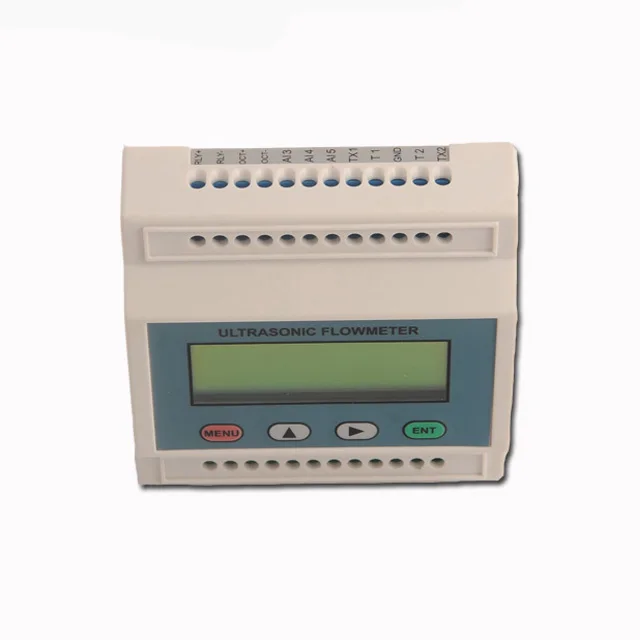

Taijia portable clamp on ultrasonic flow meter with model rs485 modbus digital water flow meter and display
- Category: >>>
- Supplier: Dalian Taijia Technology Co. Ltd.
Share on (1601281158710):
Product Overview
Description
BTU Meter and chilled water flow meter for HVAC Industry
Model Number | TDS-100M ultrasonic flow meter |
Accuracy | better than 1% |
Repeatabilty | better than 0.2% |
Output | 1XMODBUS,RS485,4-20mA and OCT output |

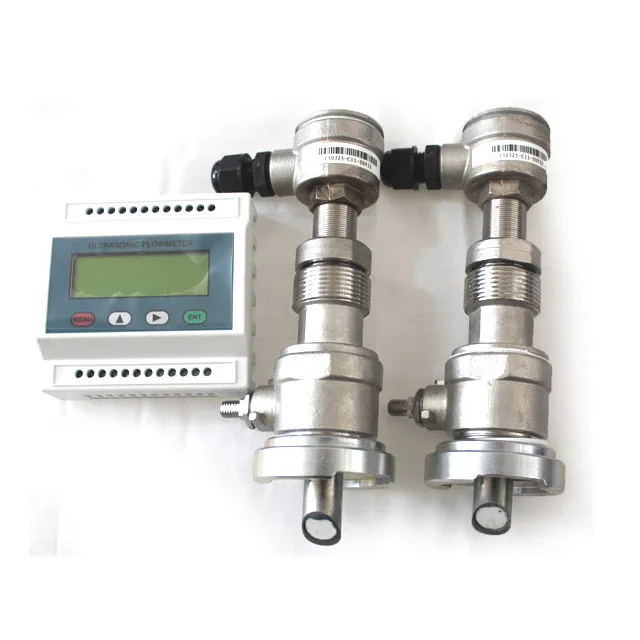

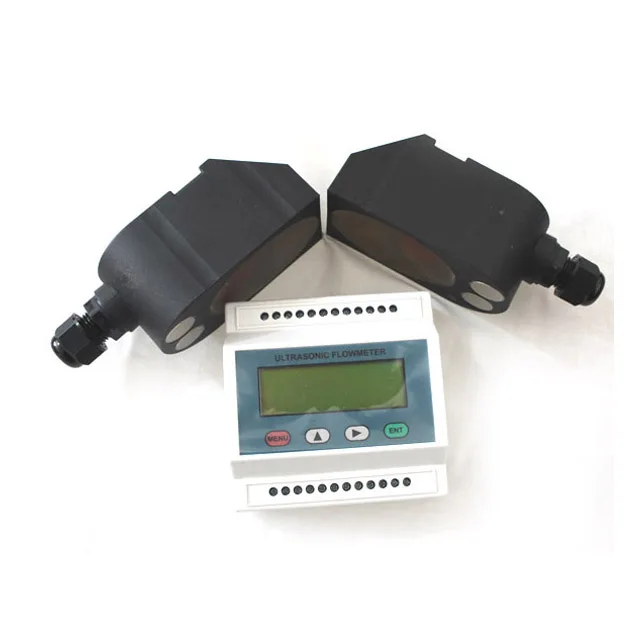

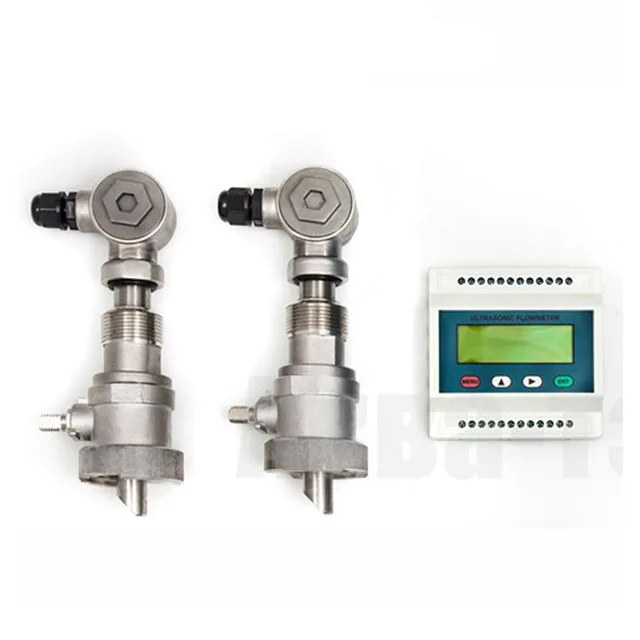

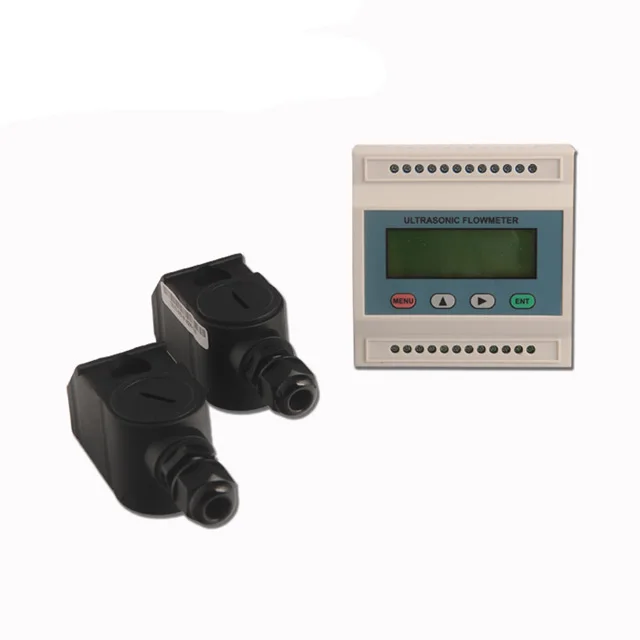

Transducer type | Operate with clamp on, insertion and flow-cell transducer |
Flash memory | All the parameters can be solidify into the flash memory |
Several optional function module to be chosen to add to the main module | |
Communication protocol | 3 different kinds of communication protocol supported by the same time, include MODBUS |
Parallel interface for display and keypad. | |
Operate | easy to operate |
Digital inputs | can be inputted by used of the analog inputs |
Power supply | 8-36VDC~24VDC |
Batch controller | full programmable built-in batch controller can be started by key-pressing, inputs to the analog inputs or through MODBUS protocol |
Date totalizers | Record as much as 128 sets of data by day, 64 sets of data by month. |
MODBUS registers | All the data can be retrieved by use of the MODBUS registers |
In order to help you get the exact model, pls offer the following necessary info:
1. The pipe size is DN___mm or ___inch .
2. The medium is _____.
3. Temperature is _____ °C.
4. The material of the pipe is _____.
5. Other requirements :___________.
If you have any query, pls feel free to contact me.
 |  |  |  |
Company Information

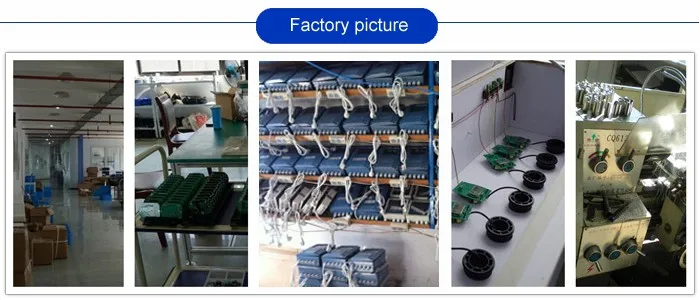

Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
1. Warranty: 18 Months.
2. Deliver Time: 7 working days after payments received.
3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.
4. We accept T/T,Western Union,PayPal & Secure Payment.
