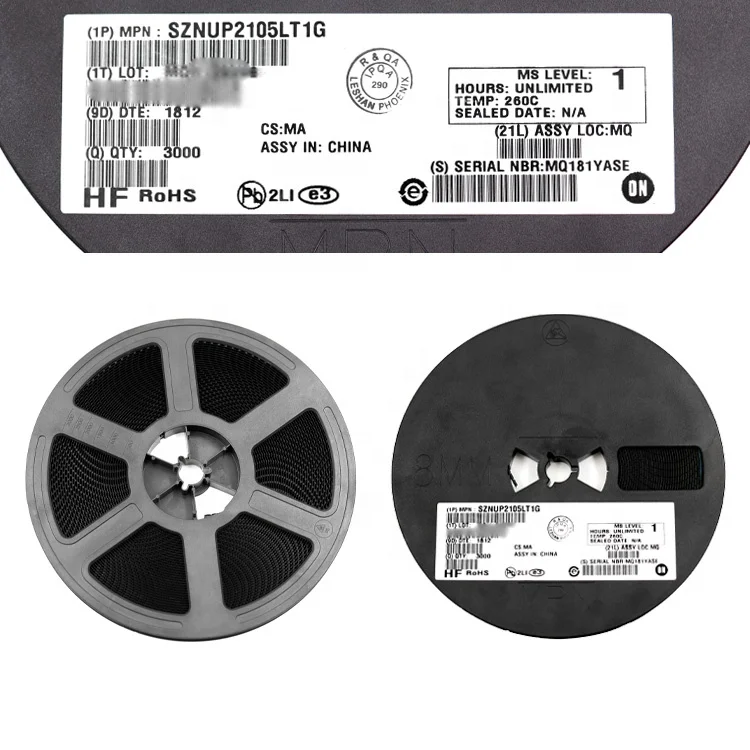

SZNUP2105LT1G onsemi AEC Q101 Qualified Automotive Grade Transient Voltage Suppressor Zener TVS Diodes 27V ESD Protection Diodes
- Category: >>>
- Supplier: Nanjing HSER Electronic Technology Co. Ltd
Share on (1601281246632):
Product Overview
Description
Tips
Dear Customer!
1. Because of the frequent fluctuation of original factory prices and the exchange rate, prices on this page may differ from those shown on the website. Please consult sales for final transaction price before payment.
Best regards
Nanjing HSER Electronic Technology Co., LTD
Product Description
NUP2105L, SZNUP2105L
27V ESD Protection Diode Dual Line CAN Bus Protector
Features
• Low Reverse Leakage Current (< 100 nA)
• Low Capacitance High−Speed CAN Data Rates
• IEC Compatibility:
− IEC 61000−4−2 (ESD): Level 4, 30 kV
− IEC 61000−4−4 (EFT): 40 A – 5/50 ns
− IEC 61000−4−5 (Lighting) 8.0 A (8/20 s)
• ISO 7637−2 Pulse 2a: Repetitive Load Switch Disconnect, 9.5 A
• ISO 7637−3 Pulse 3a,b: Repetitive Load Switching Fast Transients, 50 A
• Flammability Rating UL 94 V−0
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications
• Industrial Control Networks
♦ Smart Distribution Systems (SDS®)
♦ DeviceNet™
• Automotive Networks
♦ Low and High−Speed CAN
♦ Fault Tolerant CAN
For more specifications, please take datasheet for reference.
Specification
Manufacturer Product Number (Mfr) | SZNUP2105LT1G | |
Category | Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes | |
Manufacturer | onsemi | |
Series | SZNUP2105LT1G | |

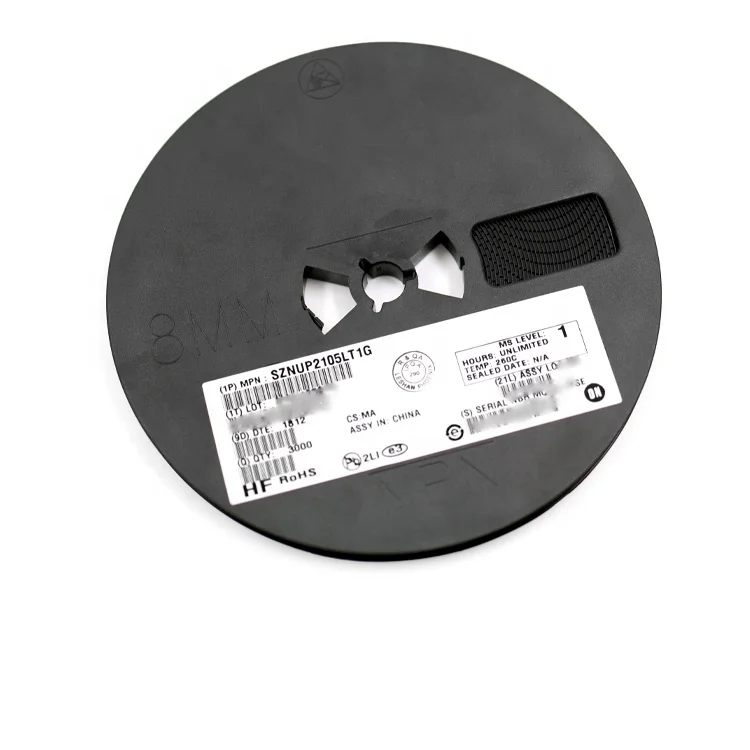

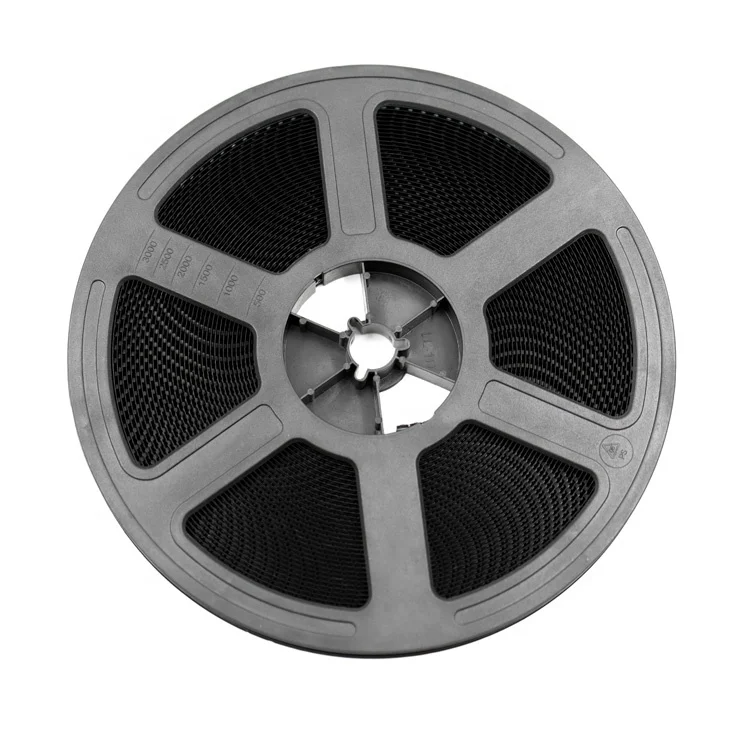

Packaging | Tape & Reel (TR) Cut Tape (CT) | |
Part Status | Active | |
Type | Zener | |
Bidirectional Channels | 2 | |
Voltage - Reverse Standoff (Typ) | 24V (Min) | |
Voltage - Breakdown (Min) | 26.2V | |
Voltage - Clamping (Max) @ Ipp | 44V | |
Current - Peak Pulse (10/1000µs) | 8A (8/20µs) | |
Power - Peak Pulse | 350W | |
Power Line Protection | No | |
Applications | - | |
Capacitance @ Frequency | 30pF @ 1MHz | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Grade | Automotive | |
Qualification | AEC-Q101 | |
Mounting Type | Surface Mount | |

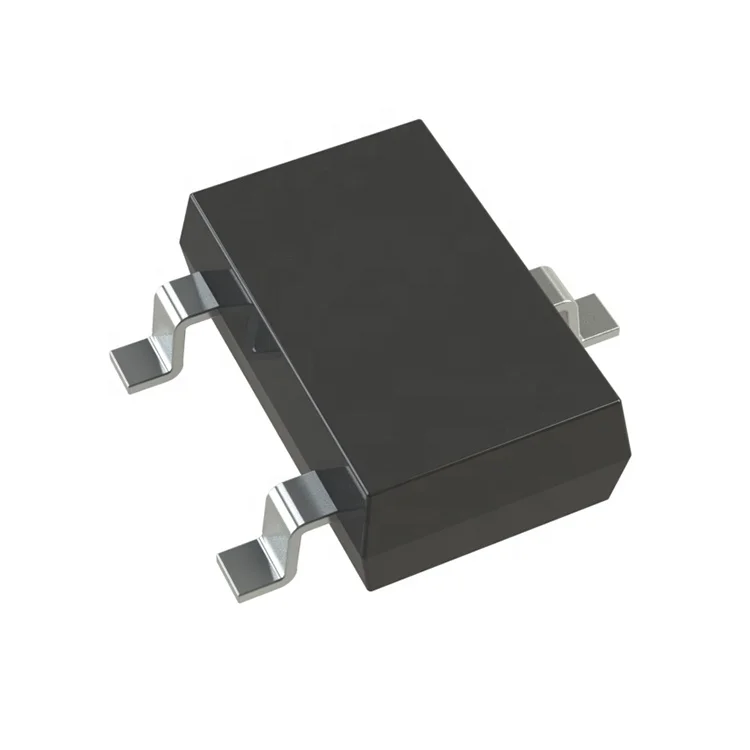

Supplier Device Package | SOT-23-3 (TO-236) | |
Base Product Number | SZNUP2105 | |
Please contact our sales for more information, such as Date Code, MPQ, Samples, Datasheet,etc. | ||
