Product Overview
Description

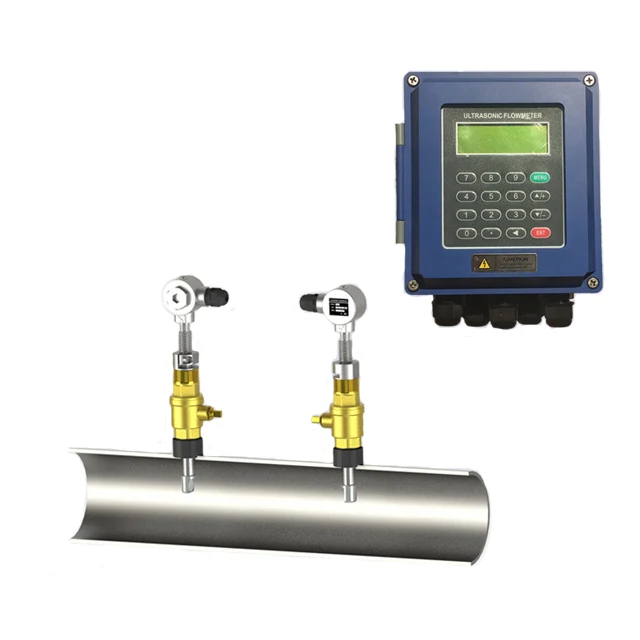

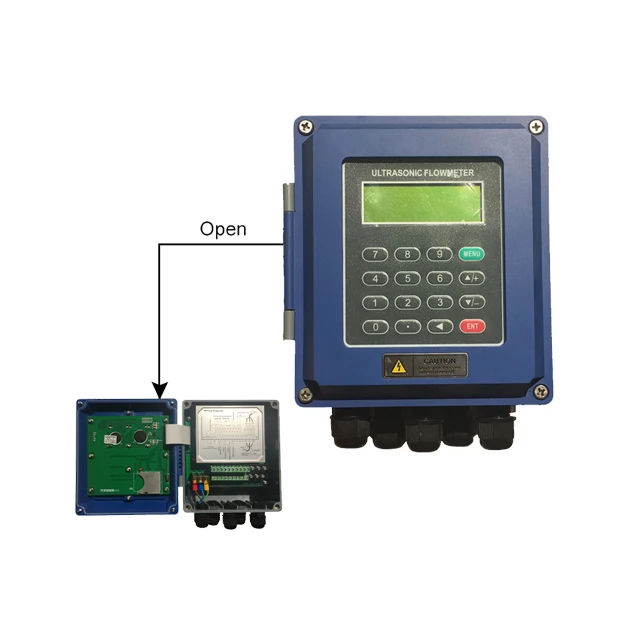

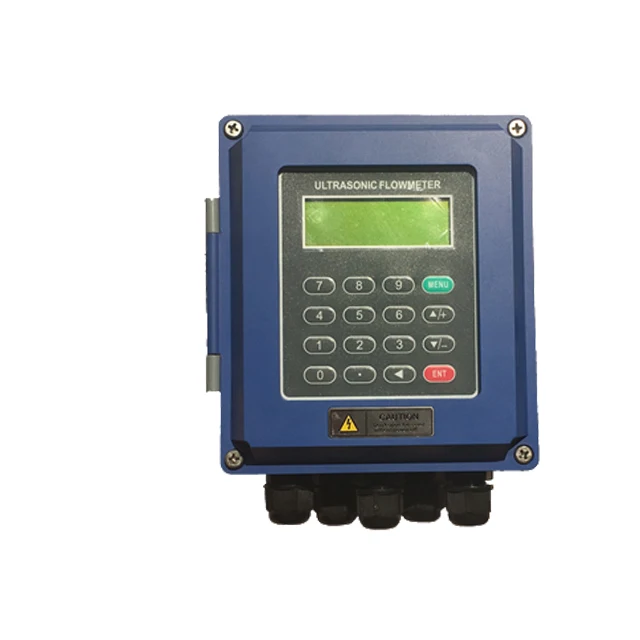

TUF2000 Serial Wall Mounted Ultrasonic Flowmeter
Introduction of Ultrasonic flow meter
TUF-200B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc.
Specifications of Ultrasonic flow meter
Performance &Parameter | ||
Convertor | Principle | Transit-time ultrasonic flowmeter |
Accuracy | ±1% | |
Display | 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish | |
Signal output | 1way 4-20mA output, electric resistance 0-1K, accuracy0.1% | |
1 way OCT pulse output(Pulse width-1000ms, default is 200ms)) | ||
1 way Relay output | ||
Signal input | 3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level | |
Connect the temperature transducer P100, can finish the heat/energy measurement. | ||
Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS. | |
Special Cable | Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m | |
Pipe Installation Condition | Pipe material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed |
Pipe diameter | 25-6000mm | |
Straight pipe | Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. | |
Measuring Medium | Type of liquid | Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc |
Temperature | -30-160℃ | |
Turbidity | No more than 10000ppm and less bubble | |
Flow rate | 0-±7m/s | |
Temperature | Convertor; -20-60℃; Flow Transducer: -30-160℃ | |
Humidity | Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m | |
Working Environment | Temperature | Convertor; -20-60℃; Flow Transducer: -30-160℃ |
Humidity | Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m | |
Power Supply | DC8-36V or AC85-264V(Optional) | |
Power Consumption | 1.5W | |
Dimension | 132*150*85mm(convertor) | |

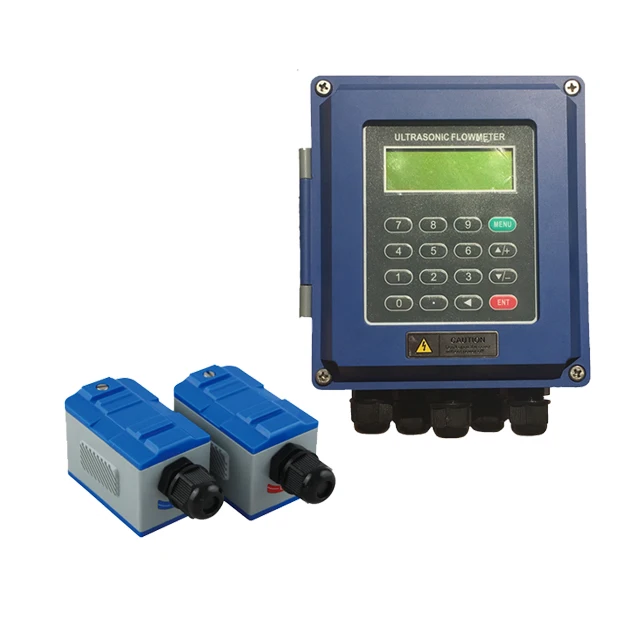

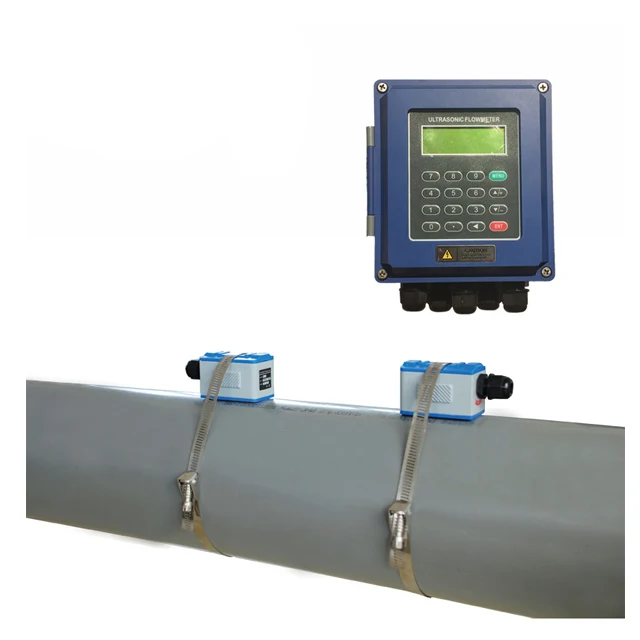

Types | Spec. | Model | Measure range(mm) | Temperature |
Clamp on | Small | TS-2 | DN15~100 | -30~90℃ |
Medium | TM-1 | DN50~700 | -30~90℃ | |
Large | TL-1 | DN300~6000 | -30~90℃ | |
High temperature clamp on | Small | TS-2-HT | DN15~100 | -40~160℃ |
Medium | TM-1-HT | DN50~700 | -40~160℃ | |
Large | TL-1- HT | DN300~6000 | -40~160℃ | |
Mounting bracket clamp on | Small | HS | DN15~100 | -30~90℃ |
Medium | HM | DN50~300 | -30~90℃ | |
Large | EB-1 | DN300~700 | -30~90℃ | |
High temperature mounting bracket clamp on | Small | HS-HT | DN15~100 | -40~160℃ |
Medium | HM-HT | DN50~300 | -40~160℃ | |
Large | EB-1-HT | DN300~700 | -40~160℃ |
 |  |  |  |
Company Information
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
