15 inch Silver 1024*768 N2930 Quad Core CPU 4G RAM 64G SSD Industrial i Touch Screen Computer

Share on (1601281387616):


Price:

Quantity:


Product Overview

Description


Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store


Bulk Order !!!!!!!


More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.


15 inch 1024*768 Intel Bay Trail J1900 Quad Core RAM 4G/8G SSD 64G/128G/256G With Touch Screen Rugged Computer


Ordersssssssssss!!!!!











Product Description





1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3G/WIFI for optional .





2. With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automation applications.





3.With 15inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard, support Windows XP(Pre-install), Windows XP/ win7 system ,CF,HDD,SDD, multiple I/O interfaces.











































































































































































Features

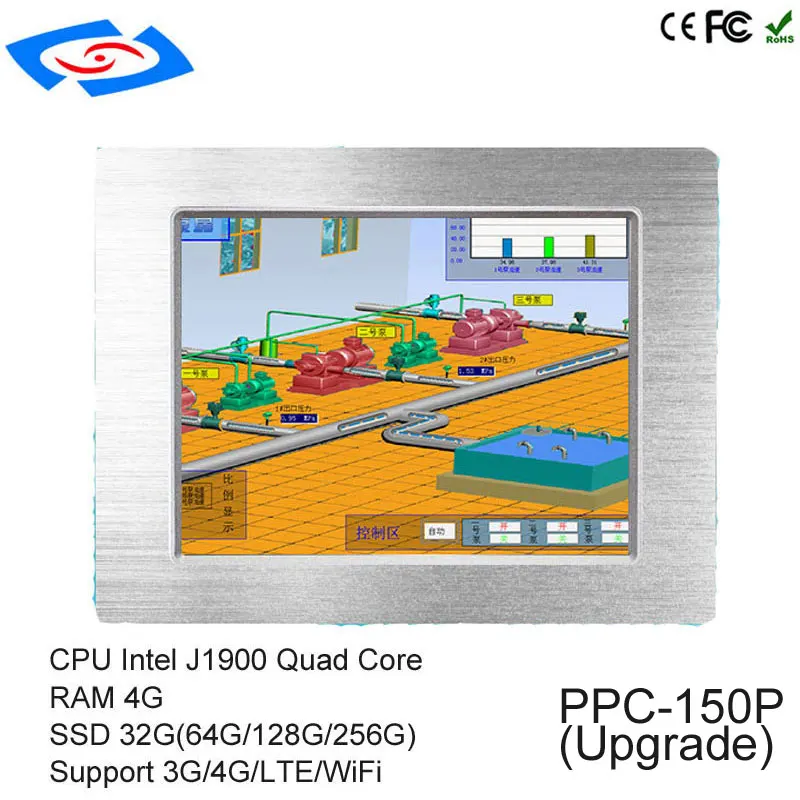

Model NamePPC-150P
Display
Size15"
Resolution1024×768
Brightness300cd/m2
Contrast350:1
Touch Screen4-wire China resistive touch screen
LCD screenindustrial LCD display
System
CPUIntel N2930 Quad Core 2GHZ,CPU Power Consumption 10W
ChipsetIntel Bay Trail SOC
MemoryRAM Onboard 4G  DDR3 4G MAX 8G
StorageSSD 64G(Up to 128G/256G)
Optional 2.5 Inch SATA HDD 320G/500G/1TB etc.
SystemWin7/Linux/Win8/Win10

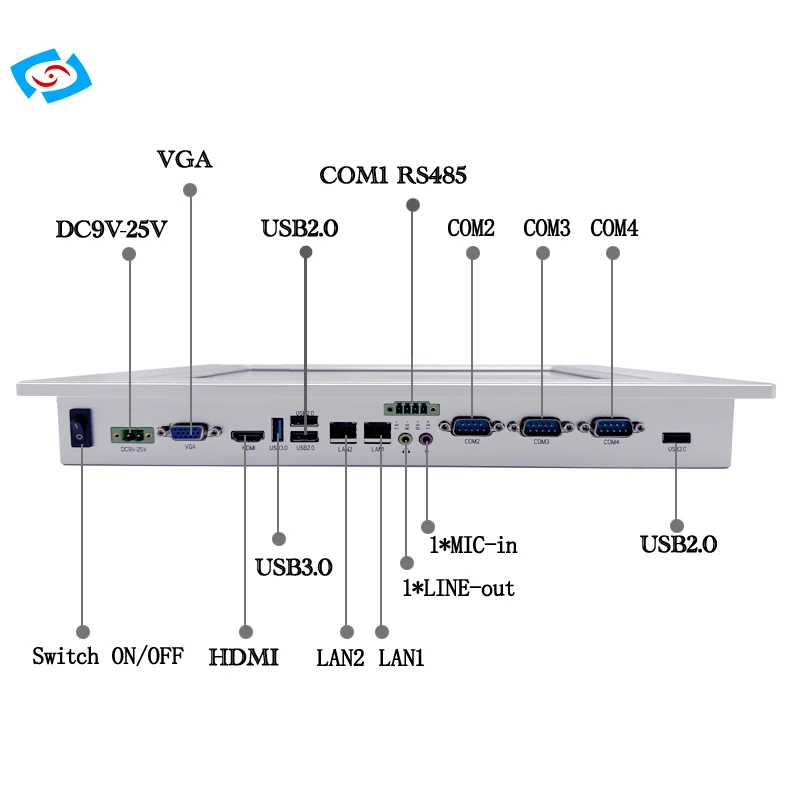

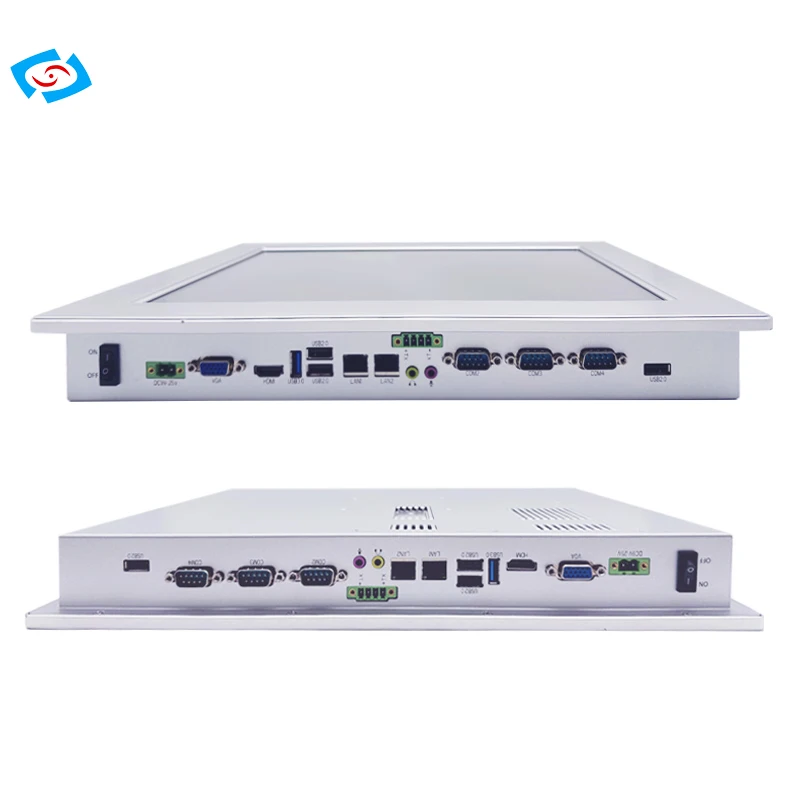

I/O
Lan2×10/100/1000Mbps RJ LAN,Lan chip RTL8111E
Serial PortCOM1×RS485/RS422(default RS485 with Optical isolation ),
COM2-COM3×RS232/485(default RS232)
COM4×RS232(optional add 2 RS232)
USB3×USB2.0 1×USB3.0
DisplayIntegrated Intel HD Graphics,1×VGA,
AudioIntegrated ALC662, optional 1×MIC-in,1×Line-out/2W Built-in speaker
Others1×GPIO(optional), 1×LPT(optional), 1×PS/2(optional)
Patulous Option1×SIM,2×min-pcie(wifi/3G optional)
Watchdog Timer1-255s,Programmable
Thermal methodsFanless
Consumptionless than 15W
Working Temp.-20℃-60℃,Humidity 5%-90%(Non-condensing)
Storage Temp.-20℃-60℃,Humidity 5%-90%(Non-condensing)
PowerWide voltage 9V~25V,12V/5A Power adapter
Switch ON/OFFSwitch
Shell MaterialHigh-strength aluminum brushed pane;IP65;Spray painting
ColorSilver
Net Weight5.05kg
InstallationEmbedded mounted,VESA rack mounted
Dimensions(mm)376.5×303.5×47
Hole size(mm)352.5×278
Warranty
Warranty12 months
Order information
Model NamePPC-150P
Standard

N2930 CPU 4G  SSD  64G(Win7) 1024×768


4×USB 4×COM 2×LAN 1×VGA


Accessories

12V/5A Power adapter,Power line,4 sets embedded Install button,


RS485 connector


Optional

RAM 8G   SSD 64G/128G/256G   3G/WIFI    AUDIO/


Built-in speaker etc.








.jpg


















Company Information


 ShenZhen Ling Jiang Computer Technology CO.,LTD was established in 2002.


We are specialized in Researching,Designing,Manufacturing,Assembing and


exporting industrial computers.Our main lines of products are:Industrial Embedded


PC;Industrial Panel PC;Industrial Motherboard of PC;Industrial Full Size Card;


Firewall Machine and so on.


    We are well recognized and accepted by a growing number of clients.We are


always ready for new friends and new business opportunities.Looking forward


to a higher level of involvement and the support of business partners to work


together for a better tomorrow!

















Certifications


CE, FCC.jpg

















Our Services


1.100% quality satisfaction guarantee,any further assistance just drop us an


email or ring us up anytime


2.Your email will be replied in 24hrs


3.Well-trained and experienced staffs to answer all your enquires in fluent English


4.Arrange Shipments any port in China.














Contact us



































Leo Liu
Mob :86-13534285706
Tel: 86-755-23448870-8010

Skype: lingjiang8688



Official Website: www.ling-jiang.com/index_en.asp
Alibaba Website: www.ling-jiang.en.alibaba.com
ADD: 4/F Block 6, JiaAnDaTechnology Park, HuaFan RD, DaLang Street, Longhua District, ShenZhen.
