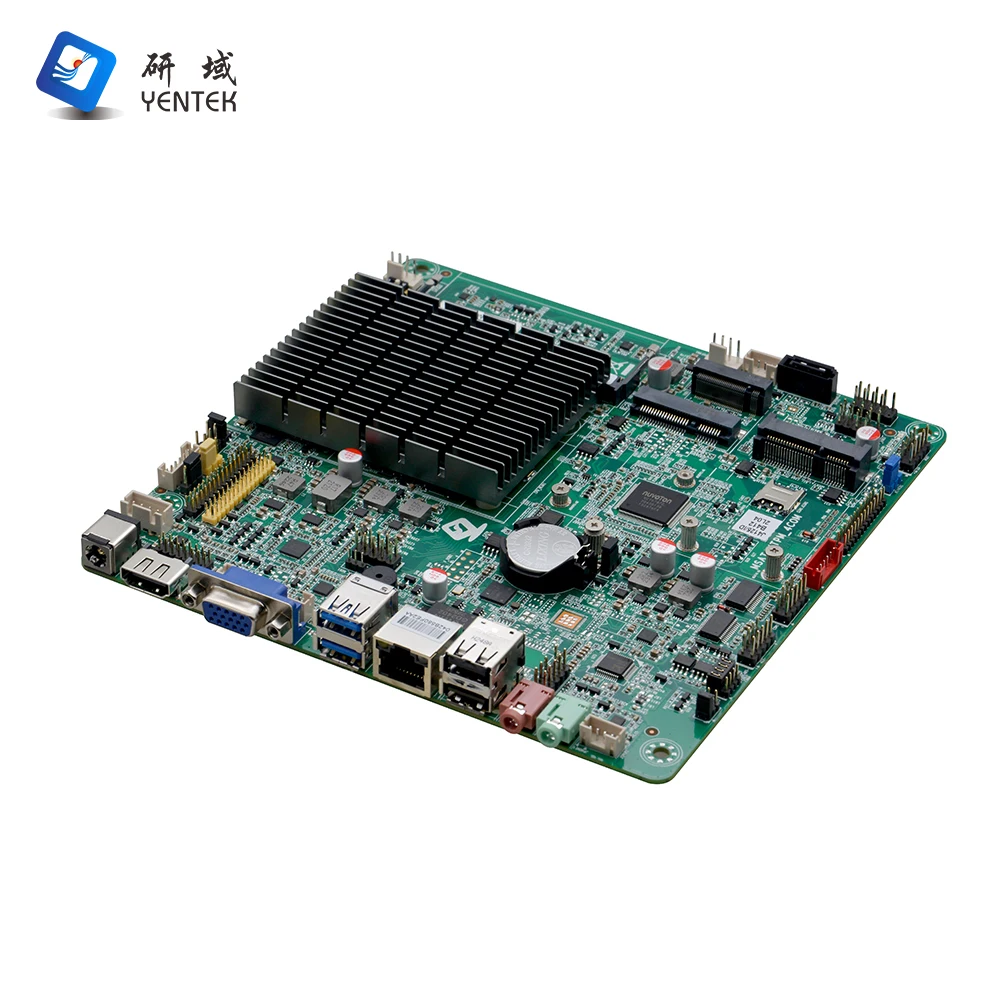

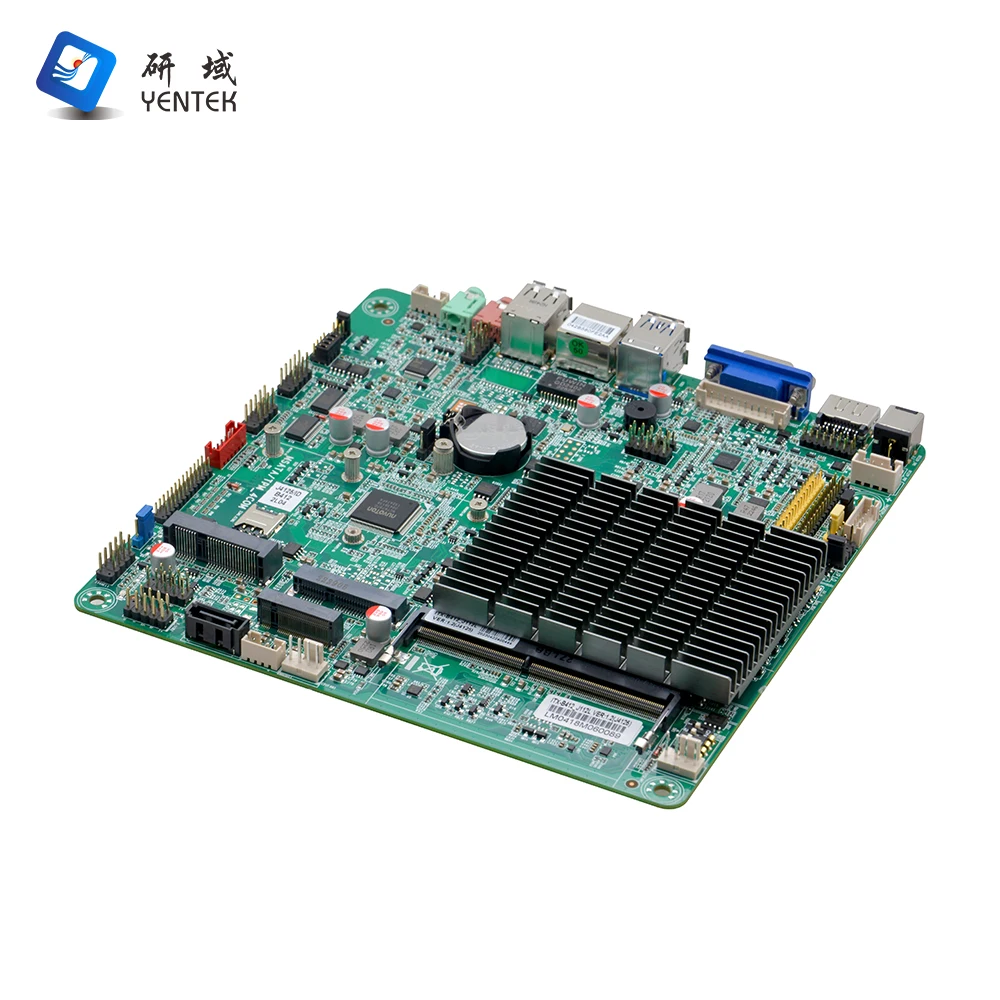

YENTEK Intel Celeron J4125 industrial motherboard with processor DDR4 MSATA VGA HD LVDS LAN 2 COM mini itx motherboard
- Category: >>>
- Supplier: Shenzhen Hanzsung Technology Co. Ltd.
Share on (1601281664101):
Product Overview
Description
Order Information
Products Description

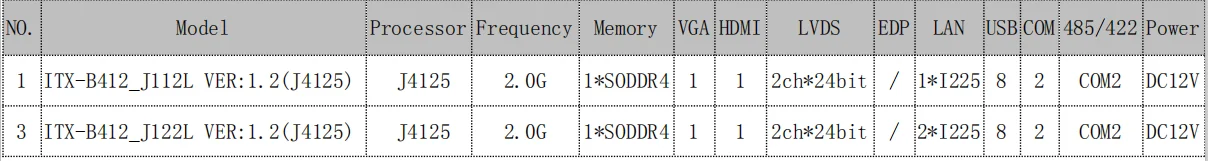

Product Model | ITX-B412_J112L VER:1.0（J4125） |
processor | Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W |
Compatible with the full range of Intel® Gemini Lake CPUs for customers to choose flexibly | |
chipset | SOC |
RAM | 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB |
Display | Integrated Intel® UHD Graphics 600 Core Graphics |
1* VGA, 1* HDMI, 1* LVDS interface, support dual channel 24BIT | |
internet | 1* Intel I225 Gigabit LAN, support Wake-on-LAN/PXE |
storage | 1* MSATA slot supports SSD solid state drive, the transfer speed can reach 6Gbps |
1* M.2 slot, support M.2 2280/2260 SATA standard SSD, and 7pin SATA is optional | |
Note: MSATA and TPM-4COM are optional, you can use TPM-4COM to expand 4 serial ports, if you use TPM-4COM small board, you can use M.2 SSD | |
Audio | Onboard ALC892 7.1+2 channel high-fidelity audio controller, support MIC/Line-out. Power amplifier |
It is recommended to use a 2Ω5W speaker for the power amplifier | |
Expand | 1* Mini-PCIE slot, support WIFI, 4G module Note: If MINIPE1 needs to support 4G module, you need to adjust the relevant hardware settings, and it will cause F_USB2 to only support 1 USB |

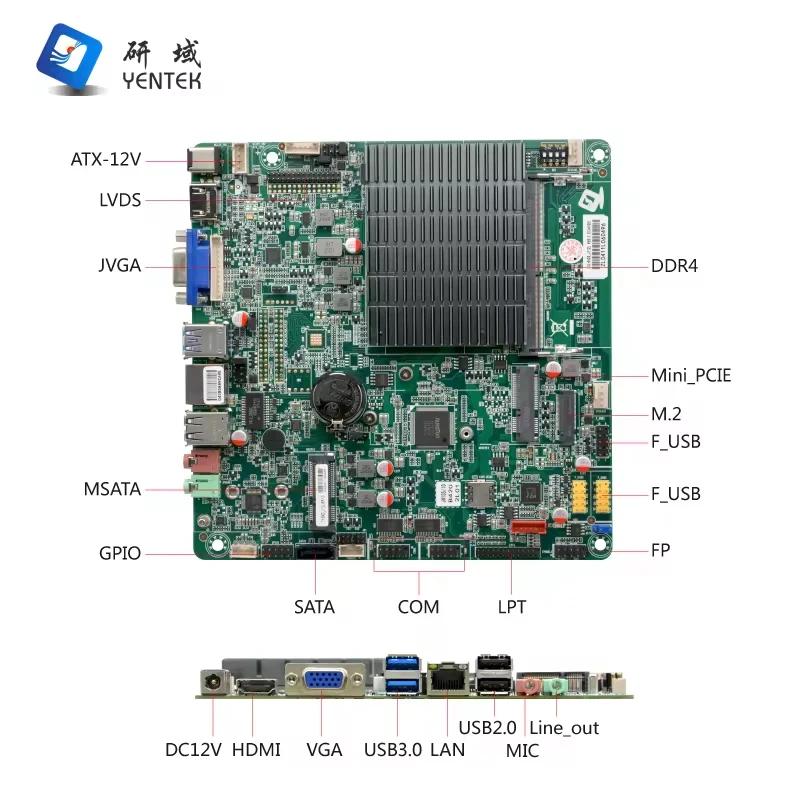

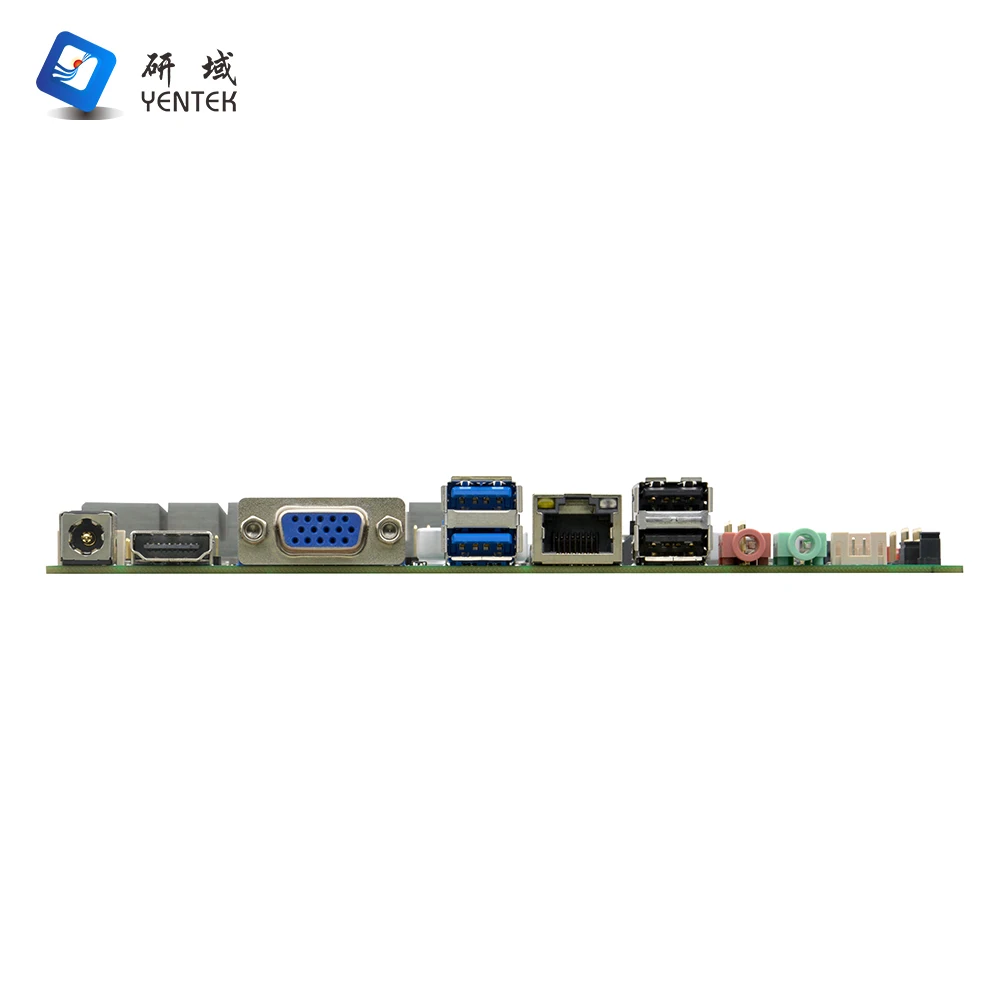

Backplane I/O Interface | 1* HDMI display interface |
1* VGA display interface | |
2* USB3.0 interface, 2*USB2.0 interface | |
1* RJ-45 Gigabit network interface | |
1* Line out interface (green), 1* MIC interface (red) | |
1* 12V DC power input interface | |
Built-in I/O interface | 1* 4pin ATX power interface (can be used as 12V input and output power interface) |
1* LVDS interface 2*15pin, support dual channel 24BIT | |
1* Screen backlight power supply interface 1*6pin | |
1* Screen brightness adjustment interface 1*4pin | |
4* USB 2.0 interface 2*5Pin | |
1* J_HDMI interface 2*8Pin (same signal as HDMI1 of backplane IO interface) | |
1* JVGA interface 1*12Pin (same signal as DB15) | |
2* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function | |
1* LPT parallel interface 2*13Pin | |
1* Front audio interface 2*5pin | |
1* Front panel switch button and indicator port 2*5Pin | |
1* PS/2 keyboard and mouse interface 1*6pin | |
1* Amplifier interface 1*4pin | |
1* SIM card holder | |
Fan interface | Fanless cooling design, reserved 1*4pin CPU fan interface, 1*4pin system fan interface |
GPIO | Support 4 input and output GPIO |
BIOS | 64Mb Flash ROM |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Operating system | Windows 10/Linux |
Power Type | Powered by DC 12V power supply |
Operating temperature | -10℃～60℃ |
Storage temperature | -20℃～70℃ |
Working humidity | 5%-95% relative humidity, no condensation |
Size | 170mm x 170mm |
Recommend Products

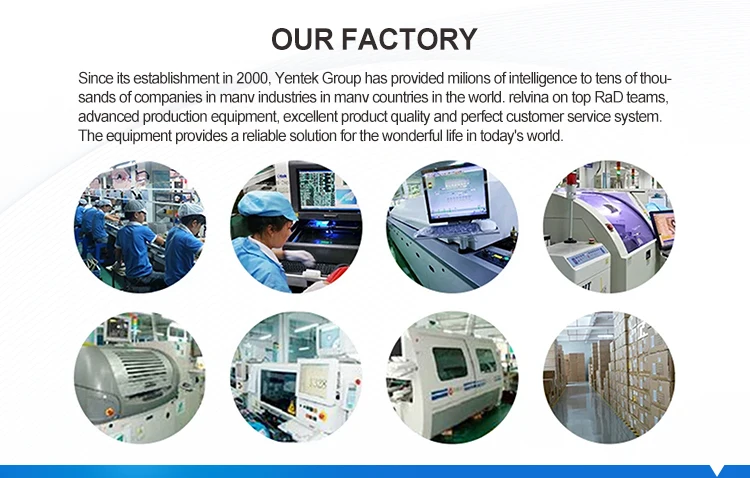

Company Profile
