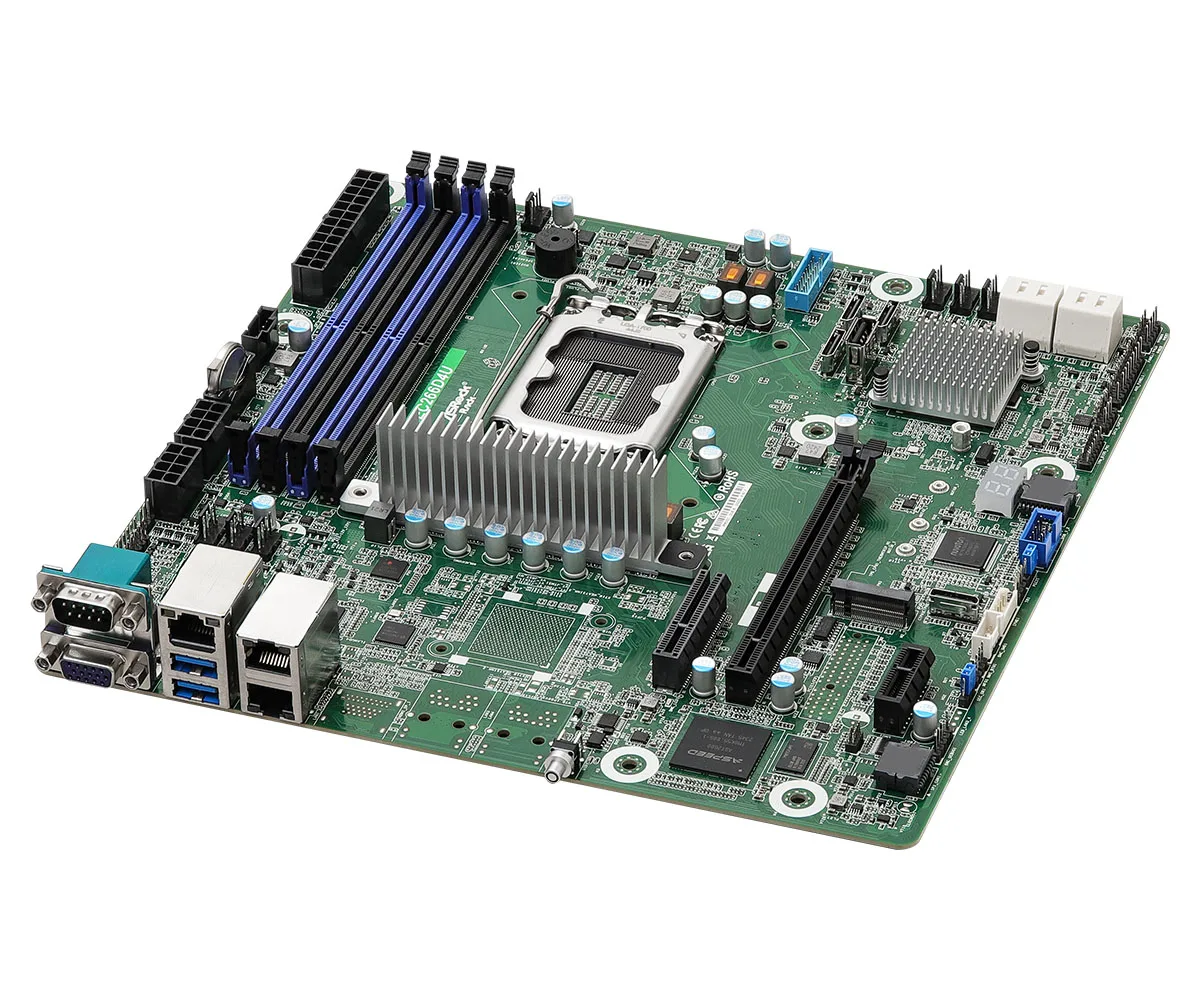

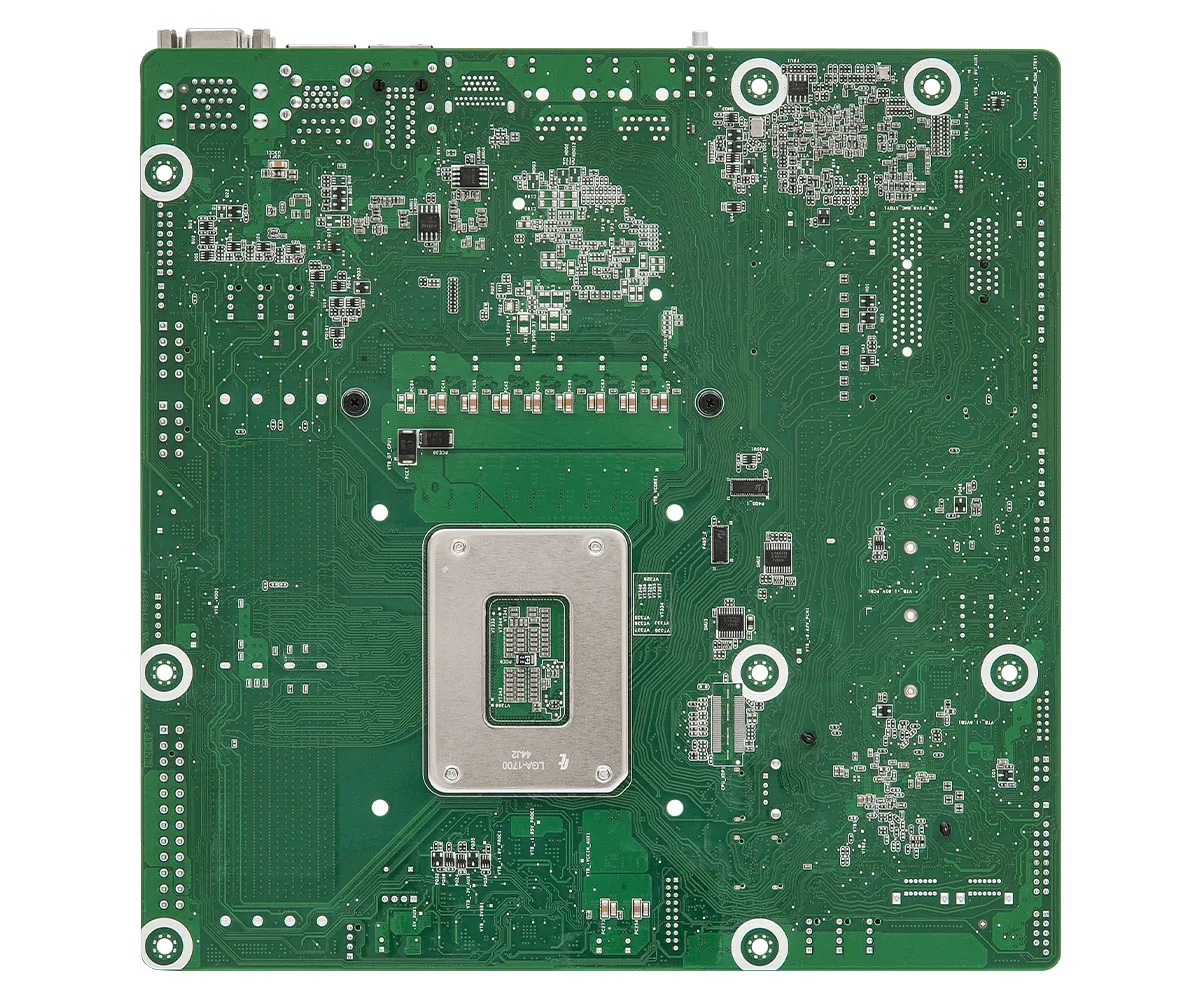

For ASRock Rack EC266D4U Micro ATX Socket V1 LGA 1700 Supports Intel Xeon E 2400 series and Intel Pentium Gold G7400/G7400T DDR5

Product Overview

Description

TEKET INNOVATION founded in year 2003 in Beijing, provides TEKET brand embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel) and Intel/Lenovo/ASUS/Gigabyte/MSI/HP/Dell NUC or laptop.
We also distribute the following brands industrial/workstation/server motherboards and complete systems or accessories
VIA,ASUS,ASRock,Gigabyte,MSI
Advantech,ICOP
IEI,AAEON,Kontron,ARBOR,Norco
Axiomtek,Avalue,COMMELL,iBase
ADlink,Supermicro,Jetway,EVOC
Innodisk,Transcend
www.teket.com

For well-known brands of embedded industrial motherboards, workstation motherboards, server motherboards, and corresponding complete systems:
1. It is recommended to consider upgrade new models for discontinued products, or consider second-hand of the same model.

2. It usually need pre order for product that is still launched.
please provide the model # and quantity you need so that the factory could confirm the unit price and delivery time;

3. The price is determined by the factory based on the quantity the client orders and the delivery time, and unit price in the listing has no reference significance.





EC266D4U
Micro-ATX (9.6" x 9.6")
Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe4.0 x1
4 OCuLink
Supports 1 M.2 (PCIe4.0 x4)
Up to 8 SATA 6Gb/s
2 RJ45 (1GbE) by Intel® i210
Remote Management (IPMI)



Specifications
Physical Status
Form Factor Micro-ATX
Dimensions 9.6'' x 9.6'' (244 mm x 244 mm)
Processor System
CPU Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
Socket Single Socket V1 (LGA 1700)
Thermal Design Power 95W
Chipset Intel® C266
System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM 32GB
Max. DIMM Frequency 4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4 SLOT7: PCIe4.0 x4* [CPU]

*SLOT7 share lanes with OCuLink4. OCuLink4 will disable when SLOT7 is populated
PCIe x 1 SLOT4: PCIe4.0 x1 [PCH]
TPM
TPM support 1 (13-pin, SPI)
Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
OCuLink 1 OCuLink (PCIe4.0 x4)* [CPU]
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
2 OCuLink (PCIe4.0 x4) [PCH]

*OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated
SATA/SAS Storage
PCH Built-in Storage Intel® C266 (8 SATA 6Gb/s; RAID 0/1/5/10):
4 SATA 7-pin, 1 OCuLink
Ethernet
Additional GbE Controller 2 RJ45 (1GbE) by Intel® i210
Server Management
BMC Controller ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
Controller ASPEED AST2600:
1 DB15 (VGA)
Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE), 1 dedicated IPMI
Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header 1
Speaker Header 1 (4-pin)
Buzzer 1
Fan Header 7 (4-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SGPIO Header 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Front Lan LED Connector 1
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header 1 header (9-pin, 2 USB2.0)
Type A USB 2.0 Port 1 vertical Type-A (USB2.0)
NMI Header 1
LED Indicators
Standby PWR LED 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 7
BMC heartbeat LED 1
System BIOS
BIOS Type AMI 256Mb SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
Hardware Monitor
Temperature CPU, MB, Card side, VR, DDR5, PCH, M.2, TR1 Temperature sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
Supported OS
OS Microsoft® Windows:
- Windows® Server 2022
- Azure Stack HCI

Linux:
- RHEL 8.5
- SLES 15 SP3
- Ubuntu 21.04 LTS

Hypervisor:
- VMware ESXi 8.0 u1
- Linux KVM (Linux OSes)
- Hyper-V (Windows® Server)
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
