Low Price Mini Soil Digger Small 1.5ton Crawler Excavator KV17 Micro Backhoe Digger with All Attachments
- Category: >>>
- Supplier: Richmchn Machinery Engineering (Shanghai) Co. Ltd.Richmchn Ltd.
Share on (1601281893675):
Product Overview
Description
High Quality Chinese Remote Control Crawler Excavator KV17 Mini 1.5T Crawler Excavator Cheap Mini Crawler Excavator
Contact Way
Dina Yi - Sales Manager
Tel: +86-17764518713
Whatsapp/Wechat/Mobile: +86-17764518713
Email: dina@richmchn.com
Whatsapp/Wechat/Mobile: +86-17764518713
Email: dina@richmchn.com
Product Overview

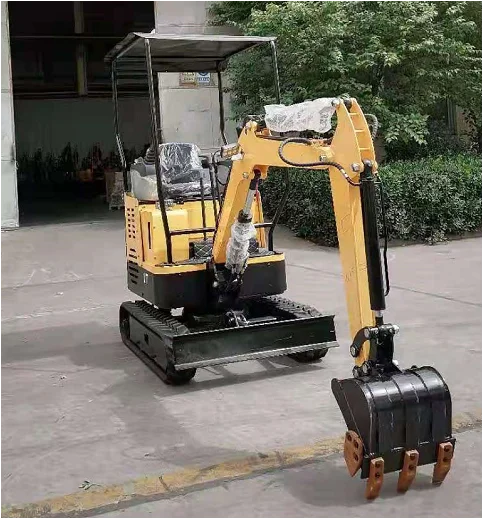

1.5 Ton Crawler Excavator KV17
* Operating weight: 1.5 Ton
* Operating weight: 1.5 Ton
* Bucket Capacity:0.025 m³
High Performance and Highlights
High Performance and Highlights
Small excavator also called mini excavators, weight of 0.8 tons to 4tons, more than for farm orchard and small construction site and home use, with their special bucket,broken hammer,timber grab,spiral drill,scarifier,rake, a variety of configuration options such as tool suite, is more popular in today's micro mechanical product type.
1.Adopt famous brand diesel engine or gasoline engine,can meet EURO V and EPA
emission;
2.Low fuel consumption, more environmentally friendly,more powerful engine.
3.The hydraulic system is matched with imported hydraulic components.
4. 360° no tail rotation design, compact structure, flexible and convenient.
5. Rubber track and rail can be directly interchangeable
6.Using the deflection arm,the deflection is 90°,and it is easy to dig the foot of the wall.
7. Using a telescopic walking frame, it can easily pass through small areas.
emission;
2.Low fuel consumption, more environmentally friendly,more powerful engine.
3.The hydraulic system is matched with imported hydraulic components.
4. 360° no tail rotation design, compact structure, flexible and convenient.
5. Rubber track and rail can be directly interchangeable
6.Using the deflection arm,the deflection is 90°,and it is easy to dig the foot of the wall.
7. Using a telescopic walking frame, it can easily pass through small areas.
Product Parameters
Item | Specification |
Weight | 1450kg |
Bucket capacity | 0.025m³ |
Engine power | 20kw |
System pressure | 16Mpa |
Swing speed | 11rmp |
Maximum climbing angle | 35° |
Walking speed (high speed/low speed) | 1.5 |
Hydraulic oil tank volume | 22L |
Fuel tank volume | 18L |
Tyre gauge | 800mm |
Total track length | 1220mm |
Platform ground clearance | 375mm |
Width of chassis | 980mm |
Width of track | 180mm |
Track material | Rubber track |
Machine height | 1950mm |
Max. digging radius | 2900mm |
Max. digging depth | 1650mm |
Max. digging height | 2350mm |
Max. dumping height | 1650mm |
Maximum vertical excavator depth | 1650mm |
Min. gyration radius | 1550mm |
Maximum lifting height of bulldozer | 150 |
Dozer blade maximum digging depth | 180 |

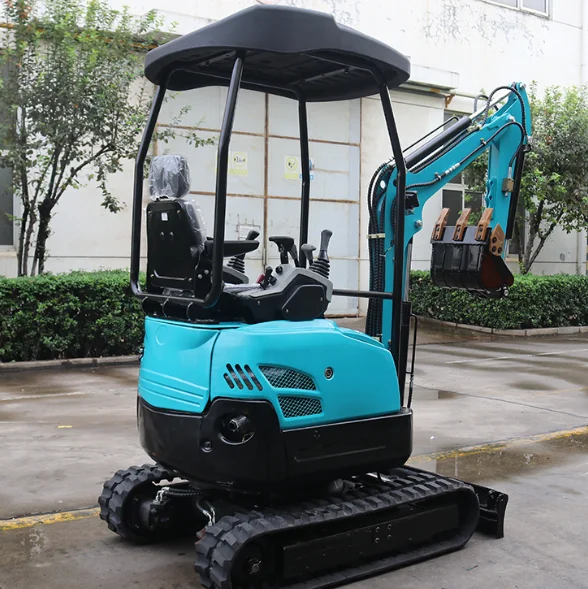

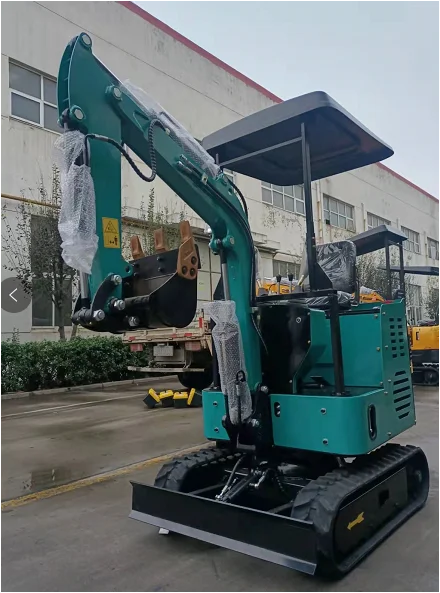

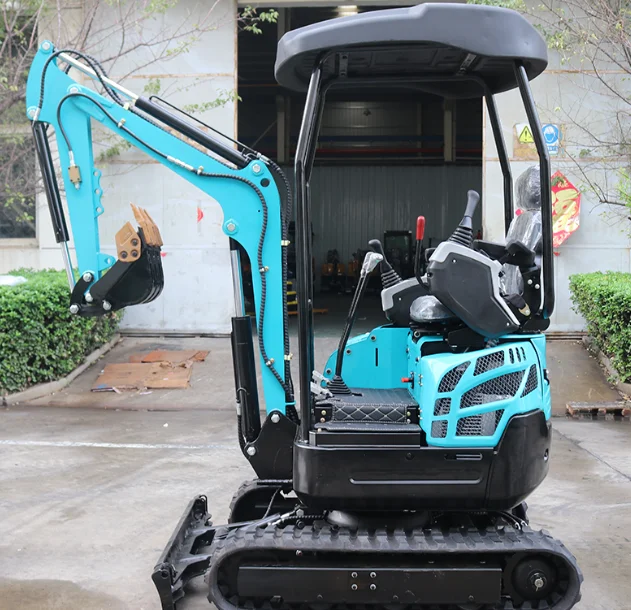

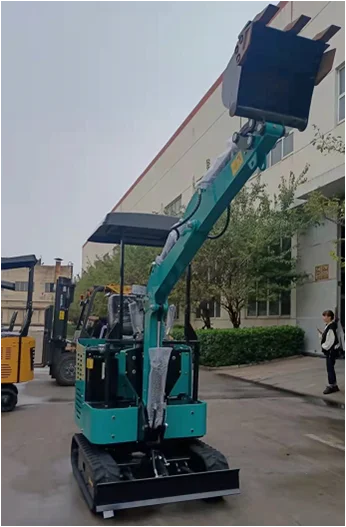

Details Images
