EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor
EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor
EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor
EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor
EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor
EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor
EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor

EDDIE Brand Hydraulic Travel Motor FTM02A for 2~3 Tons Excavator Hydraulic Travel Motor

Share on (1601282181702):


Price:$800.00-890.00

Quantity:


Product Overview

Description





EDDIE EXCAVATOR PARTS

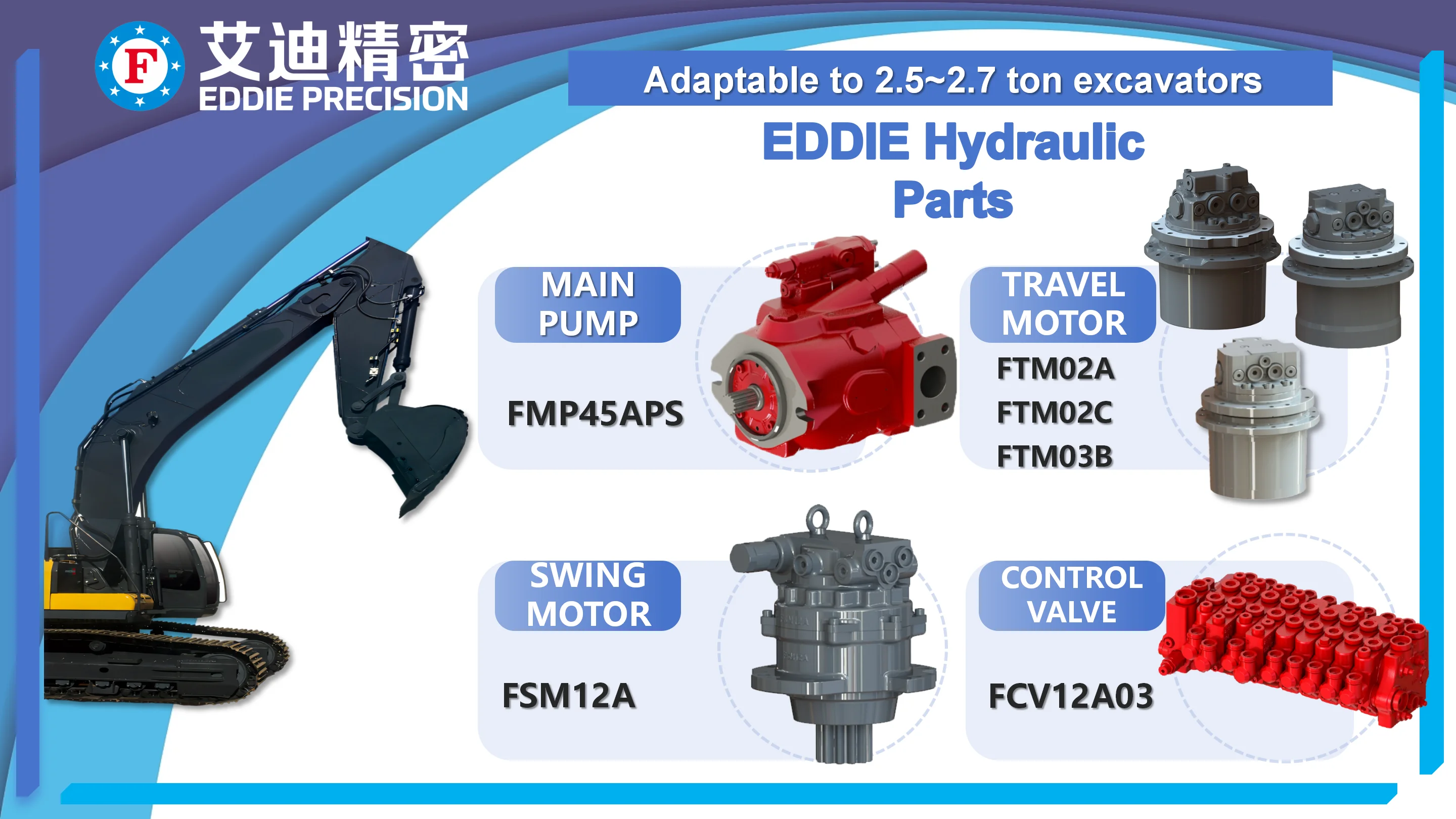

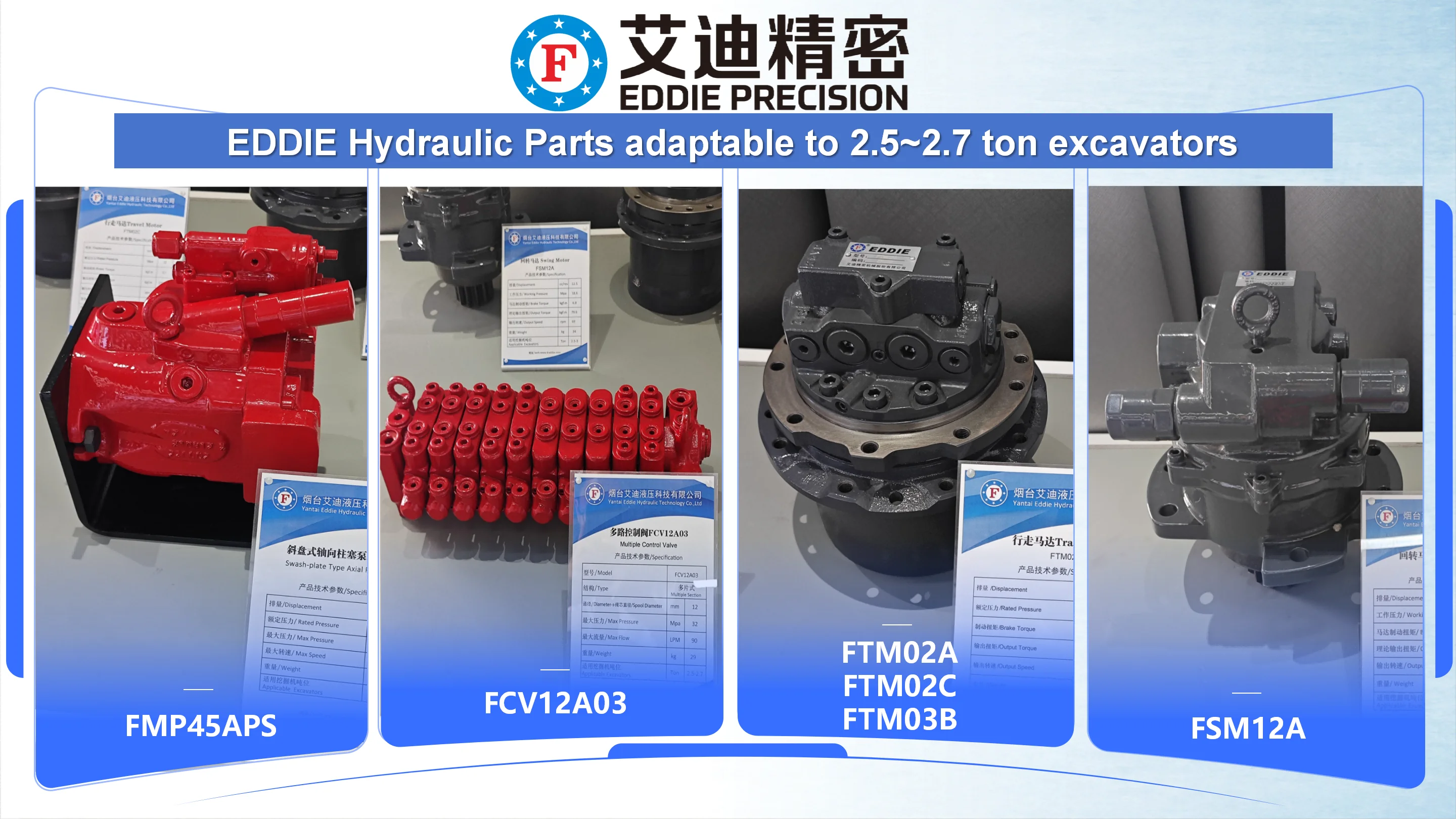

Suitable for 2.5~2.7ton excavator
EDDIE HYDRAULIC adhere to focus and professionalism, and innovate and develop, and be committed to providing environmental-friendly, intelligent, efficient and durable high-end mechanical hydraulic products for human labor.


Specification

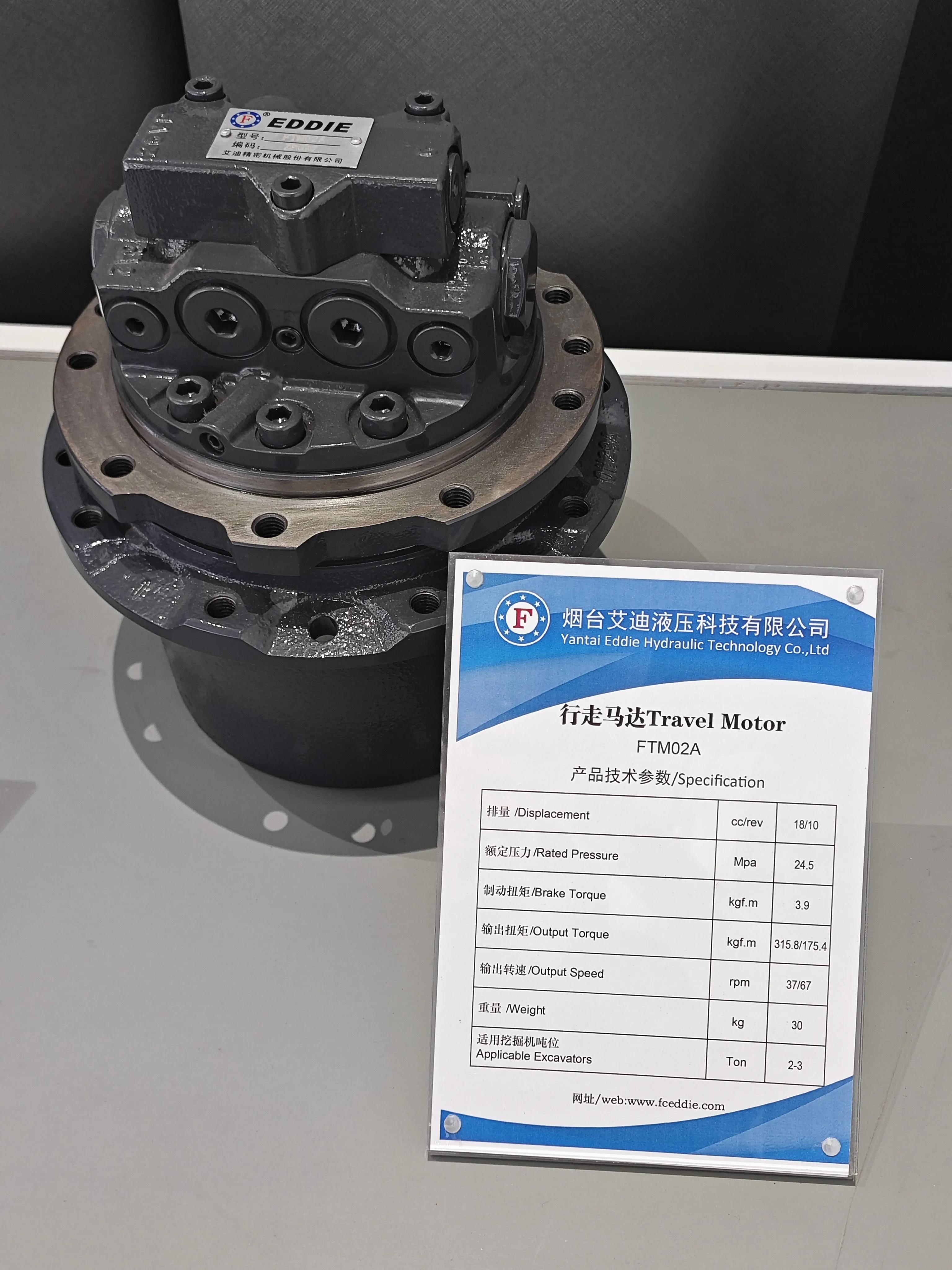

model
Tavel Motor
 FTM02A
Displacement
11.3/7.2 cc/rev
Rated Pressure
24.5 Mpa
BrakeTorque
1.96 kgf.m
Output Torque
162.8/103.7 kgf.m
Output Speed
57/90 rpm
Weight
18 kg
Applicable Excavators
2~3 ton


model
Main Pump
FMP45APS
Applicable Excavators
2.5~3.5 ton
Maximum speed
2700 rpm
WEIGHT
24 kg
RATED PRESSURE
32 MPa
MAX Pressure
35 Mpa


model
Control valve FCV12A
Applicable Excavators
1.5~3.5 ton
Type
Multiple Section
WEIGHT
29 kg
Max Flow
90 LPM
MAX Pressure
32 Mpa


model
Tavel Motor
 FTM02C
Displacement
20.7/10.9 cc/rev
Rated Pressure
26 Mpa
BrakeTorque
3.9 kgf.m
Output Torque
3127/1646 N·m
Output Speed
38/72 rpm
Weight
36 kg
Applicable Excavators
2~3 ton


model
Tavel Motor
 FTM03B
Displacement
23.6/14.2 cc/rev
Rated Pressure
26 Mpa
Gear Ratio
45 i
Output Torque
4394.6/2644.2 N·m
Output Speed
27.3/45.3 rpm
Weight
40 kg
Applicable Excavators
2.7~3.6 ton


model
Swing Motor
 FSM12A
Displacement
12.5 cc/rev
Working Pressure
18.6 Mpa
Brake Torque
6.8kgf.m
Output Torque
79.6 kgf.m
Output Speed
69 rpm
Weight
34 kg
Applicable Excavators
2~3 ton

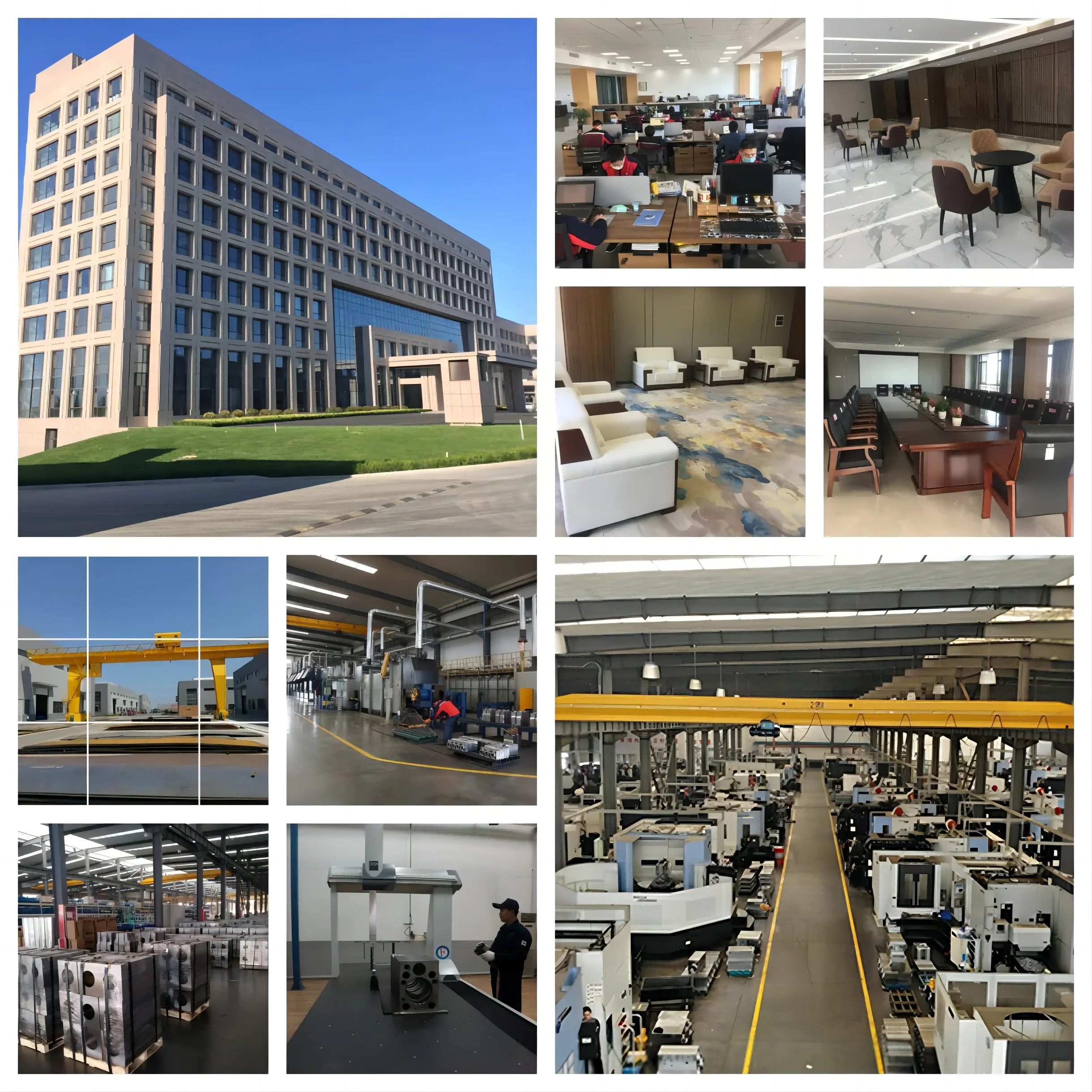

Company Profile

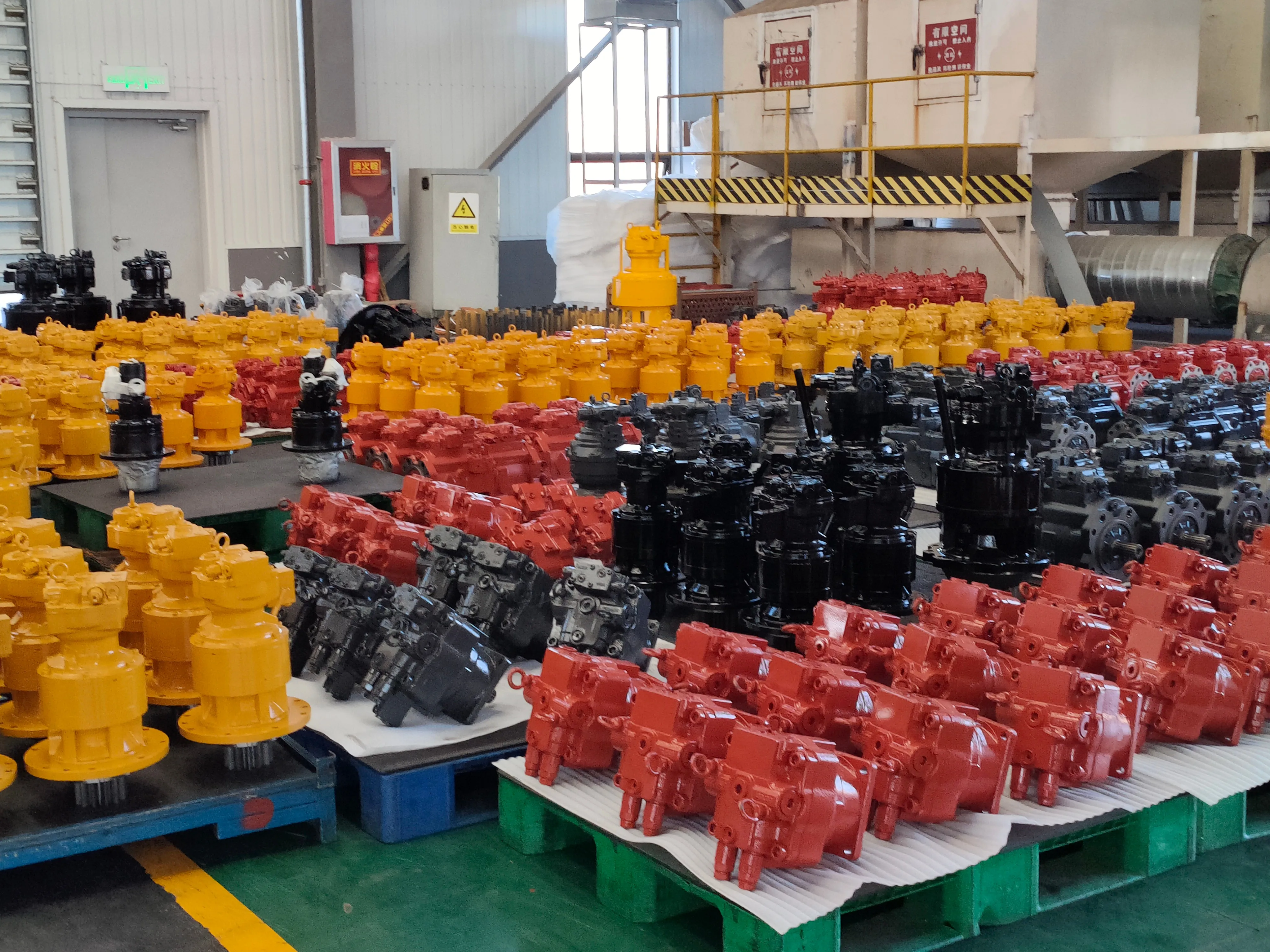

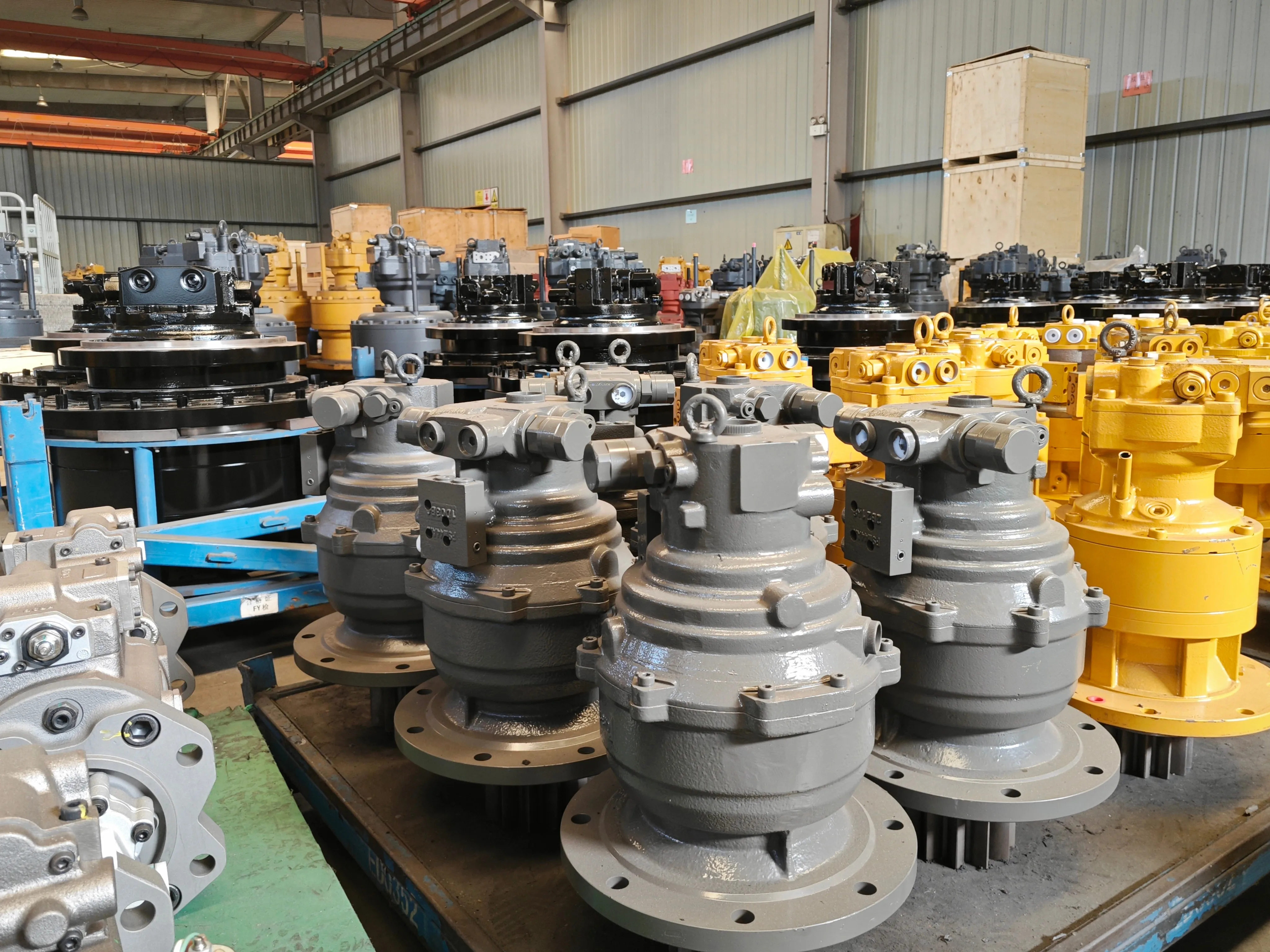

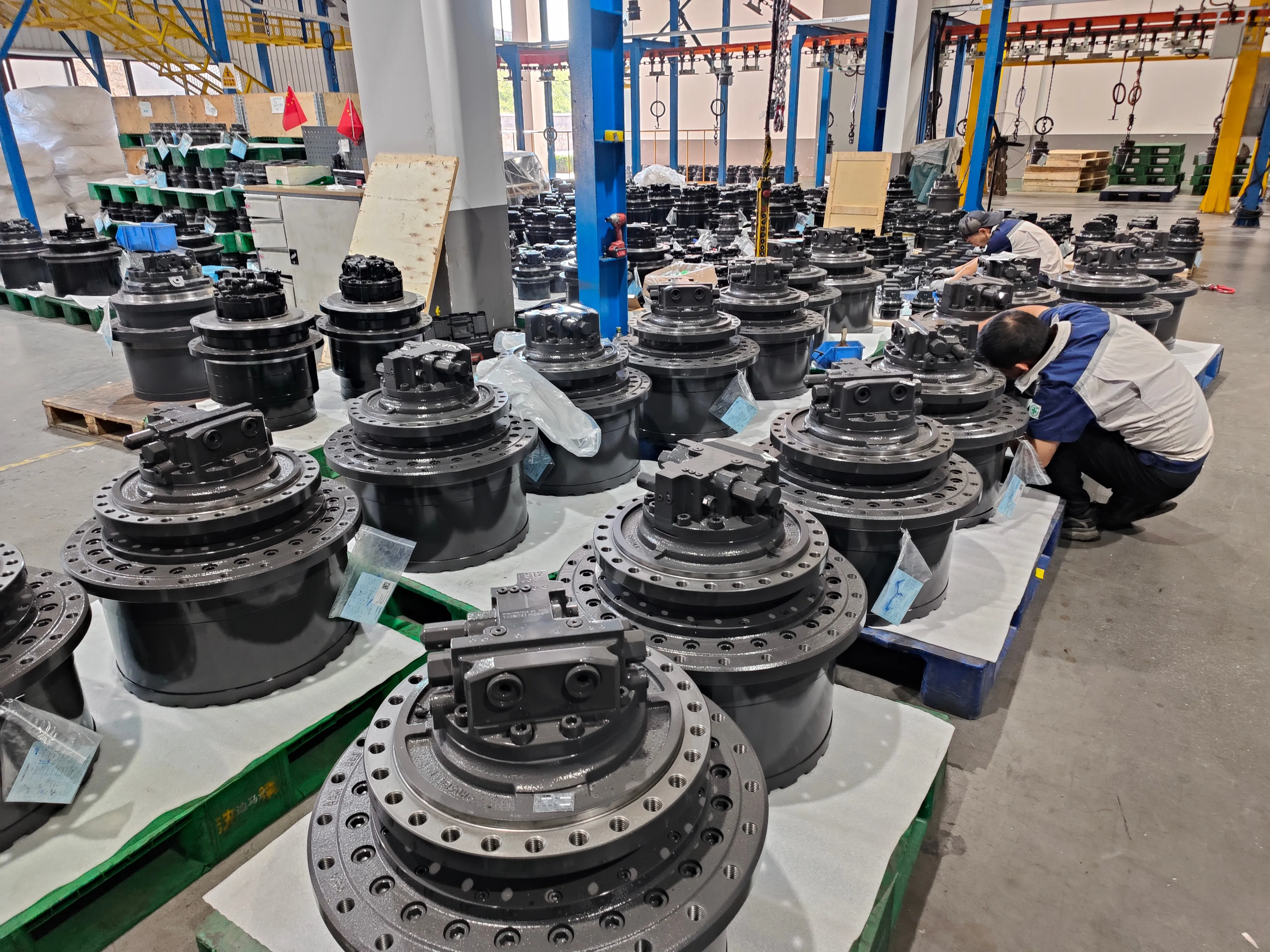

Eddie Precision Machinery Co., Ltd. was established in 2003, with over 20 years of experience in the breaker and hydraulic industry. The company manufactures all components for its breaker products in-house and offers OEM customization services. It went public in 2017. The factory covers an area of 630,000 square meters and employs more than 3,000 staff. The company's products are exported to over 90 countries and regions worldwide.








EXHIBITION










Related products




Marketing Network






Packing & Delivery






FAQ


1. who are we?
We are based in Shandong, China, start from 2003,sell to Eastern Europe(22.00%),Southeast Asia(13.00%),North America(12.00%),Mid East(10.00%),South Asia(8.00%),Southern Europe(6.00%),Northern Europe(6.00%),Africa(6.00%),South America(5.00%),Central America(5.00%),Western Europe(4.00%),Domestic Market(2.00%),Oceania(1.00%). There are total about 2500+ people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Hydraulic Breaker, Quick Coupler, Compactor, Hydraulic Shear, Crusher, Pulverizer, Grapples, Hydraulic Pump, Travel Motor, Swing Motor

4. why should you buy from us not from other suppliers?
We are the largest manufacturer of hydraulic breakers and other accessories in China, and have been successfully listed. We have our own brand "EDT" and support OEM/ODM. We have more than 21 years of experience and export to more than 200 countries.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,French,Russian,Korean
