8ports/16ports DB 15 Combo IP KVM switch support USB VGA local console, Hotkey OSD IP KVM drawer
- Category: >>>
- Supplier: Shenzhen Pontron technology Limited
Share on (1601282197683):
Product Overview
Description
8ports/16ports DB-15 Combo IP KVM switch support USB + VGA local console, Hotkey OSD IP KVM drawer
Main feature:
« DB-15 IP KVM Switch with 8 port / 16 ports in 1U
« Support all computers to both boot and hot-swappable
« Cascade switches up to 8/16 level and Mix switched DB-15 KVM
« Support USB + VGA local console
« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.
Introduction:
« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect .
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.
Specifications:
Model | IP KVM-1008M | IP KVM-1016M | |
Computer connect | Direct 8 | Direct 16 | |
Max : 256 | Max: 512 | ||
Connection port | Control port : Display , keyboard & Mouse | ||
PC port : USB cable | |||
IP Module console | 1* RJ45 port, 1* VGA port (male ) ,1* USB | ||
Switch Mode | Hotkey , OSD Menu | ||
Switch Scan Time | 1-255 second ( OSD adjustable ) | ||
Pre-electronic Key | To select the appropriate server through electronic keys | ||
Cable Port | Local Console | Keyboard / Mouse/ Display (2*USB +1* HDB-15 female ) | |
Connector port | 8 /16 * HDB-15 female ( Yellow ) | ||
Power supply | 1 * 3 pin AC power supply socket | ||
Power input | 12V DC input ( AC100-240V 47-63Hz, 35W )optional | ||
Work environment | Operating Temp | -10℃~60℃ | |
Storage Temp | -20℃~70℃ | ||
Humidity | 0%-95%RH | ||
Cabinet Material | high-strength and Anti-corrosive steel plate | ||
Color | Insulated black (optional) | ||
For Cabinet | 800-1040mm | ||
Net weight | 2KG ~3.5KG | ||
Gross Weight | 5KG~7KG | ||
Dimension (L x W x H) | 445mm*130.8mm*44mm (IP PSA-1008M/1016M) | ||
Package (L x W x H) | 550mm*230mm*145mm | ||
Certificate | CE , FCC , RHOS | ||
Ordering information:
IP KVM - 1008M | 1U Rack mount KVM switch, W/ 8 port VGA port over IP access, W/ 12V power supply, W/ USB cable. |
IP KVM - 1016M | 1U Rack mount KVM switch, W/ 16 port VGA port over IP access, W/ 12V power supply, W/ USB cable. |

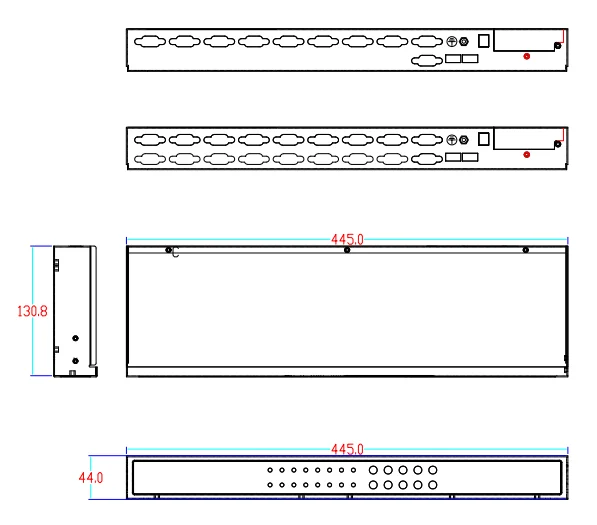

Drawing:
