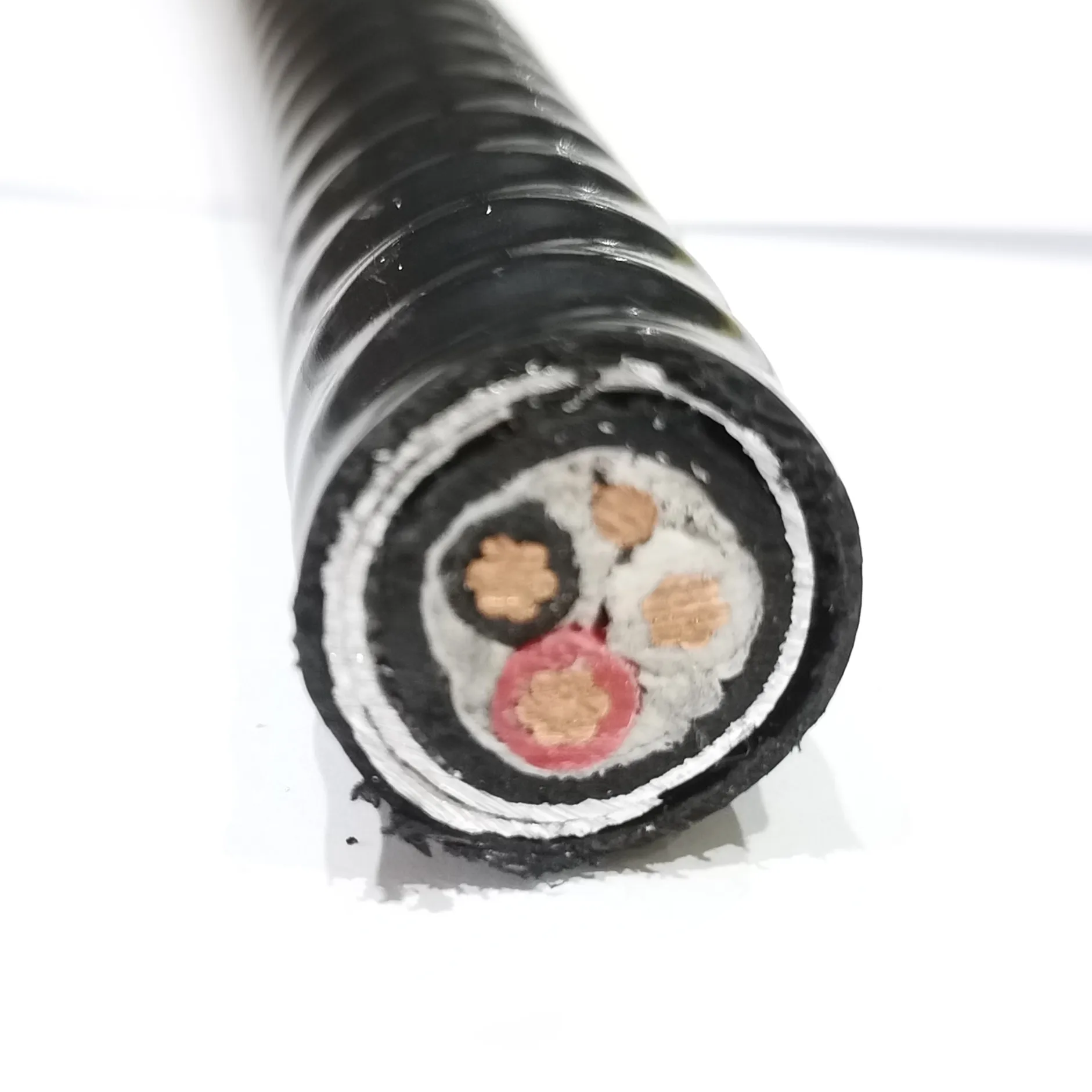

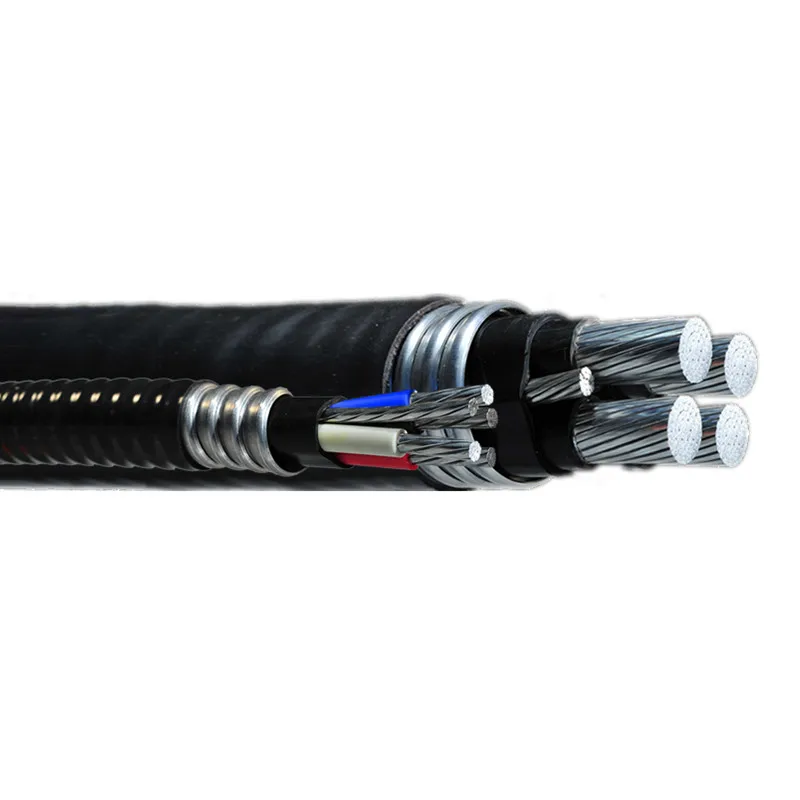

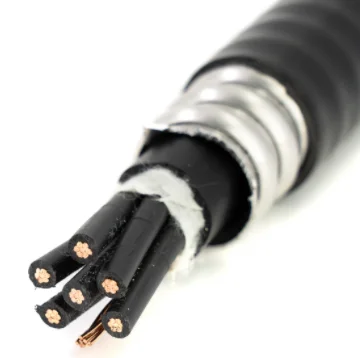

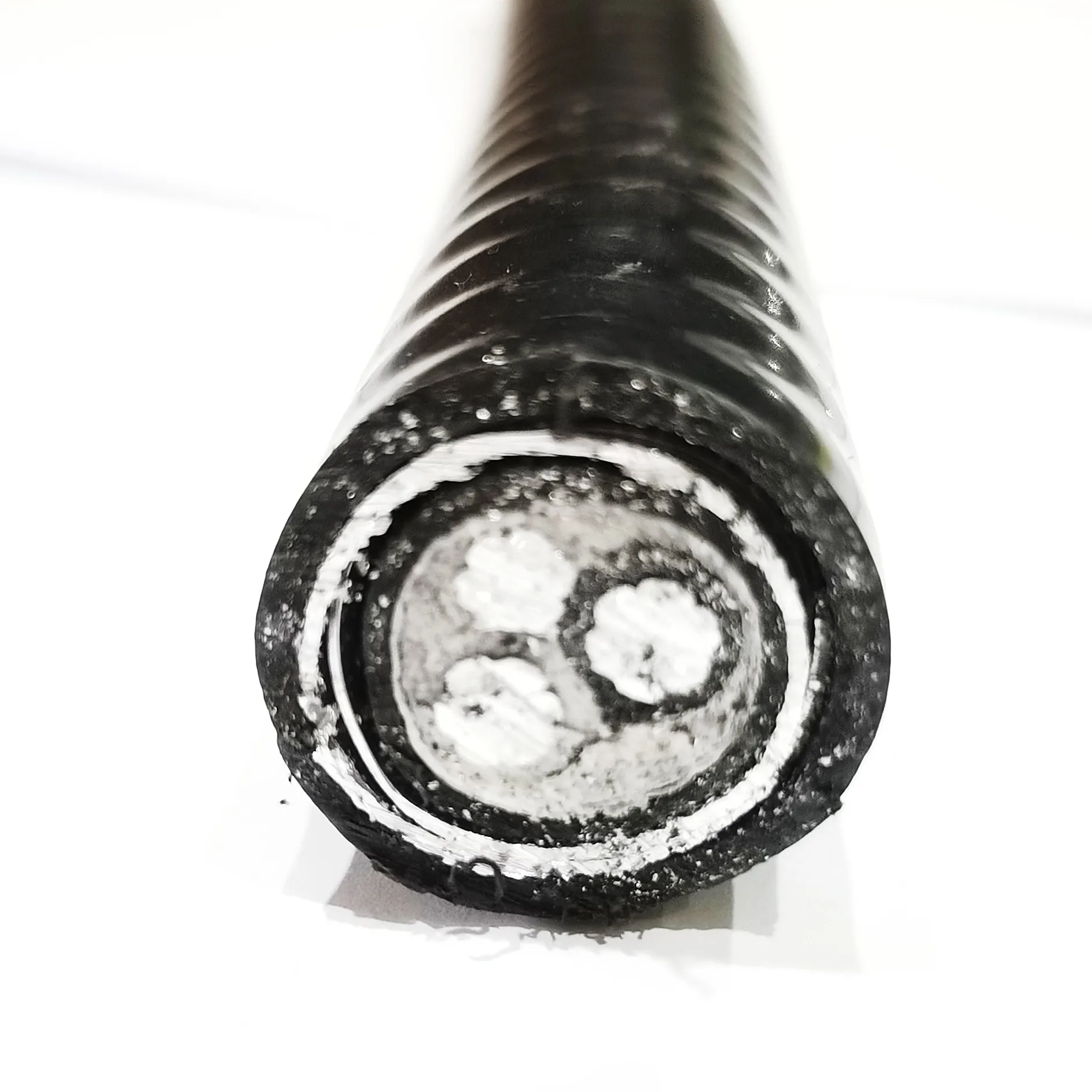

CSA Electric Power Cables 3 CONDUCTOR #6 AWG XLPE RW90 ALUMINUM ARMOURED 1000 V 600V 40C Direct Burial

Application:

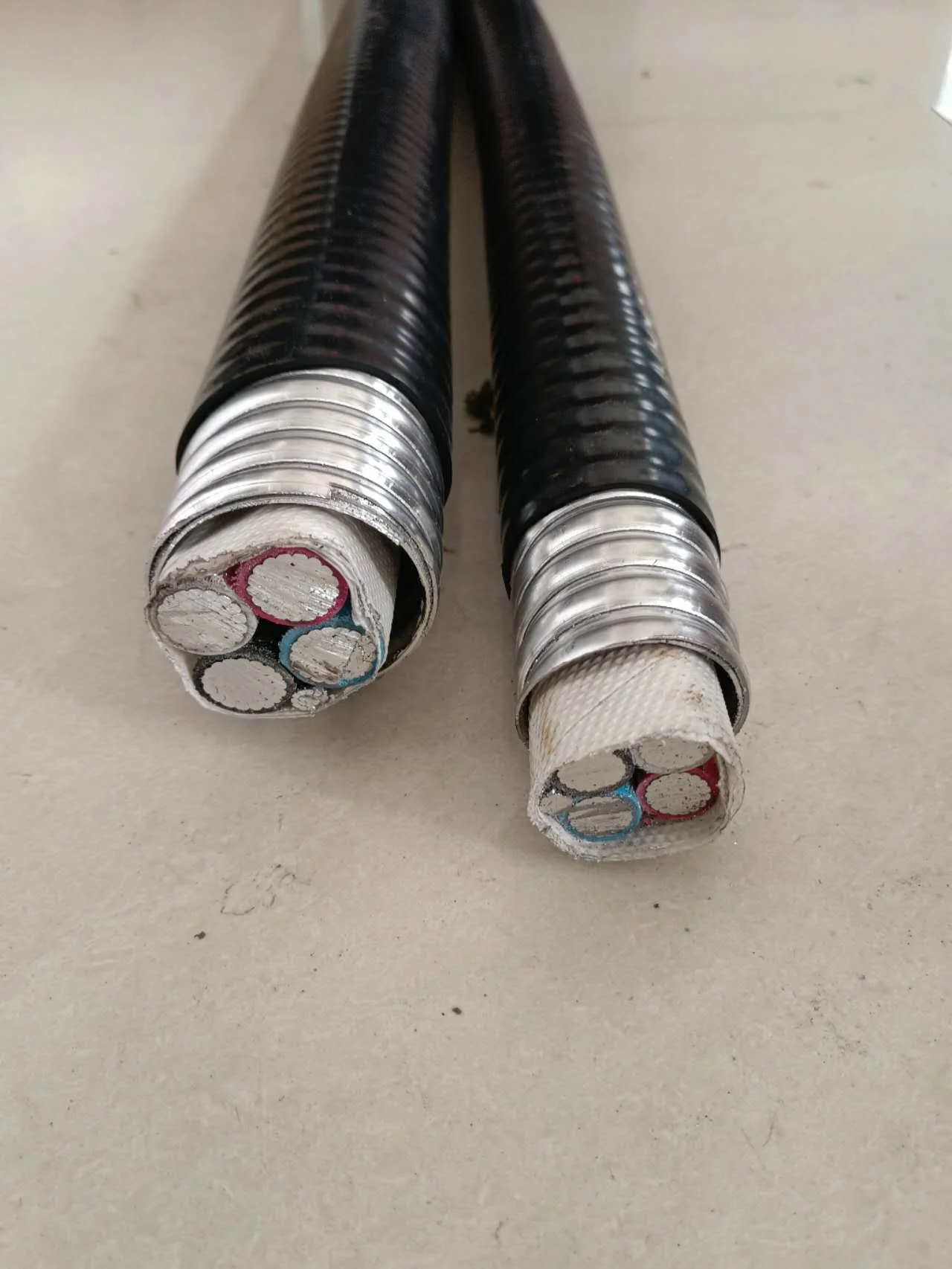

ACWU 90 cables are primarily intended for exposed and concealed wiring in dry or wet locations

and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable

trays in wet and dry locations; direct earth burial; service entrance above or below ground.

Structure:

Conductor:  Three or four compact 8000 Series ACM aluminum conductors with bare aluminum bonding wire in multi-conductor cables

Insulation:   low temperature cross-linked polyethylene insulation (XLPE)

Assemble wrap:  Conductor assembly paper or PP tape wrapped

Armored :  Interlocked aluminum armor

Overall Jacket:  a low flame spread PVC jacket

Conductor color:   Black, red and white for 3 conductor;  black, red, blue and white for 4 conductor

Standard:  CSA Standard C22.2 No. 174 ; CSA C22.2 N° 51





Working temperature:

 -40ºC/ -25ºC MIN, 90ºC MAX



Performance:

FT4 Flame retardant; Sunlight Resistant



No of phase	Size	Insulation thickness	Bonding  wire Size	PVC Jacket	Approximate   Total Diameter	Approximate Net Cable Weight
	AWG or Kcmil	mm	AWG	mm	mm	kg/km
3	6	1.14	8	1.27	21.6	807.4
3	4	1.14	6	1.27	24.2	980.8
3	3	1.14	6	1.27	25.4	1,071.4
3	2	1.14	6	1.27	27	1,188.4
3	1	1.40	4	1.27	29.9	1,411.6
3	1/0	1.40	4	1.27	31.8	1,575.2
3	2/0	1.40	4	1.27	34	1,772.8
3	3/0	1.40	4	1.27	36.6	2,015.2
3	4/0	1.40	4	1.27	39.5	2,304.1
3	250	1.65	2	1.52	43.5	2,668.4
3	300	1.65	2	1.52	46.2	2,980.2
3	350	1.65	2	1.52	48.8	3,281.0
3	400	1.65	2	1.52	51.1	3,584.2
3	500	1.65	1	1.52	58.7	4,712.7
3	600	2.03	1	1.90	65.4	5,478.4
3	750	2.03	1	1.90	67.2	6,245.3
4	6	1.14	8	1.27	23.7	931.9
4	4	1.14	6	1.27	26.6	1,141.9
4	3	1.14	6	1.27	28	1,256.4
4	2	1.14	6	1.27	29.8	1,401.9
4	1	1.40	4	1.27	33.2	1,674.9
4	1/0	1.40	4	1.27	35.3	1,881.3
4	2/0	1.40	4	1.27	37.7	2,126.3
4	3/0	1.40	4	1.27	40.1	2,416.1
4	4/0	1.40	4	1.27	43.8	2,781.4
4	250	1.65	2	1.52	51.2	3,708.4
4	300	1.65	2	1.52	54.3	4,128.9
4	350	1.65	2	1.52	57.1	4,534.4
4	400	1.65	2	1.52	59.7	4,942.6
4	500	1.65	1	1.90	65.2	5,733.4
4	600	2.03	1	1.90	71.8	6,704.0
4	750	2.03	1	1.90	77.6	7,847.1

Strict Quality Control

Process

There are some different packing methods for different cables, packing length and clients' requirement.

The following 3 methods are the most popular:

1. For small wires, like housing wire, THW, THHN, etc, by coils or plastic drums;

2. For the power cables less than 1Ton per drum: wooden drums or steel-wooden drums;

3. For >4Ton: steel drum.

All the package including the pallets are fumigated, suitable for exporting.

Loading: 1. Small packages: by pallets

                2. Big packages: loaded directly

1.30 years production experience and 22 years export experience .

2.Products certification :CUL,CSA, UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

  Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 6 billionYuan.Now there are more than 2000 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry.  And Hebei Huatong Wires and Cables Group Co., Ltd is a listed company. Stock code is 605196.

Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us ortell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
