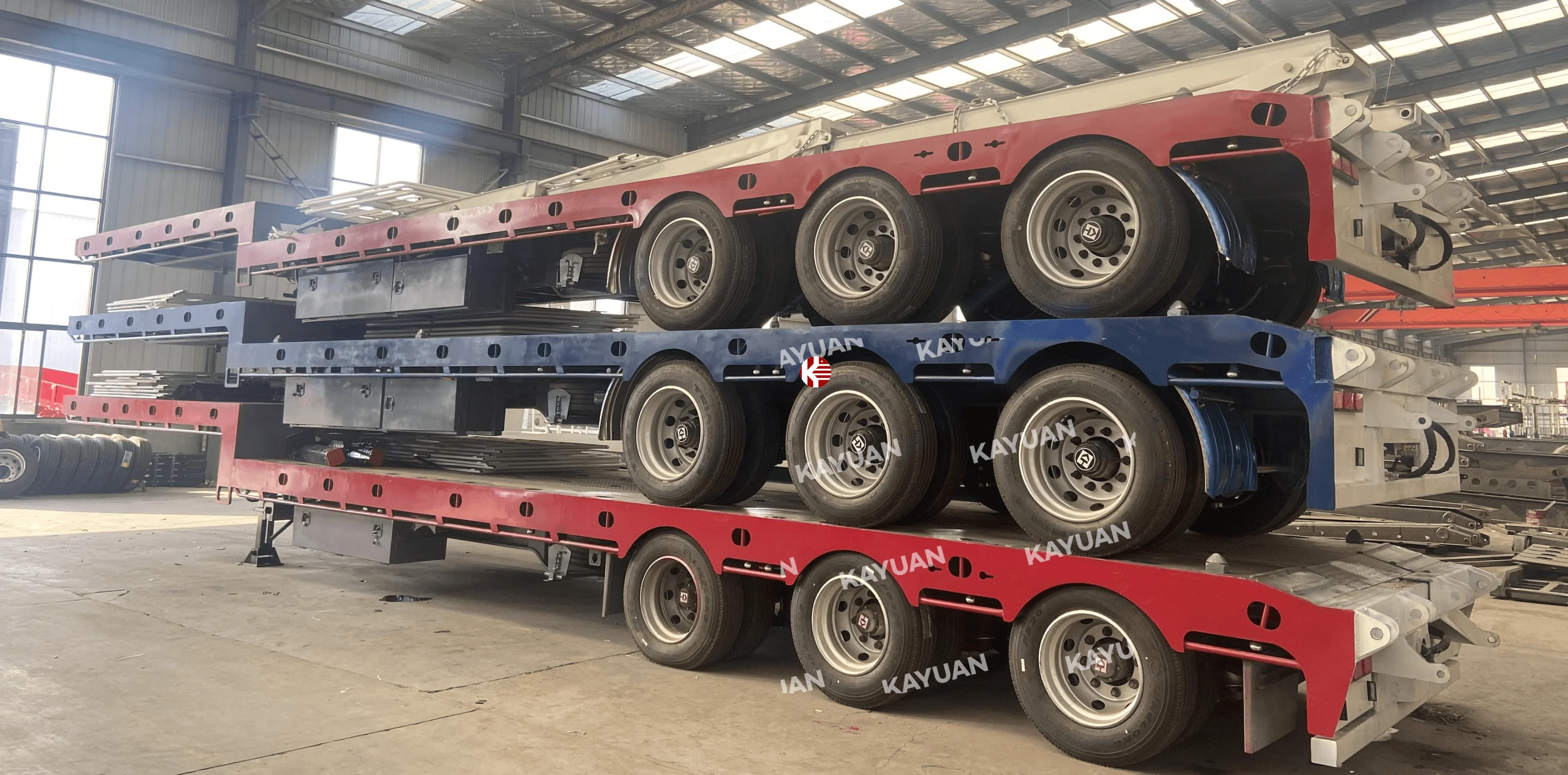

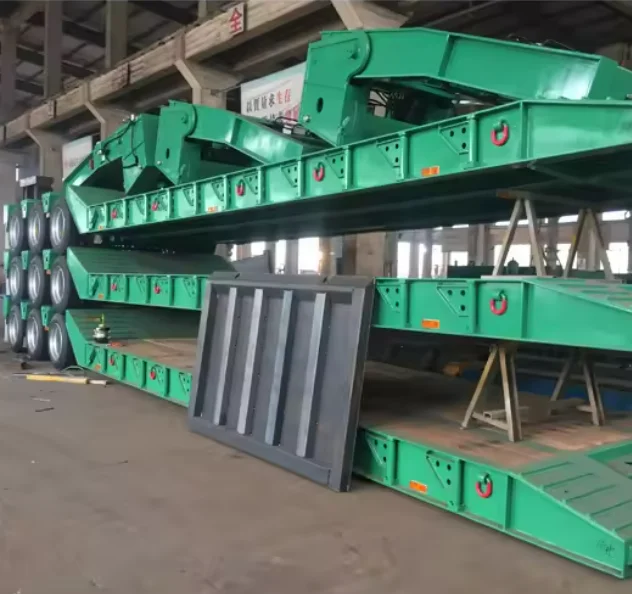

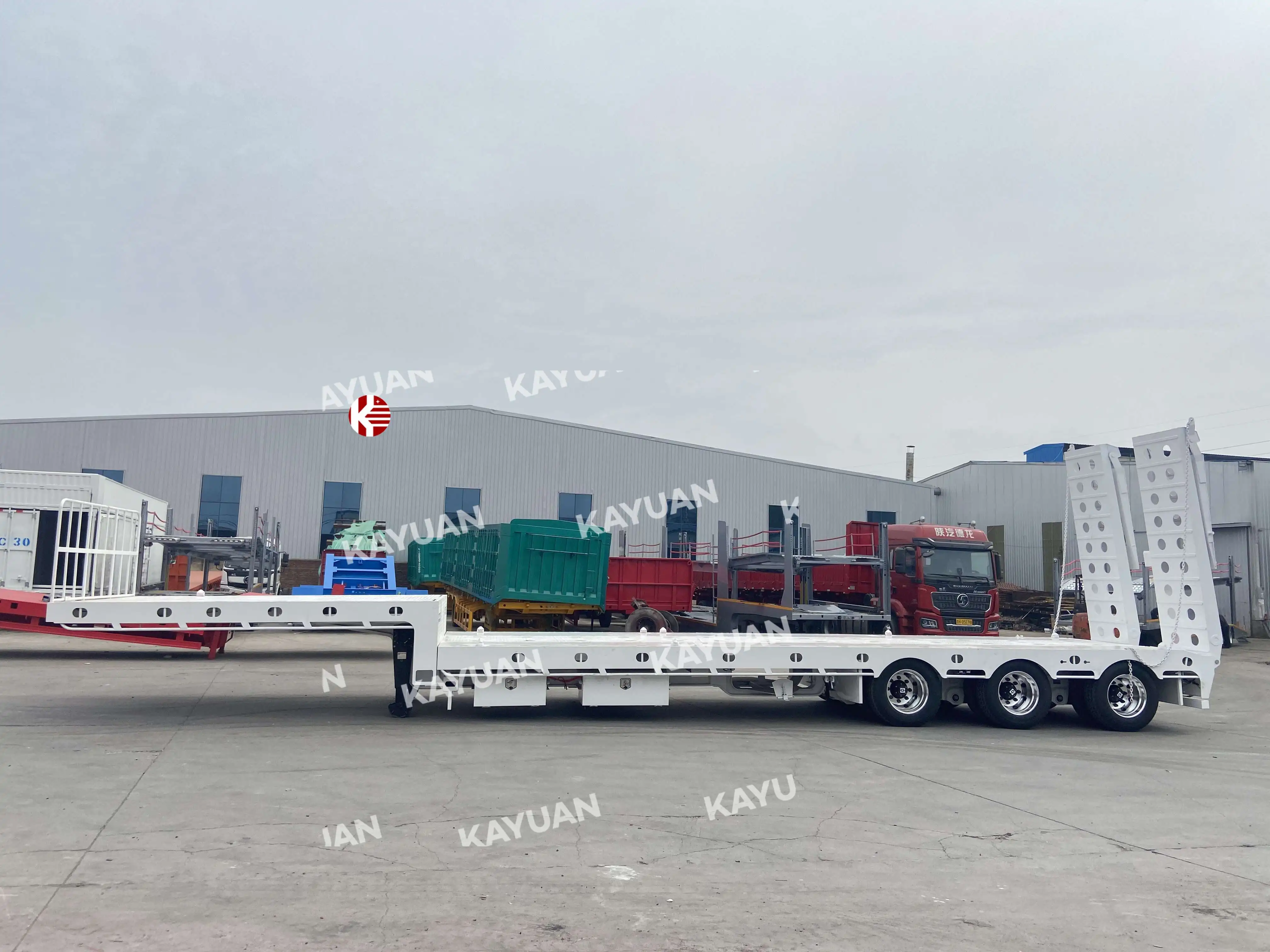

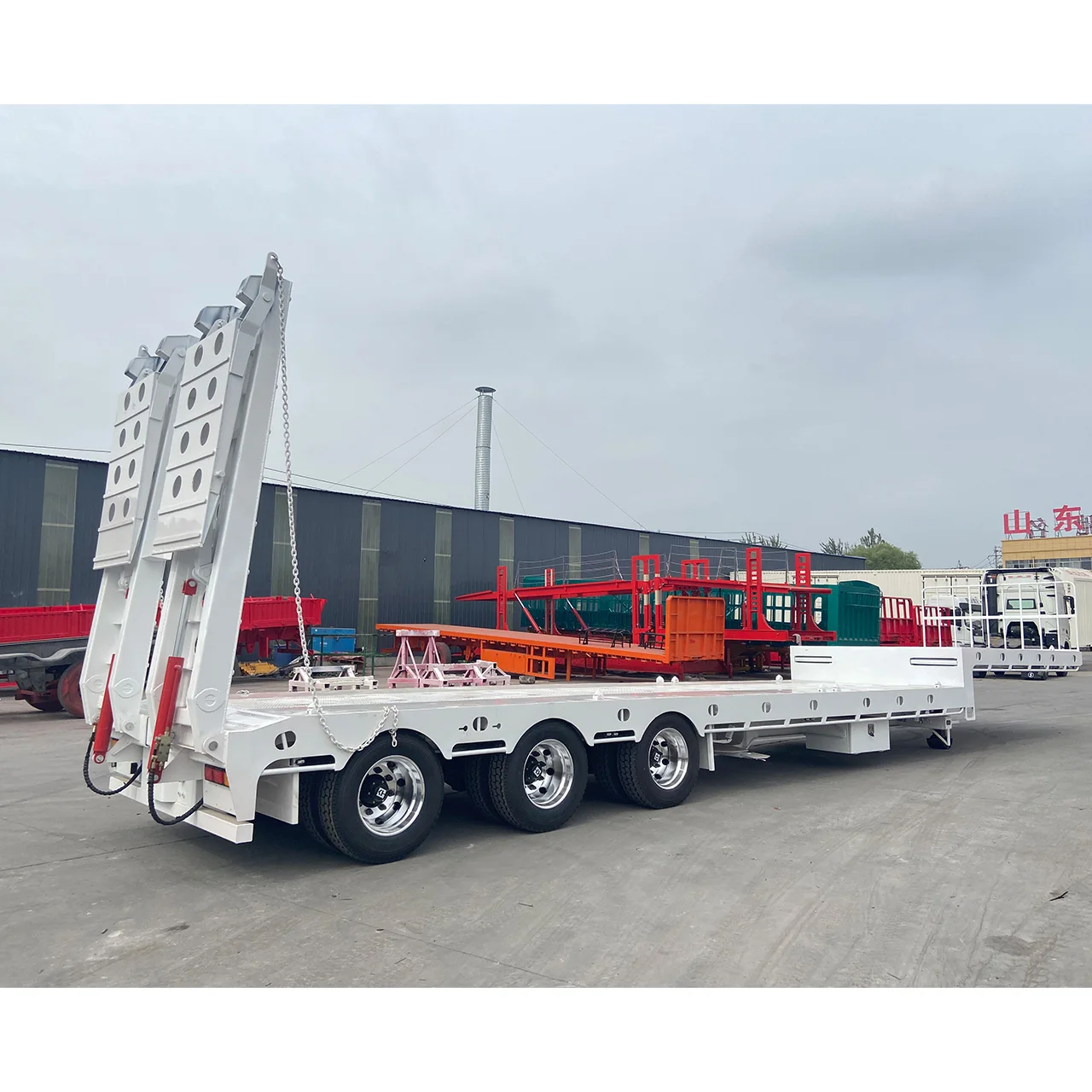

Brand new lowbed semi trailer China lowboy used low bed trailer truck and can load 60 80 T 3/4/6 axis cars for sale
- Category: >>>
- Supplier: Shandong Kayuan International Trade Co. Ltd.Shandong Ltd.
Share on (1601282590671):
Product Overview
Description

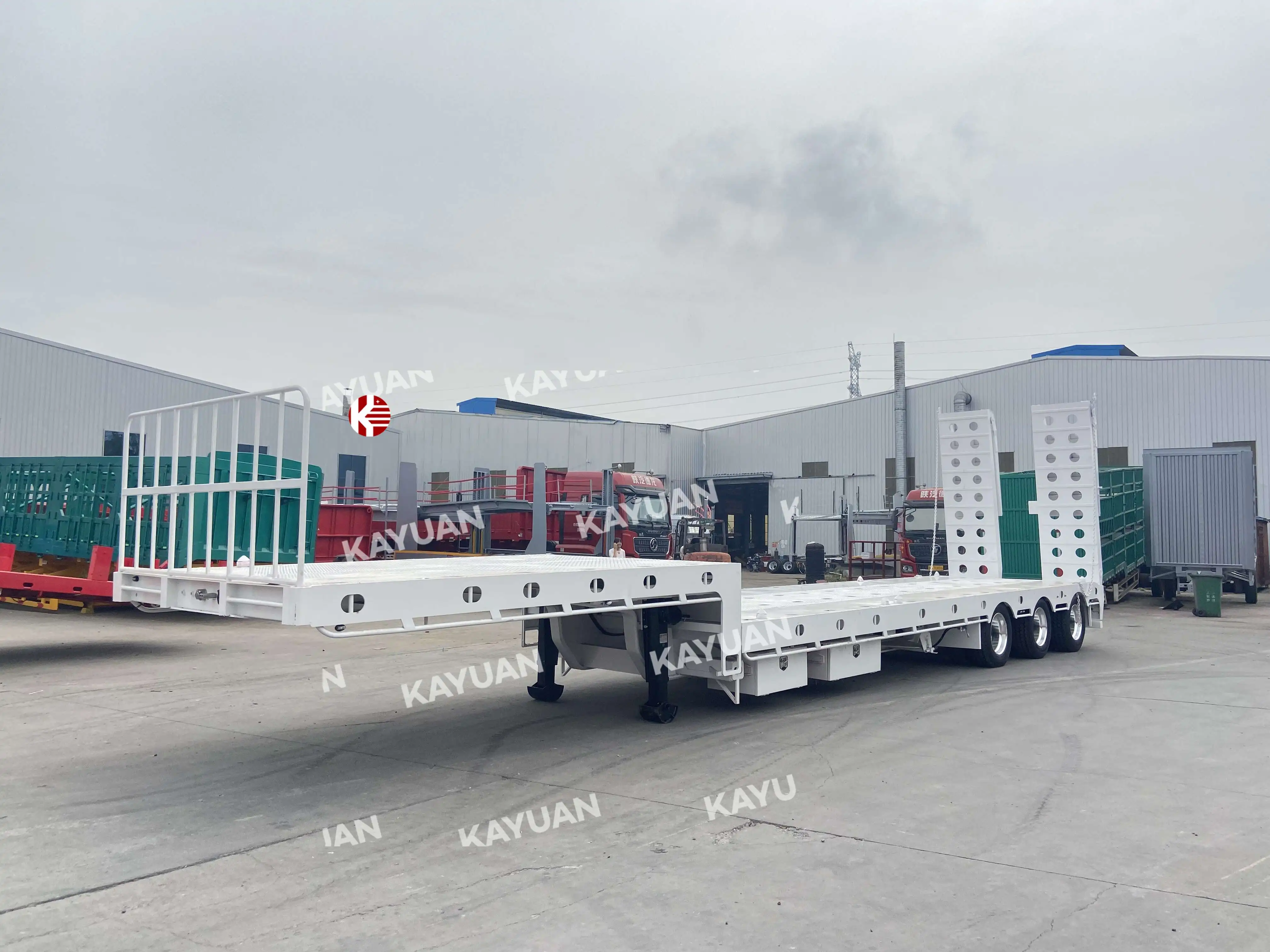

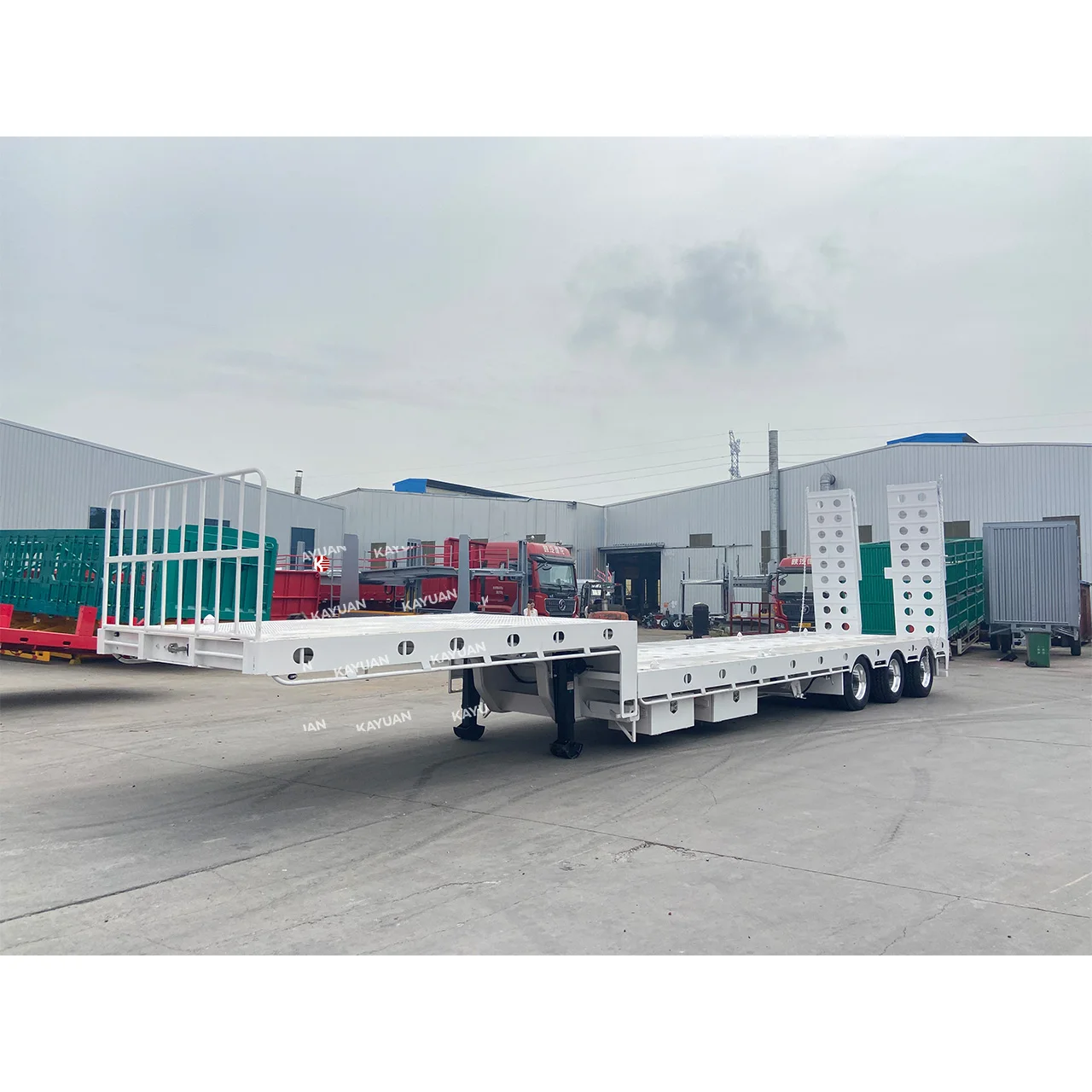

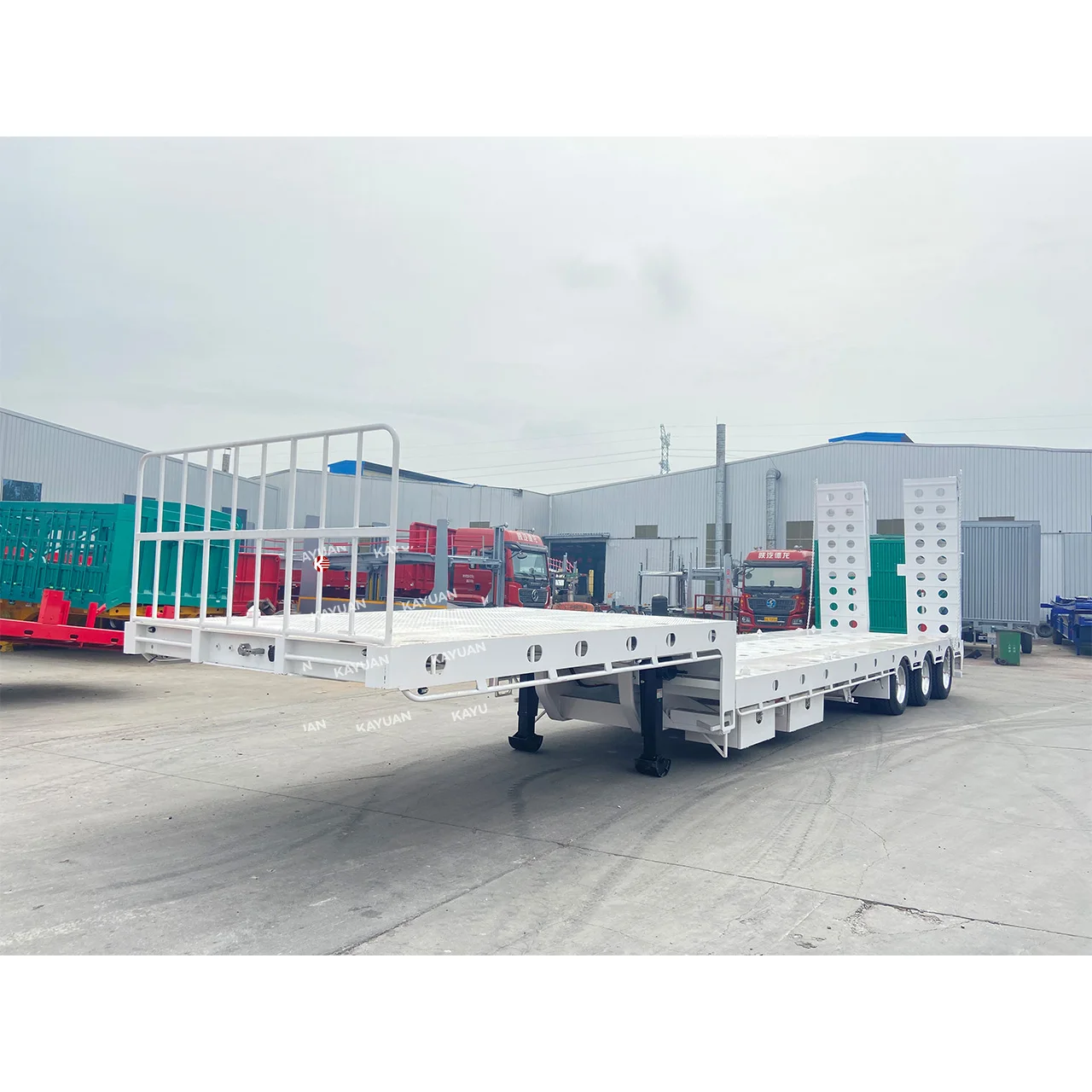

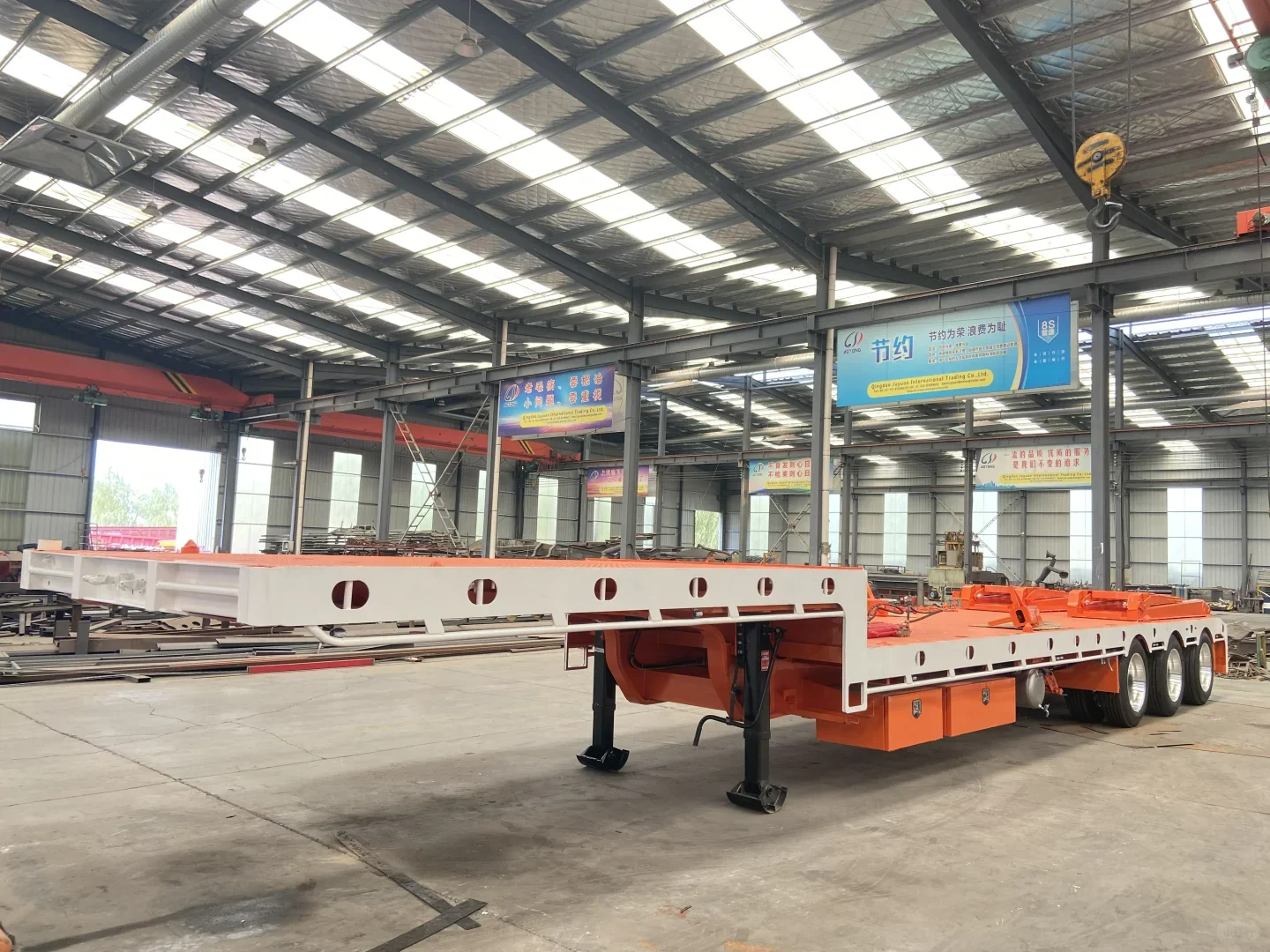

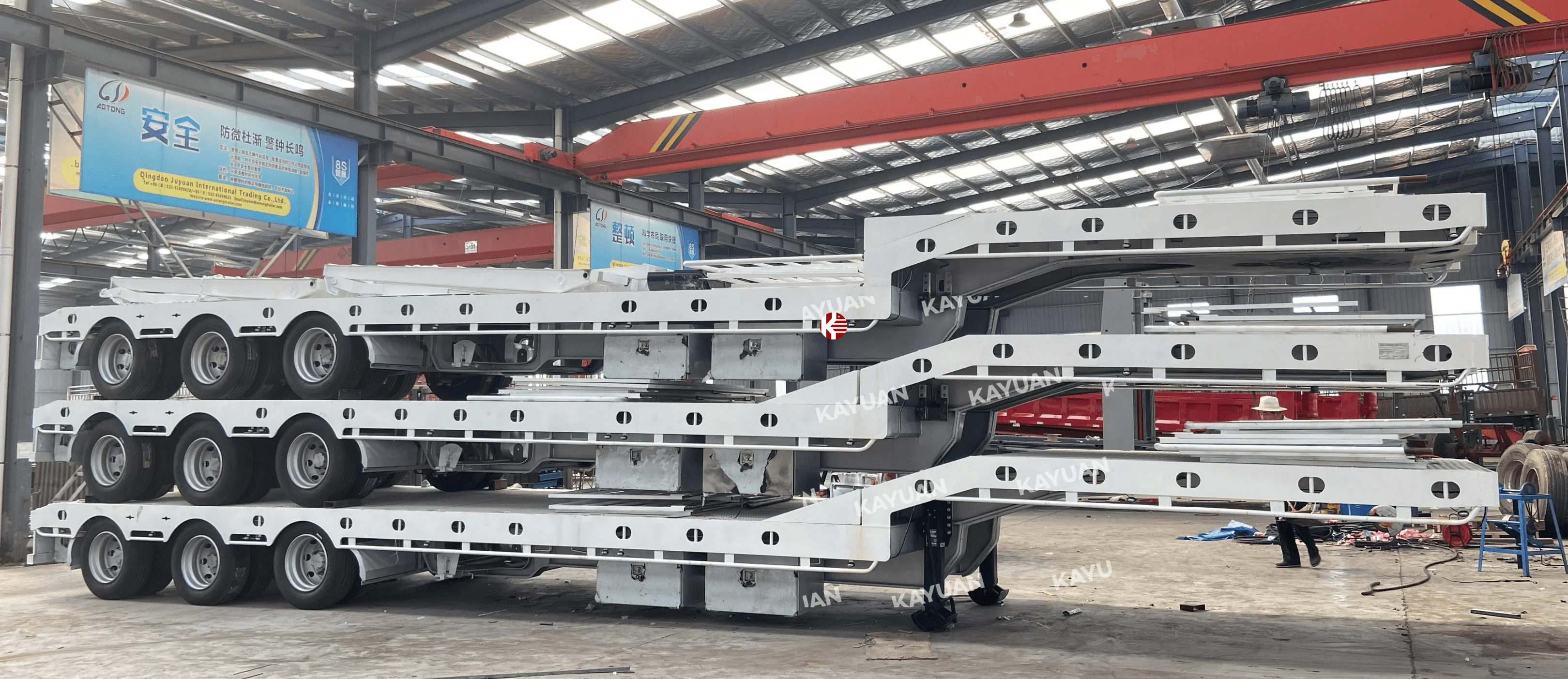

KAYUAN Lowbed semi-trailers are the workhorses of the transportation industry, hauling massive cargo that would otherwise be impossible to move. These versatile trailers can handle everything from construction equipment and machinery to wind turbine blades and oil rigs. If you need to transport something big, heavy, and out-of-the-ordinary, a lowbed semi-trailer is the solution.
LxWxH | 13730MM*2500MM*1650MM | |
High | 450MM Q345B | |
Upper wing | 16MM/140MM | |
Lower wing | 18MM/140MM | |
sternum | 10MM | |
Vehicle configuration specifications | ||
Beam | I-beams and 100-channel steel | |
Traction pin | JOST 90# Traction pin | |
Side beam | Standard | |
Outrigger | JOST 28T external leg | |
Crawling ladder | Hydraulic ladder | |
Synchronous valve | WABCO | |
ABS | WABCO | |
Leaf spring | Set up | |
Bottom plate | 5# Pattern plate Gooseneck 3# | |
Axle | Meet the Australian standard Fuhua KH axle 3 | |
Toolbox | One | |
Tire | 11R22.5 tires 12 | |
Spare tire carrier | One | |
Steel ring | Supporting 12 aluminum rings | |
Air reservoir | 2 aluminum alloy 50L | |
suspension | Air suspension Australian standard | |
Container swivel lock | 12 | |
Brake system | T30/30 dual air chamber 6 Fuhua | |
Lights | Meets Australian standard luminaires | |
T30/30 dual air chamber 6 Fuhua | 24V seven-hole socket | |
Tires
High quality tire brands such as Double Coin/Linglong
Michelin/Triangle/Bridgestone can be optioned for the best performance.11R22.5 tires 12
Cross-bracing
Optional thicker steel plates for greater load carrying capacity, encrypted design to provide good transport stability, size and shape can be customized to suit specific cargoes.
Landing Gear
JOST 28T external leg
Base plate
The trailer is stably controlled by high-strength steel and excellent circuit performance

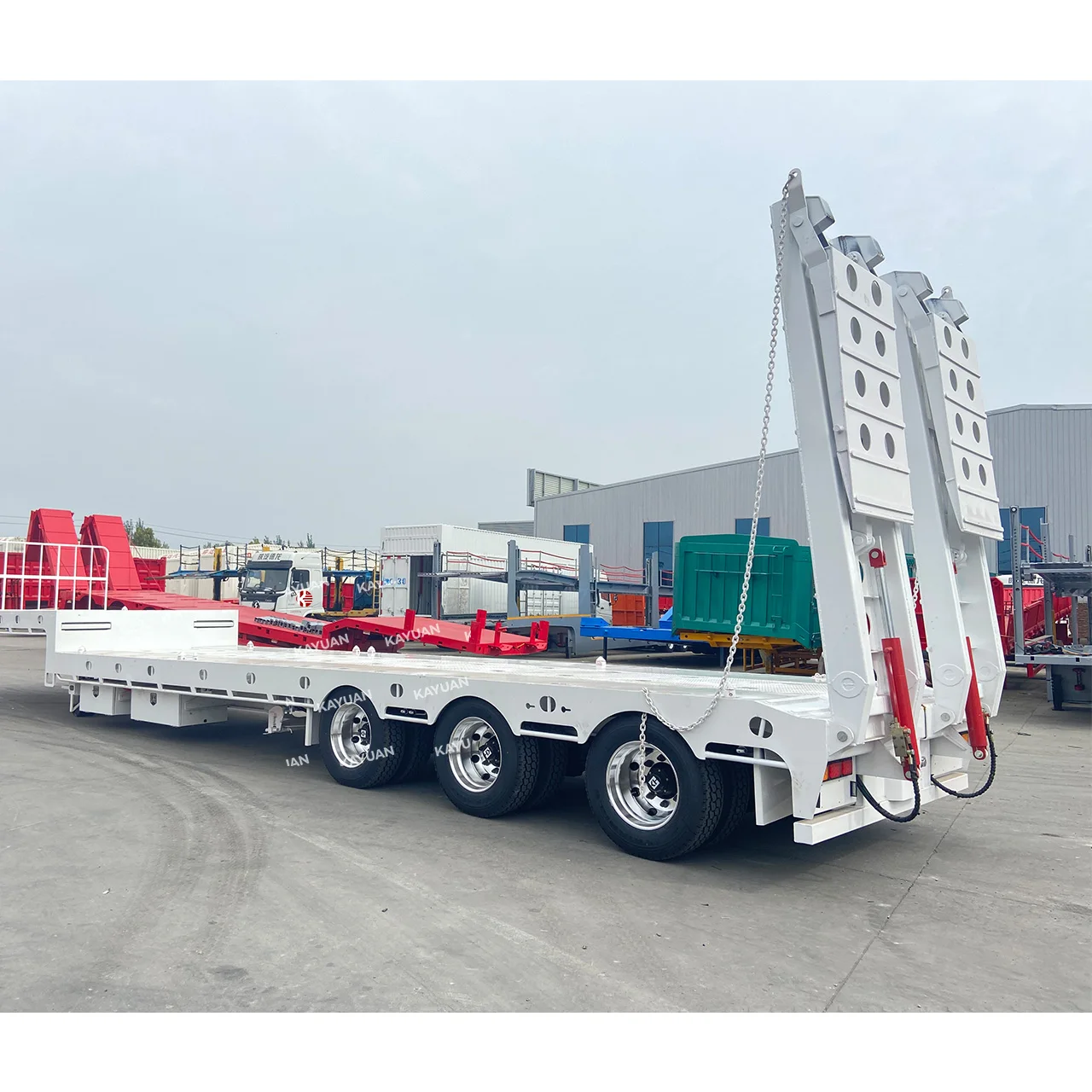

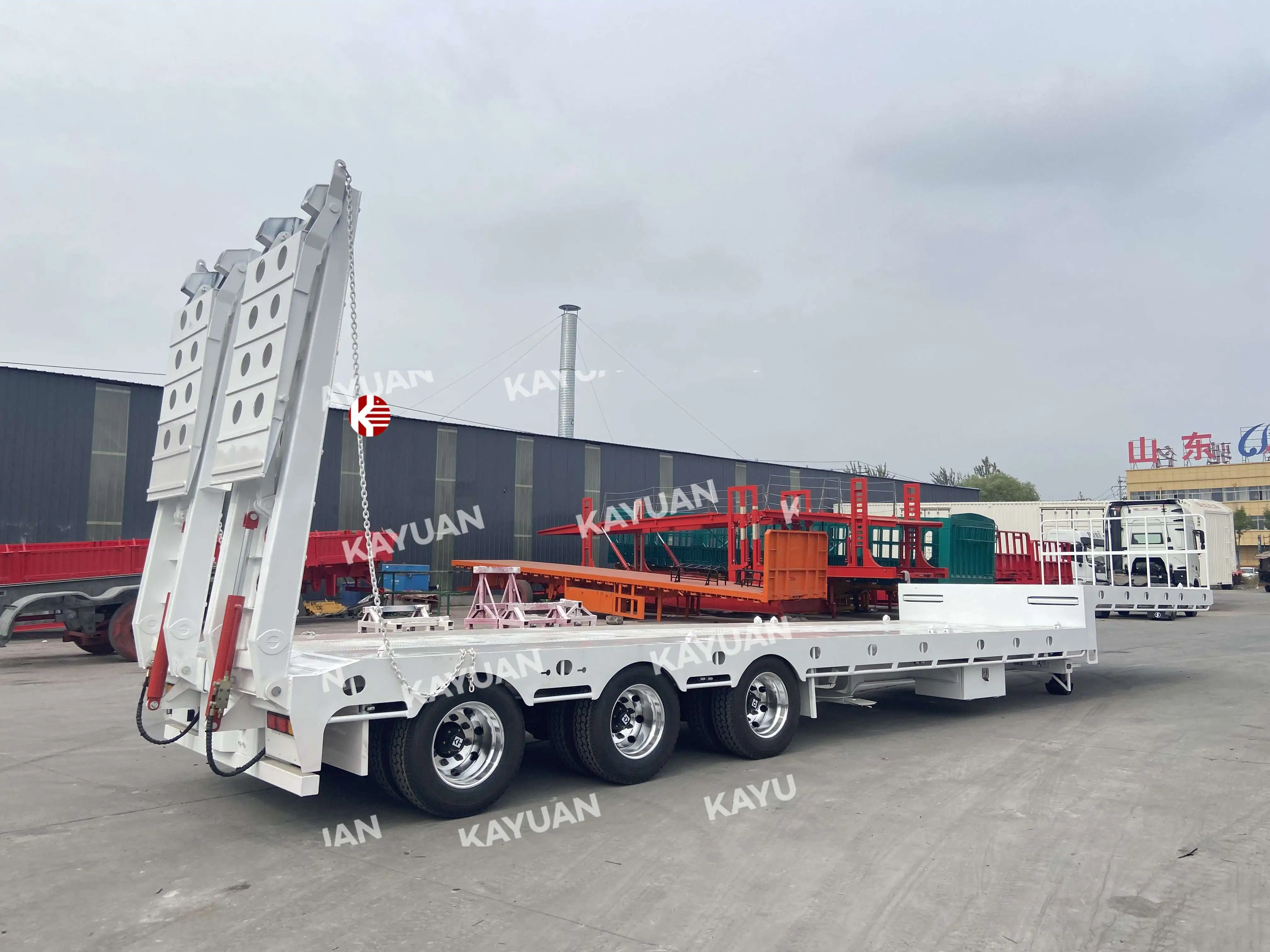

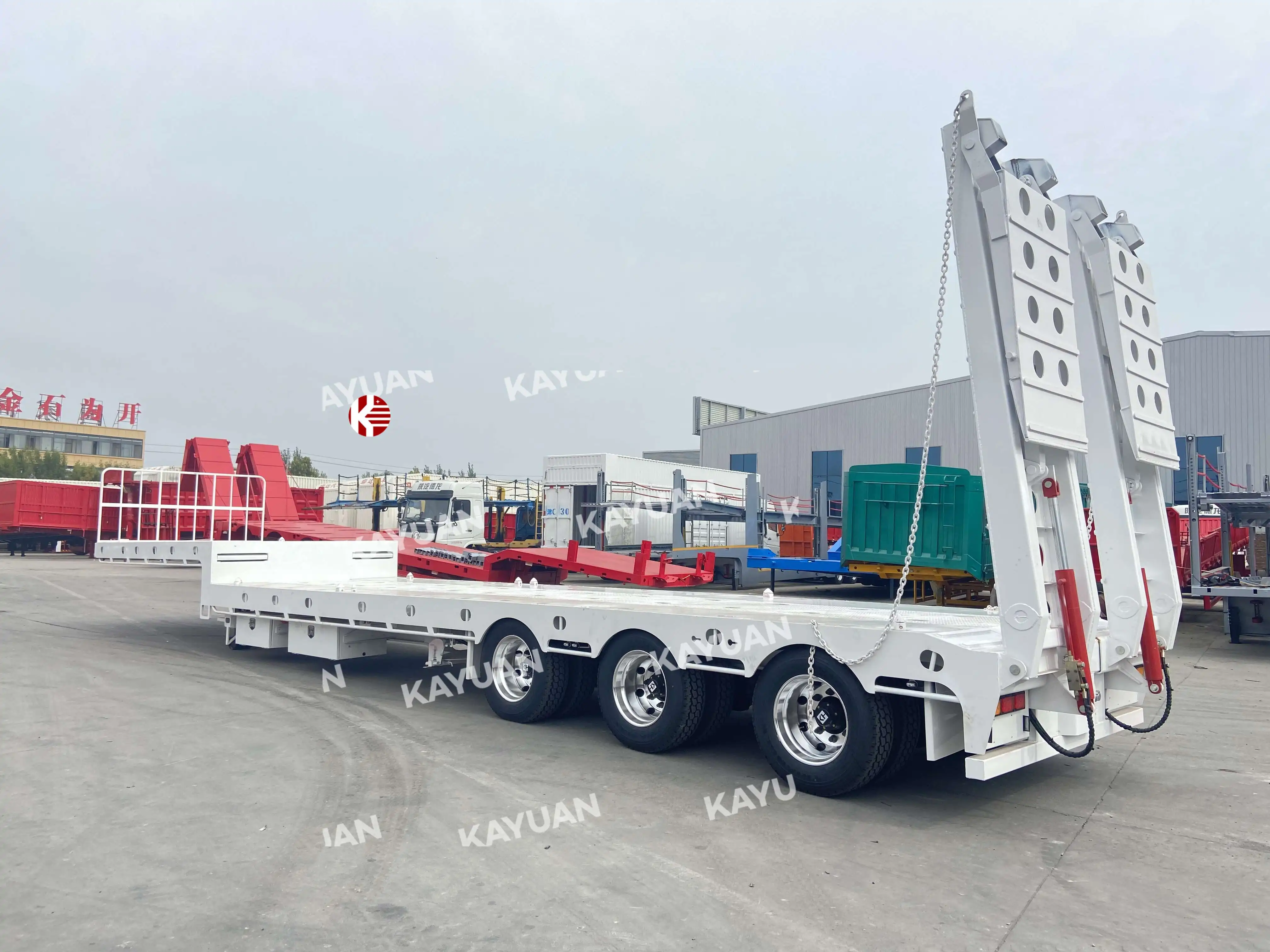

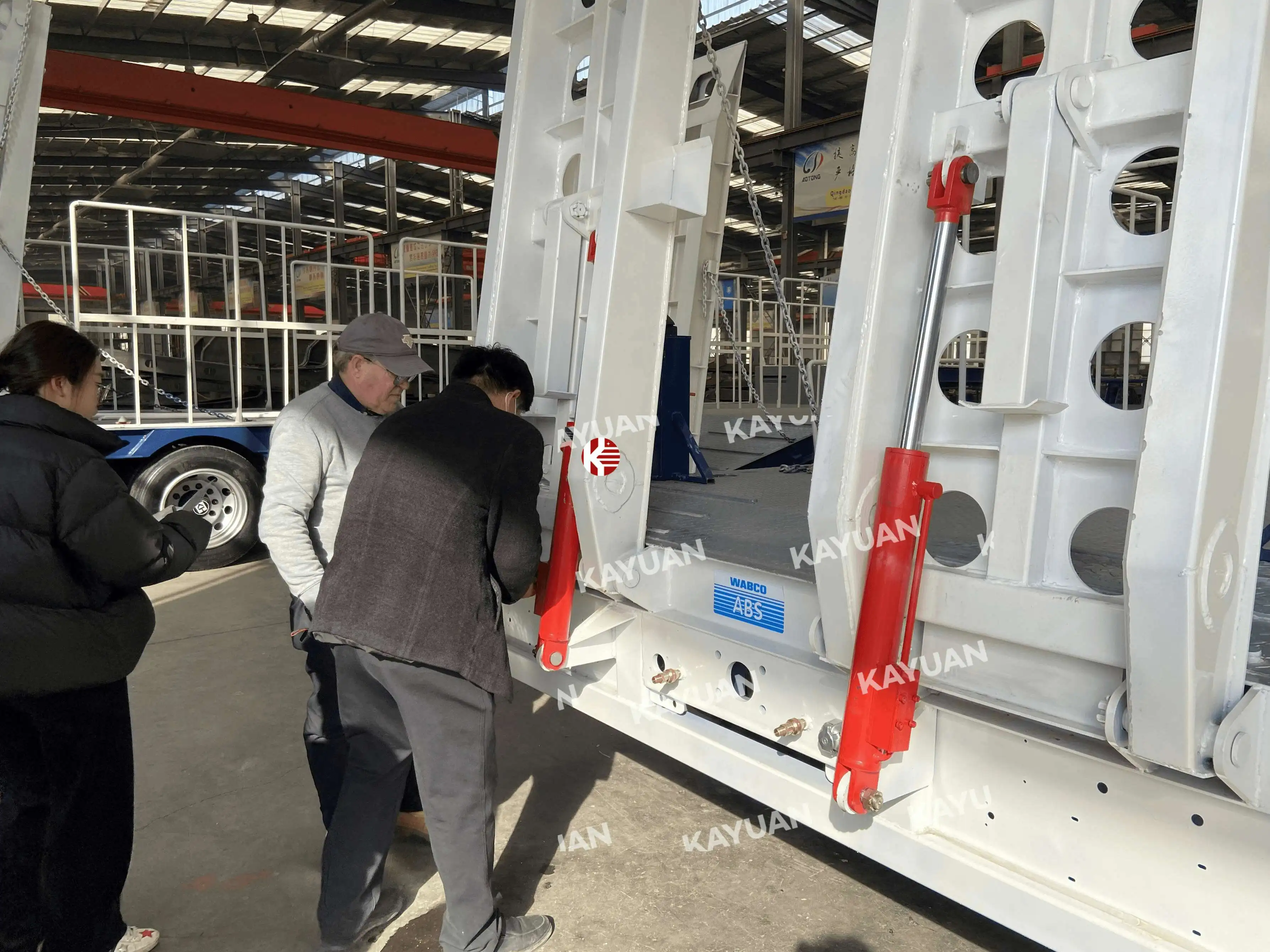

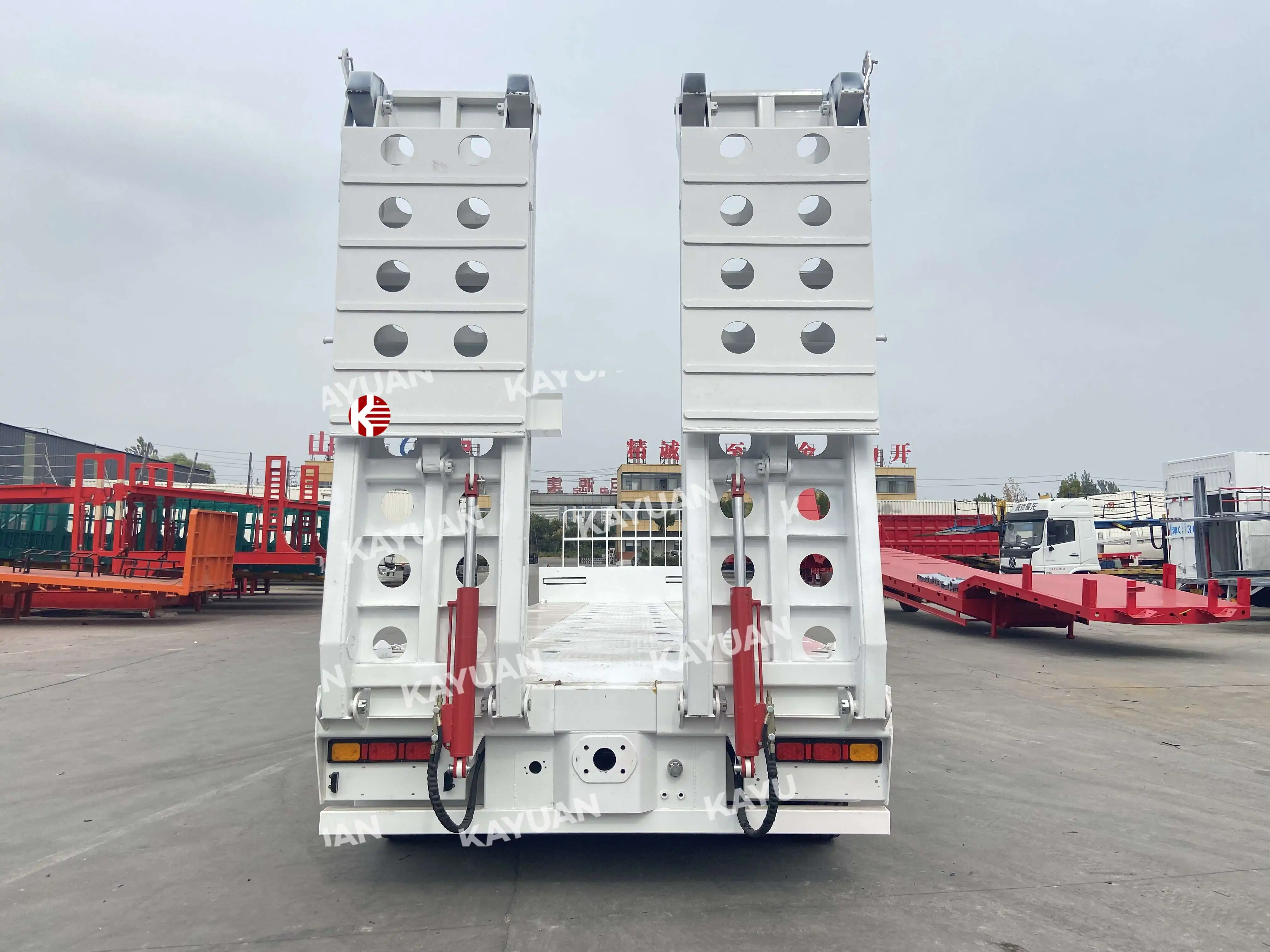

Loading ramp
Suitable slopes, automated operation, equipped with electric or hydraulic systems and slopes designed with expandable functions that can be adjusted to suit different loading requirements.
We have received 1000+ customers from more than 90 countries around the world.

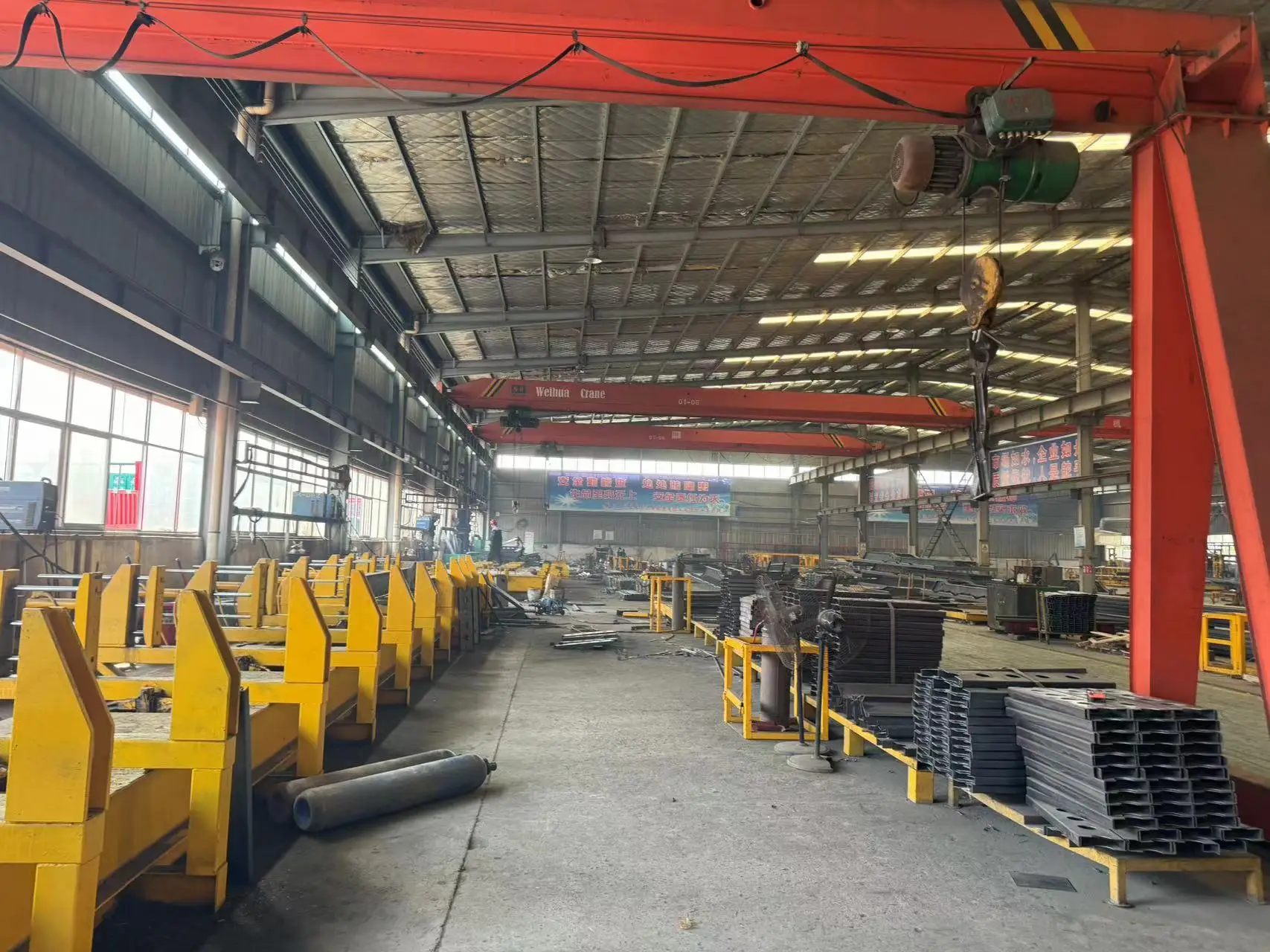

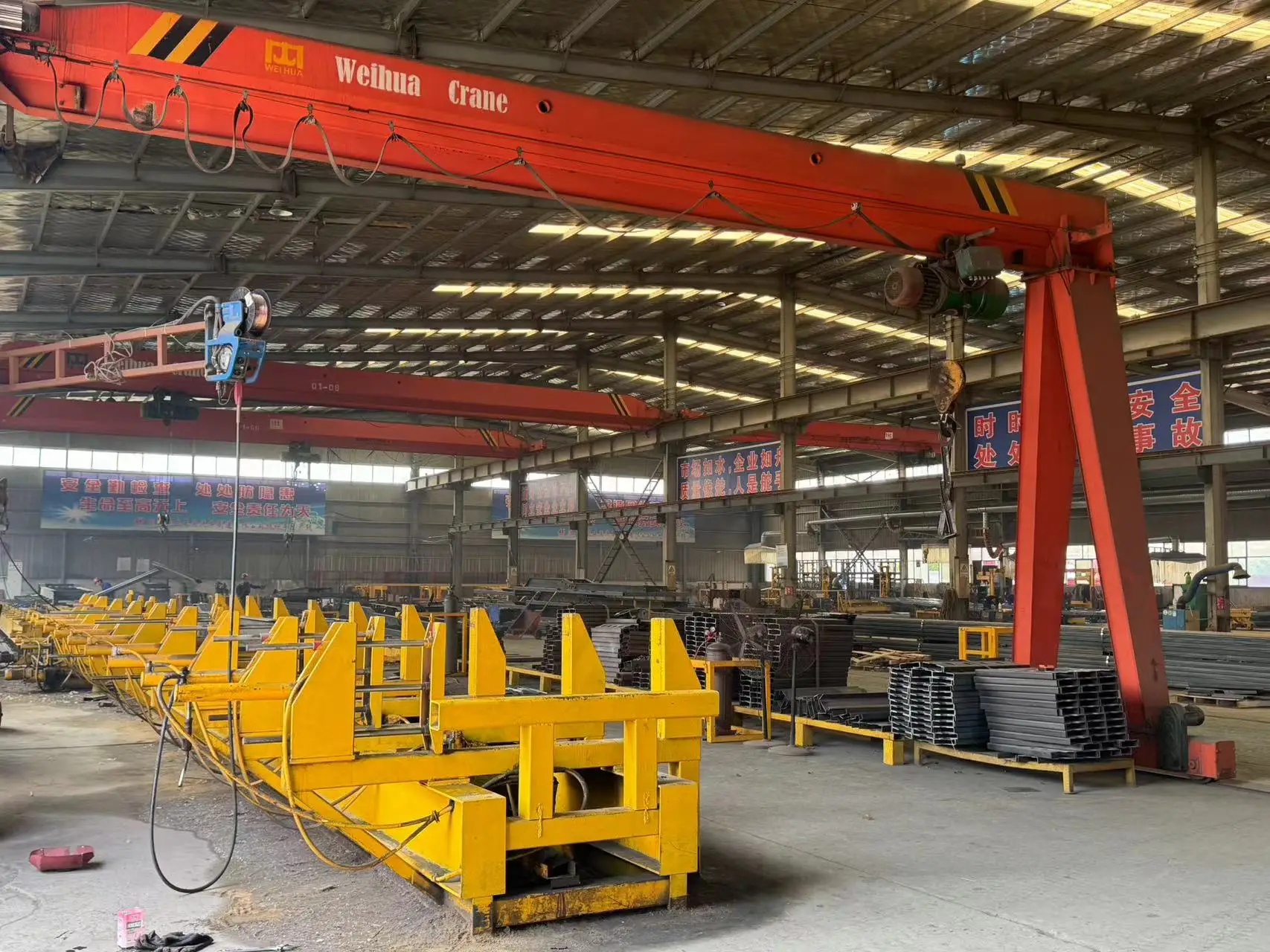

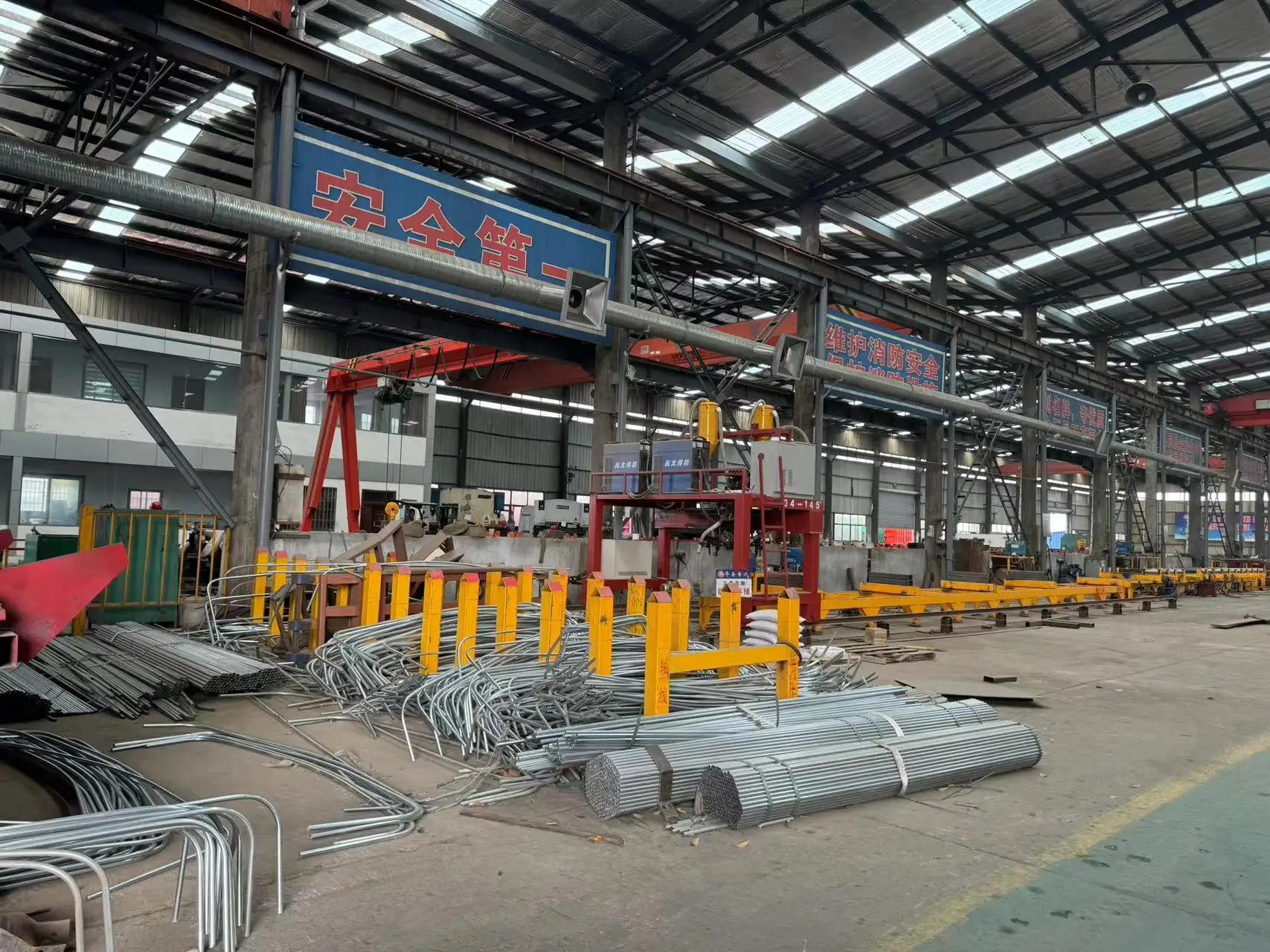

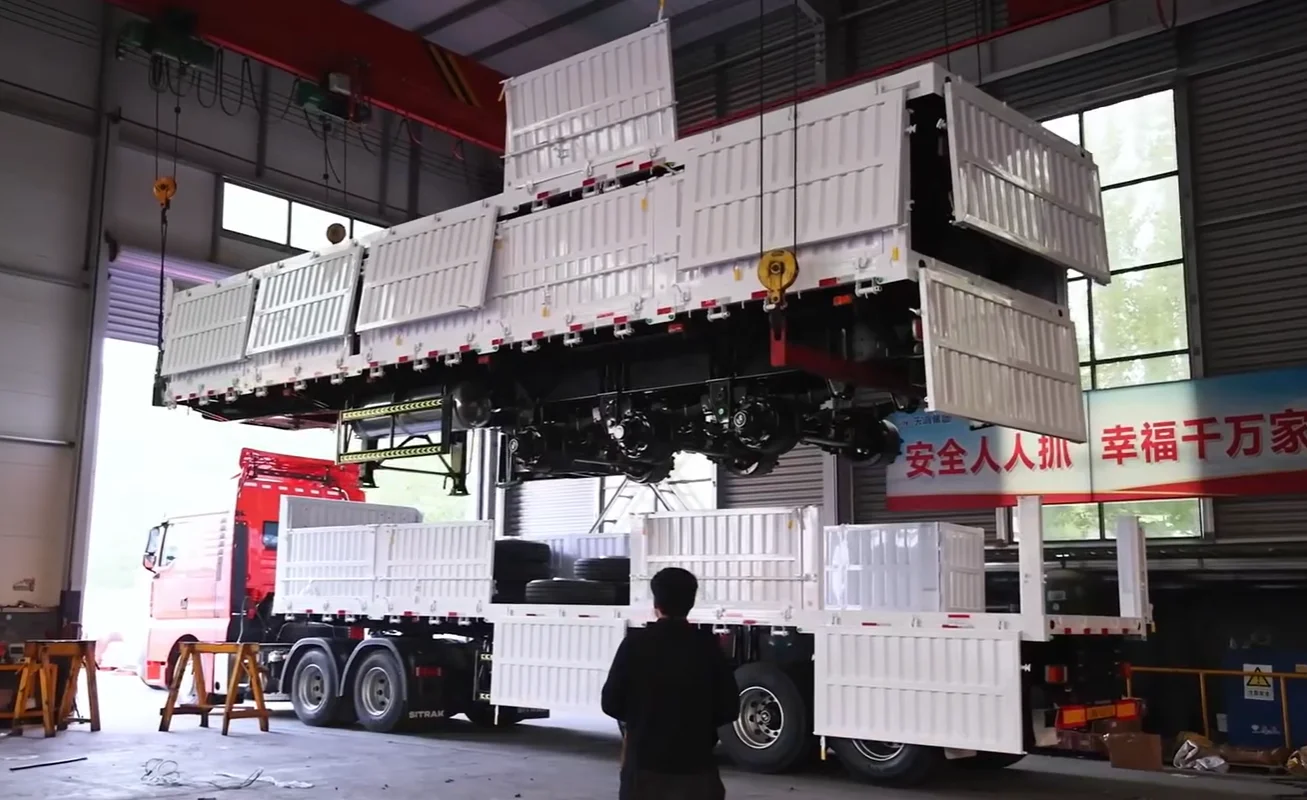

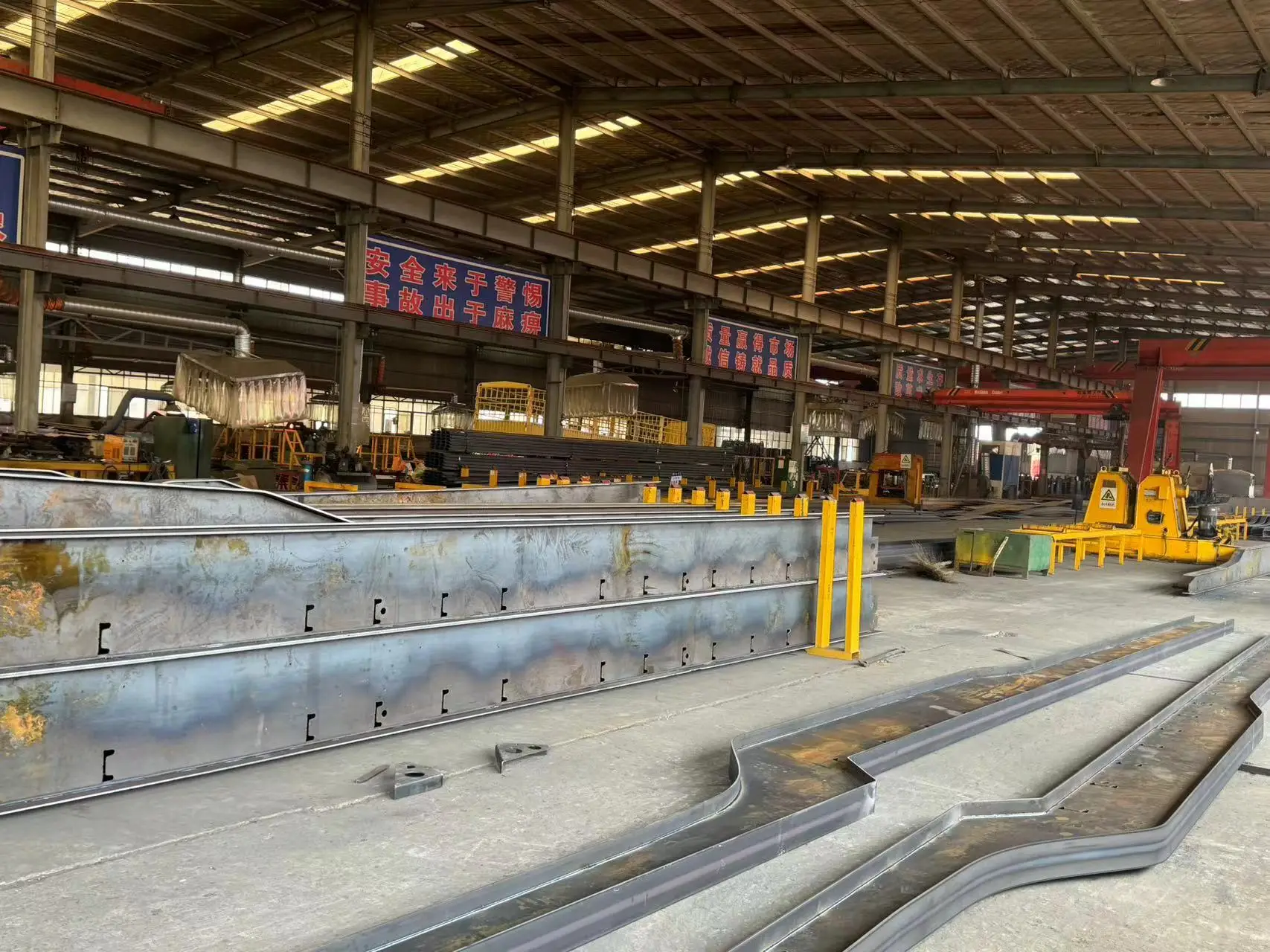

Welcome customers to visit our company and production factory.

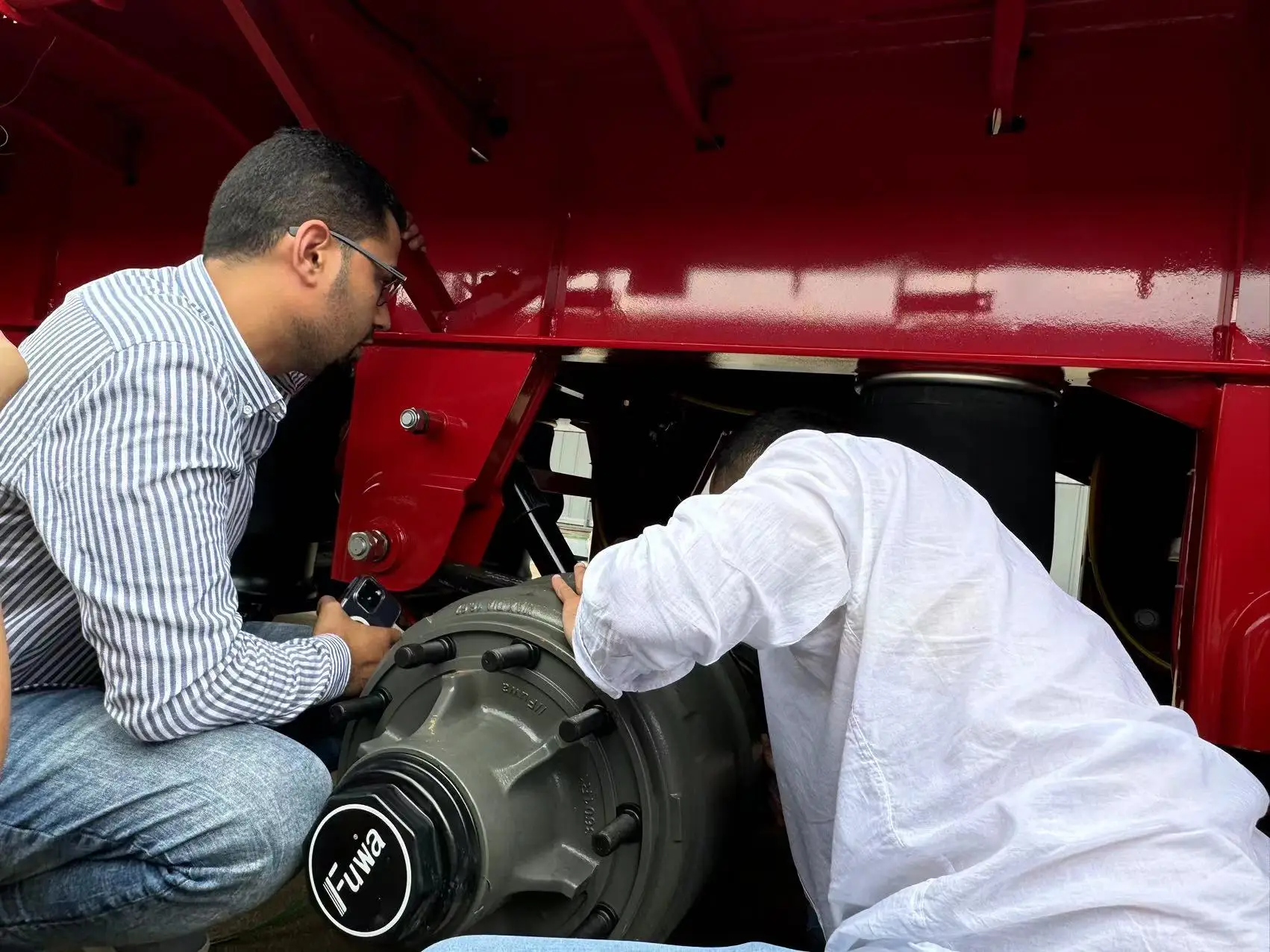

Customers who have worked with KAYUAN have all spoken highly of our vehicles and have chosen to work with us again
1. 10 years of experience in trailer production
2. All trailers come with a 6 month warranty and free replacement parts
3. Good after-sales service
4. Customer trust and support
5. A factory covering 400 square meters
