PT U67MV Intel Core i3/i5/i7 processors industrial grade mother board 4 POE,16*GPIO 9~36V industrial motherboard
- Category: >>>
- Supplier: Shenzhen Pontron technology Limited
Share on (1601282858080):
Product Overview
Description
PT-U67MV Intel Sky Lake U-series processors industrial grade mother board 4 POE,16*GPIO 9~36V industrial motherboard
Main feature:
PT-U67MV based on Intel Sky Lake U-series processors
Onboard VGA and HDMI interfaces, supporting 4K ultra-high-definition display output
5 Intel Gigabit network ports, support 4 POE
16*GPIO, 6*USB, 2*COM
9~36V wide voltage input
Specifications:
Processor | Intel 6th/7th Core i3/i5/i7 or Celeron U-series processor |
Memory | 1*DDR4-2133MT/s notebook memory, Max 16GB |
Bios | SPI AMI EFI bios |
Display | 1*VGA 1*HDMI 1.4a |
Network | 5*RJ45—Intel I211AT |
Audio | 1*F_AUDIO pin (MIC-IN &LINE-OUT) 1*SPK—2W/4 Euro |
SATA | 1*Standard SATA3.0 interface; 1*mSATA card expansion slot; |
COM | 2*COM |
Other | 4*USB3.0, 2*USB2.0; 1*PS/2; 16*GPIO; 1*Standard Mini-PCIE slot, supports WIFI/4G; |
Power interface | DC-Jack/2PIN terminal block, 9~36V DC input |
Motherboard specifications | 165*115mm,green |
Operating System | WIN7/WIN8/WIN10 Unix/Linux |
Working Environment | Temperature: -20~+70℃ Humidity: 5~95%RH |
Storage Environment | Temperature: -40~+85℃ Humidity: 5~95%RH |
Ordering inforamtion:
PT-U67MV | PT-U67MV is based on the Intel Sky Lake platform and uses Intel Core i3/i5/i7 processors. Onboard VGA and HDMI interfaces, supporting 4K ultra-high-definition display output.W/16*GPIO, 6*USB, 2*COM;W/Memory 16GB 1*DDR4 SO-DIMM.Support 9v~36v DC power supply. |

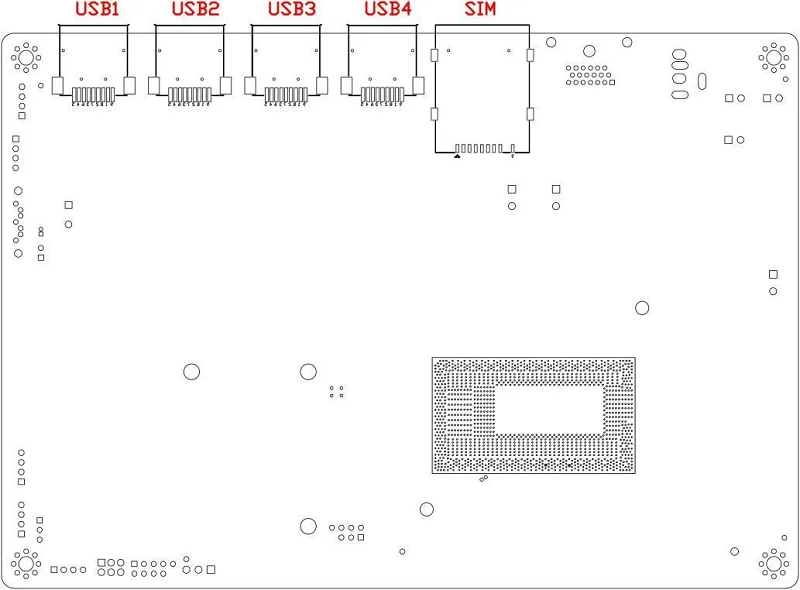

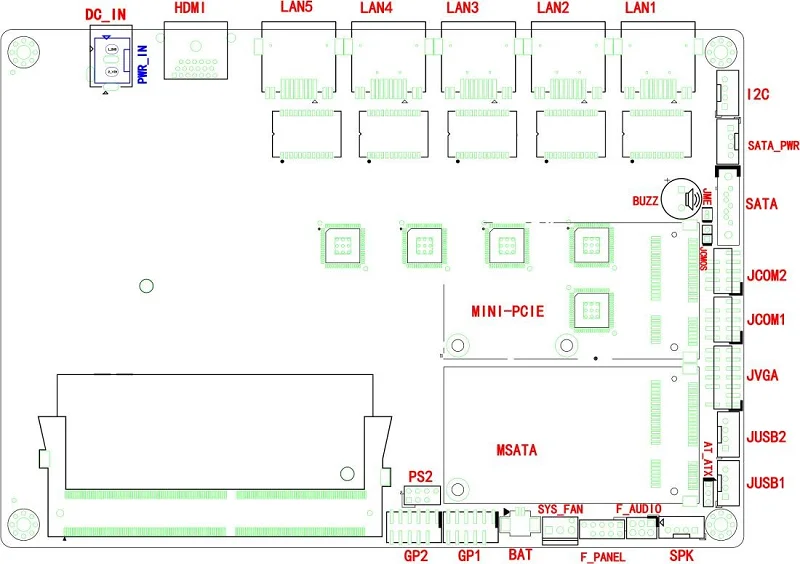

Drawing:
