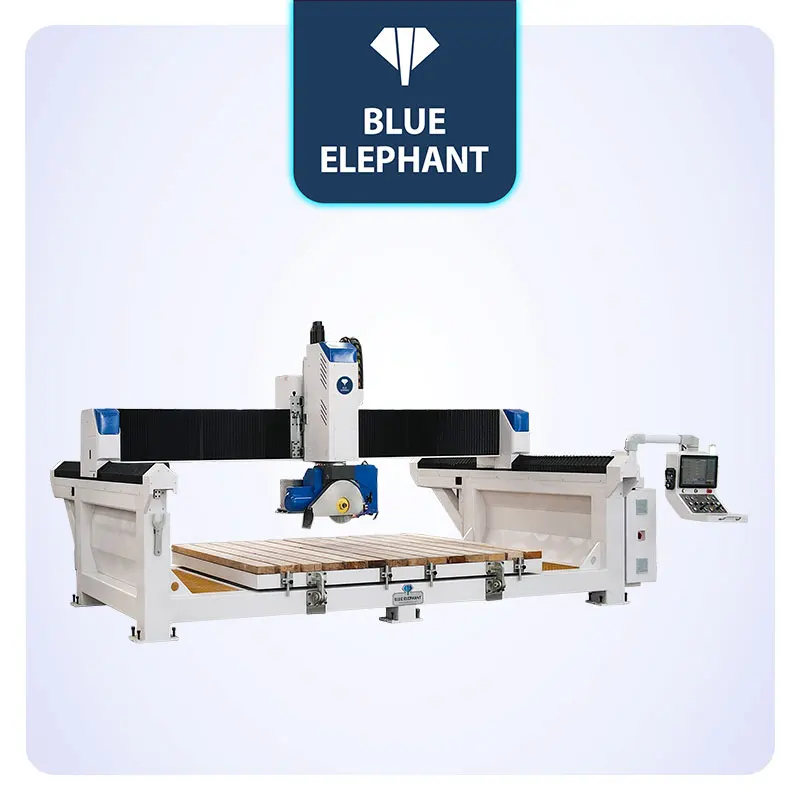

The Latest 5+1 CNC Bridge Saw stone quartz marble granite processing center machine with Italy ESA System for Sale
Description
The latest 5+1 CNC bridge saw machine can cut and trim granite, marble, artificial stone, slate and other stones at any angle and shape. The key parts of the machine are imported high-quality accessories, and the system adopts the Italian ESA system, which has fast and stable operation. The corresponding servo and touch display are also the same brand as ESA. The system can also be customized with Blue Elephant customized system.
Features
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
2. The slab can be positioned by taking
photos. In addition, this machine can automatically plan the cutting path directly from the generated map, greatly improving processing efficiency.
photos. In addition, this machine can automatically plan the cutting path directly from the generated map, greatly improving processing efficiency.
3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 85°.
4. The Italian servo motor is used to complete circular cutting, square cutting, fan cutting, oval cutting, 45° bevel cutting, drilling, outer edge polishing, etc.
Product Paramenters
5＋1 Stone CNC Bridge Saw Machine --------------------- If you want to copy, please indicate the primary source。 Original source:https://www.elephant-cnc.com/pro/the-latest-5-1-cnc-bridge-saw-machine-with-italy-esa-system-for-sale/ | ||
Working travel | X Axis: 3200mm Y Axis: 2000mm Z Axis: 400mm C axis:±360° A axis:0-90° | |
Moving speed | Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min | |
Servo motor | Italian Servo | |
Guide rail | X, Y，and Z: # 30 (Taiwan Brand) | |
Rack | X、Y 2MT-WIN | |
Worktable | Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG | |

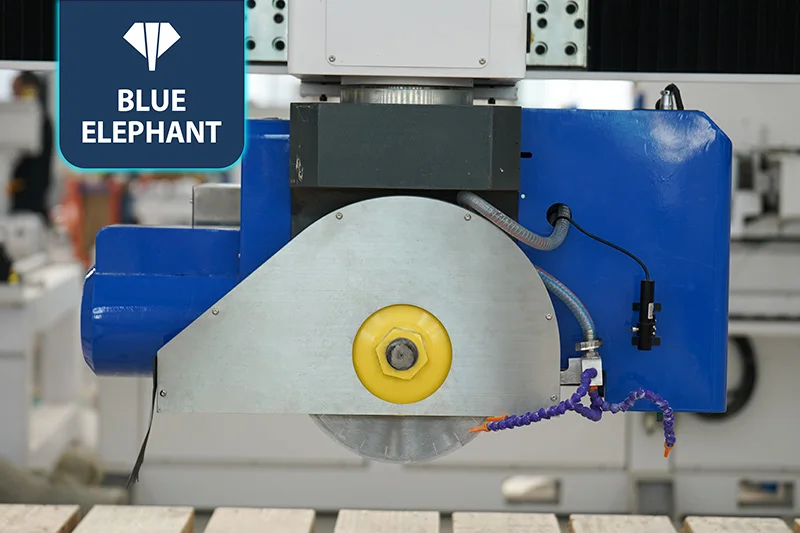

Saw | Dimension 450mm Max. cutting thickness 100mm | |
Ball screw | Z 3210PREYP | |
Reducer | X/Y: Japan SHIMPO | |
Saw motor | 11KW motor, rated: 3000r/min | |
Inverter | 15KW BRICH | |

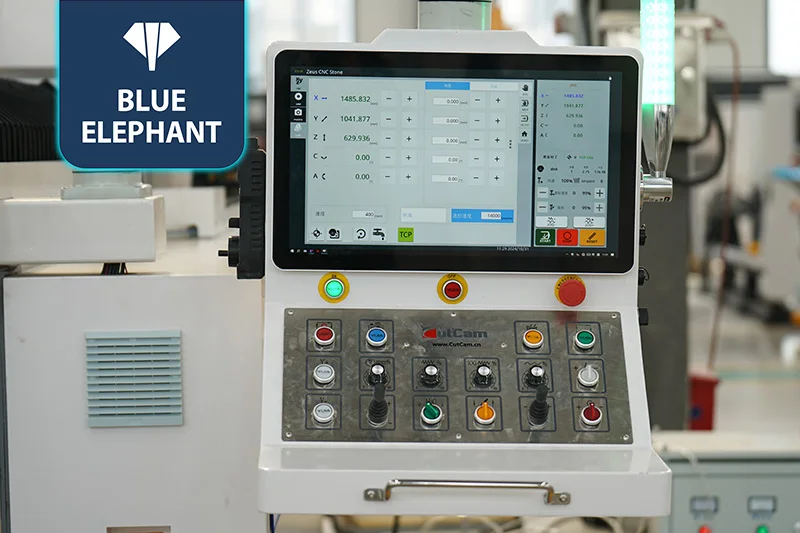

Control system | Italy ESA System | |
Low-voltage electronics | French SCHNEIDER | |
Working air pressure | 0.6-0.8 Mpa | |
Voltage | 380V/3P/50HZ | |
Overall dimension | 5.85×4.5×3.3m | |
Weight | 5.5ton | |

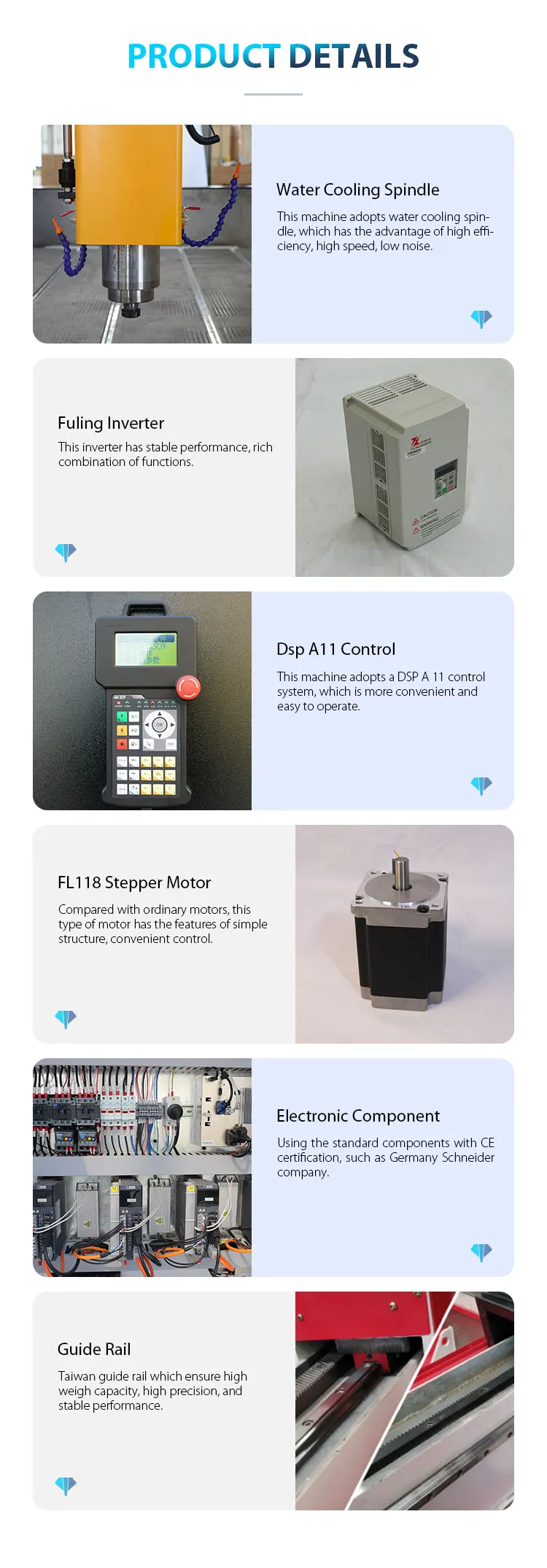

Product Details
