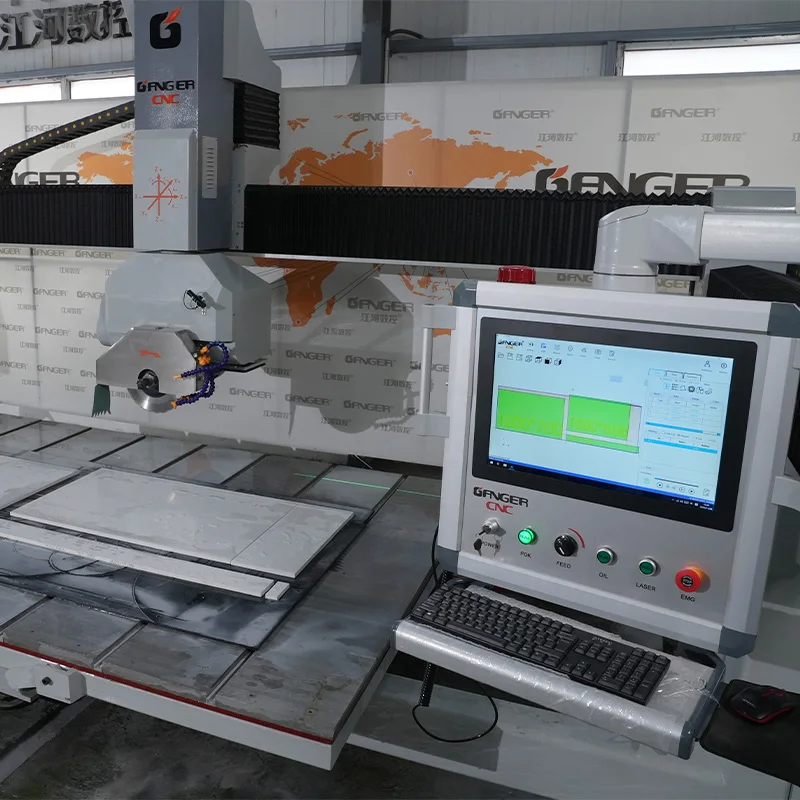

Professional intelligent CAM software automatic 5 axis CNC marble granite natural stone tile cutting machine
- Category: >>>
- Supplier: Jinan Ganger Cnc Technology Co. Ltd.Jinan Ltd.
Share on (1601283040207):
Product Overview
Description
RECOMMEND PRODUCTS
PRODUCT INFORMATION
Applicable Industry & Material:
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Machine Features:
2.Vertical and horizontal cutting, multiangle diagonal cutting.
3.Four sides miter (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, Ltops cutting, Sink cutout, Arc cutting.
5.Cutter bits, Contouring, Suction moving.
6. Intelligent control system.
7.Table tilts 85 degree to load slabs easily.
6. Intelligent control system.
7.Table tilts 85 degree to load slabs easily.
Product details：

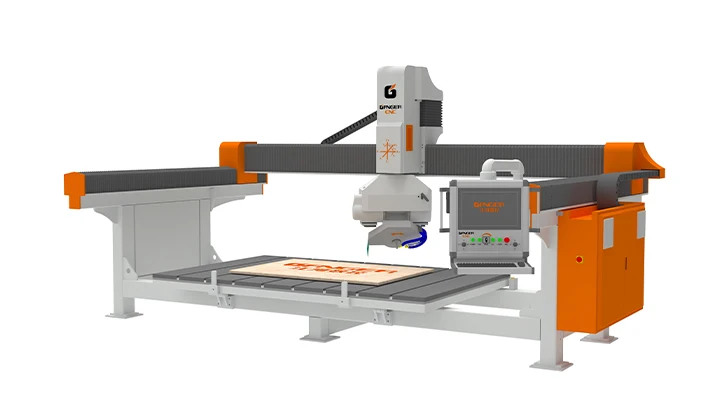

XYZAC five axis
A axis 0 to 90 degree automatic rotation C axis 0 to 360 degree

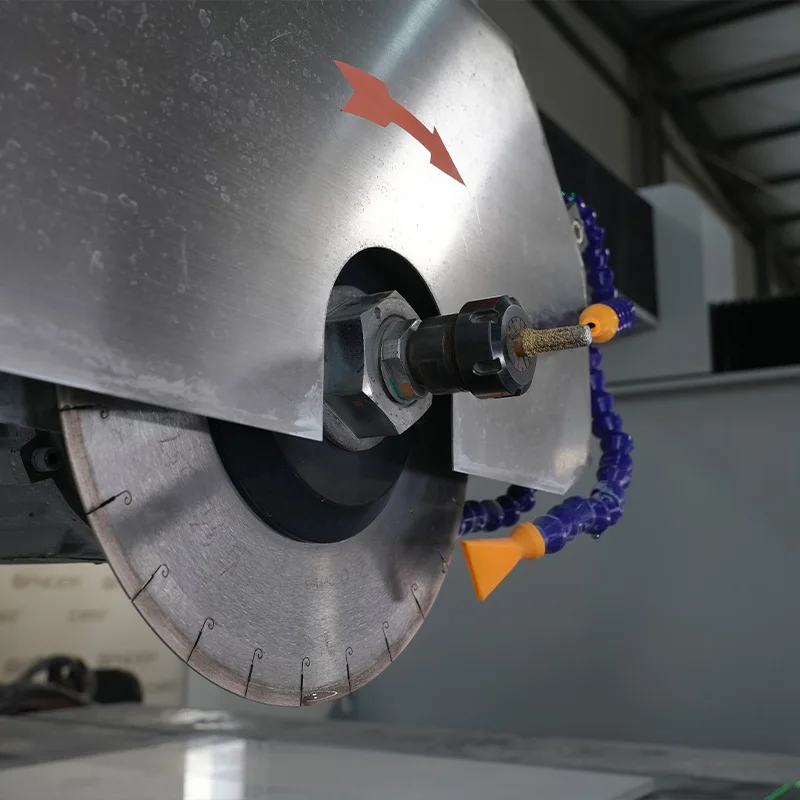

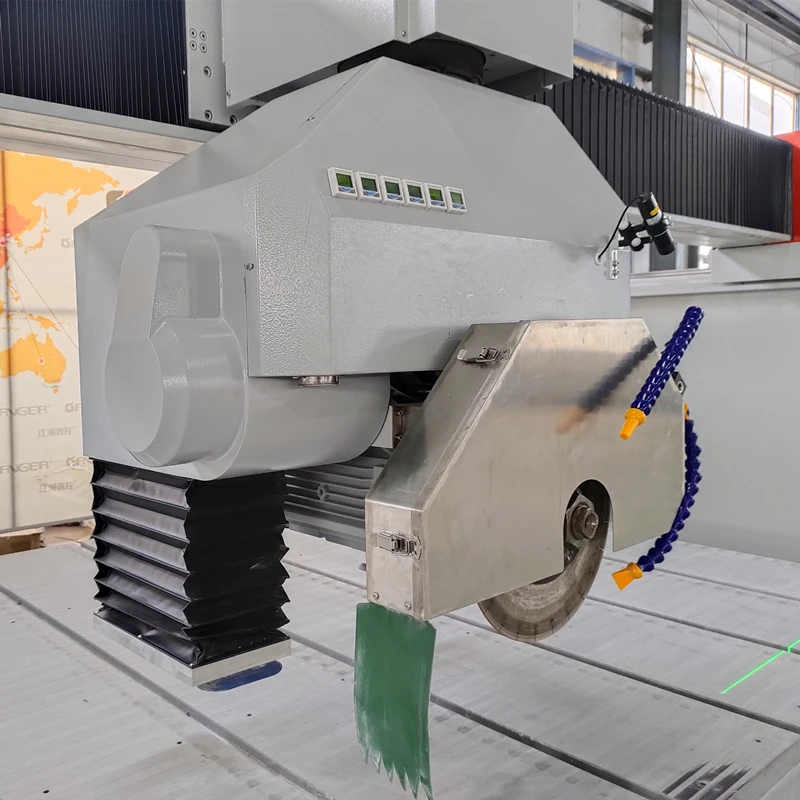

Saw cut

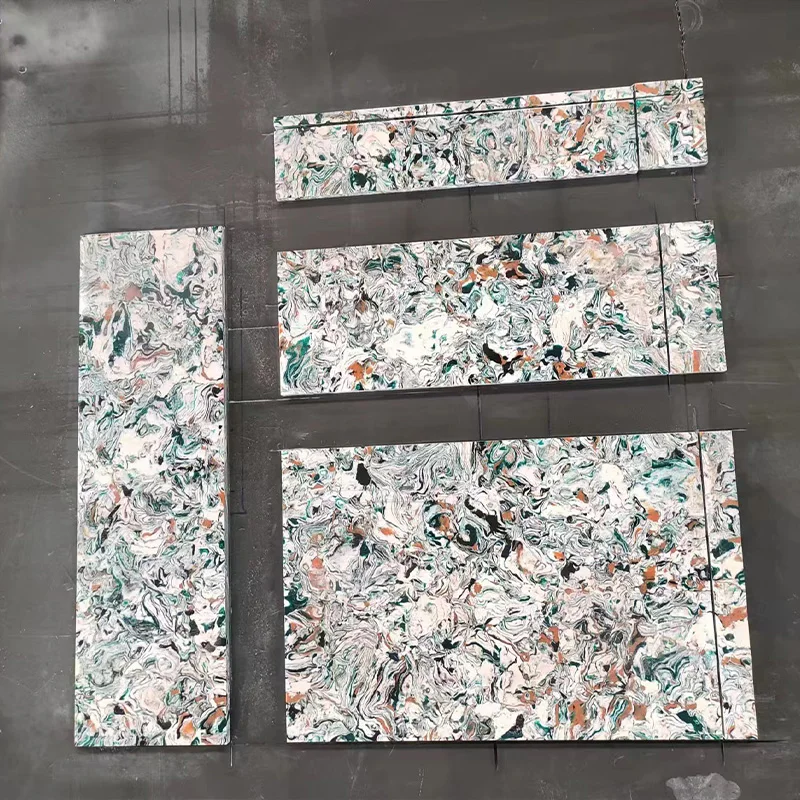

Multiple shapes cut
Profile
Milling bit
Sink cut
Edge polish

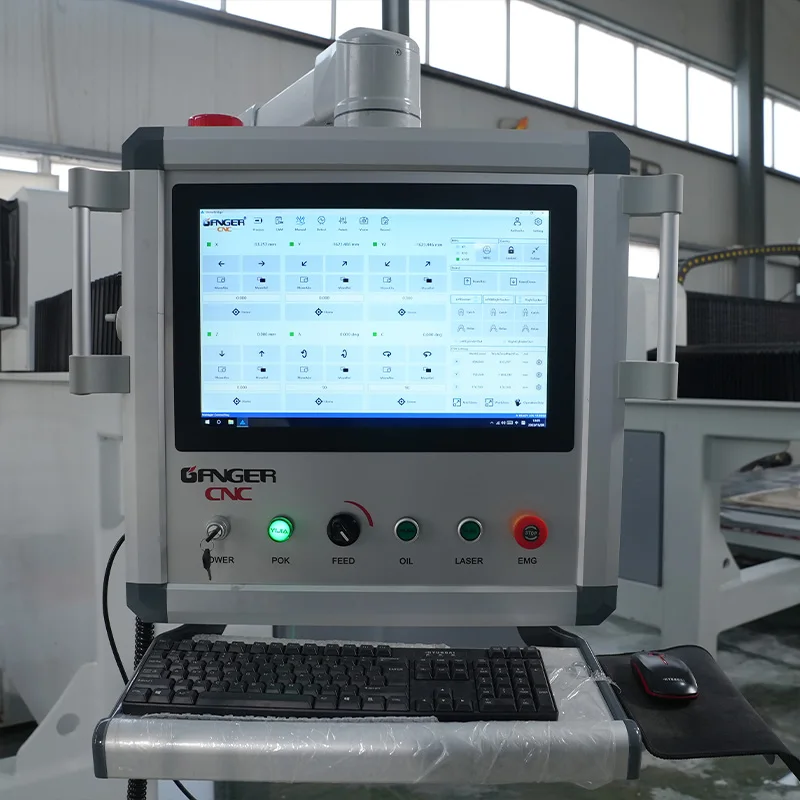

CNC controller
Professional with CAM software Read DXF,
NC file Keep upgrading
Suction cups
Move the slab to prevent overcutting
Parameter：
Model | GQ-3220D | ||||||
X/Y/Z Axis working size | 3200*2000*500mm | ||||||
Diameter of blade | 350-500mm | ||||||
Working table size | 3200x2000mm | ||||||
Blade Motor power | 15KW | ||||||
Total power | 29KW | ||||||
Rotation speed of blade | 3000/6000rpm | ||||||
A axis rotation angle | 0°-90° | ||||||
C axis rotation angle | 0°-360° | ||||||
Table Tilting angle | 85° | ||||||
Control system | GANGER | ||||||
Gross weight | 4500KGS | ||||||
COMPANY PROFILE
Main productseries: Stone automatic production line, Stone bridge saw cutting machine. Stone countertop CNC machining center, Stone CNC machining center. Brand: "GANGER" and "SANHE" All products are with CE certificate and lS0 9001 standard.
GANGER quality standard is synchronized with Europe and the United States. Exported to more than 90 countries and regions, such as Europe, America, Middle East, East Asia and Southeast Asia etc. GANGER development concept: GANGER CNC Keep Moving Forward.
The company has a professional service team in R&D, production, sales and after-sales. Engineers can customize the development system according to customer functional requirements. The after-sales service team and customers establish an after-sales service group to answer customers' questions through video calls and remote control of machines, and solve customers' installation and operation problems in a timely and efficient manner.
