PT U67TK Support 12V/19V DC power supply 3.5 inch industrial grade mother board 2*LAN/6*COM/8*USB/8*GPIO industrial motherboard

Processor

Intel® Core i3-6100U/i5-6200U/i7-6500U sixth generation processor

Intel® Core i3-7100U/i5-7200U/i7-7500U seventh generation processor

Memory

Supports a single DDR4-2133MT/s memory, up to 16GB

Bios

SPI AMI EFI bios

Display

1*VGA

1*HDMI 1.4

1*Dual channel 24bit LVDS

Network

2*RJ45—Intel I211AT

Audio

1*line-out;

1*MIC;

1*SPK—2W/4 Europe

SATA

1*Standard SATA3.0 interface;

1*mSATA card expansion slot;

COM

6*Standard RS232 serial port

Other

4*USB3.0, 4*USB2.0;

1*PS/2;

8*GPIO;

1*LPC;

1*Standard Mini-PCIE slot, supports WIFI/4G;

Power interface

DC-Jack/2 pin terminal block, 12V/19V DC-IN

Motherboard specifications

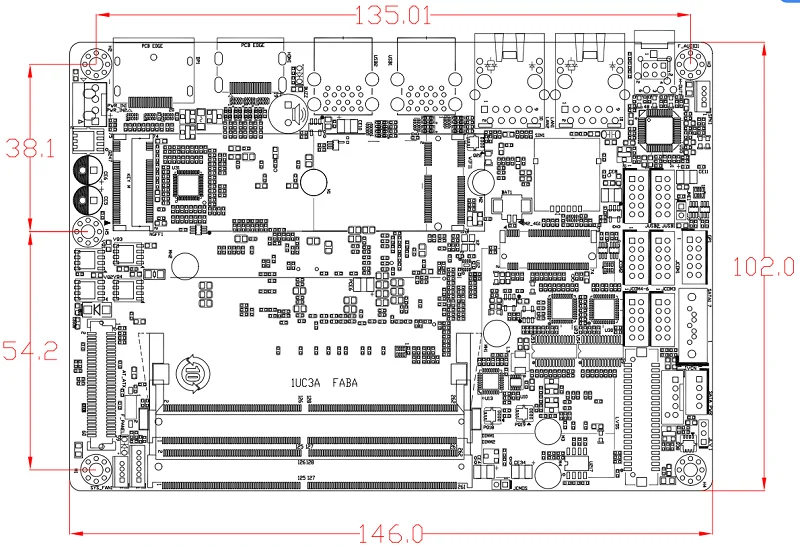

146*102mm,6layer green

Operating System

WIN7/WIN8/WIN10

Unix/Linux

Temperature Environment

Working temperature: -20~+60℃, storage temperature: -40~+85℃

Environmental humidity: 5~95%RH without condensation

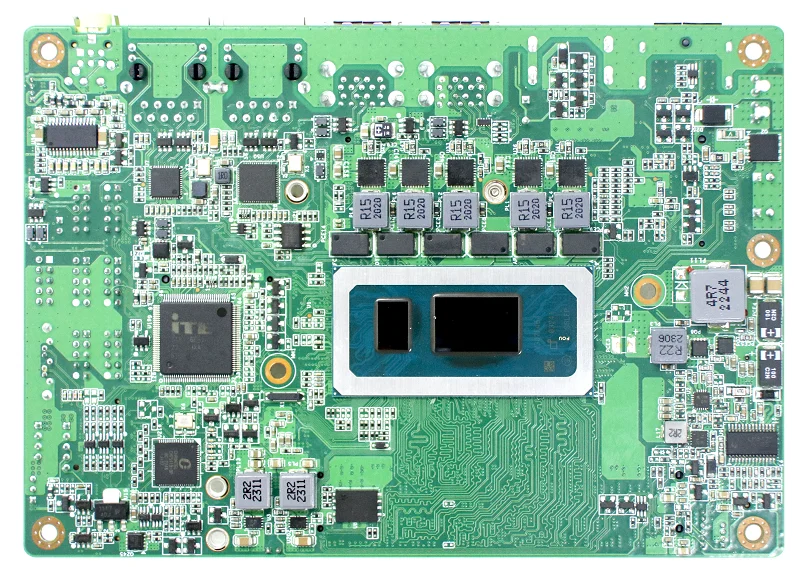

PT-U67TK

PT-U67TK is based on the Intel Sky lake/kaby lake Ult processing platform and uses Intel i3/i5/i7 processors. The motherboard adopts a standard 3.5-inch architecture with a size of 146*102mm.W/8*USB/2*LAN/6*COM/8*GPIO; support 12V/19V DC power supply.
