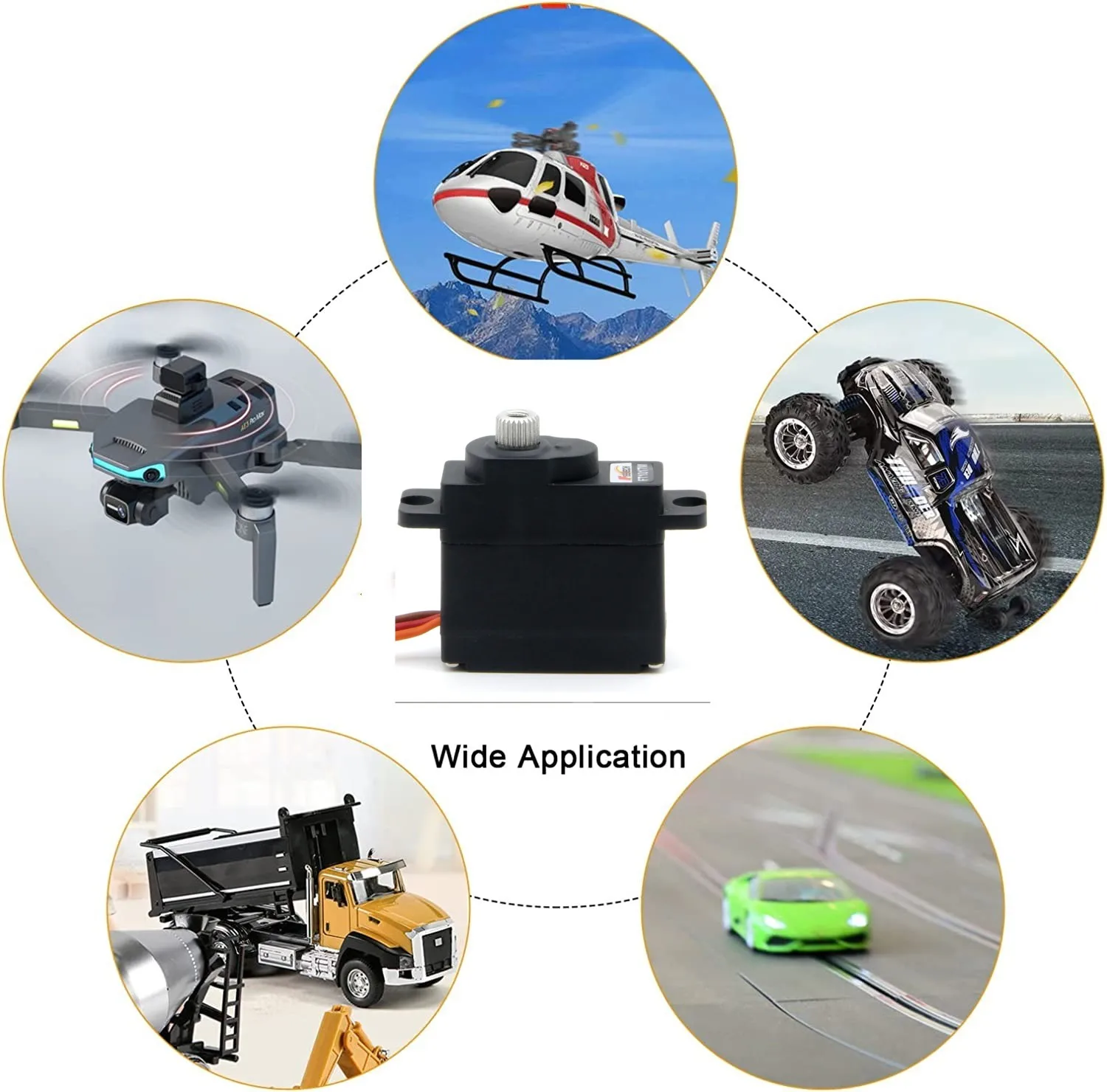

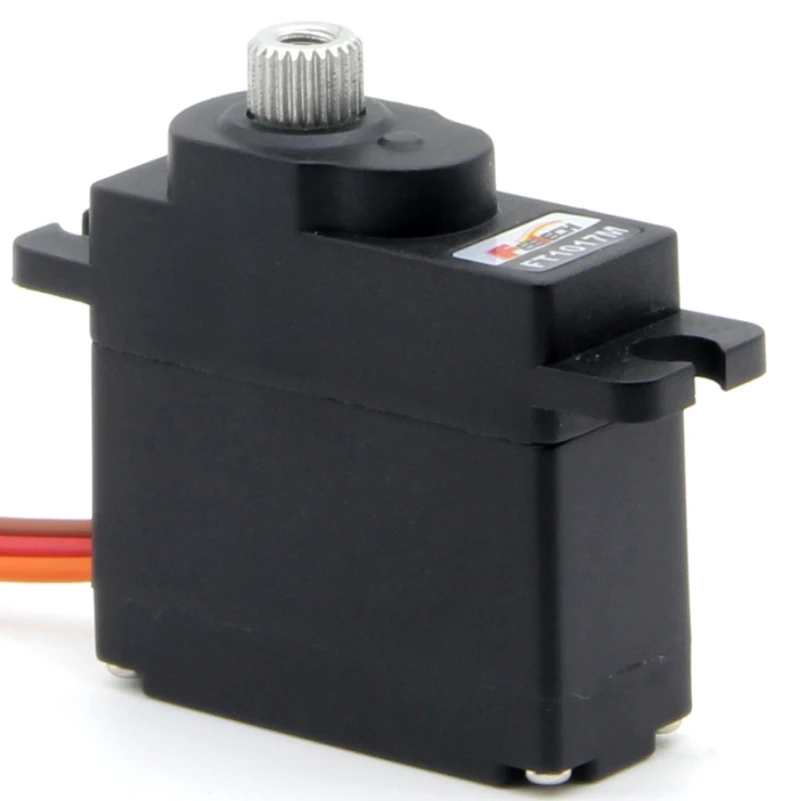

feetech rc servo for lego robot rc car traxxas car radiocontrolled helicopters arduino rc plane helicopter arrma servo
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.
Share on (1601283834243):
Product Overview
Description
Product Description
Specification
No. | (Item) | (Specification) | (Specification) | |||||||||||
5-1 | Operating Voltage | 4.8V | 6V | |||||||||||
5-2 | No Load Speed±10% | 0.167sec/60° (60RPM) | 0.142sec/60° (70RPM) | |||||||||||
5-3 | Running Current ( no load)±10% | 60mA | 80mA | |||||||||||
5-4 | Stall Torque (at locked) | 4.4kg.cm | 5.5kg.cm | |||||||||||
61.21oz.in | 76.51oz.in | |||||||||||||
5-5 | ±10% Stall Current (at locked) | 0.6A | 0.7A | |||||||||||
5-6 | ±5% Idle Current (at stopped) | 7mA | 7mA | |||||||||||
5-7 | Input Voltage | 4.5V-8.4V | ||||||||||||
5-8 | Rated Torgue | 1.1kg.cm | 1.35kg.cm | |||||||||||
5-9 | Rated Current±10% | 150mA | 200mA | |||||||||||
5-10 | Kt | 7.5kg.cm/A | ||||||||||||
(Item) | (Specification) | ||||||||
Size | 12X29.8X29.6mm | ||||||||
Limit Angle | No Limit | ||||||||
Case material | PA66+GF | ||||||||
Gear material | Metal | ||||||||
Bearing type | No | ||||||||
Angle Sansor | Type | Carbon-Film Potentiometer | |||||||

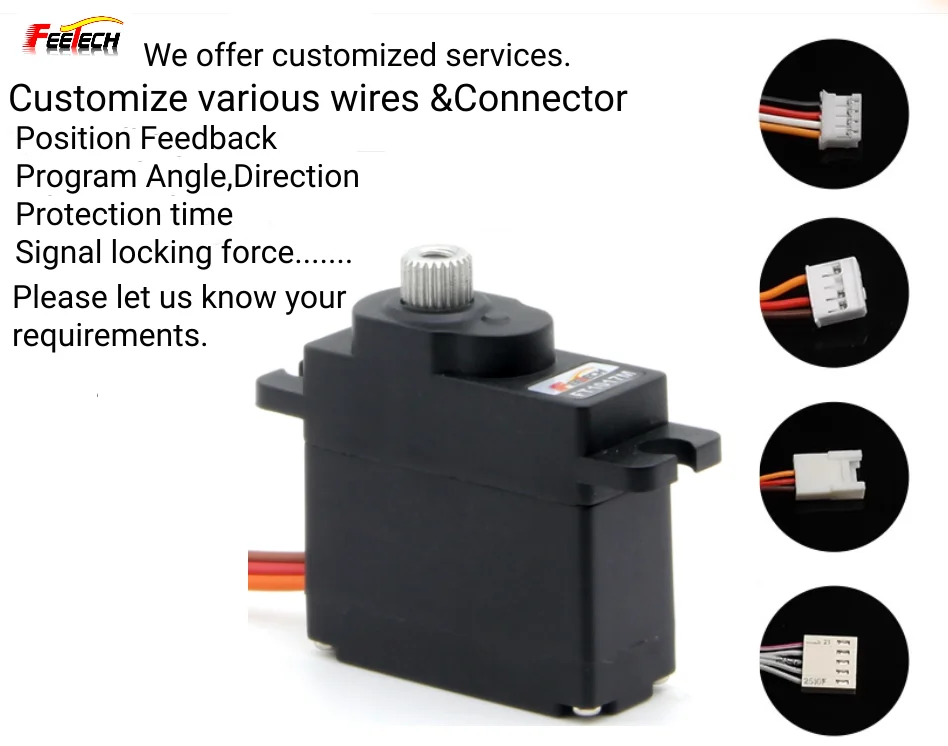

Connector and Cable | Type | JR | |||||||
Material | PVC | ||||||||
Length | 25±1CM | ||||||||
Pin Definition | 1 | Signal | |||||||
2 | Vcc | ||||||||
3 | GND | ||||||||
The Weight | 18.5± 1g | ||||||||

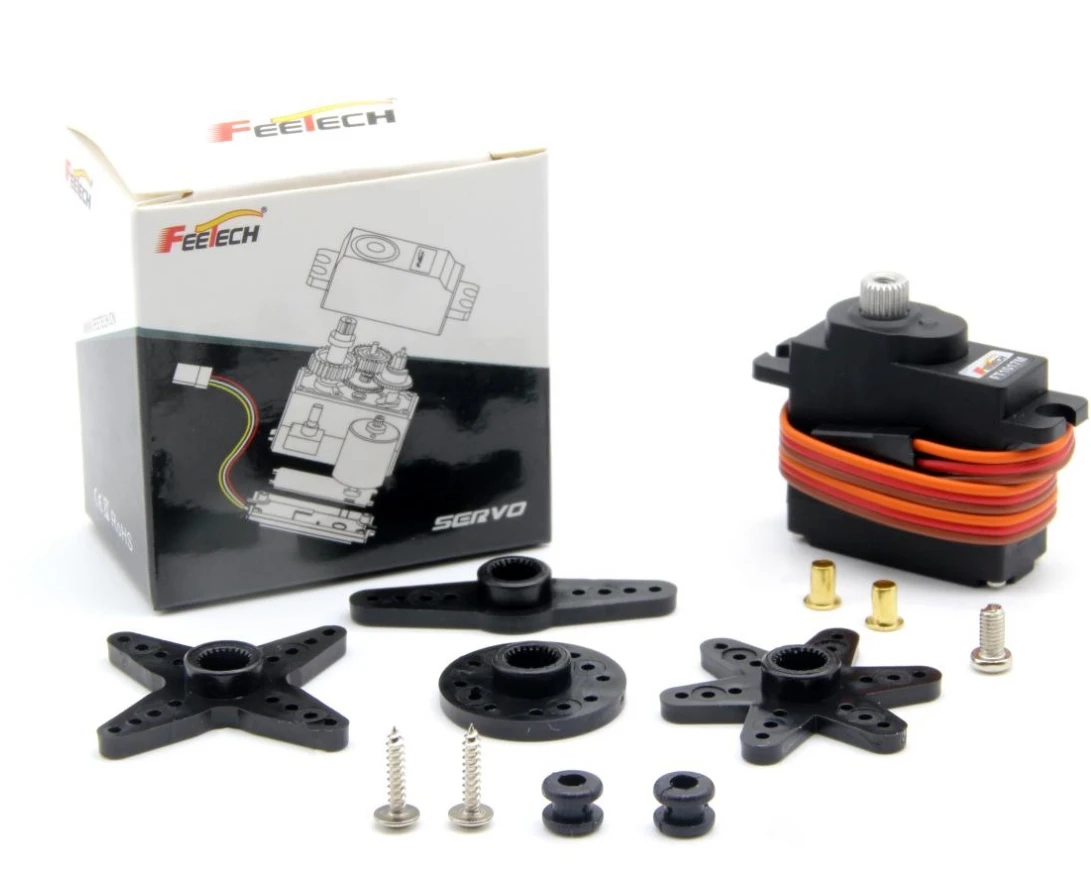

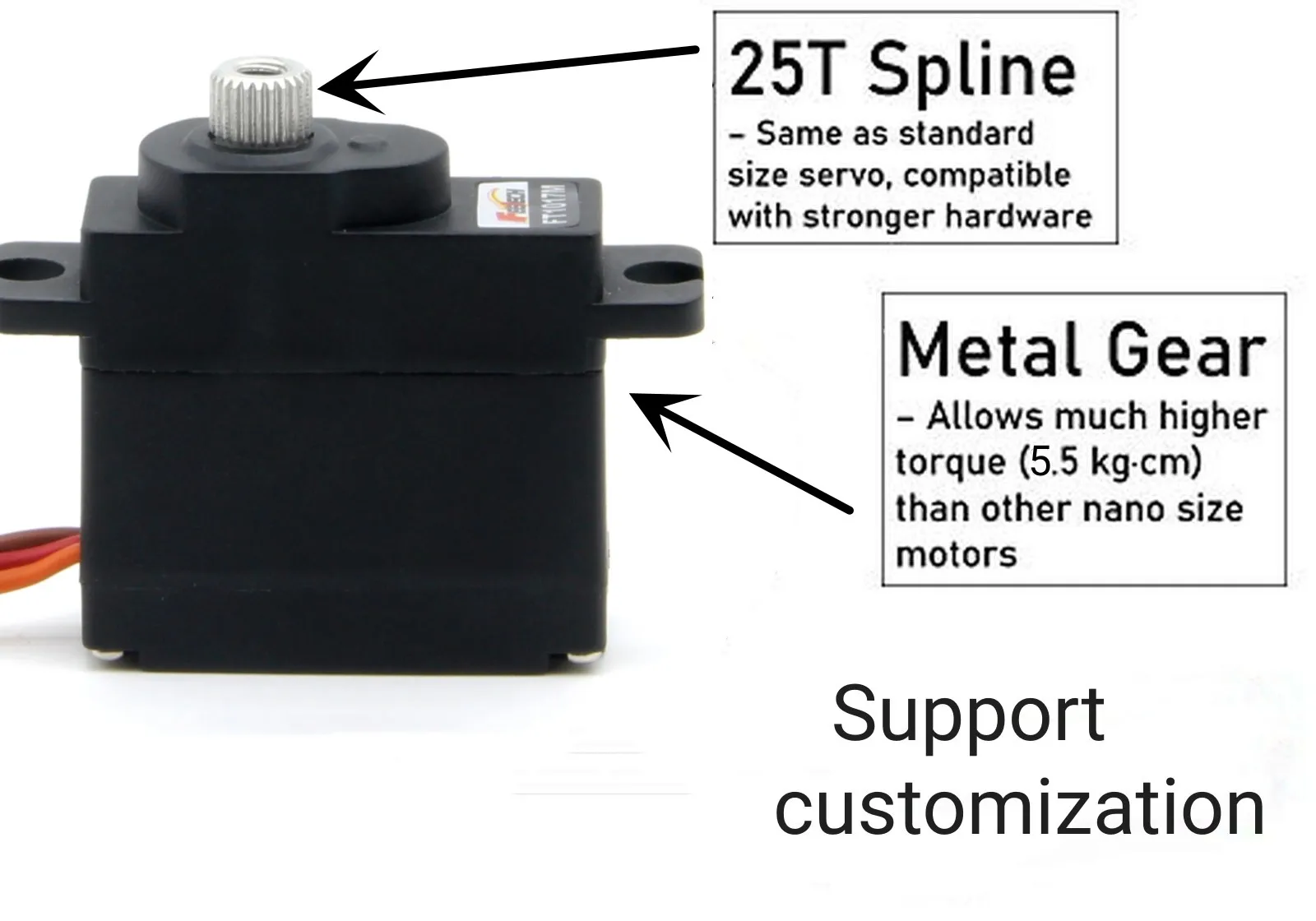

Horn Type | 25T/5.9mm | ||||||||
Gear Ratio | 1/259 | ||||||||
Back Lash | ≦0.5° | ||||||||
The rocker phantom | 0° | ||||||||
The rocker screw | M3.0X6 | ||||||||
Motor | Core Motor | ||||||||
(Item) | (Specification) | ||||||||||
Command Signal | Pulse width modification | ||||||||||
Control System Type | Digital comparator | ||||||||||
Operating Travel±10% | 180° (at 500→2500μsec) | ||||||||||
Left&Right Travelling Angledeviation | ≤ 5° | ||||||||||
Centering Deviation | ≦1° | ||||||||||
Neutral Position | 1500 μsec | ||||||||||
Dead Band Width | ≤4 μsec | ||||||||||
Rotating Direction | Counterclockwise(500→2500 μsec) | ||||||||||
Pulse Width Range | 500→2500μsec | ||||||||||
Electronic Protection | Stall 4sec | ||||||||||
Fall Saft | Yes | ||||||||||
Packing & Delivery
Feetech servo factory is renowned for its exceptional strength and quality. Possessing ISO9001, CE, RoHS certifications, as well as utility model and appearance patents, copyright and trademark certificates. Certified by "Made in China" and an Alibaba Gold Supplier, we are dedicated to delivering superior products and services. Trust us for excellence.
Company Profile

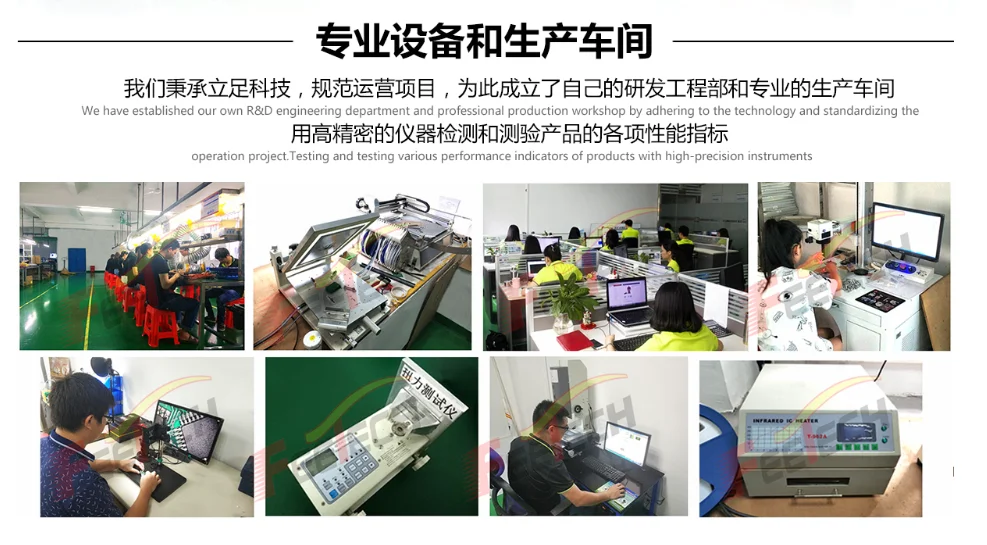

Our company is specialized in researching, developing, manufacturing and selling the top quality RC servos to all over the world. We have a professional R&D team devoted to pursuing the utmost usage of RC servos for the RC robot and RC car/ helicopter / airplane / boat, and industrial application products.

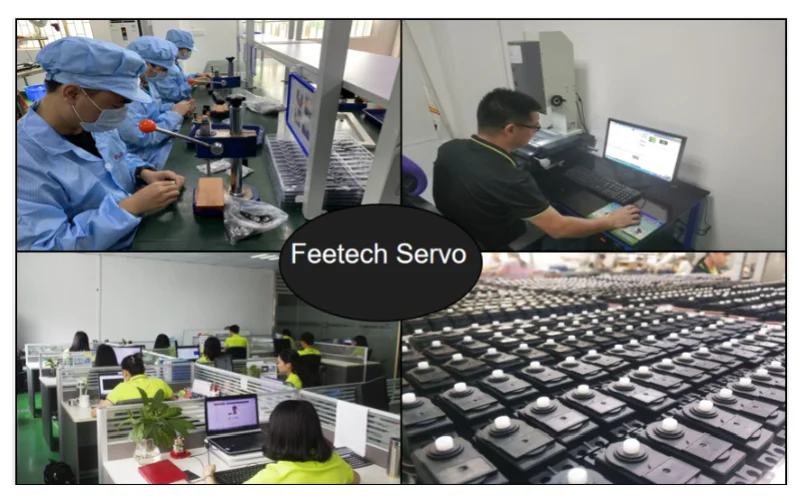

Our products have passed CE and RoHS standards. Each single product is checked and tested through a series of strict and accurate QC (Quality Control) process by leading edge technology facilities.
We also provide ODM and OEM services, and offer the lowest price with the highest quality, the best manufacture process and the ideal products to you.
The brand of "FEETECH" is based on the concepts of "Flying, Excellent, Efficient and Technology".
Our mission is to be a provider of the products with best quality and best service.
We are looking forward to our cooperation and mutual development.
Our products have passed CE and RoHS standards. Each single product is checked and tested through a series of strict and accurate QC (Quality Control) process by leading edge technology facilities.
We also provide ODM and OEM services, and offer the lowest price with the highest quality, the best manufacture process and the ideal products to you.
The brand of "FEETECH" is based on the concepts of "Flying, Excellent, Efficient and Technology".
Our mission is to be a provider of the products with best quality and best service.
We are looking forward to our cooperation and mutual development.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(30.00%),Domestic Market(30.00%),Western Europe(8.00%),Eastern Europe(8.00%),Eastern Asia(5.00%),Oceania(5.00%),Africa(4.00%),South America(2.00%),Southern Europe(2.00%),Southeast Asia(2.00%),South Asia(1.00%),Central America(1.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PWM Servo; Serial Bus Smart Servo; Servo Spare Parts; DIY Robot Chassis
4. why should you buy from us not from other suppliers?
Feetech are professional servo solution expert, Specialized in ODM and OEM,
can provide electronic desian, structure design and production of one-stop customized service,our creative team is devoted to desiqn & develop a most ideal servo for all projects.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2011,sell to North America(30.00%),Domestic Market(30.00%),Western Europe(8.00%),Eastern Europe(8.00%),Eastern Asia(5.00%),Oceania(5.00%),Africa(4.00%),South America(2.00%),Southern Europe(2.00%),Southeast Asia(2.00%),South Asia(1.00%),Central America(1.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PWM Servo; Serial Bus Smart Servo; Servo Spare Parts; DIY Robot Chassis
4. why should you buy from us not from other suppliers?
Feetech are professional servo solution expert, Specialized in ODM and OEM,
can provide electronic desian, structure design and production of one-stop customized service,our creative team is devoted to desiqn & develop a most ideal servo for all projects.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
