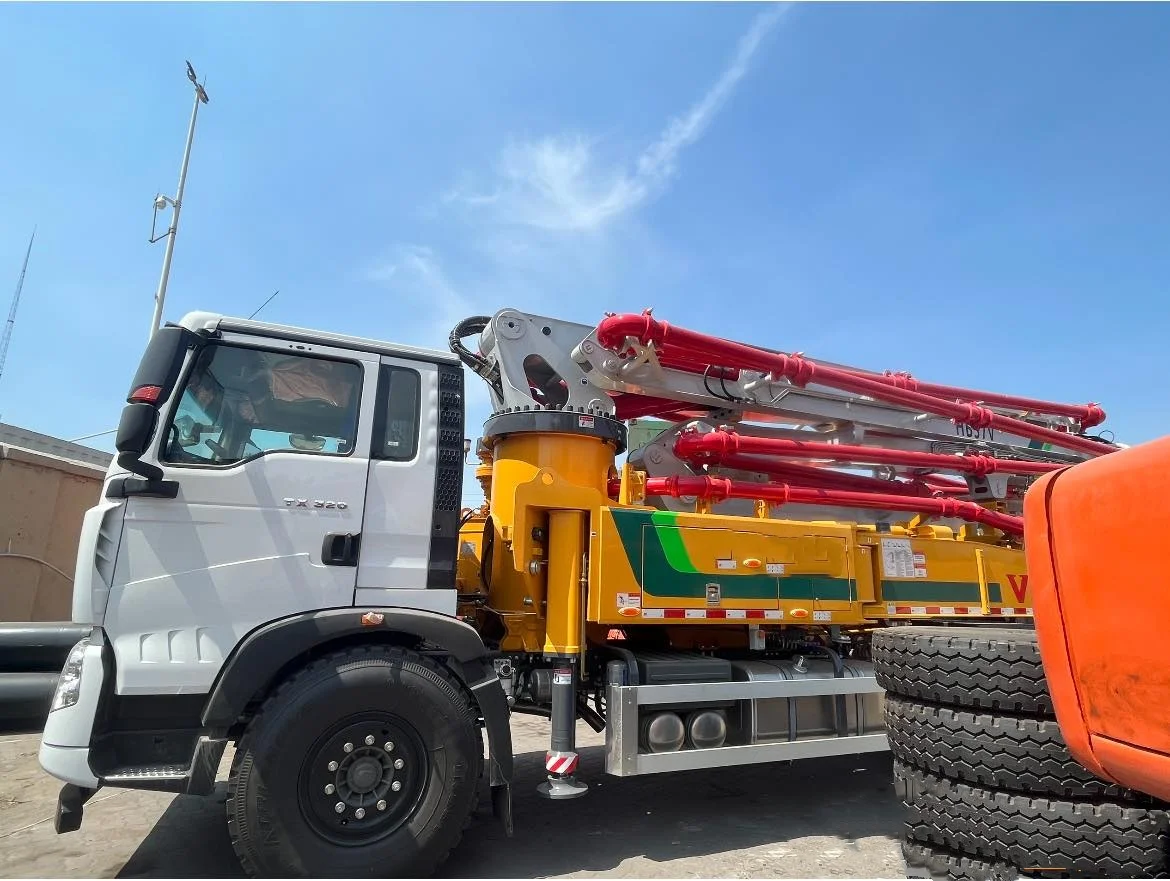

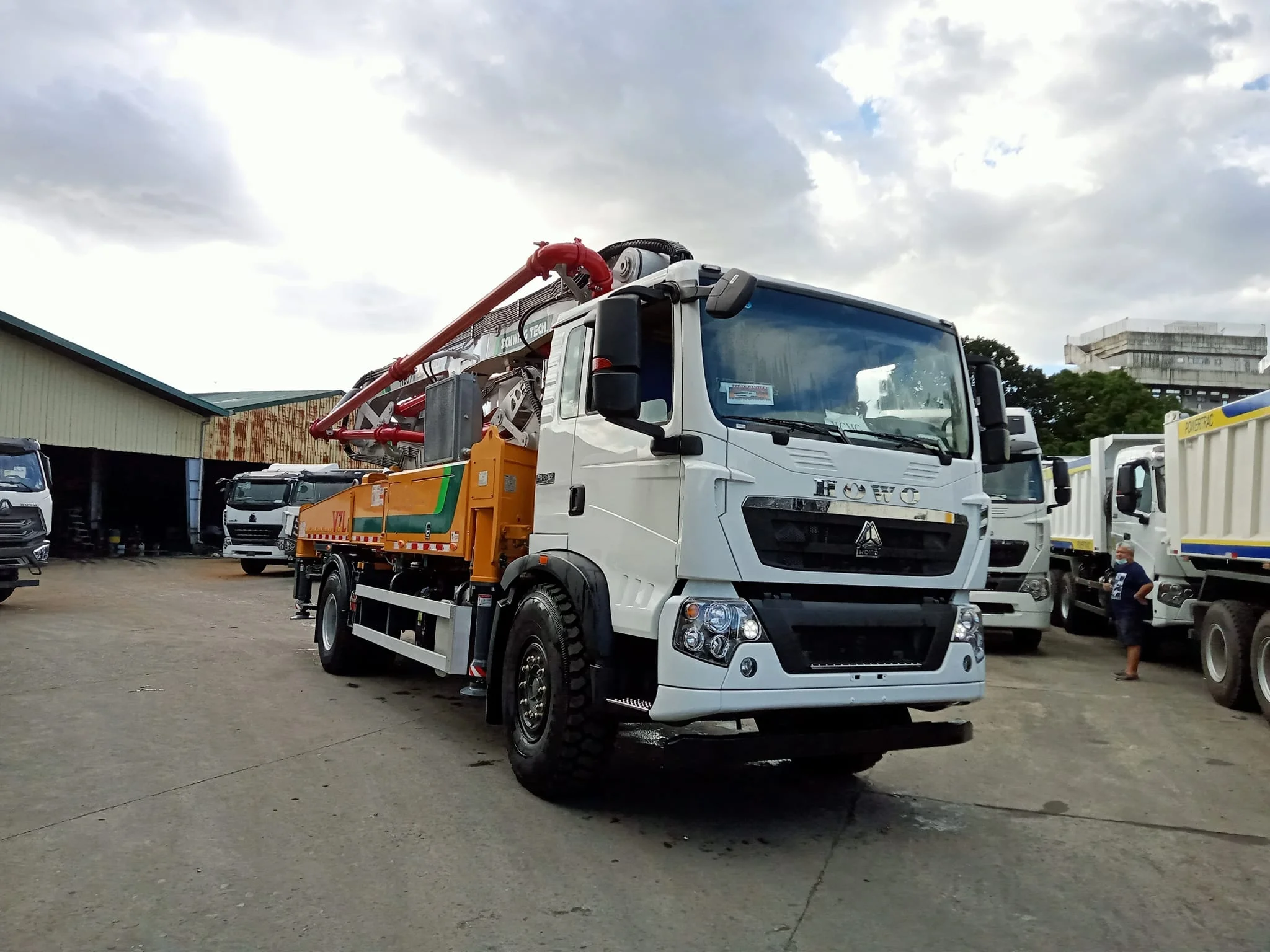

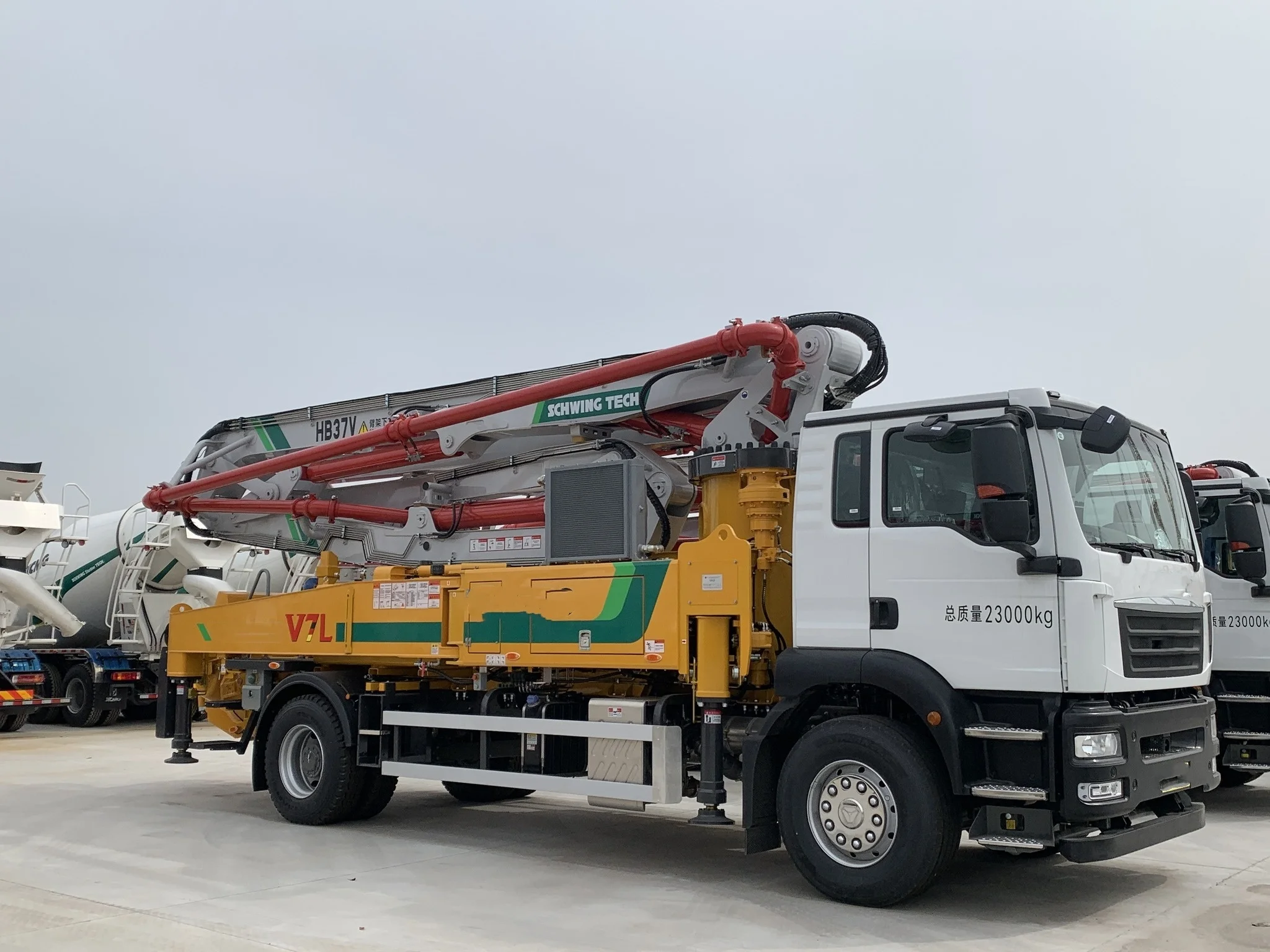

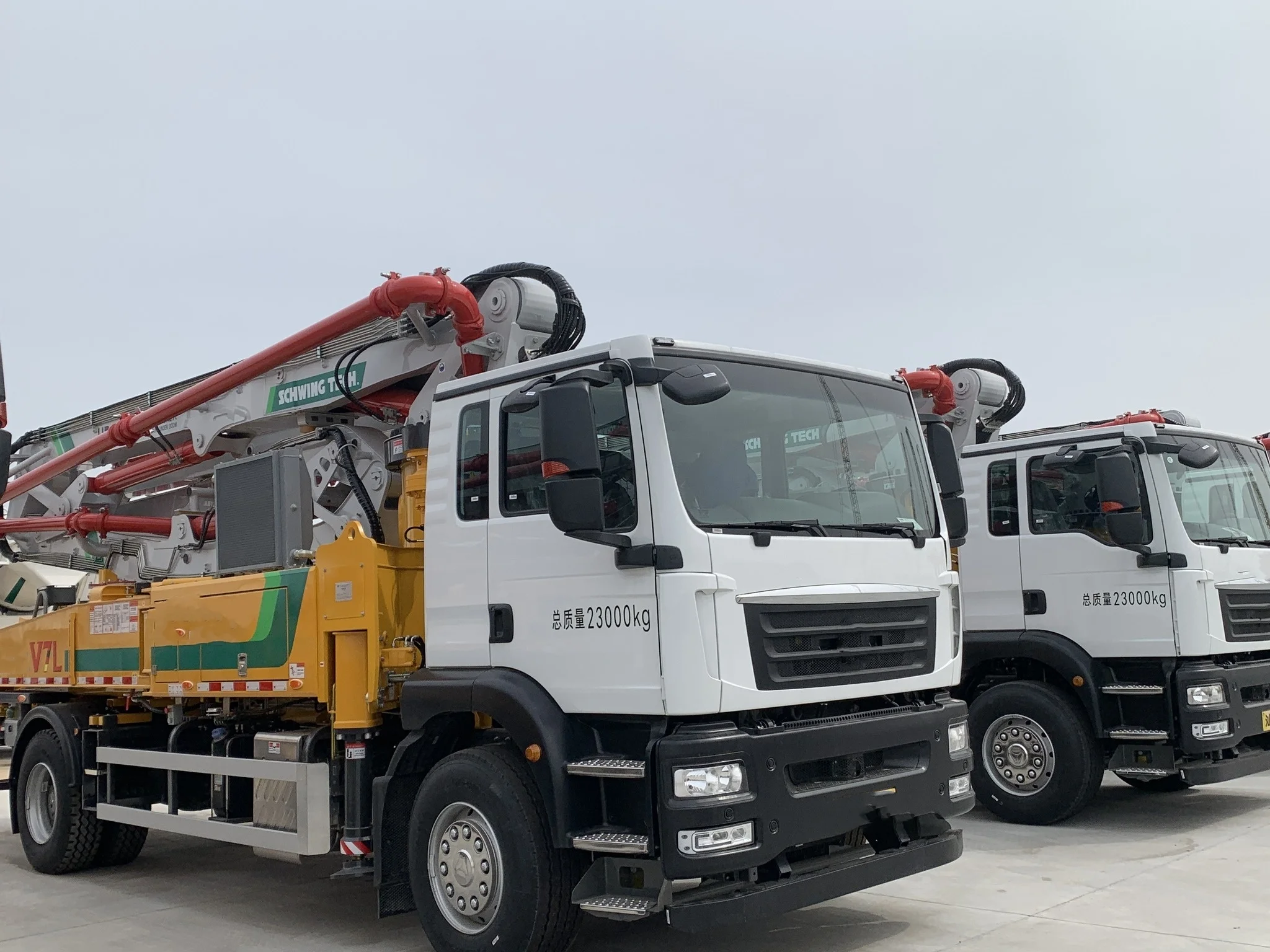

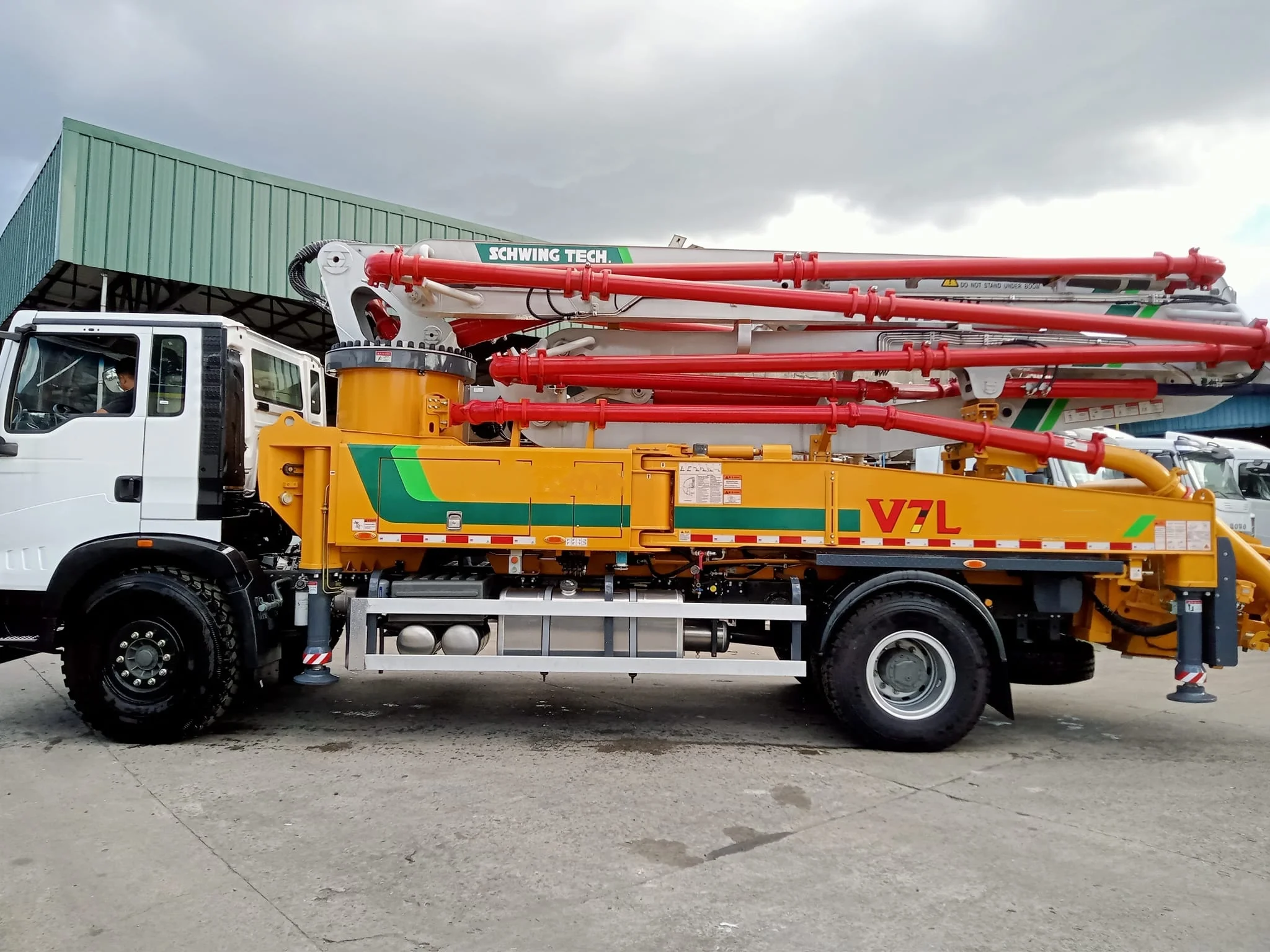

Hot Sale HB37V Diesel 37m Hydraulic Concrete Pump Truck with Good Price

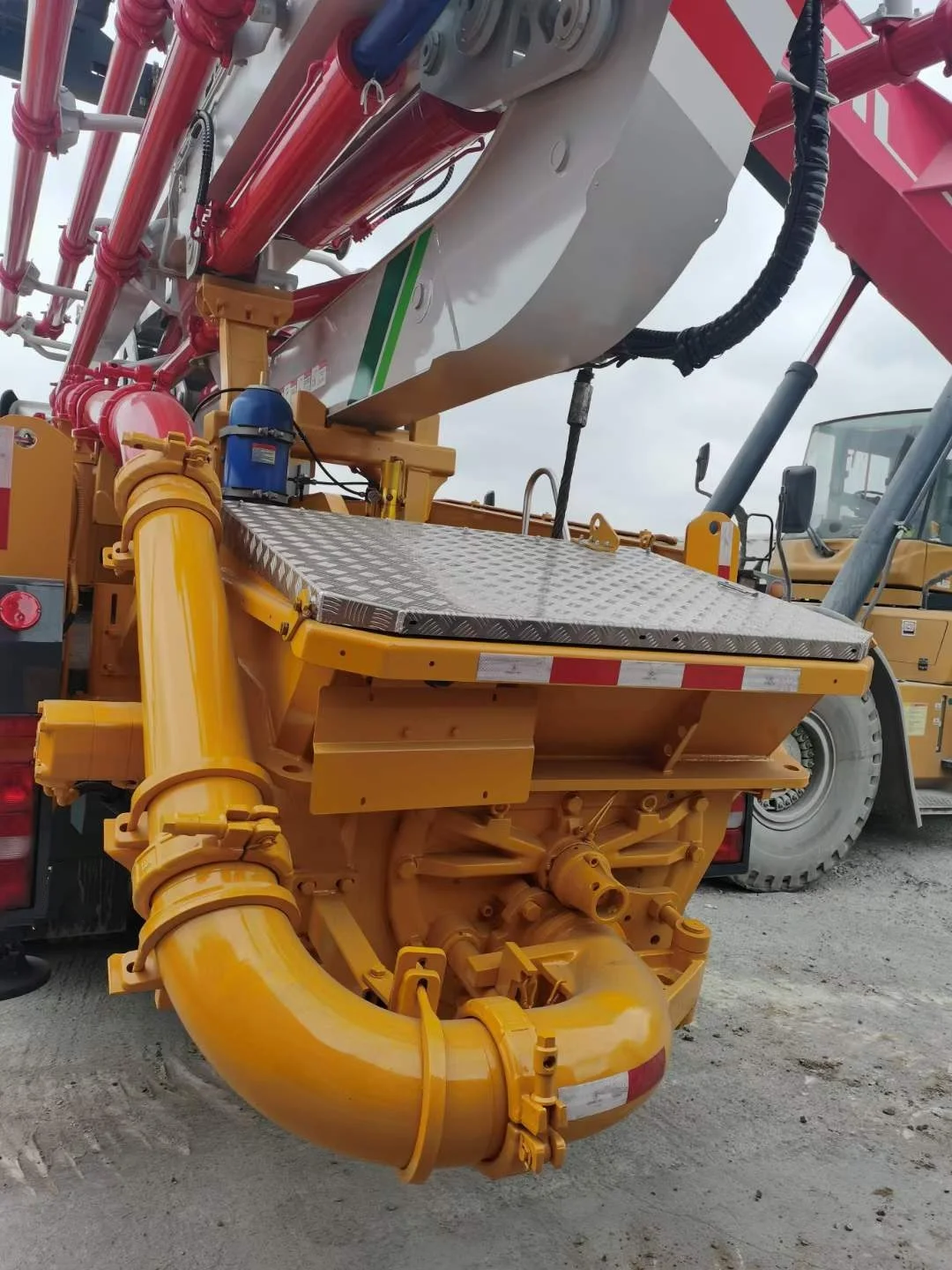

HB37V concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology,
more reliable full hydraulic reversing technology.

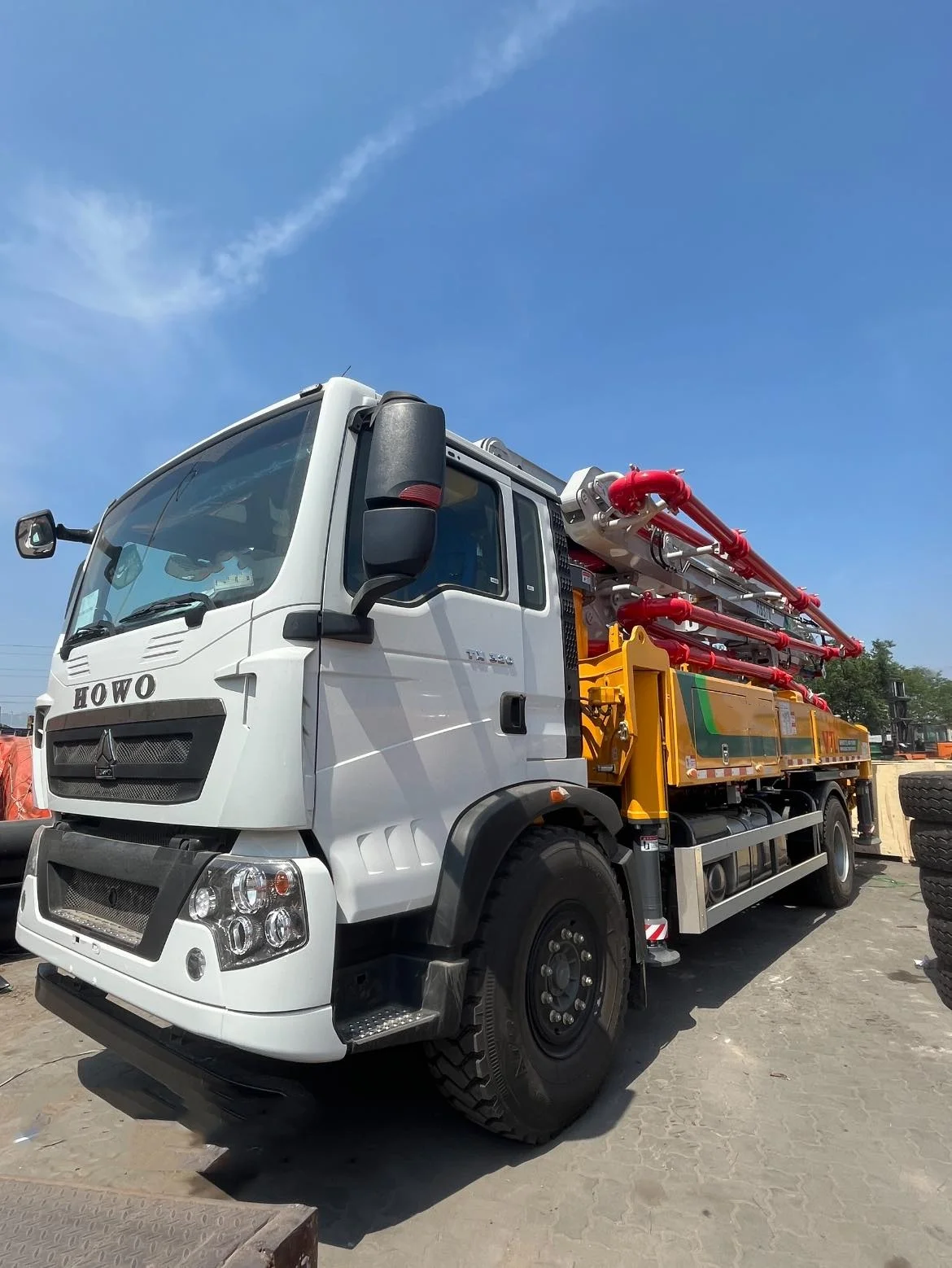

It adopts Sinotruk sitrak chassis, which complies with China 6 emission standard, featuring with powerful output, large torque,
high efficiency, energy conservation and strong off-road performance.

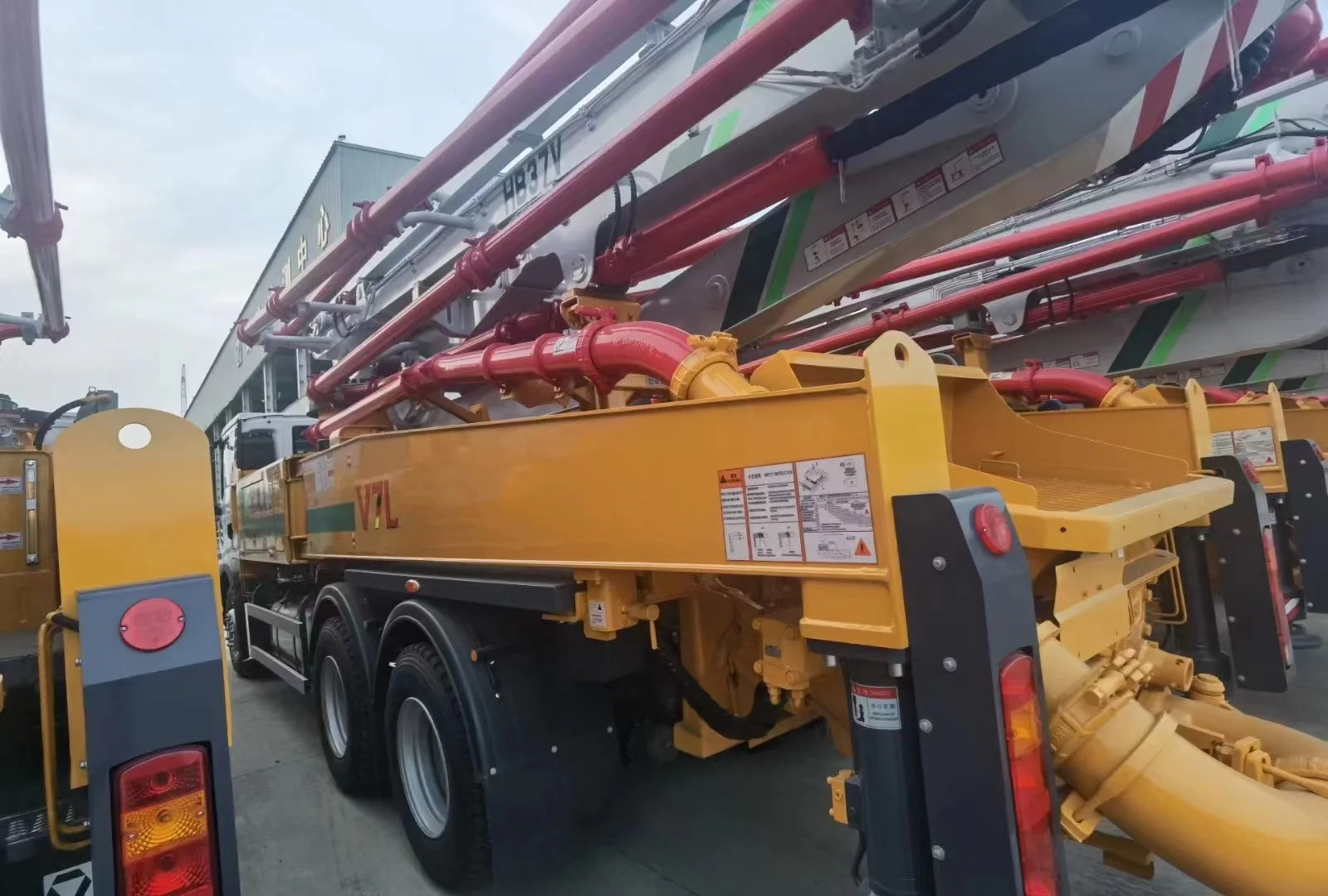

V7 series truck mounted concrete pump is equipped with ultimately safe boom, lower structure of high rigidity, efficient pumping
system of rock valve, hydraulic system of outstanding performance, intelligent control system and easy-wear parts with super-long
service life.

1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.

Product Paramenters

Category	Item	Unit	HB37V
Overall	Outline dimension	mm	10080×2525×3750
Overall		Overall weight	kg	22870
Chassis	Brand	/	-
		Model	/	ZZ5237N521GF1/PAD752
		Wheelbase	mm	5200
		Max.power	kW	228
		Emission standard	/	China VI
Pumping system	Theoretical	m³/h	120/80
Pumping system		Concrete pumping pressure	MPa	8.7/13
Placing boom	Reach height	m	36.5
		Reach depth	m	24.9
		Slewing radius	m	32.5
Others	Transfer	/	S valve
