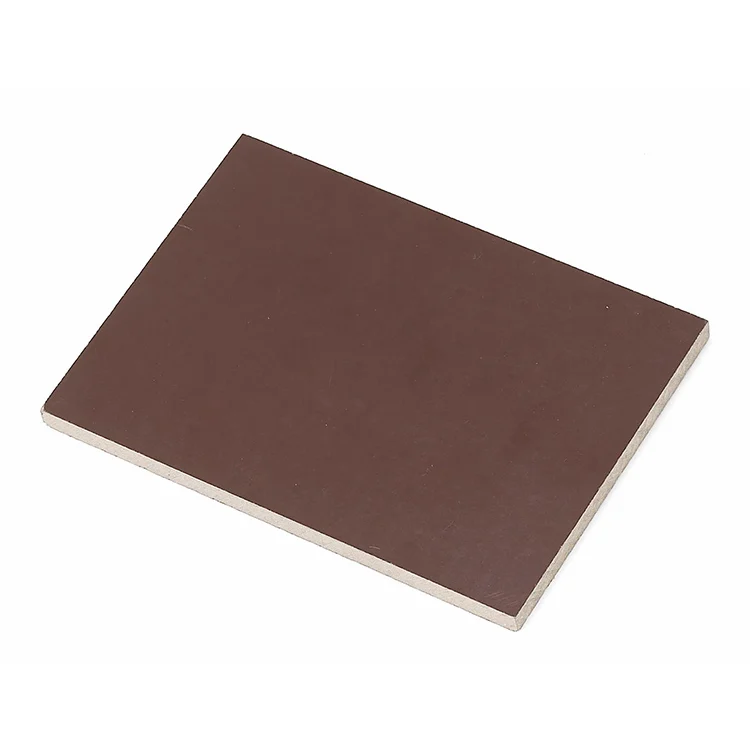

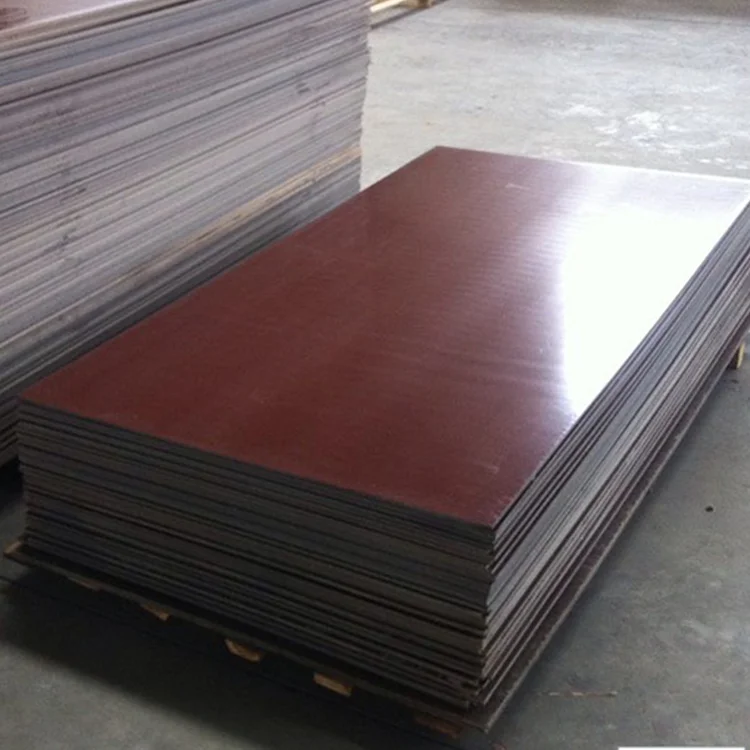

E Class Brown 3021 Electrical Insulation Bakelite Sheet Paper Pressboard
- Category: >>>
- Supplier: Zhejiang Haodesheng Insulation Material Co. Ltd.
Share on (1601284101868):
Product Overview
Description
Products Description
3021 PHENOLIC PAPER LAMINATED SHEET | ||||||||
Serial number | Properties | Unit | Grade | |||||
3021-C | 3021-C | |||||||
1 | Flexural strength perpendicular to laminations above 2mm | ≥ | MPa | 147 | ||||
2 | Bonding strength | ≥ | N | 3206 | ||||
3 | Dielectric Strength Perpendicular to Laminations (in 90°C transformer oil) | ≥ | MV/m | 1.6 | ||||
4 | Breakdown voltage parallel to laminations(in 90°C transformer oil) | ≥ | kV | 4.4 | ||||
5 | Permittivity (1MHz) | _ | — | 3.71 | ||||
6 | Dissipation factor (1MHz) | _ | — | 0.0267 | ||||
7 | Insulation Resistance after impregnated in water | ≥ | Ω | 1.2×108 | ||||
8 | Density | g/cm3 | (1.45-1.5) | |||||
9 | Water absorption (10mm in thickness) | ≤ | mg | 653.7 | ||||
10 | Color | — | Coffee | |||||
3021 phenolic paper laminated sheet is made up of paper impregnated with phenolic resin by baking and heat pressing.
This product applies to components in insulation system of motor, electrical equipment which has high requirement on mechanical property and also applies to transformer oil.
It is usually used in low-voltage apparatus, such as base board of distribution cabinet.
Color:Brown
Thickness:0.5-50MM
Size:1020*2020MM,1220*2440MM,1220*1220MM
Density:1.45-1.5 g/cm3
This product applies to components in insulation system of motor, electrical equipment which has high requirement on mechanical property and also applies to transformer oil.
It is usually used in low-voltage apparatus, such as base board of distribution cabinet.
Color:Brown
Thickness:0.5-50MM
Size:1020*2020MM,1220*2440MM,1220*1220MM
Density:1.45-1.5 g/cm3
