Manufacturers Custom X99 Motherboard j1900 Series Network Servers Mini ITX Motherboard Bundle CPU
- Category: >>>
- Supplier: Shenzhen Maxtang Computer Co. Ltd.
Share on (1601284528810):
Product Overview
Description
Product Features

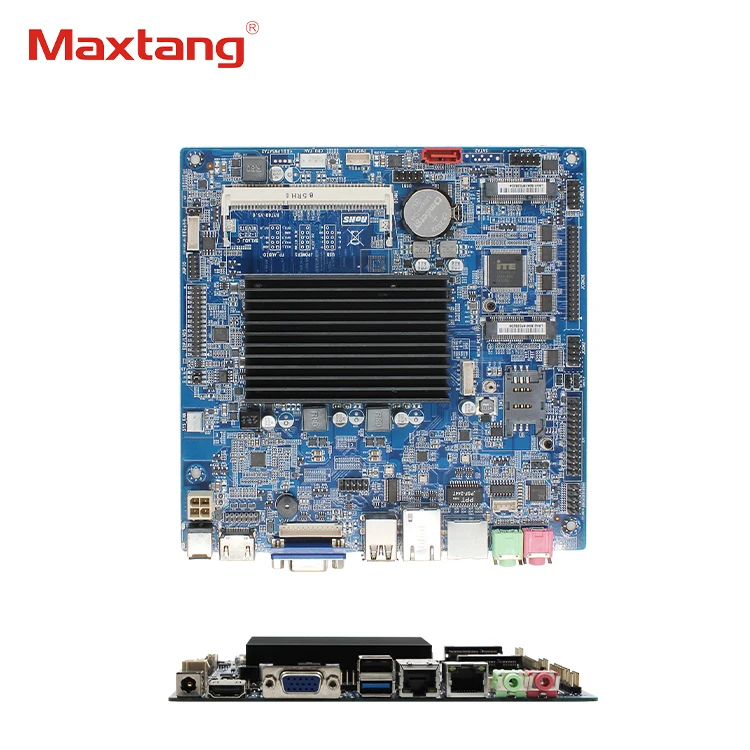

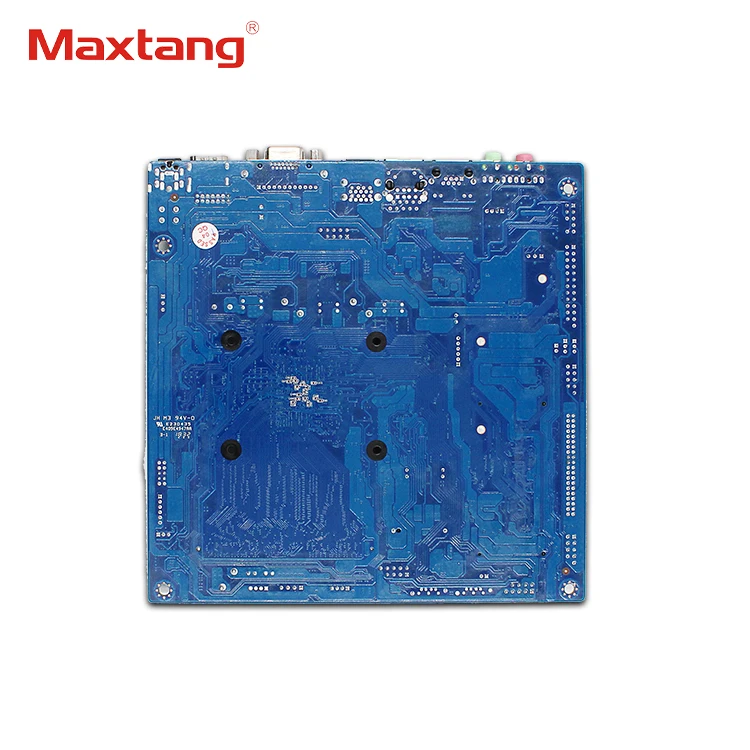

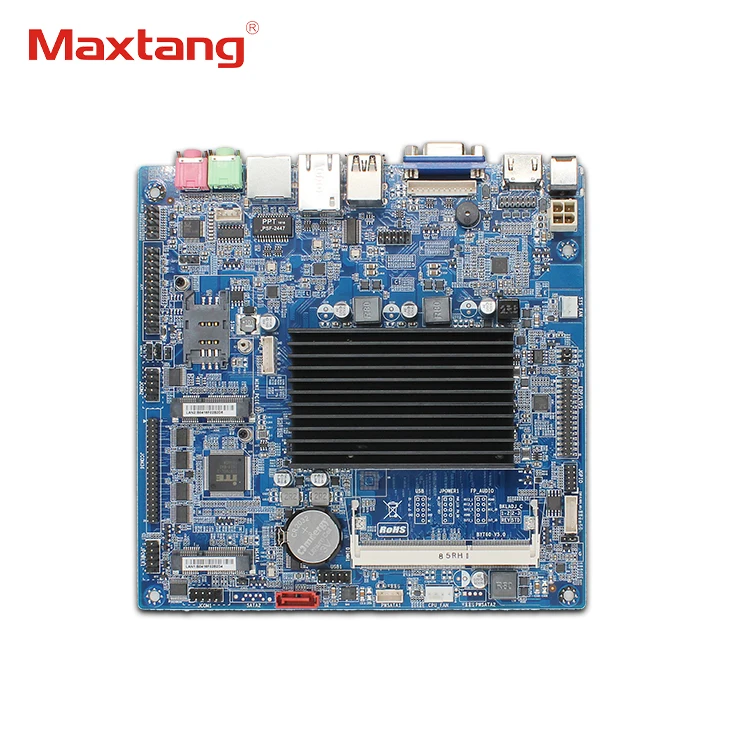

BYT60 Parameters:
Processor:Intel Bay Trail-D Celeron J1900(2.0GHz, quad-core, TDP10W)
Memory: 1x Single Channel DDR3L 1333MHz slot, up to 8GB.

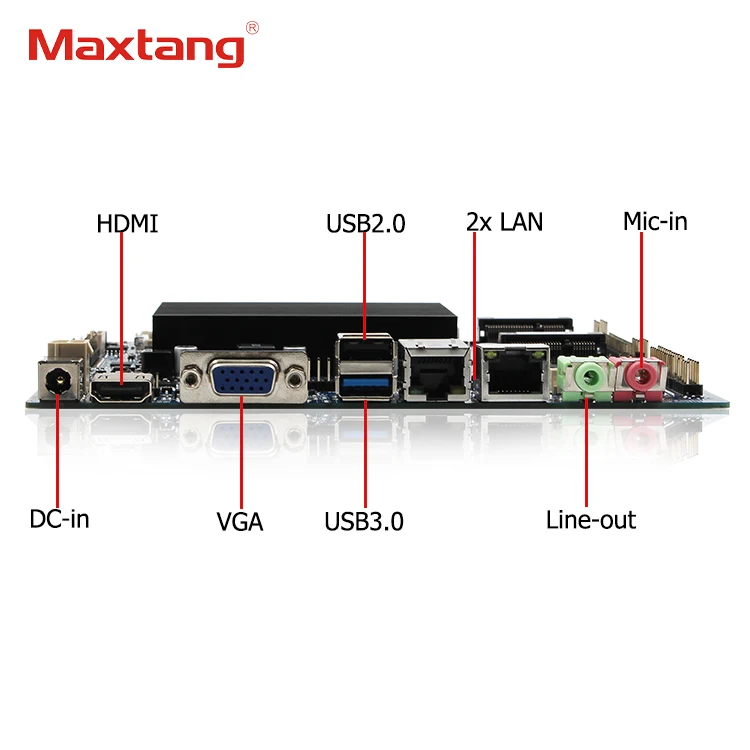

GPU: Integrated Intel HD graphics, supports dual display via HDMI, VGA, LVDs/eDP (dual channel 24bit LVDs, 2 lanes
eDP optional)
Storage: 2 x SATA2.0, 1 x mSATA slot (SATA2 and mSATA are alternatives), 1 x eMMC (optional choice, applies to board
version 5.0 and above).
USB: Configurable for up to 8 USB ports, one of which supports USB 3.0 functionalities and two of which are alternatives with a LAN port (share physical location with one of the LANs), either one or the other.
Ethernet: Maximum of 2xLAN (LAN2 and 2 x USB2.0 are alternatives)
Audio: high-definition audio codec ALC897, supports speaker-out, Mic-in (rear port), SPDIF and power amplifier
I/O: If IT8786E IO chip onboard, the board supports 6 x COM (COM6 can be set as RS232 or RS485) and 1 x LPT (can
be set as 16 x GPIO). If IT8772E IO chip onboard, the board only supports COM1, 1x RS232.
Other I/O: 1 x mini-PCIe with standard SIM card slot, supports Wi-Fi/3G/4G module. The mSATA slot also can be configured as mini-PCIe slots, so maximum of two min-PCIe Slots can be supported. 8 x GPIO, PS/2 for KB /MS.
Dimension: 170mm x 170mm
Power: 12V DC-in (Do not power the board with other voltage adapters or other power supply)
Working Temperature: -20℃~60℃
eDP optional)
Storage: 2 x SATA2.0, 1 x mSATA slot (SATA2 and mSATA are alternatives), 1 x eMMC (optional choice, applies to board
version 5.0 and above).
USB: Configurable for up to 8 USB ports, one of which supports USB 3.0 functionalities and two of which are alternatives with a LAN port (share physical location with one of the LANs), either one or the other.
Ethernet: Maximum of 2xLAN (LAN2 and 2 x USB2.0 are alternatives)
Audio: high-definition audio codec ALC897, supports speaker-out, Mic-in (rear port), SPDIF and power amplifier
I/O: If IT8786E IO chip onboard, the board supports 6 x COM (COM6 can be set as RS232 or RS485) and 1 x LPT (can
be set as 16 x GPIO). If IT8772E IO chip onboard, the board only supports COM1, 1x RS232.
Other I/O: 1 x mini-PCIe with standard SIM card slot, supports Wi-Fi/3G/4G module. The mSATA slot also can be configured as mini-PCIe slots, so maximum of two min-PCIe Slots can be supported. 8 x GPIO, PS/2 for KB /MS.
Dimension: 170mm x 170mm
Power: 12V DC-in (Do not power the board with other voltage adapters or other power supply)
Working Temperature: -20℃~60℃
Company Profile
Founded in 2009, Maxtang specializes in industrial computers, motherboards, and embedded solutions, integrating research,development, manufacturing, and sales. Our headquarters are located in Shenzhen, China. Our mission is to establish a strong brand through innovative designs and unparalleled customer satisfaction. We are committed to delivering cutting-edge PCs and motherboards to enterprises and individual users worldwide.
As an associate member of the Intel® IoT Solutions Alliance and a member of the Industrial Solution Builders Specialist, Maxtang has earned the prestigious "China National High & New Technology Enterprise" qualification. Our products are designed to be environmentally friendly and fully comply with CE, WEEE, RoHS legislation, and ISO9001:2015 certification standards.
As an associate member of the Intel® IoT Solutions Alliance and a member of the Industrial Solution Builders Specialist, Maxtang has earned the prestigious "China National High & New Technology Enterprise" qualification. Our products are designed to be environmentally friendly and fully comply with CE, WEEE, RoHS legislation, and ISO9001:2015 certification standards.
We offer customized solutions for diverse industrial applications such as surveillance, digital signage, POS, edge computing, and industrial automation. At Maxtang, we take pride in our dedication to quality excellence and exceptional customer support.For more details on Intel® IoT Solutions Alliance, please visit this Intel Website.

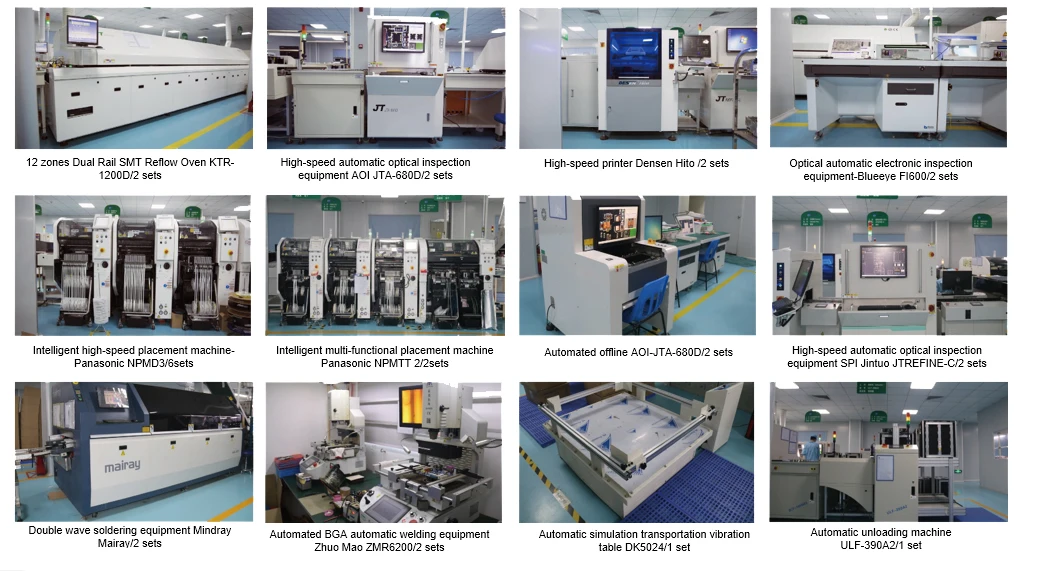

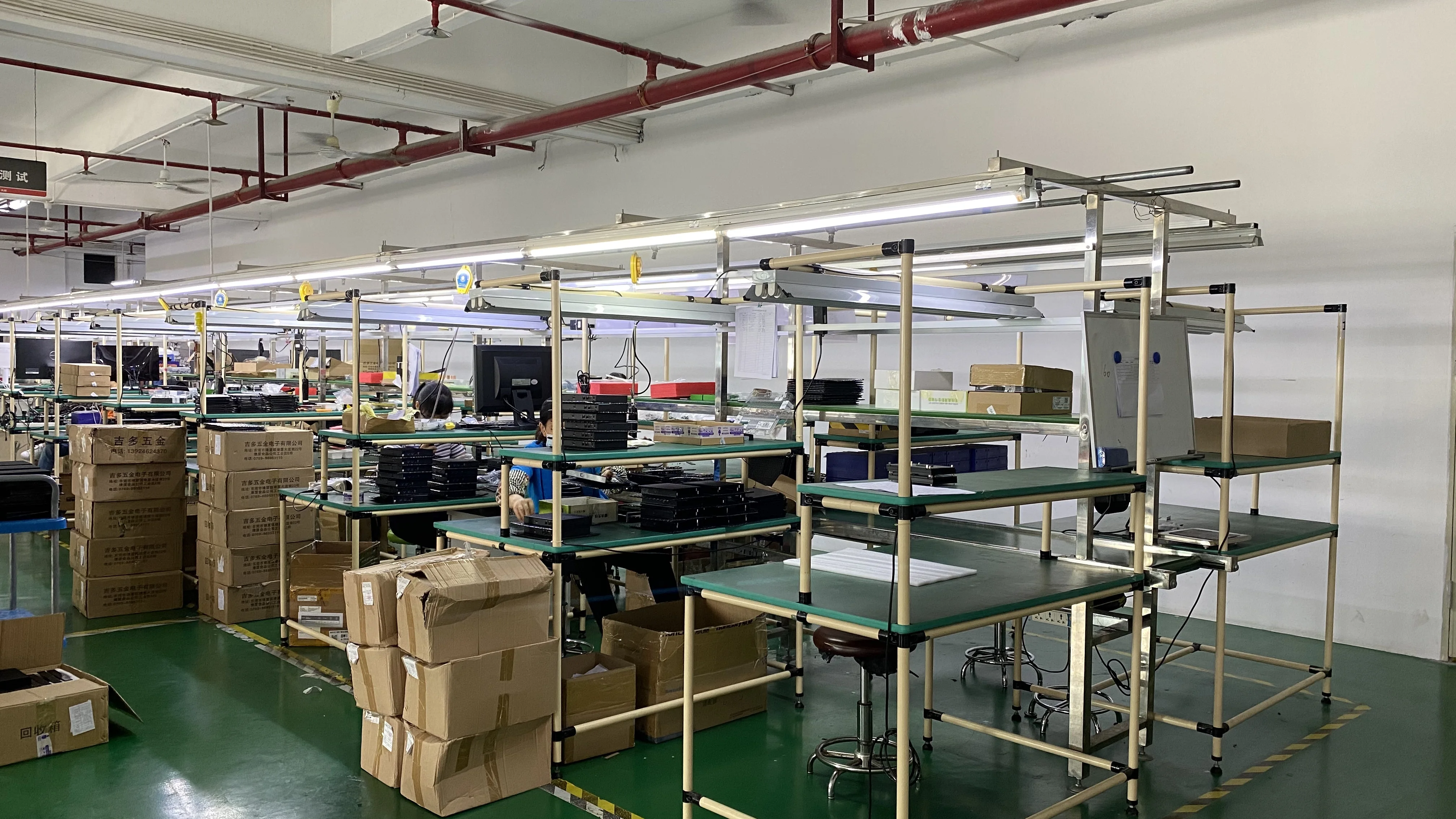

Production equipment

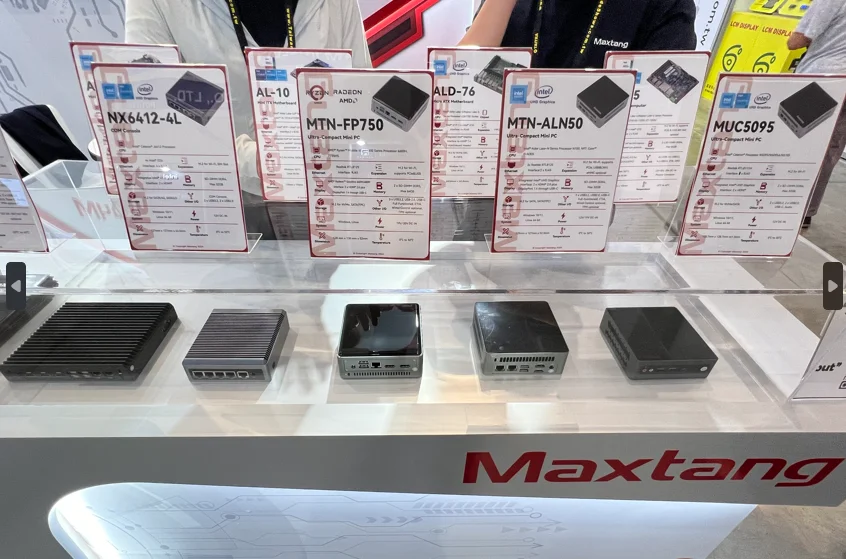

Exhibition
FAQ
Q1:Are You Manufacturer?
A: Yes, we are manufacturer.Maxtang's manufacturing facility is strategically located in Huihuang Industrial Park, Guangming District, Shenzhen. Factory area 3000+ m², 300+ employees, including 50+ R&D engineers and designers.
Maxtang® offers Mini PCs, office and gaming mini desktop computers, and DIY motherboards designed for computer enthusiasts.Additionally, our embedded motherboards cater to a diverse range of customers, including server companies, industrial users, and music producers.
Q2:What are your certificates?
A: Our certifications are CE, WEEE, RoHS, ISO, 3C, LVD, EMC, FCC, etc.
Q3:Where I can place the order?
A: The order can be placed on Alibaba.com or contact us directly by E-mail.If you are personal buyer, we suggest you can directly order from our Aliexpress store, Amazon store,or official website.
Q4:What is the price base?
A:Our price is based on detailed specification such as RAM, HD/SSD, WIFI card, etc. The price range on Alibaba basically covers all specification, so pls contact us first with your detailed specification before your order release.
Q5:What are your strengths?
A:①Over 1500+ Customers Worldwide.
②Over 15 Years of Professional Experience.
③Offers Customization with Cost Advantages.
④Provides High-Performance & Reliable Products.
⑤The member of the Intel® Partner Alliance program.
⑥Long-term strategic cooperation relation-ship with AMD.
If you have any other questions, please don't hesitate to contact us..
A: Yes, we are manufacturer.Maxtang's manufacturing facility is strategically located in Huihuang Industrial Park, Guangming District, Shenzhen. Factory area 3000+ m², 300+ employees, including 50+ R&D engineers and designers.
Maxtang® offers Mini PCs, office and gaming mini desktop computers, and DIY motherboards designed for computer enthusiasts.Additionally, our embedded motherboards cater to a diverse range of customers, including server companies, industrial users, and music producers.
Q2:What are your certificates?
A: Our certifications are CE, WEEE, RoHS, ISO, 3C, LVD, EMC, FCC, etc.
Q3:Where I can place the order?
A: The order can be placed on Alibaba.com or contact us directly by E-mail.If you are personal buyer, we suggest you can directly order from our Aliexpress store, Amazon store,or official website.
Q4:What is the price base?
A:Our price is based on detailed specification such as RAM, HD/SSD, WIFI card, etc. The price range on Alibaba basically covers all specification, so pls contact us first with your detailed specification before your order release.
Q5:What are your strengths?
A:①Over 1500+ Customers Worldwide.
②Over 15 Years of Professional Experience.
③Offers Customization with Cost Advantages.
④Provides High-Performance & Reliable Products.
⑤The member of the Intel® Partner Alliance program.
⑥Long-term strategic cooperation relation-ship with AMD.
If you have any other questions, please don't hesitate to contact us..
