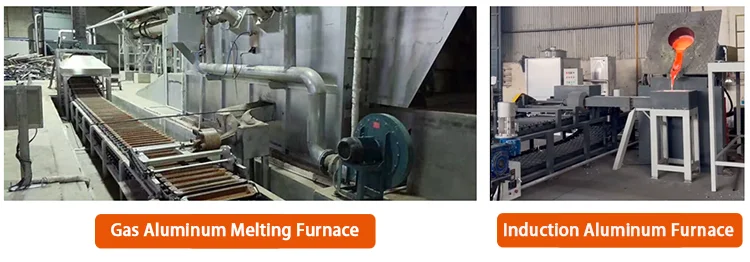

Gas fired tilting aluminum crucible furnace for ingot casting line 10KG ingot cast conveyor with 500KG non-ferrous copper oven
Aluminum, Copper Ingot production line
The Metal alloy ingot casting unit is used for fully automatic control and production of various grades of cast alloy ingots. The casting unit can meet the requirements of continuous production 24 hours a day, and the production process requirements of casting and automatic stacking of various grades of cast alloy ingots.

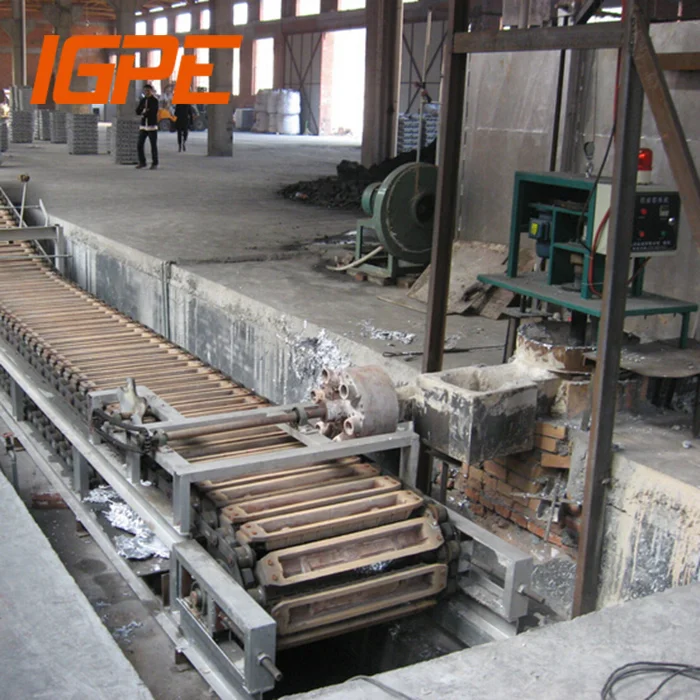

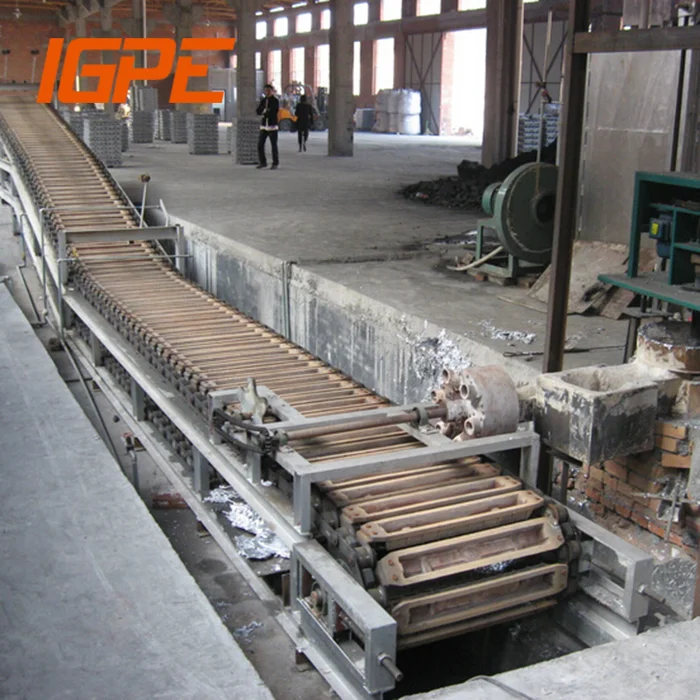

After the metal alloy liquid flows into the distributor of the ingot casting machine, the distributor is evenly injected into the ingot mold of the chain ingot casting machine, and the ingot mold is cooled at the bottom of the mold until the indirect water-cooled ingot is sufficiently cooled and solidified After forming, the ingots are dropped on the ingot chute through the mechanical rapping and demoulding device, and the finished ingots are stacked manually according to the prescribed procedures, and then transported to the warehouse area by the forklift in the factory.
After the metal alloy liquid flows into the distributor of the ingot casting machine, the distributor is evenly injected into the ingot mold of the chain ingot casting machine, and the ingot mold is cooled at the bottom of the mold until the indirect water-cooled ingot is sufficiently cooled and solidified After forming, the ingots are dropped on the ingot chute through the mechanical rapping and demoulding device, and the finished ingots are stacked manually according to the prescribed procedures, and then transported to the warehouse area by the forklift in the factory.
No. | Name | Parameter |
1 | Casting Speed | 0~3.9m/min (0~24 ingots/min)/Generally Speed:2m/min |
2 | Weight of Single Ingot | 6-15kg |
3 | Cooling Method | Water Cooling |
4 | Temperature | 120~270ºC (When The Ingot Demoulded) |
5 | Weight of Single Ingot Mold | 24-45 kg |
6 | Casting Method | Automatic Liquid Separation and Continuous Casting |
7 | Production Line Length | 5-10 meter 12Meters/18 Meters/20 Meters(Can Be Customizd) |
8 | Alloy Ingot Mold Quantity | Depends on ingot casting machine length |
Basic Parameters | ||||||||
Length | 5 meters | 10 meters | 15 meters | 20 meters | ||||
Ingot Weight | 7 kg, 10 kg | |||||||
Motor Power | 380V,50HZ, 3 Phase | |||||||
Control Power | 380V,50HZ, 3 Phase | |||||||
Ingot Quantity | 56 | 116 | 176 | 236 | ||||
Chain | 18 meters | 38 meters | 58 meters | 78 meter | ||||
Sprocket Wheel | 1 | |||||||
Axle | 1 | |||||||
Distributor | 1 | |||||||
Reduce Gear | 1 | |||||||
1. The equipment is Aluminum ingot casting machine with high production efficiency. It can reach 10Ton per hour
2. Ingots size : 6-30 kg (ingots size can designed by customer)
3. The running speed of the equipment is 0-6 m/min adjustable.
4. Aluminum ingots production line total length : 5-24 meters.
Main details:
The main feature is stepless speed regulation, automatic liquid filling, ingot uniform, low labor intensity, the output can be increased 20%-30% by using this equipment.

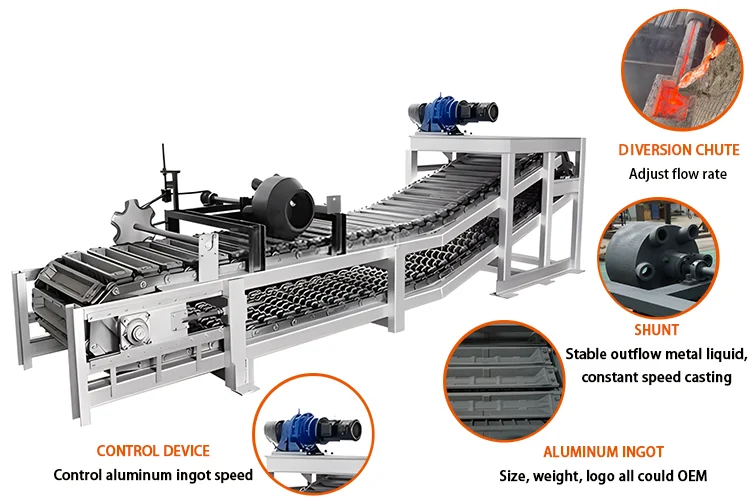

1. Casting machine main structure : U-steel channel welded steel body, conveyor, speed-adjust motor, reducer ,big & small chain wheel & chains, power distribution systems.
2. The driving motor is AC speed regulating motor with electromagnetic or variable frequency mode.
2. Ingots size : 6-30 kg (ingots size can designed by customer)
3. The running speed of the equipment is 0-6 m/min adjustable.
4. Aluminum ingots production line total length : 5-24 meters.
Main details:
The main feature is stepless speed regulation, automatic liquid filling, ingot uniform, low labor intensity, the output can be increased 20%-30% by using this equipment.
1. Casting machine main structure : U-steel channel welded steel body, conveyor, speed-adjust motor, reducer ,big & small chain wheel & chains, power distribution systems.
2. The driving motor is AC speed regulating motor with electromagnetic or variable frequency mode.
