Product Overview
Description
Product Description

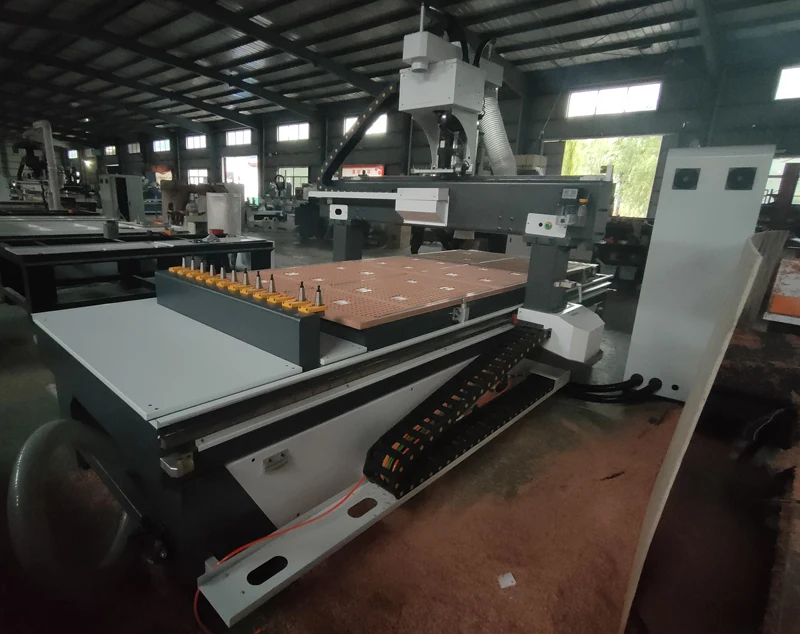

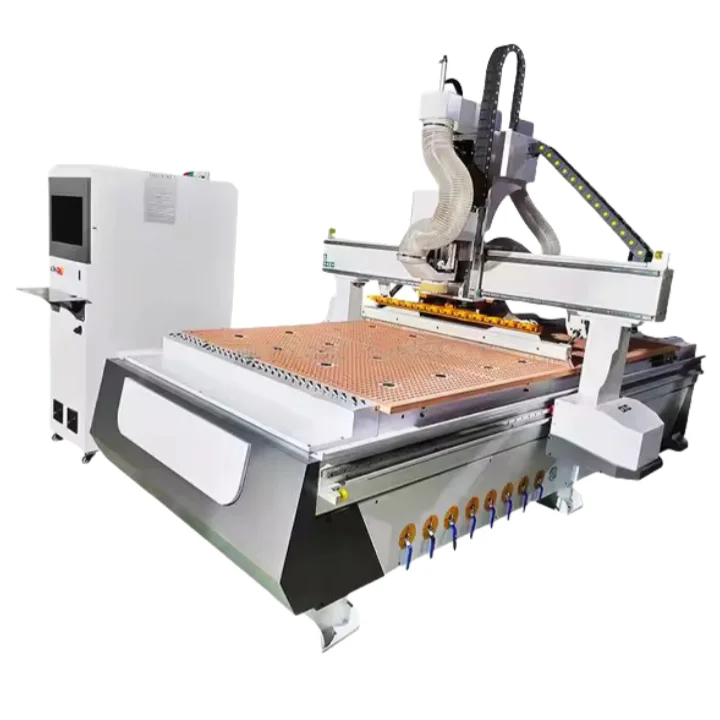

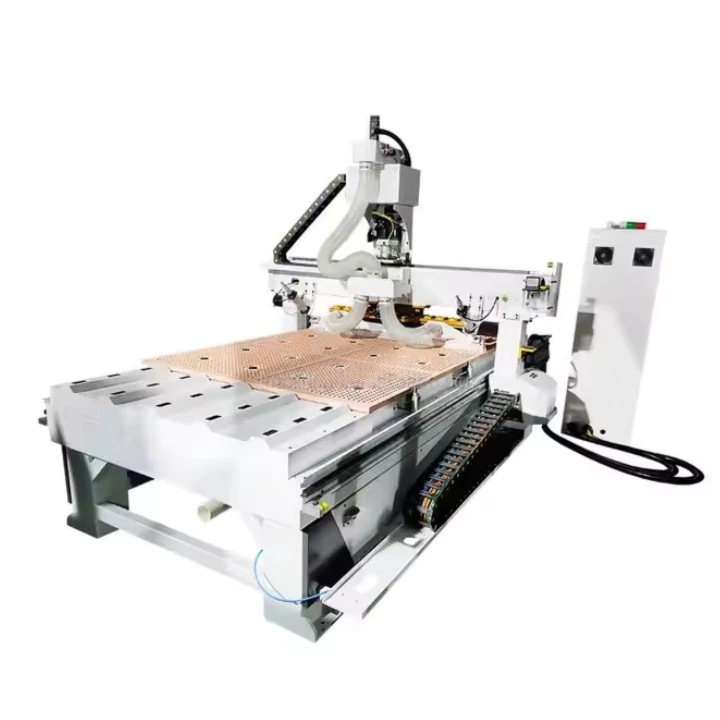

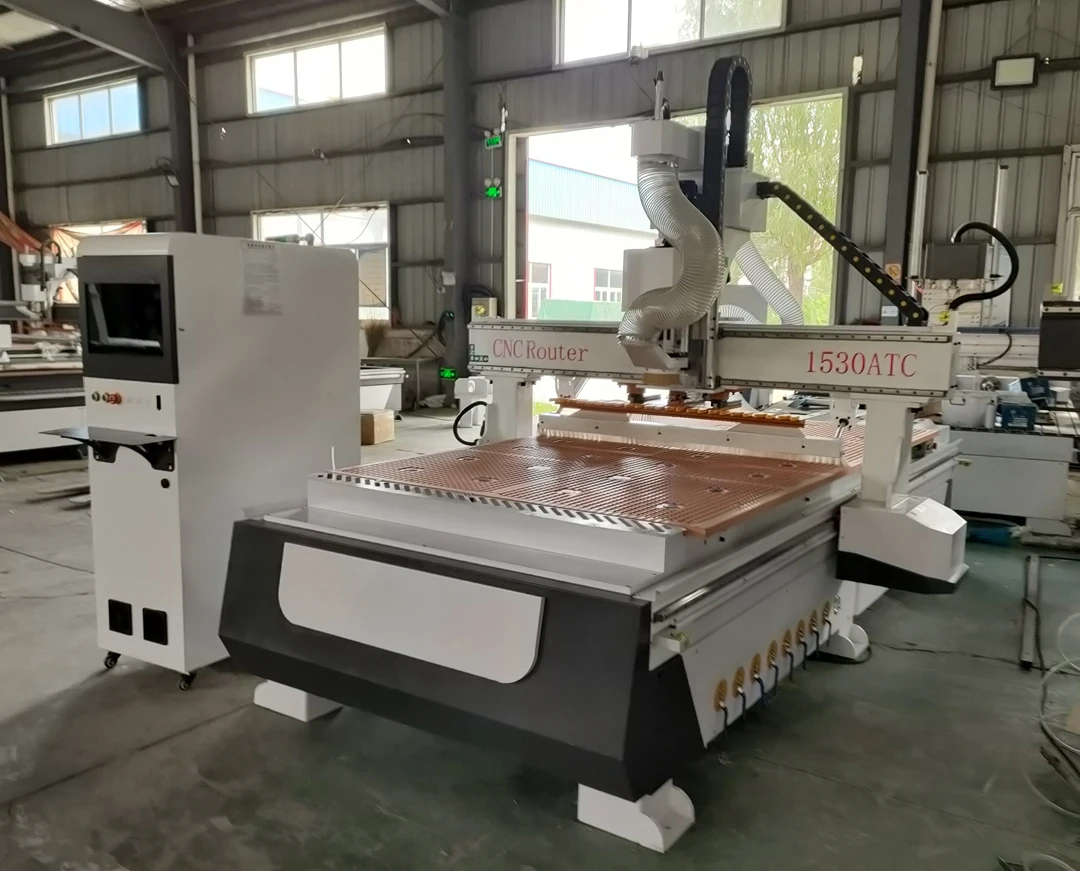

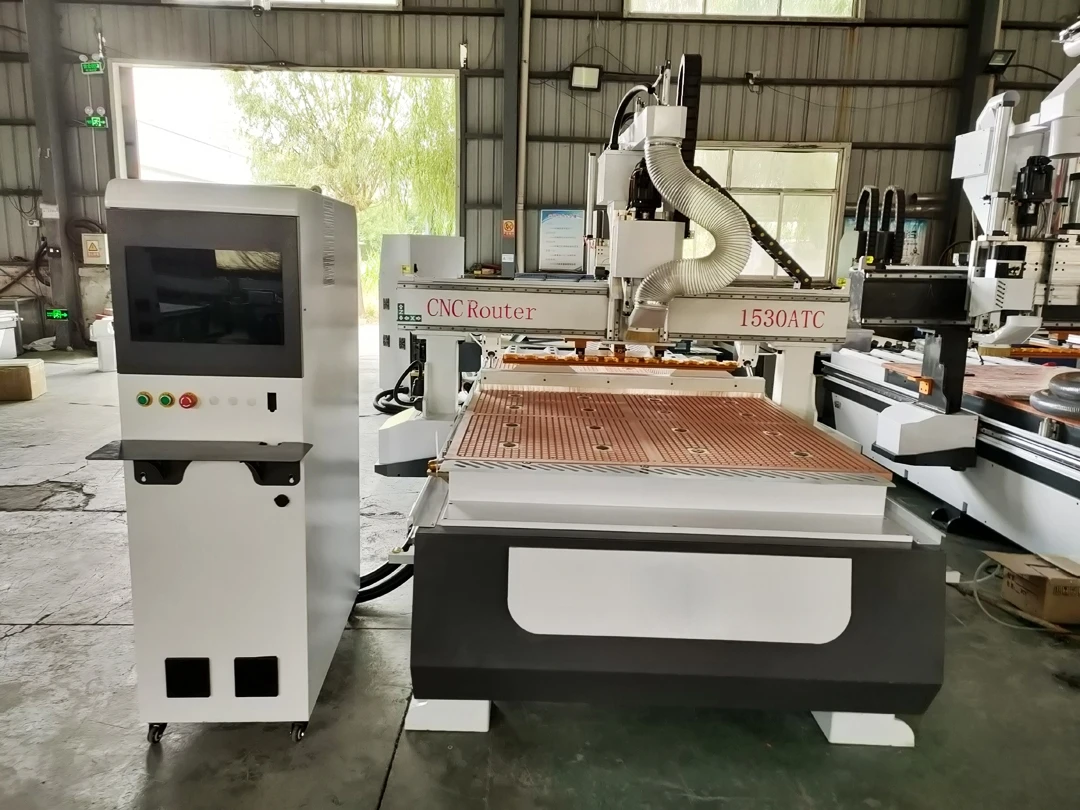

machine show
here are two types ATC CNC machine, which includes linear

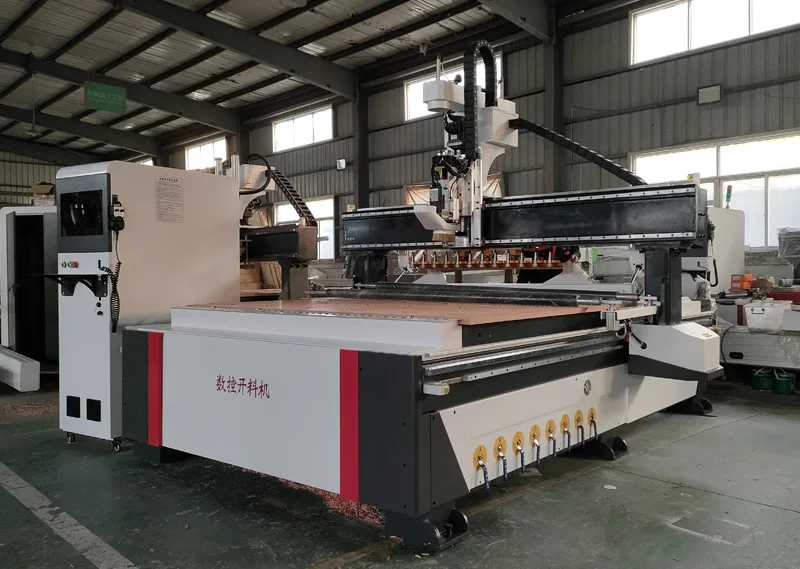

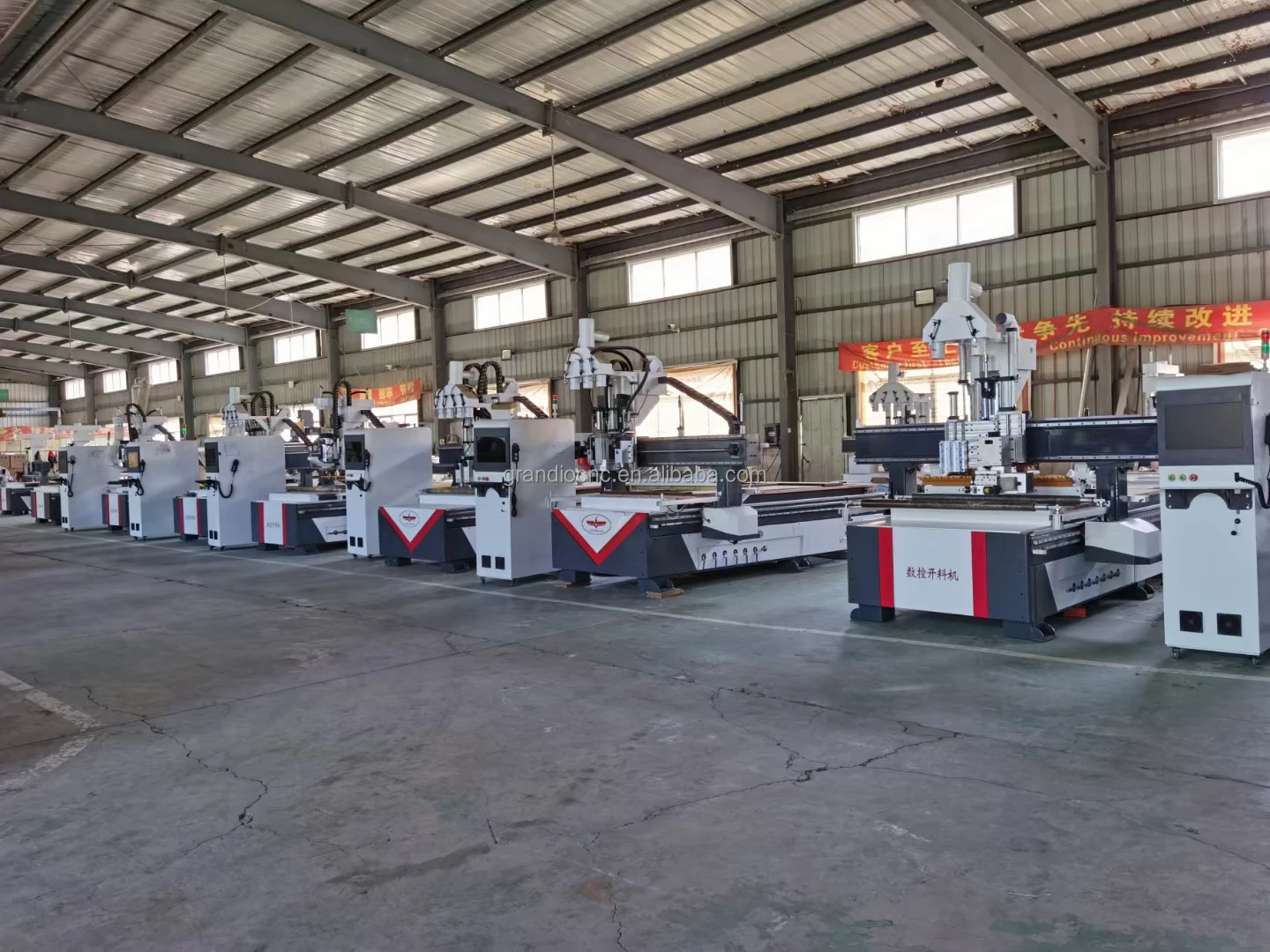

factory show
ATC CNC router and Disc ATC CNC router.

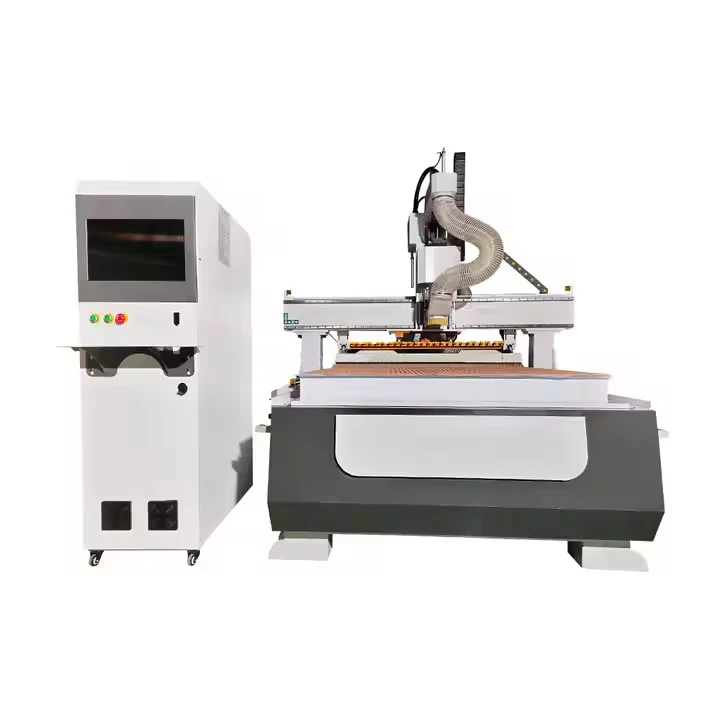

ATC CNC router is a type of automatic CNC machine with automatic tool changer spindle.usually carries tools magazine of 12 cutters. It adopts high-torque servo motor made in Japan, which has the advantages of low noise, high speed and high positioning accuracy.
Specification
mode | 1325 linear tool atc | 1325 carousel tools atc | |
working table | vacuum table +T-slot | ||
working size | 1300/2500/200 or others customized size | 1300/2500/200 or others customized size | |
spindle | 9kw atc spindle | 3kw/4.5kw/6kw/7.5kw/9kw | |
inverter | 11kw hpmont/fuling | ||
driving system | servo motor | ||
guide rail | Taiwan Hinwin 25mm guide rail | ||
transmission | X y axis guide rail, z axis ball screw | ||
control system | syntec/lnc/jinke | ||
power | 380/220v, customized | ||
Details Images

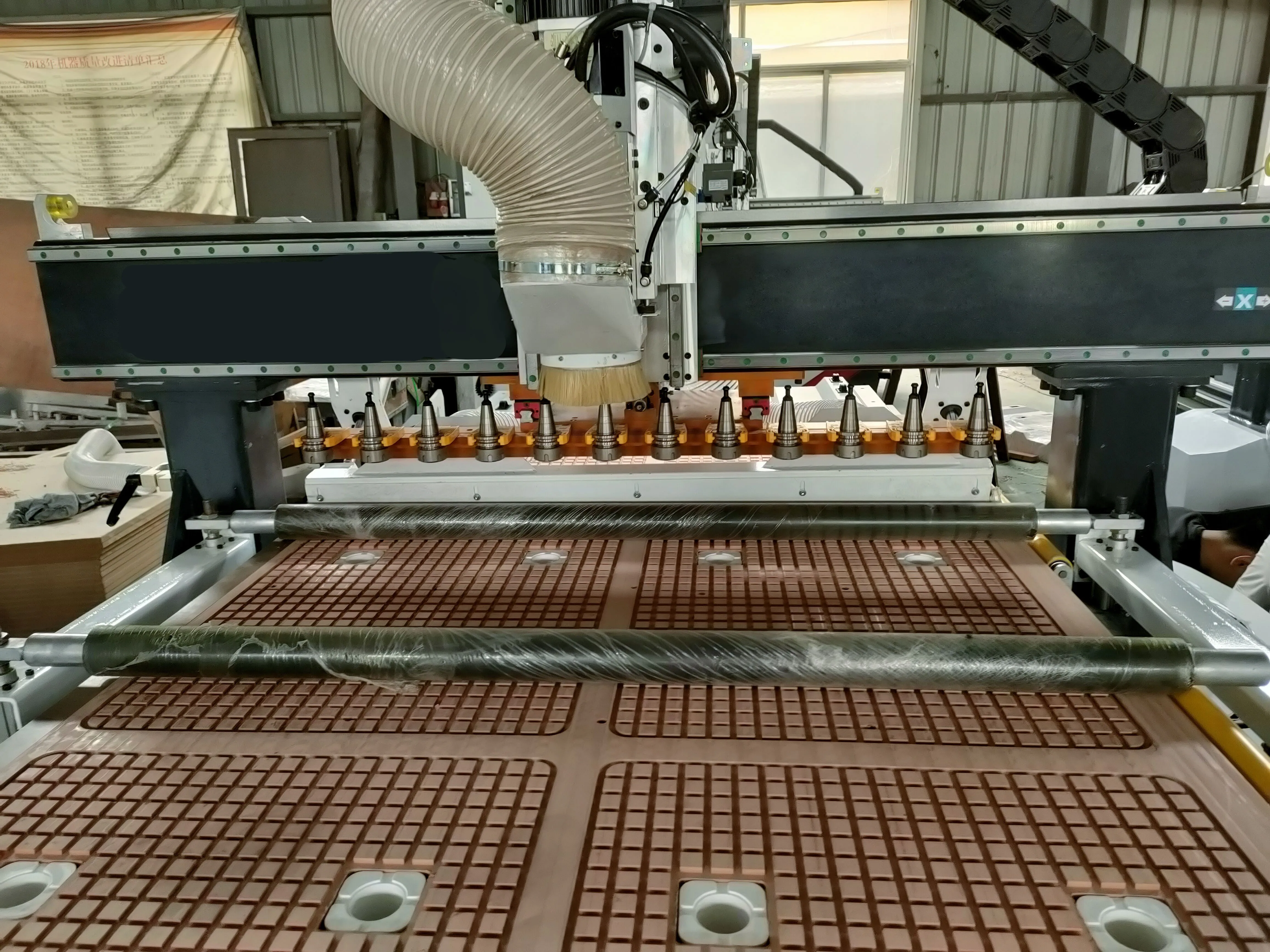

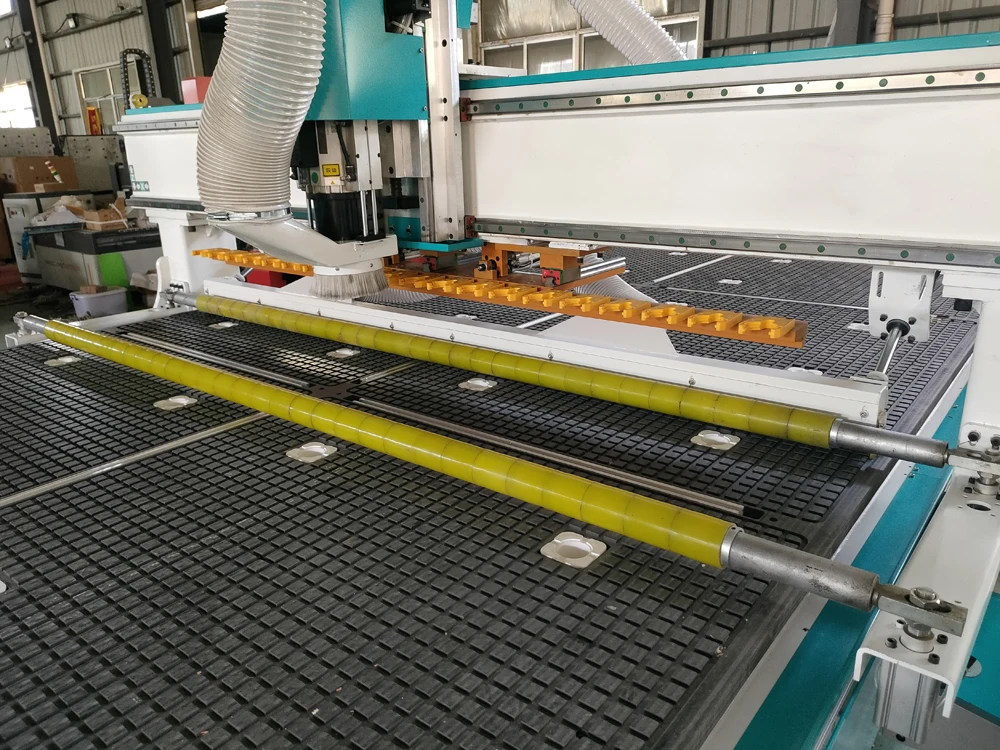

Pneumatic pressure roller
Pneumatic pressure roller Solve the problem of air leakage caused by plate deformation, reduce waste rate and improve adsorption
efficiency
efficiency
Rail guide
X/Y/Z axis adopt imported linear guide rail,ball screw,stable operation.
The overall bed with steel seamless welding,wearing strong,durable,not easily deformed.
X/Y/Z axis adopt imported linear guide rail,ball screw,stable operation.
The overall bed with steel seamless welding,wearing strong,durable,not easily deformed.
Vacuum adsorption independent valve switch
The table is divided into 6 independent partitions, the processing is fully opened, and the processing small board can be switched on and off according to the demand, and the adsorption force is strong and does not leak. Vacuum pressure gauge, real-time display of current pressure value
Prevent the Z-axis load from falling under the action of gravity and damaging the equipment or other safety accidents when the power is suddenly turned on or shut down.
Compared with stepper tool magazine , servo tool magazine speed is faster and more precision

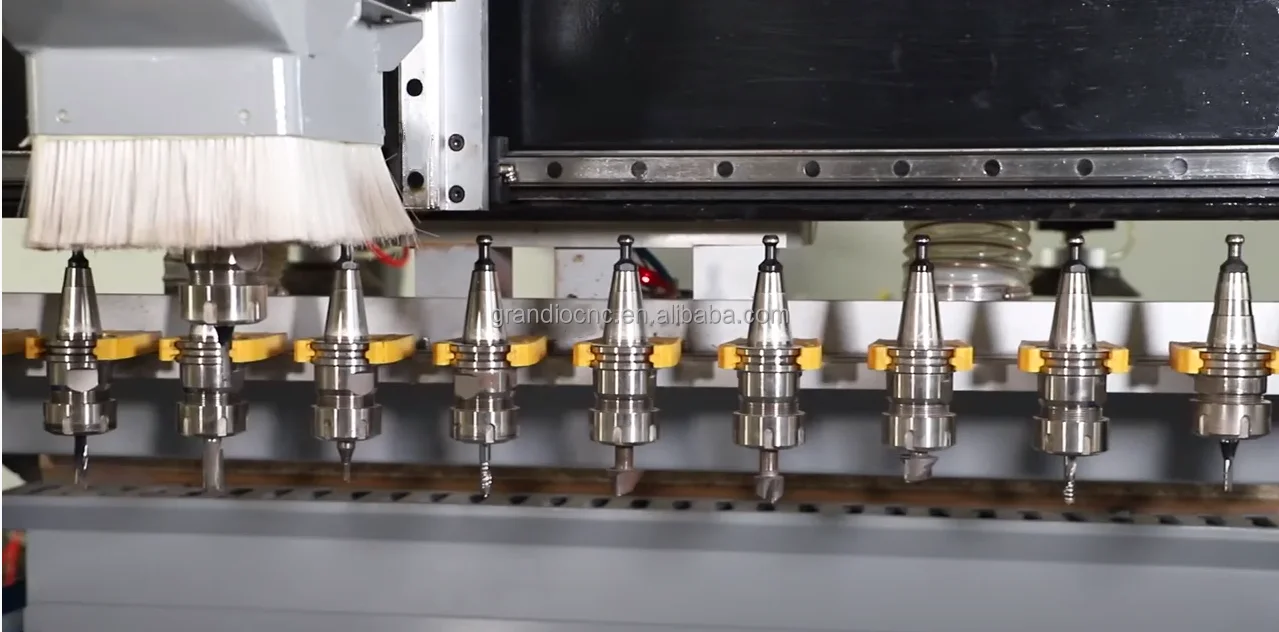

linear tool magazine
In-line tool magazine
Can move with the gantry, easy to change the tool
Nylon tool holder, strong and stable
Can move with the gantry, easy to change the tool
Nylon tool holder, strong and stable

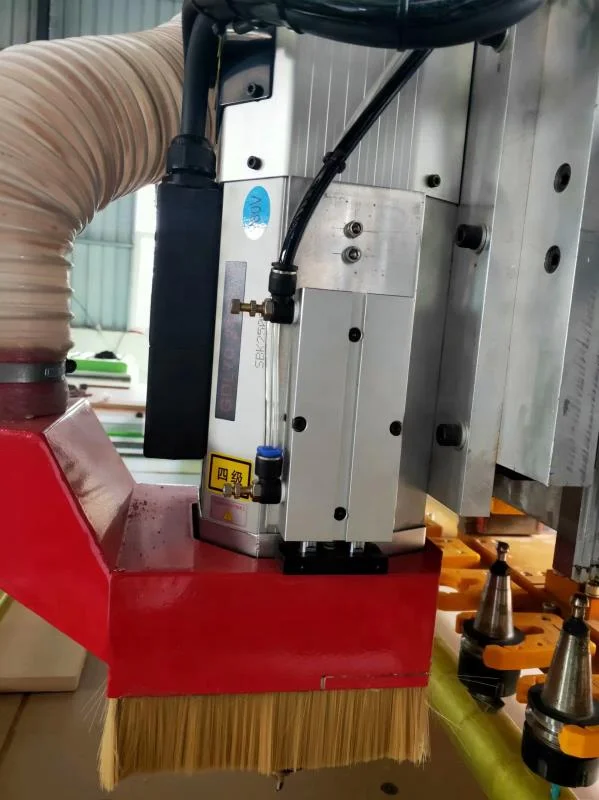

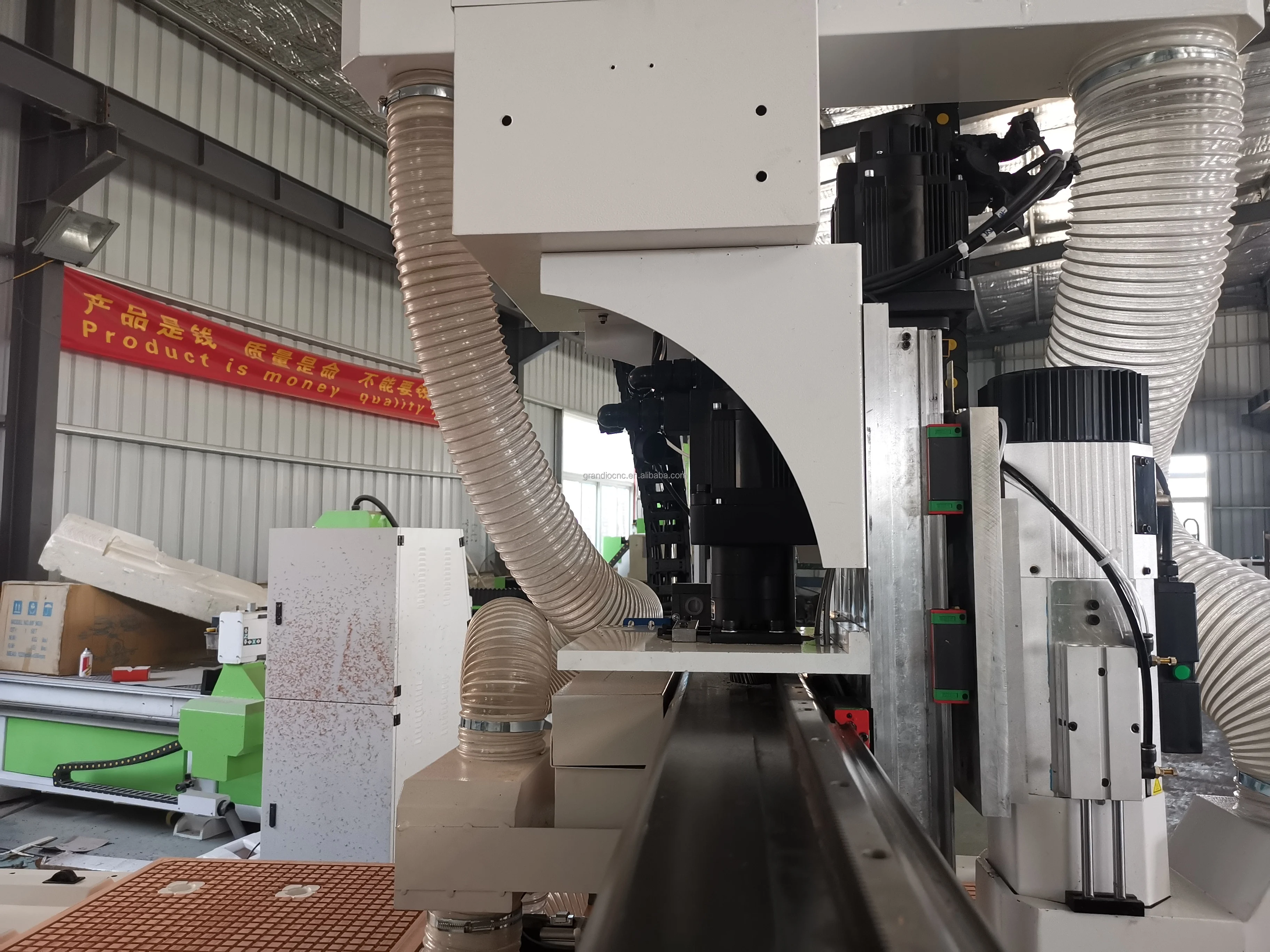

Spindle dust removal
New design, synchronized with the main shaft, the air duct switch is closed tightly. Convenient disassembly and replacement of the spindle brush
New design, synchronized with the main shaft, the air duct switch is closed tightly. Convenient disassembly and replacement of the spindle brush
SEND INQUIRY , OK PIONT NAME CARD
The CNC router tools can automatically change according to the working requirements when the CNC router works, no need of manual operation, with good starting performance and large torque,
Equipped with a unique tool-changing mechanism, you can exchange the required tools at will, and the dedicated tool setting table can accurately compensate the tool length error. The tool change time only takes in second, which will improve the working efficiency greatly. T
optional function
5+4 drills
Suitable for punching the cabinet body, can punch holes of multiple specifications at a time, simple operation, improve work efficiency
blade
It is more suitable for the cutting of thick plates, with faster cutting speed and higher efficiency
Automatic loading and unloading platform
Save labor, mechanize the production process, and achieve higher efficiency
Save labor, mechanize the production process, and achieve higher efficiency
can customzied Dual Working Table
High double effecient for work wodden , working piece
application
application:
* Wood: can process cabinet , wood door , solid wood , plate-type , windows , table , chairs , etc
* Decoration: screen,wave plate,huge-scale hanging,advertisement plates,markings making;
* Arts: can engrave on man-made stone, wood, bamboo, marble, acrylic, double-colored board beautiful drawings and letters.
* Decoration: screen,wave plate,huge-scale hanging,advertisement plates,markings making;
* Arts: can engrave on man-made stone, wood, bamboo, marble, acrylic, double-colored board beautiful drawings and letters.

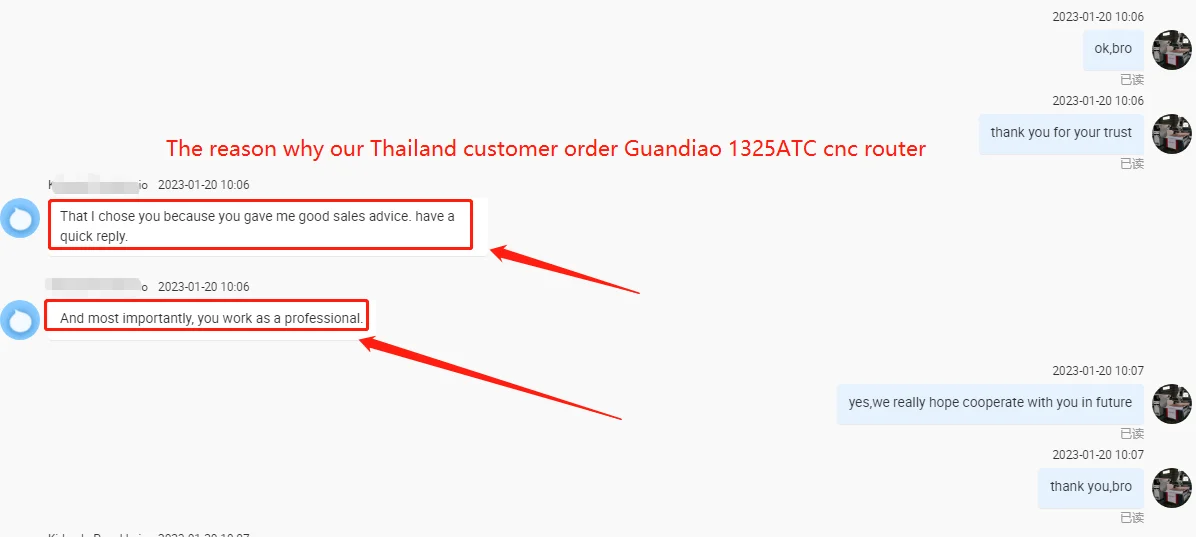

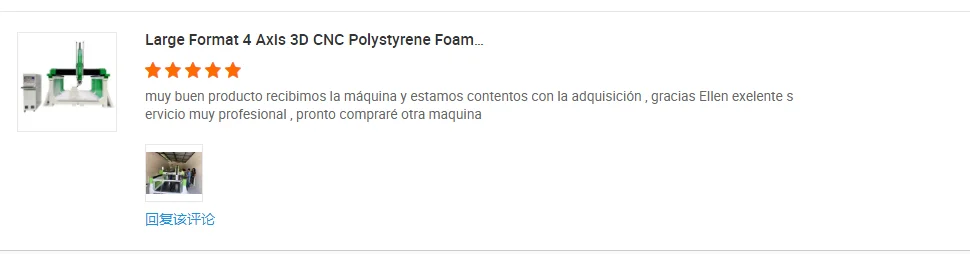

customers feedback
Our Advantages
Jinan Grandio CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally. Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win.
The company's main products include Panel board furniture production line and cabinet door production line: Standard CNC router(For wood,stone,metal..3axis,4axis and 5axis.support customized,OEM...) ATC CNC Nesting router,Multi-spindle cnc router machine ,3D scanner,Vacuum membrane press machine, Wood sanding machine ,Automatic edge banding machine,CNC side hole drilling machine ,Wood CNC lathe ,Fiber laser cutting machine,etc.

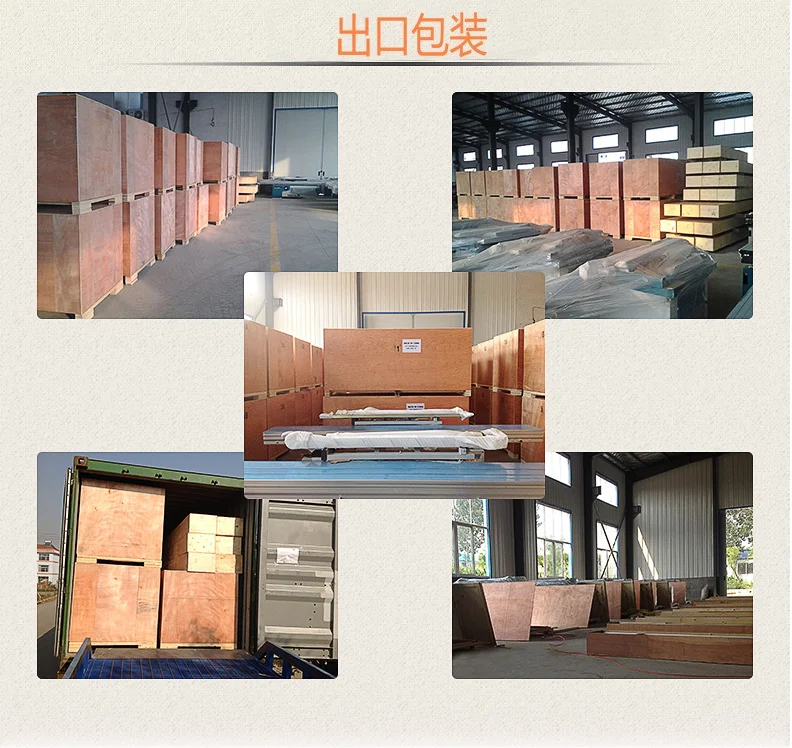

Packing & Delivery
FAQ
FAQ
Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate
by our full experience engineers.
by our full experience engineers.
Q2: Where are you located? How can we visit you? A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city
of Shandong, in the north of China, near Beijing and Qingdao.
of Shandong, in the north of China, near Beijing and Qingdao.
Q3: How can I choose suitable machine? A: Please communicate with our sales via inquiry or email, we will give you professional suggestions. Please kindly tell us: 1).What work you will do? mark, engrave or cut? 2) What's your material? 3). What work table size you will need?
Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union Alibaba Trade Assurance. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 10-15 days after payment
MOQ: 1 Set
Q5: What's your quality control system?
A: All our CNC machines are CE certified. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.
