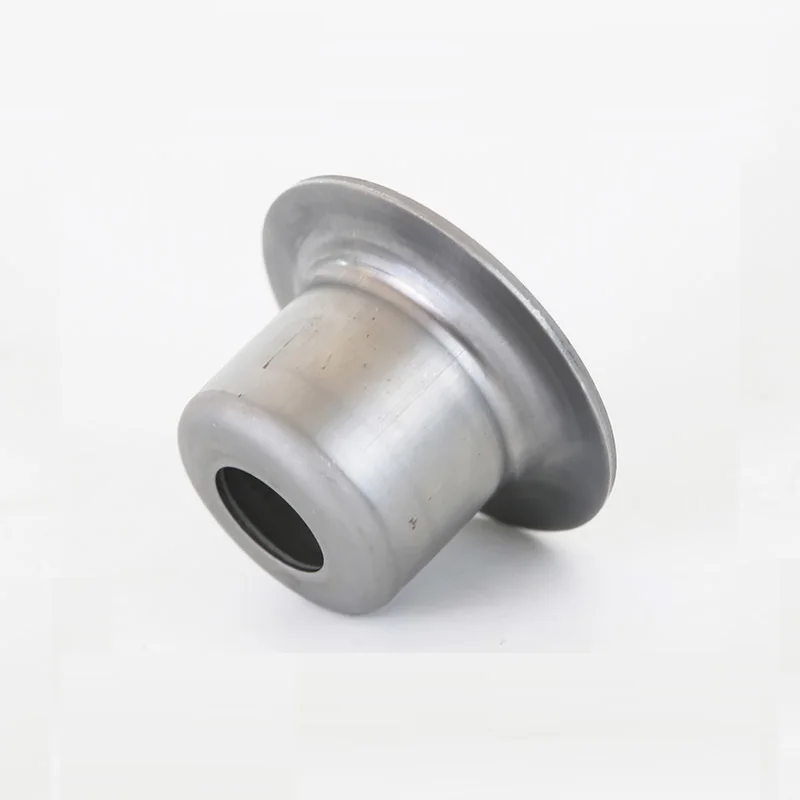

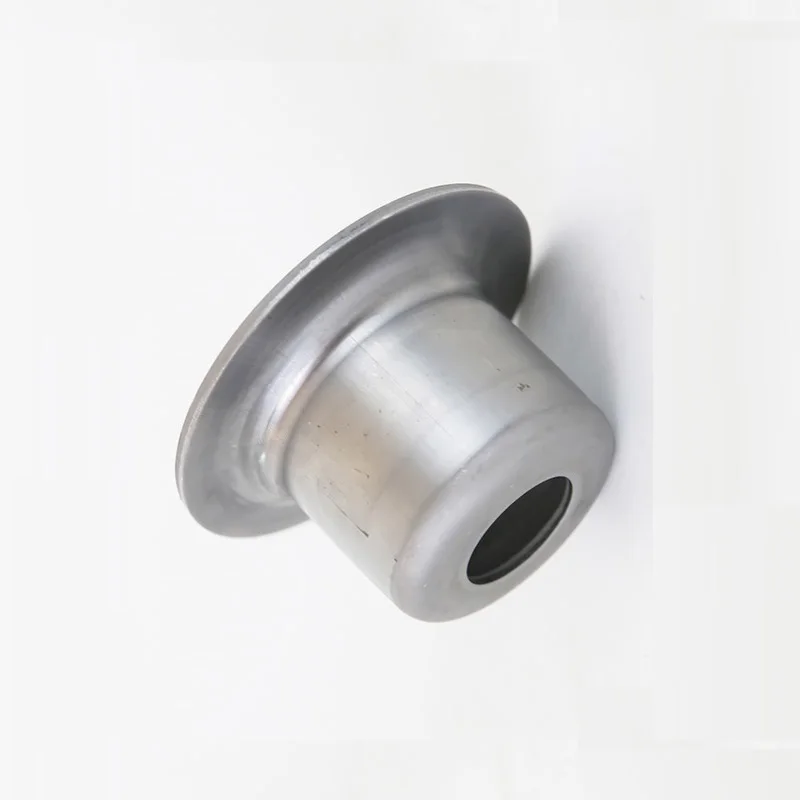

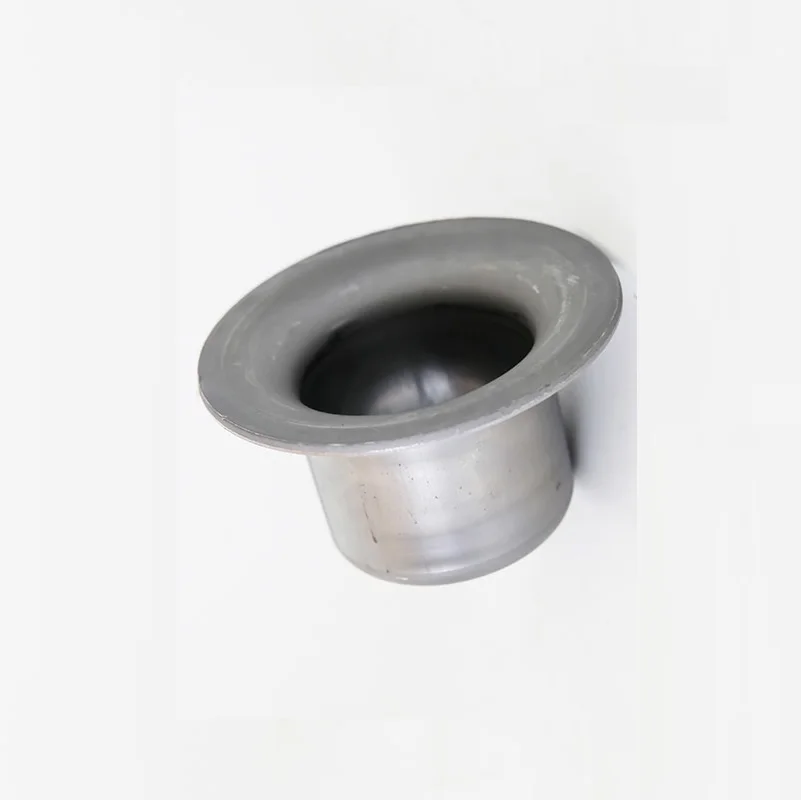

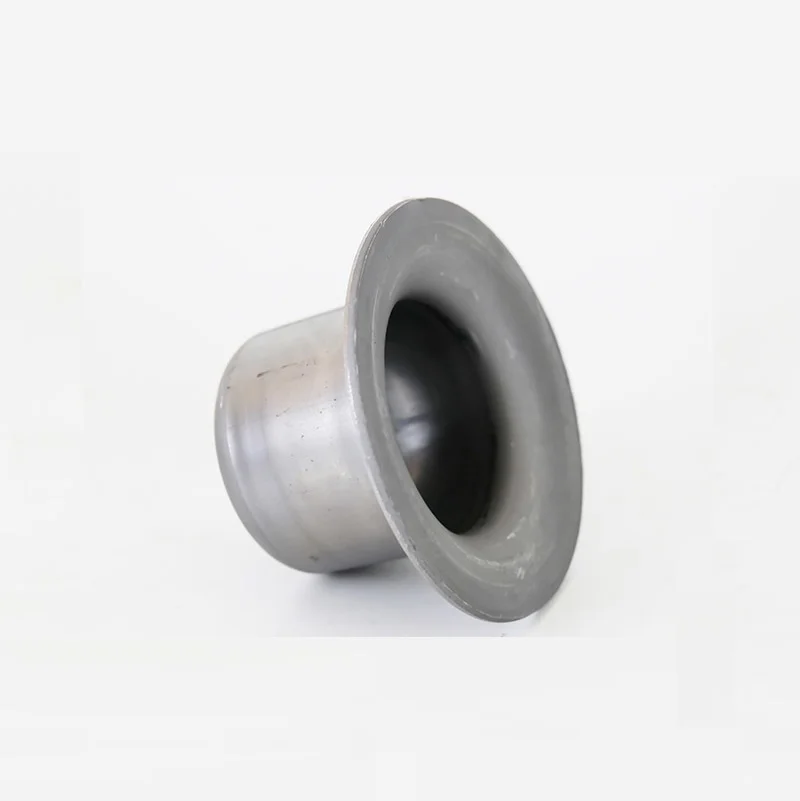

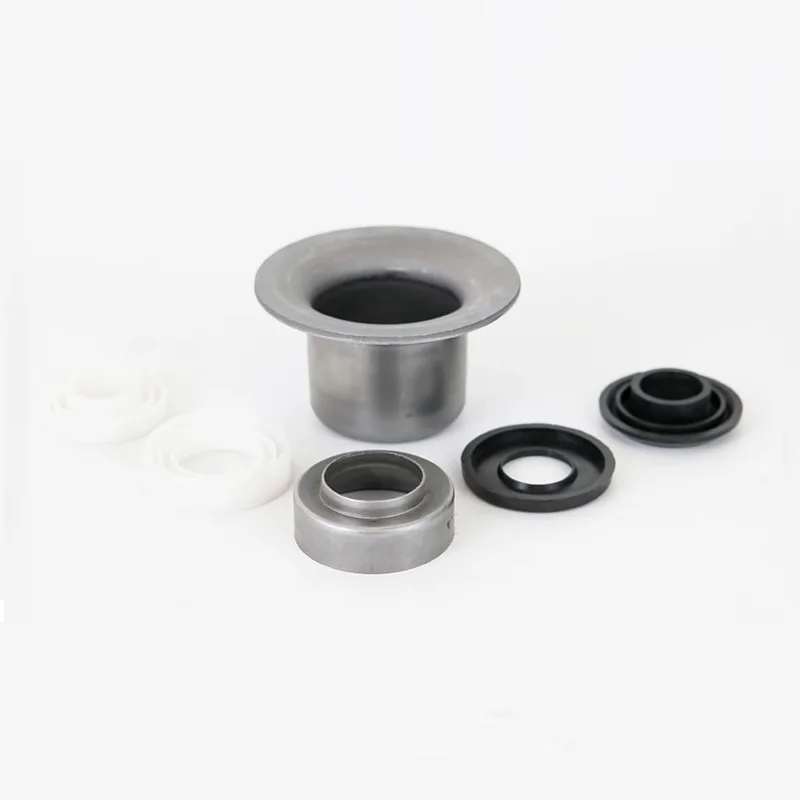

Quality CE 6204 TK Type Stamped Steel Bearing Flange End Cap And 5 Seals Kit in Idler Conveyor Roller For Sand Mining
- Category: >>>
- Supplier: Hefei Hengan Conveyor Machinery Co. Ltd.
Share on (1601289431871):
Product Overview
Description
FEATURES AT A GLANCE
PRODUCT DESCRIPTION
product name | bearing housing with labyrinth seals | ||||||
bearing housing material | SPCC/SPHC/SPHE steel | ||||||
seal material | Nylon6 / POM/ABS | ||||||
standard | DIN, GB, ISO, JIS ,CEMA | ||||||
outside dia of bearing housing | 50mm,60mm,63.5mm,76mm,89mm,108mm,114mm,127mm,133mm,140mm,152mm,165mm,178mm,194mm,219mm | ||||||
bearing size | 6203,6204,6205,6305,6306,6307,6308,6309,6310,6312 | ||||||
bearing housing thickness | 1.7mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm | ||||||
application | Conveyor Roller /Idler | ||||||
Product Overview
Mining Conveyor Roller Steel Bearing Cover With Labyrinth Seals
The role of bearing end cap: The majority of small and medium-sized reducers use rolling bearings, and the bearing end cap of the rolling bearing is the most common part. The bearing end cover is used to fix the bearing, adjust the bearing gap and withstand the axial force.
DRAWING
PRODUCT SPECIFICATIONS
bearing size | pipe outside dia/mm | shaft dia/mm | D1 | D2 | D3 | D4 | H | H1 |
63 | 59.5 | 2.0/2.5 | ||||||
76 | 72 | 2.0/2.5 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
114 | 109/110 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0 | ||||||
178 | 172 | 3.0/4.0 | ||||||
197 | 188 | 3.0/4.0 | ||||||
89 | 25 | 83/84/85 | 2.5/3.0 | |||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
89 | 30 | 83/84/85 | 3.0/4.0 | |||||
102 | 97 | 3.0/4.0 | ||||||
108 | 103 | 3.0/4.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
127 | 35 | 121/122 | 3.0/4.0/5.0 | |||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
127 | 121/122 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
178 | 50 | 172 | 3.0/4.0/5.0 | |||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 |
INSTALL DRAWING
APPLICATION
FACTORY STRENGTH
1. Reliable manufacturer offers factory direct service and price.
2. Relying on four production lines, we are able to provide a long-term stable supply.
3. Technical support is always here for you from our R&D team and mold centre.
4. Print your logo or website on your products or customize what you want.
5. Feel free to contact us to request free samples and place trial order with no MOQ.
6. Choose any shipping method you prefer, no matter by sea, air, land or express.
7. Variety of payment methods, we accept credit card, T/T, western union etc.
3. Technical support is always here for you from our R&D team and mold centre.
4. Print your logo or website on your products or customize what you want.
5. Feel free to contact us to request free samples and place trial order with no MOQ.
6. Choose any shipping method you prefer, no matter by sea, air, land or express.
7. Variety of payment methods, we accept credit card, T/T, western union etc.
CERTIFICATES
SALES AND SERVICE NETWORK
FAQ
Q1：How can I know conveyor roller bearing end cap type and size is that I need?
A1：Contact our sales, add whatsapp 008618095661050 or email haconveyor@gmail.com for roller detail and your requirement.
Q2 : Can you send samples for checking quality firstly?
A2 : Yes, we can send free samples to you.
Q3 : What trade terms do you support?
A3 : We accept FOB China port, CIF, EXW.
Q4 : What payment terms do you accept?
A4 : We accept transfer by T/T, L/C at sight.
Q5 : What about your delivery time?
A5 : 500 pcs is 3 nature days, more quantity needs discuss in detail.
