Product Overview

Description

RS485 Modbus CO2 Controller Digital Sensor For Air Quality Monitoring Data Logger Temperature Monitoring Device



Temperature Humidity 4G Data Logger

GSX4-HV-4G is a data collector with temperature, humidity, analog, pulse and digital channels.
Data is delivered via 4G mobile network.







detail

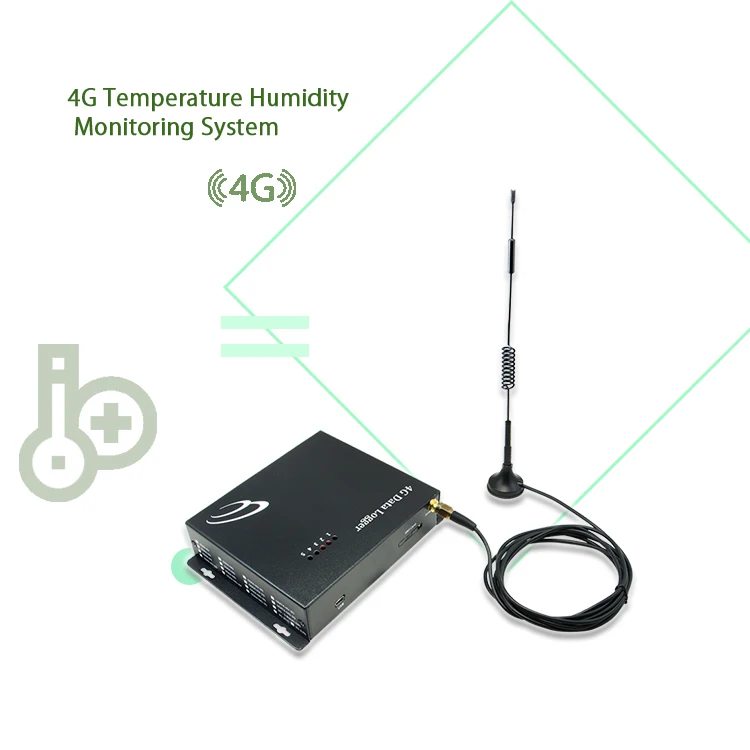

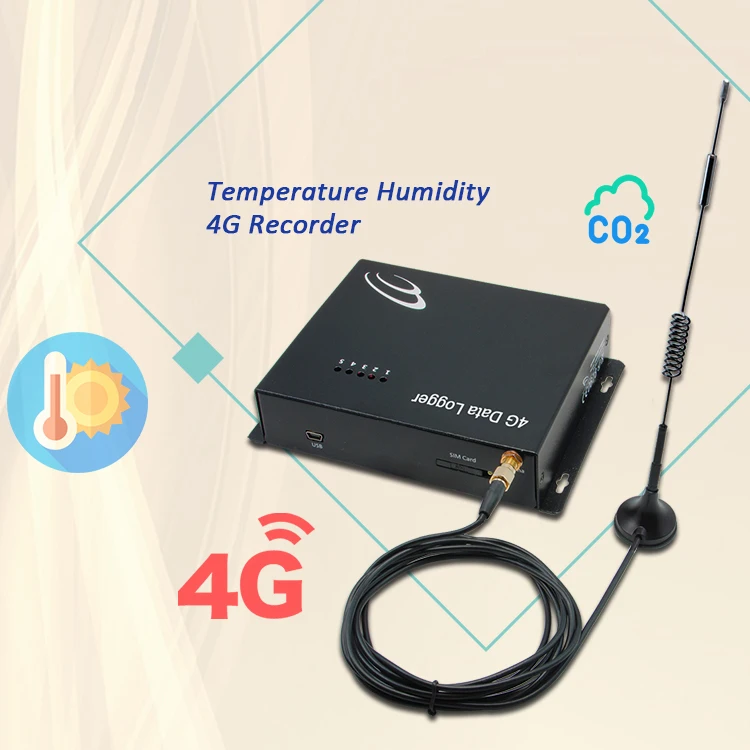

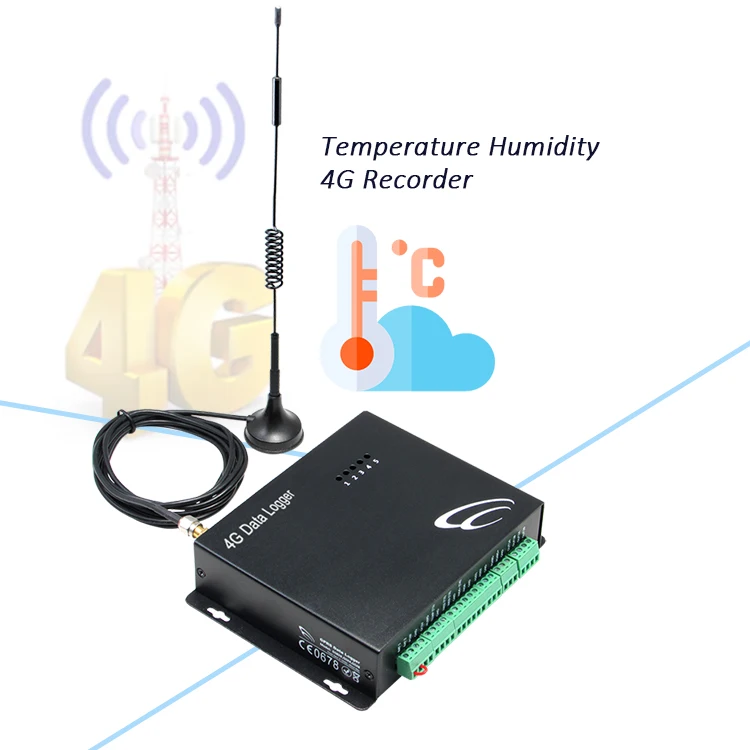

It is a Temperature and Humidity Data Logger with built-in module supporting worldwide 4G mobile network.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.





Overview:
* 4 Temperature Sensors (max.)
* 1 Humidity Sensor
* 2 Analog Channels (max.)
* 3 Digital Inputs
* 3 Pulse Channels
* 2 Relay Outputs
* RS485 Data In













 Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.



Free Software:
[1] Setup software is bundled for routine configuration via USB port locally

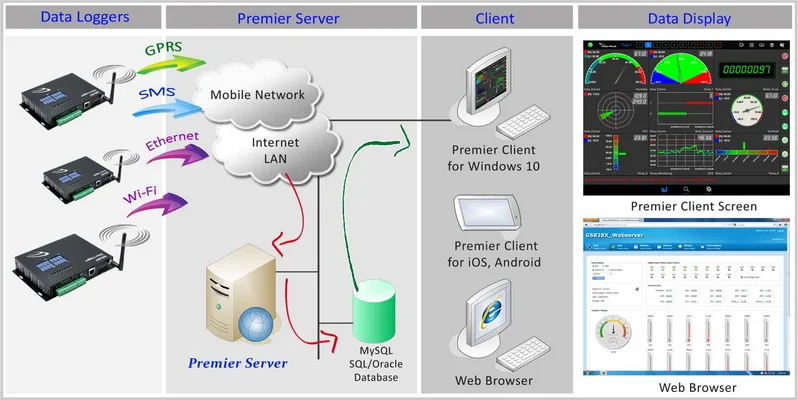

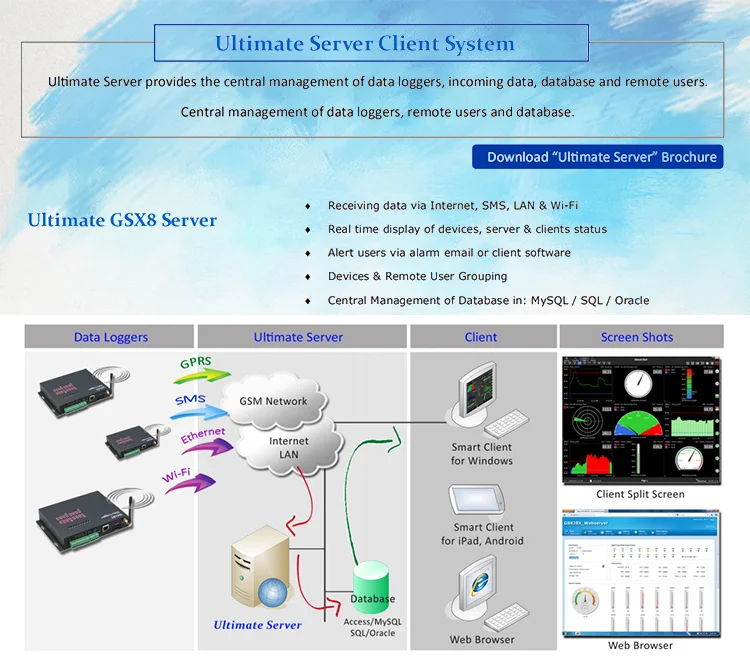

[2] Centre software is also provided for receiving data via 4G mobile network.

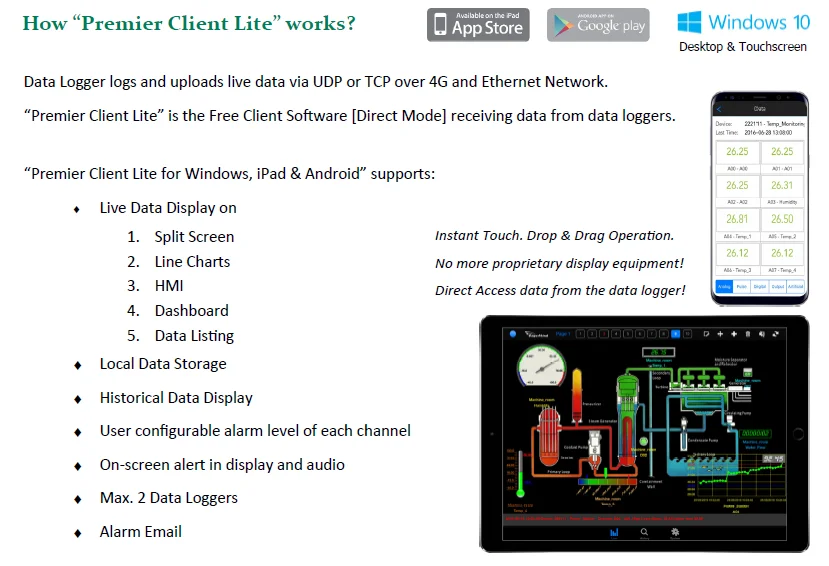

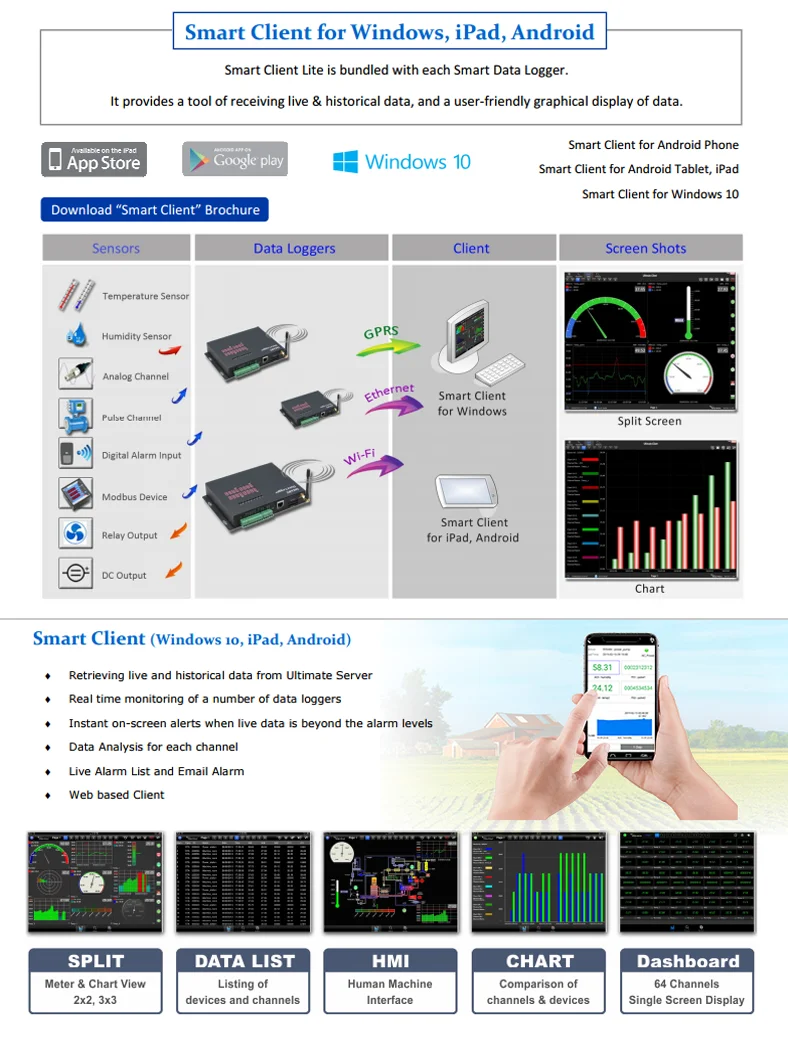

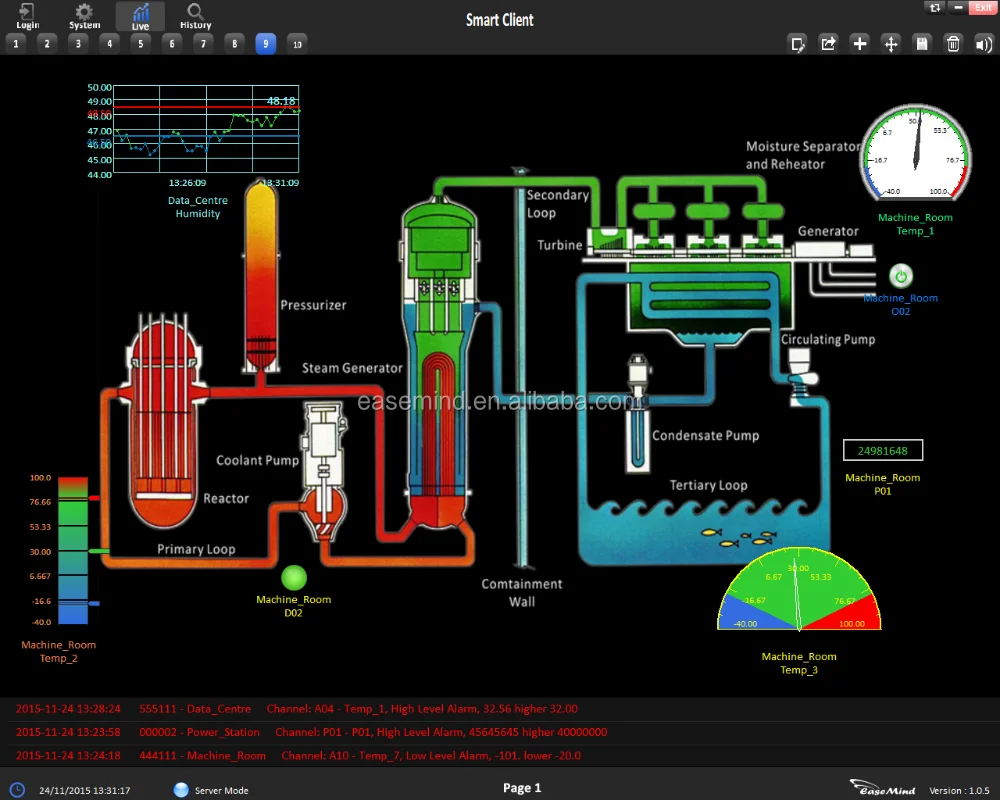

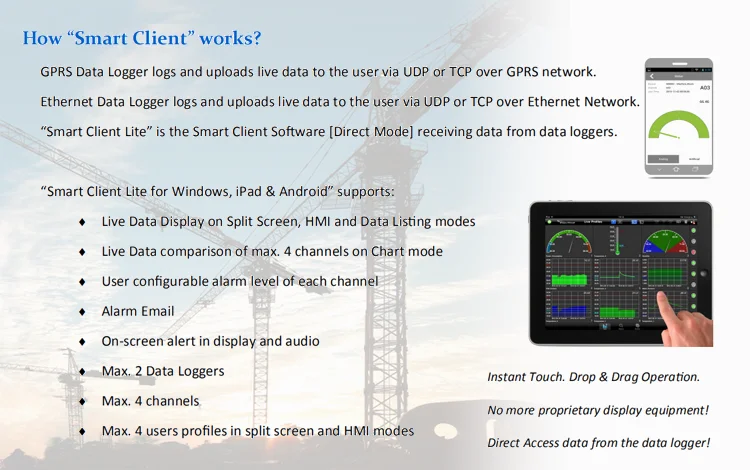

[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display











Features
1) Real Time 4G Data Upload
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup



Applications
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry





Company Profile

Easemind Technology Ltd. is established by a team of engineers and programmers specialized in industrial and telecommunication fields.

We have been in business of hardware and software development of wireless data logging devices and industrial telemetry equipment since 1989.

The business and marketing concept of the company consists of: * Development according to the actual market needs and customer demands,

* Utilization of reliable, trust-worthy and right-to-the-edge technology,

* Turn-around product delivery and service fulfillment within time limits,

* Cost-effective solutions: the right price for the right product, and

* One Stop Solution of hardware, software and user applications

EASEMIND is now a group of companies specialized in RF wireless sensor & mobile data tracking devices for consumer and industrial sectors.

Our sales offices are located in US, Hong Kong and China with manufacturing facilities in Zhejiang and Shenzhen, China.

OEM or Distributors are welcome! Contact us if you are interested in being our regional distributors.





















Packaging Details:       Carton Box

Delivery Detail:          14 days

Supplying Ability          1000 sets per month
