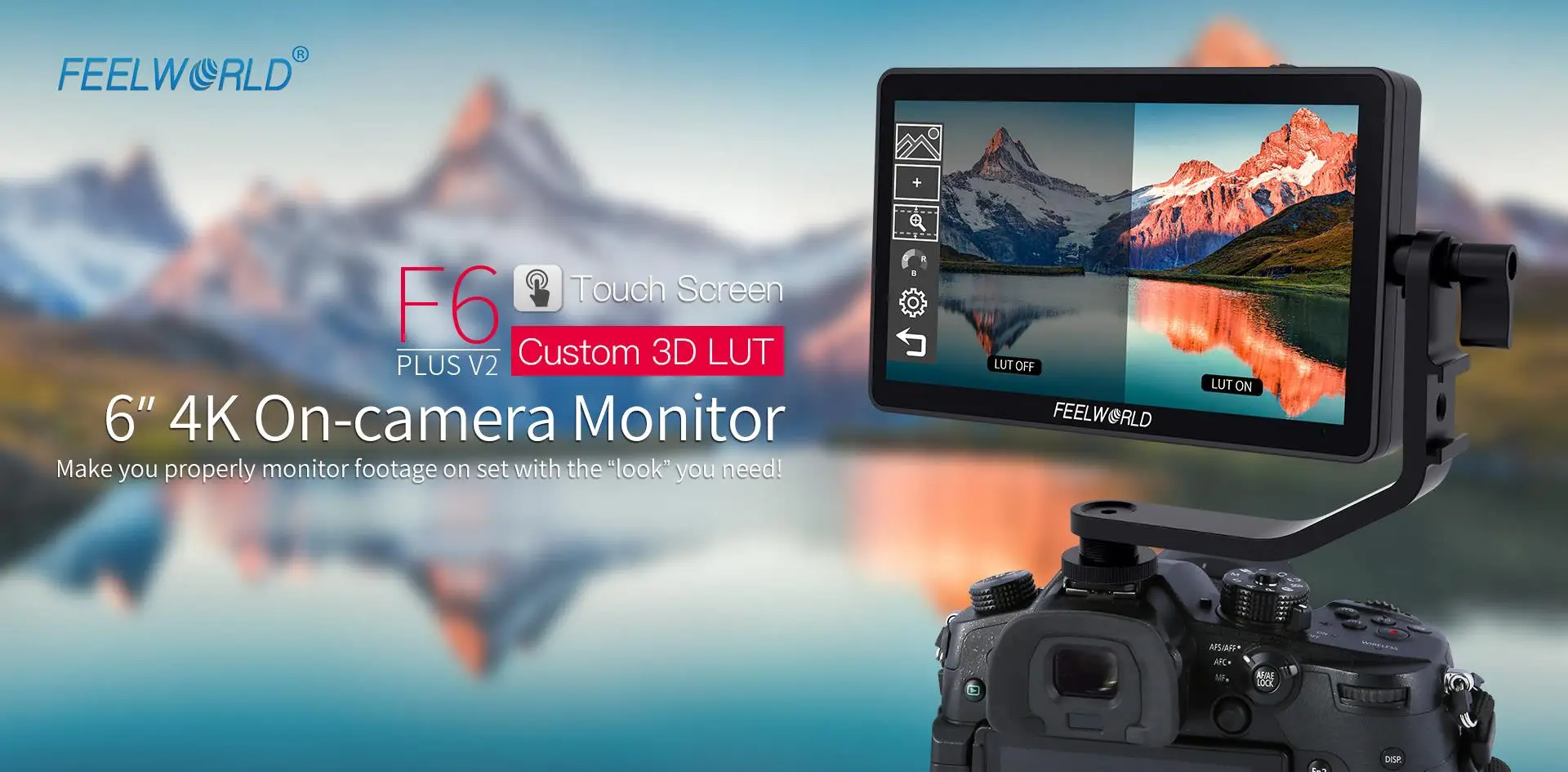

FEELWORLD F6 PLUS V2 6 Inch 3D LUT Touch Screen Camera Monitor IPS FHD 1920x1080 4K HDMI Camera Field Monitor
- Category: >>>
- Supplier: Zhangzhou Seetec Optoelectronics Technology Co. Ltd.
Share on (1601290134296):
Product Overview
Description
Product Description

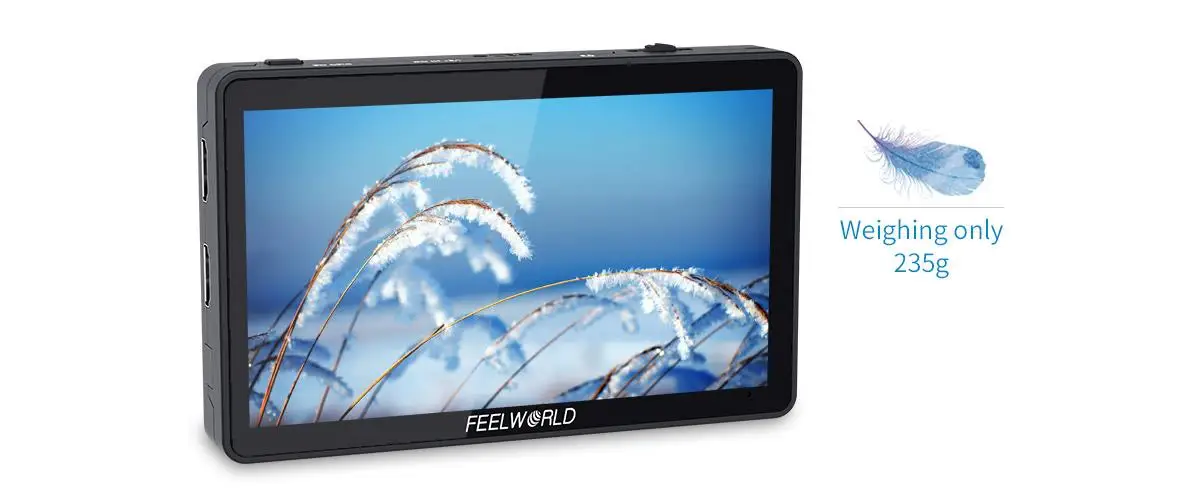

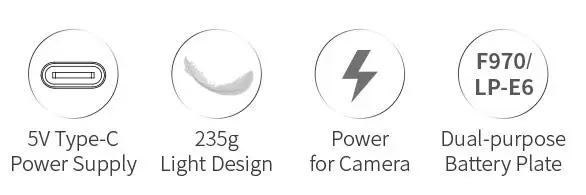

Light and Slim Design, Only 235g
The F6 PLUS is 6 inch and only 235g, and makes it the ideal size and weight for field production. The entire monitor’s build is
sturdy and compact, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer. It gives you the freedom to
shoot well anywhere.
Specification
Display Spec | ||
Model | F6 PLUS V2 | |
Screen Size | 6" Touch Screen | |
Resolution | 1920x1080 pixels | |
Pixel Pitch | 0.069 (H) × 0.069 (V) mm | |
Aspect Ratio | 16:9 | |
Brightness | 450cd/m² | |
Contrast Ratio | 1000:1 | |
Backlight | LED | |
Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) | |
Input | ||
1 X HDMI | HDMI | |
1 X Type-C | Type-C | |
Output | ||
1 X HDMI | HDMI | |
1 X DC Output | DC Output | |
Audio |
3.5mm Stereo Headphone |
HDMI Input/ Output Support Format |
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General | ||
Input Voltage | DC7～24V | |
Power Consumption | ≤8W | |
Power Connector | DC | |
Working Temperature | -20°C~55°C | |
Storage Temperature | -30°C~65°C | |
Install Way | ¼-20 thread points (top, bottom, right) | |
Unit Size | 148Lx93Hx20D (mm) | |
Unit Weight | 235g | |
Color Box Size | 186L*124W*80H(mm) | |
Outer Carton Qty | 10 | |
Outer Carton Size | 465*200*326 (mm) | |
Gross Weight | 7.2kgs | |
Advanced Features |
* Support 3D LUT Log to Rec.709, user 3D LUT Upload |
* Support Touch Menu |
* All Waves |
* Parade (RGB, YUV, Y) |
* Vector |
* Brightness Histogram |
* Support screenshot,image overylay |
* Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) |
* False Colors |
* Zebra Exposure (1%~100% adjustable) |
* Check Field (red, green, blue, gray) |
* Scan Mode (Under Scan, Over Scan) |
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) |
* *Flip H/ Flip V (All open, H/V flip) |
* Image Freeze |
* Nine Grid |
* Center Marker |
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) |
* Marker Color (red, green, blue, white, black, yellow) |
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
* Color Temperature Adjustment |
* Zoom (100%~300%) |
* Aspect Ratio |
* Pixel to Pixel |
