Product Overview
Description

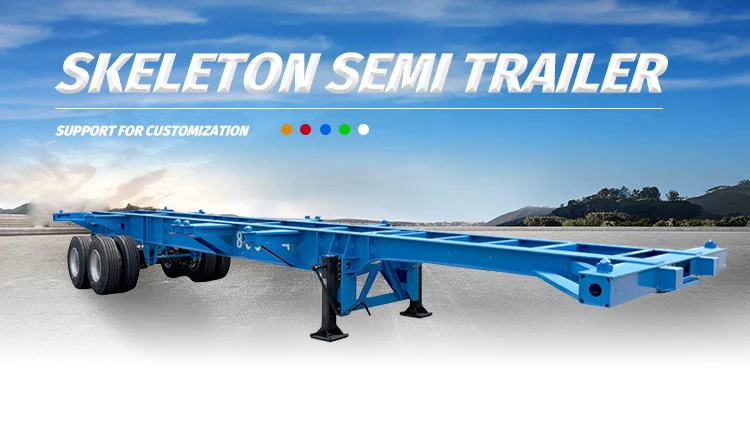

Skeleton Semi Trailer

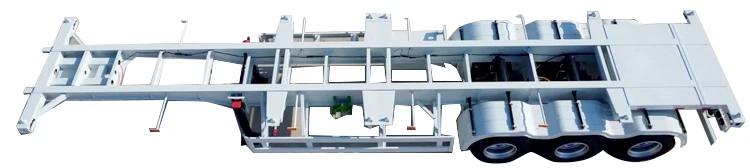

40Ft Tri Axle Container Skeletal Trailer, also known as a container chassis or simply a skeletal trailer, is a specialized type of trailer designed specifically for the transportation of 40-foot shipping containers. These trailers are crucial components in intermodal freight transport, allowing for the seamless transfer of containers between different modes of transportation.
The trailer frame is typically made from high-strength steel or aluminum, designed to provide a sturdy base while keeping the weight to a minimum. The open frame design allows for easy loading and unloading of containers.
The trailer frame is typically made from high-strength steel or aluminum, designed to provide a sturdy base while keeping the weight to a minimum. The open frame design allows for easy loading and unloading of containers.
Product Specification
20FT/40FT/45FT Sleleton Semi Trailer | ||
Dimension | 12500*2500*1600 (can be customized) | |
Payload | 30-80T | |
Tare Weight | About 6.5T | |
Main Beam | The height of the beam is 500 mm upper plate is 14mm down plate is 16mm middle plate is 8mm | |
Axle number | 3 | |
Axle | 13Ton Fuwa/BPW brand etc | |
Twist Lock | 12 units | |
King pin | #50 (2")/#90 (3.5") JOST/Other Brand | |
Suspension | Mechanical suspension / Germany type or America type / Air suspension | |
Leaf spring | 90mm(W)*13mm(T)*10 Layer | |
Support legs | 28Ton standard | |
Tire | 235/75R17.5 / 245/70R17.5 / 245/70R19.5 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 brand can be optional | |
Rim | 9.0-20*12 pcs | |
Other parts | 1 tool boxs | |
Spare tyre holders | 2 | |
Electrical System | 24V electrical system with LED light | |
Products Description

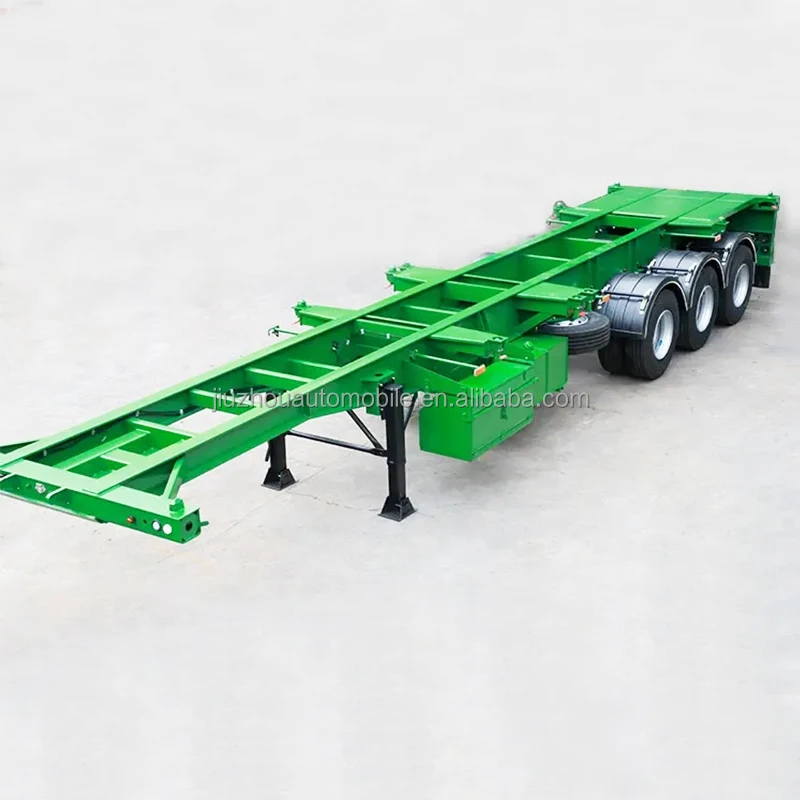

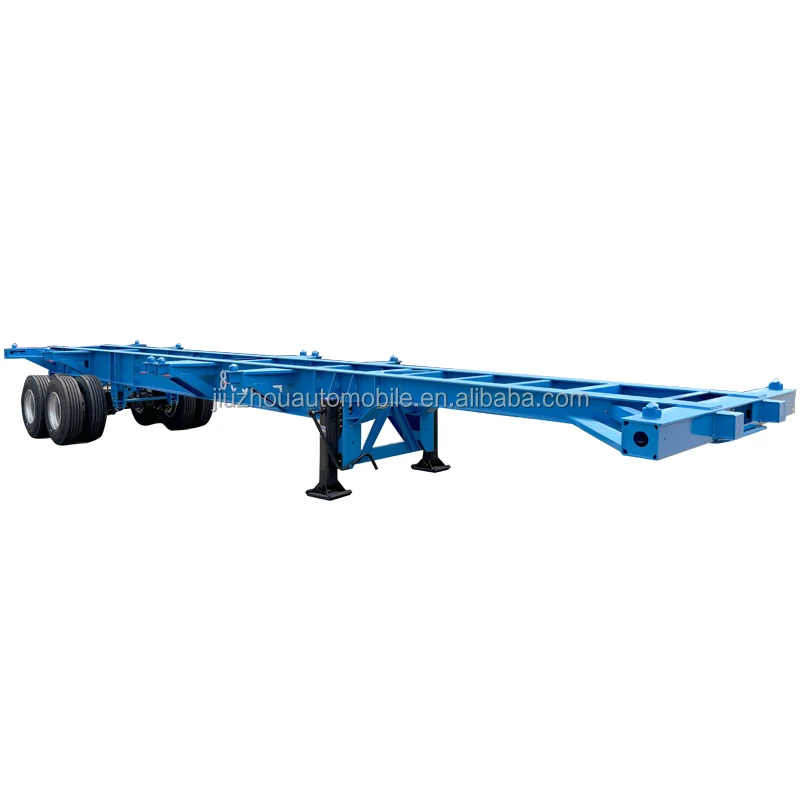

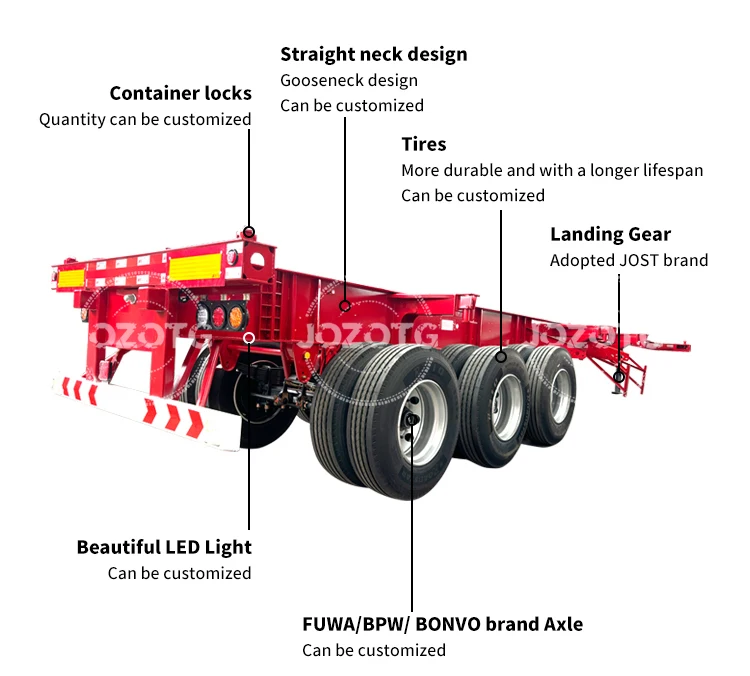

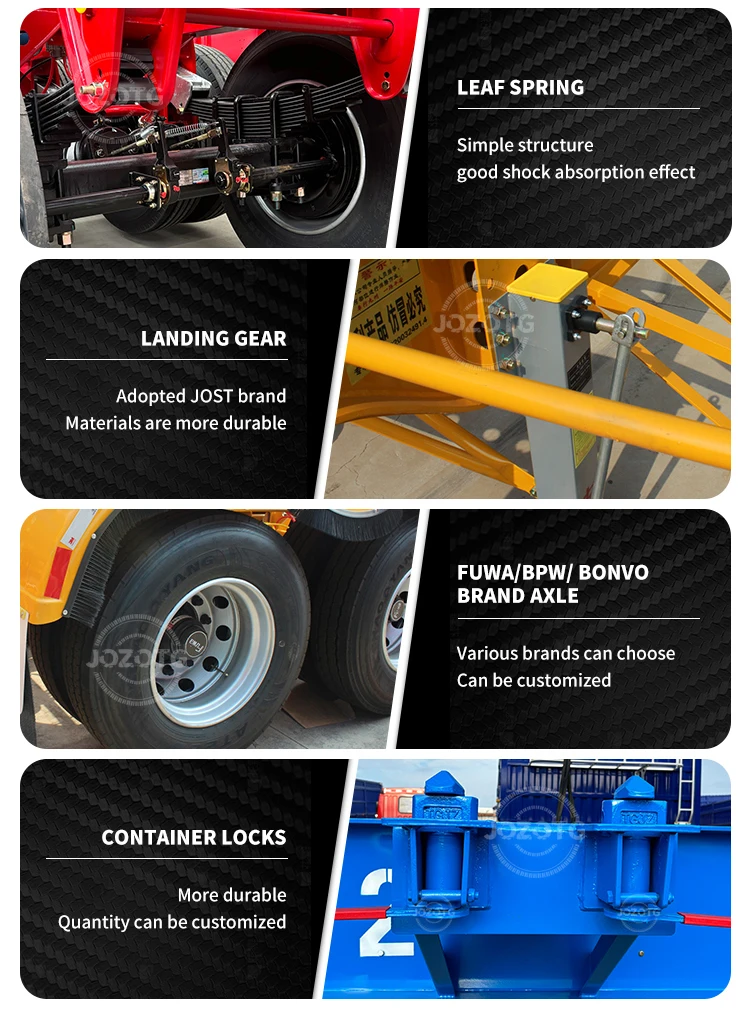

Details Images

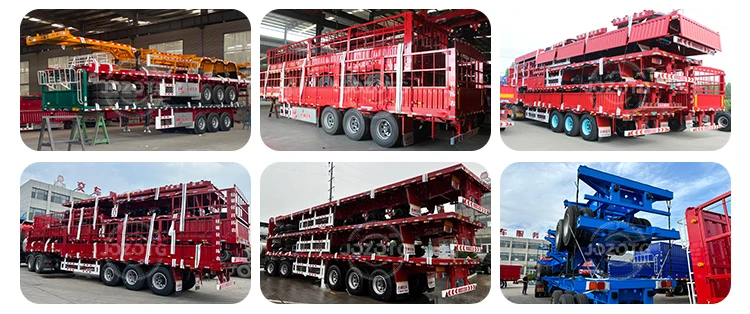

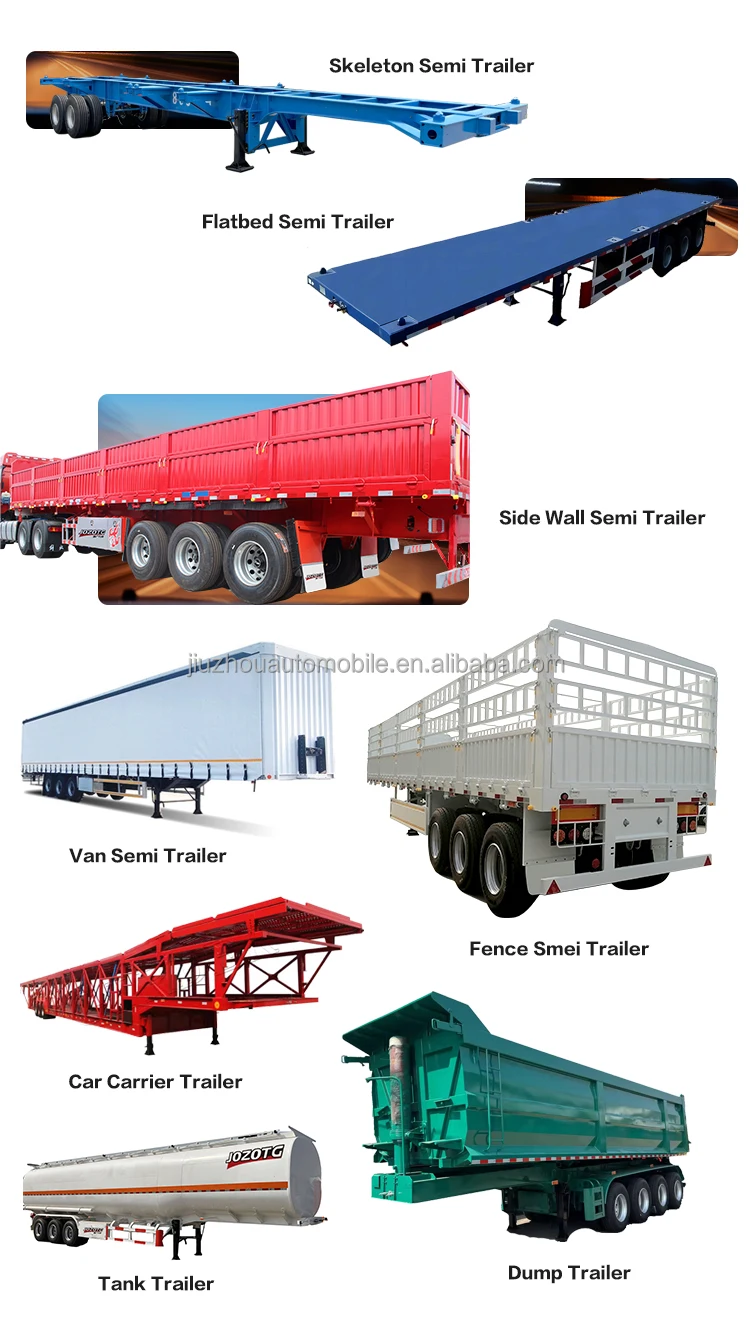

Our Main Products
Company Profile
Packing and Delivery
Certifications
FAQ
1.Are you manufacturer or trading company?
Yes, we are manufacturer, and have 37 years manufacturing experience,is the biggest trailer manufacturer in China
2.If you can custom design for us?
Yes, we can specialied custom design for you according to your requirments.
3.After-sale services
We have 24hours online after-sale services, response immediately,and we have the most professional engineer in China, the best services.
4.How is the quality of your products?
Our products are manufactured in strict accordance with national and international standards, and we test each product before delivery. If you have any questions, please feel free to contact us.
