High Quality Steel Semi Trailer 20 60 Ton Payload with Curtain Side and Roller Shutters 2 3 Axles 20ft 40ft Box Truck Trailers
High Quality Steel Semi Trailer 20-60 Ton Payload with Curtain Side and Roller Shutters 2-3 Axles 20ft-40ft Box Truck Trailers
High Quality Steel Semi Trailer 20-60 Ton Payload with Curtain Side and Roller Shutters 2-3 Axles 20ft-40ft Box Truck Trailers
High Quality Steel Semi Trailer 20-60 Ton Payload with Curtain Side and Roller Shutters 2-3 Axles 20ft-40ft Box Truck Trailers
High Quality Steel Semi Trailer 20-60 Ton Payload with Curtain Side and Roller Shutters 2-3 Axles 20ft-40ft Box Truck Trailers
High Quality Steel Semi Trailer 20-60 Ton Payload with Curtain Side and Roller Shutters 2-3 Axles 20ft-40ft Box Truck Trailers
High Quality Steel Semi Trailer 20-60 Ton Payload with Curtain Side and Roller Shutters 2-3 Axles 20ft-40ft Box Truck Trailers

High Quality Steel Semi Trailer 20 60 Ton Payload with Curtain Side and Roller Shutters 2 3 Axles 20ft 40ft Box Truck Trailers

Share on (1601291201771):


Price:$9,999.00-11,999.00

Quantity:


Product Overview

Description



Products Description

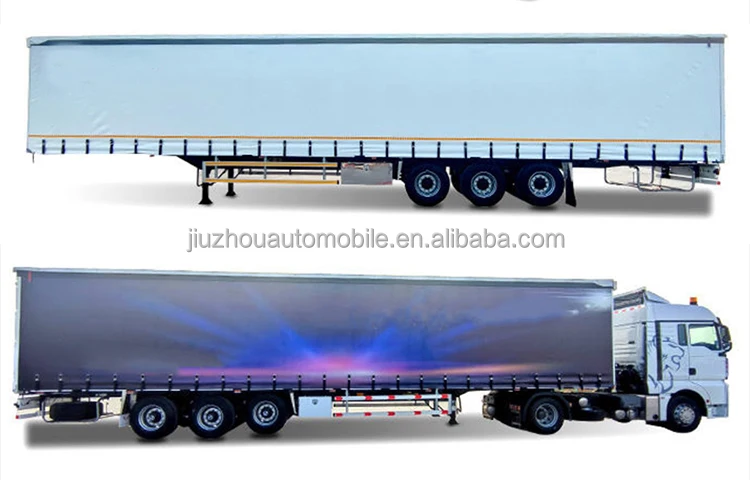

3 AXLE CURTAIN SIDE SEMI TRAILER
The Side curtain semi trailer is a form of the van semi-trailer. The curtain van semi-trailer is mainly used to transport all kinds of pallet goods such as auto parts, beer and beverages. When loading and unloading goods, the curtains on both sides can be quickly opened, which can be used by forklifts. Loading and unloading goods on both sides at the same time, generally within 5 minutes can load or unload the whole truck, is currently one of the fastest loading and unloading cargo transportation tools, at the same time, the car also has the rain and dustproof of the van Features.




Specification


Overall Dimension (Lx W x H)(mm)
13900*2500*4000 （customized）
Tare Weight
7000KG
Loading Weight
40000KG
Total Weight
50000KG
The material of Main beam
The height of the beam is 500mm,
upper plate is14mm
down plate is 16mm
middle plate is 8mm
Side Beam
18mm
Platform plate
3mm Diamond plate
Curtain Height
2000mm
Slider
Manual operation
Axle Brand
FuWa、BPW、Brand
Wheelbase
7450*1310*1310mm
Suspension system
Mechanical Suspension/Air Suspension
Steel Spring
10/10/10 leaf spring suspension
Tire Type
8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20/385/65R22.5
Traction Pin
2" or 3.5", JOST
Spare Wheel Bracket
2 pieces
Tool Box
1 set
Landing Gear
JOST, 28 TON
Painting
Color as customer’s requirement

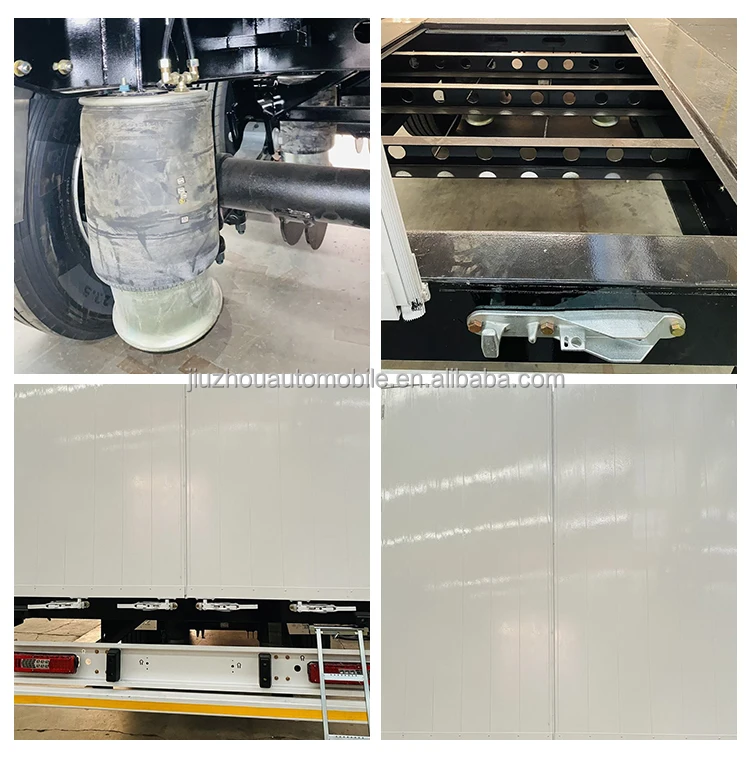

Details Images




Company Profile










FAQ


1.Are you manufacturer or trading company?
We are manufacturer, and have 37 years manufacturing experience,is the biggest trailer manufacturer in China

2.If you can custom design for us?
Yes, we can specialized custom design for you according to your requirements.

3.What's your MOQ?
1 set

4.After-sale services
We have 24hours online after-sale services, response immediately,and we have the most professional engineer in China, the best services.
