TY17N08CH Pneumatic Hydraulic Notcher 8.0 mm * 8.0 mm cutter SQUARE KNOCKOUT NOTCH 90 degree angle clean, burr free corner cuts

Product Overview

Description

MODEL	TY17N08CH
MODEL NUMBERING DESIGNATION	1,Drilling Tools 7, Punchers N, Notchers 08, Notched Shape (8.0mm*8.0mm Square) C, Corner Notcher H, Hydraulic
CAPACITY	Max. 0.8 mm Thickness Steel Sheet Max. 1.2 mm Thickness Galvanized Sheet Max. 3.0 mm Thickness Aluminium Sheet

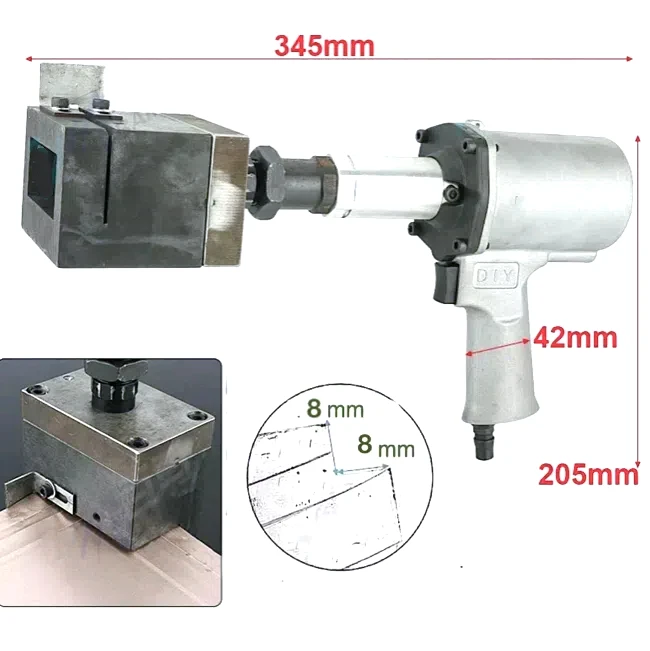

LENGTH	345 mm
AIR CONSUMPTION	4 CFM @ 90PSI
WEIGHT	1.3 kg (2.9 lb)
SKU	353919
AIR INLET	1/4 “
REC AIR HOSE	3/8”
NOTCHED SHAPE	8.0 mm * 8.0 mm Square

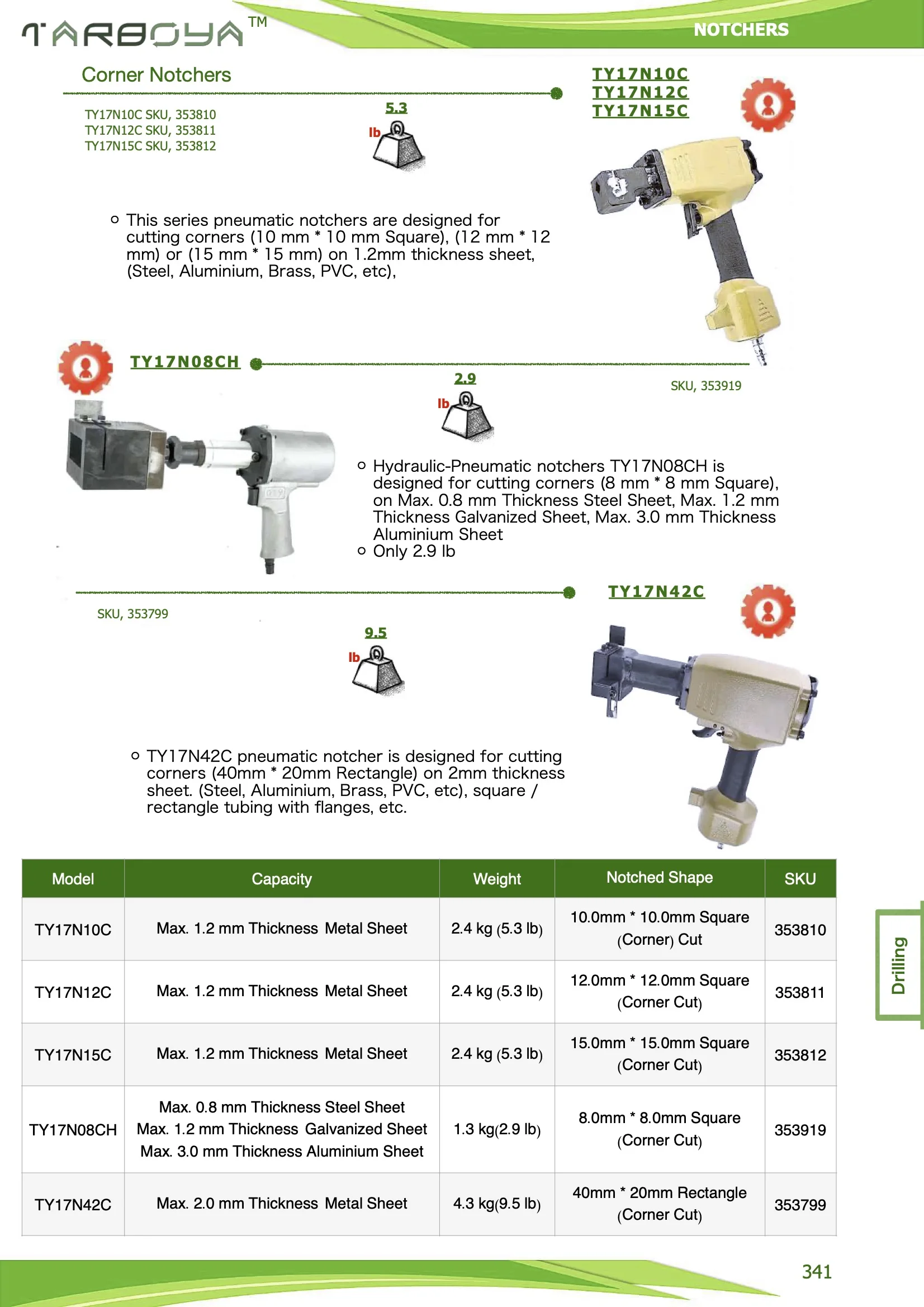

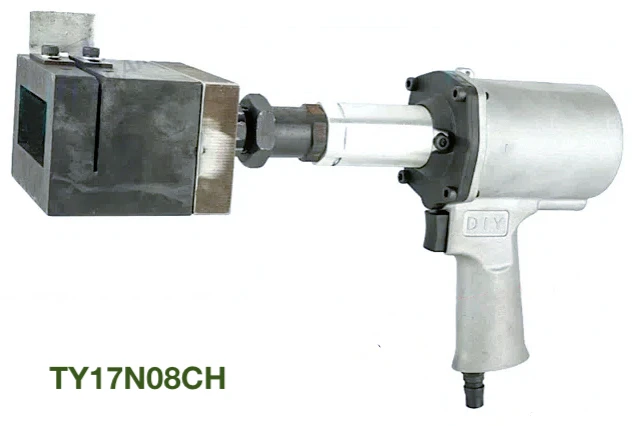

TY17N08CH Pneumatic-Hydraulic notcher is designed for cutting corners (8.0 mm * 8.0 mm Square) on Max. 0.8 mm Steel Sheet, Max. 1.2 mm Thickness Galvanized Sheet and Max. 3.0 mm Aluminium Sheet. It is one-step notching to make precise 90° angle clean, burr-free corner cuts.



Tarboya Catalog fastening tools brochure can be downloaded from www.tarboya.com



At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY17N08CH Pneumatic-Hydraulic Notcher will not have any material or manufacturing defects for the period of 90 days from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 90 days from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,


• Use contrary to national or international standards,


• Incorrect installation,


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance,


• Unauthorized modifications and/or interventions,


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others.
