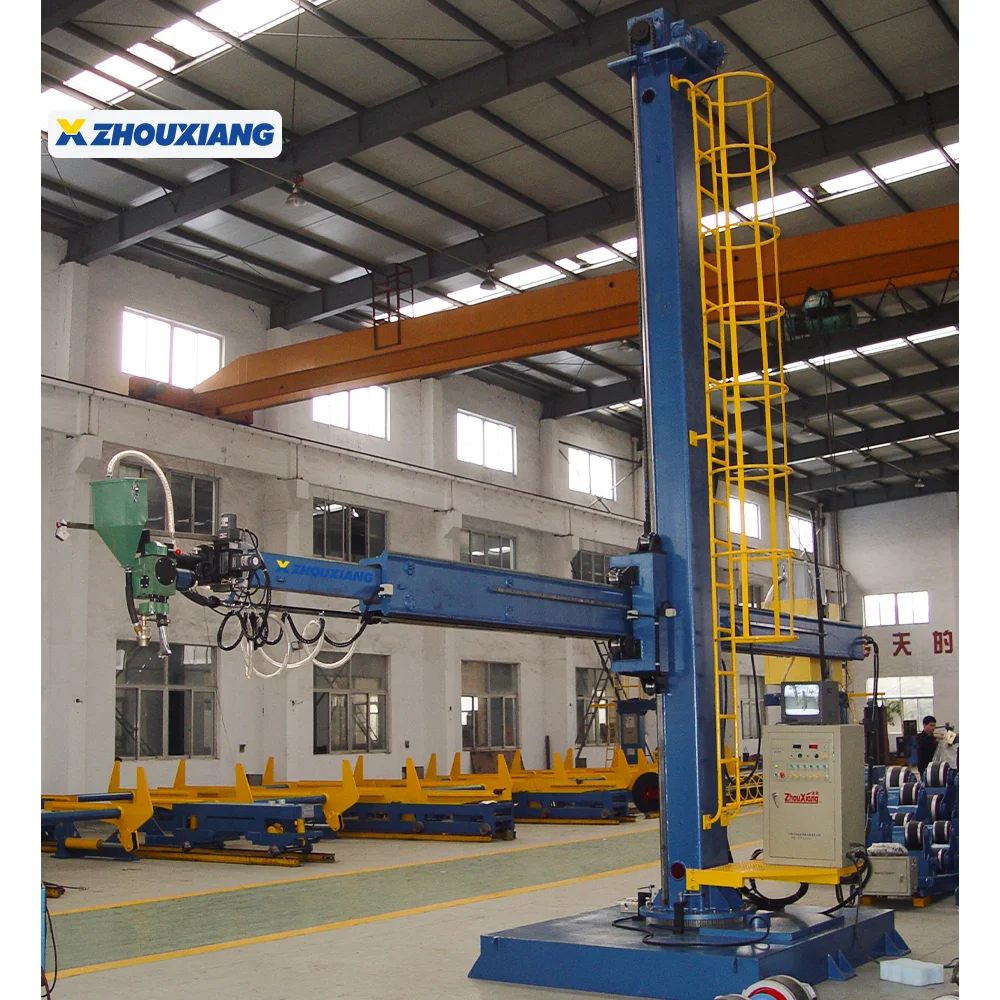

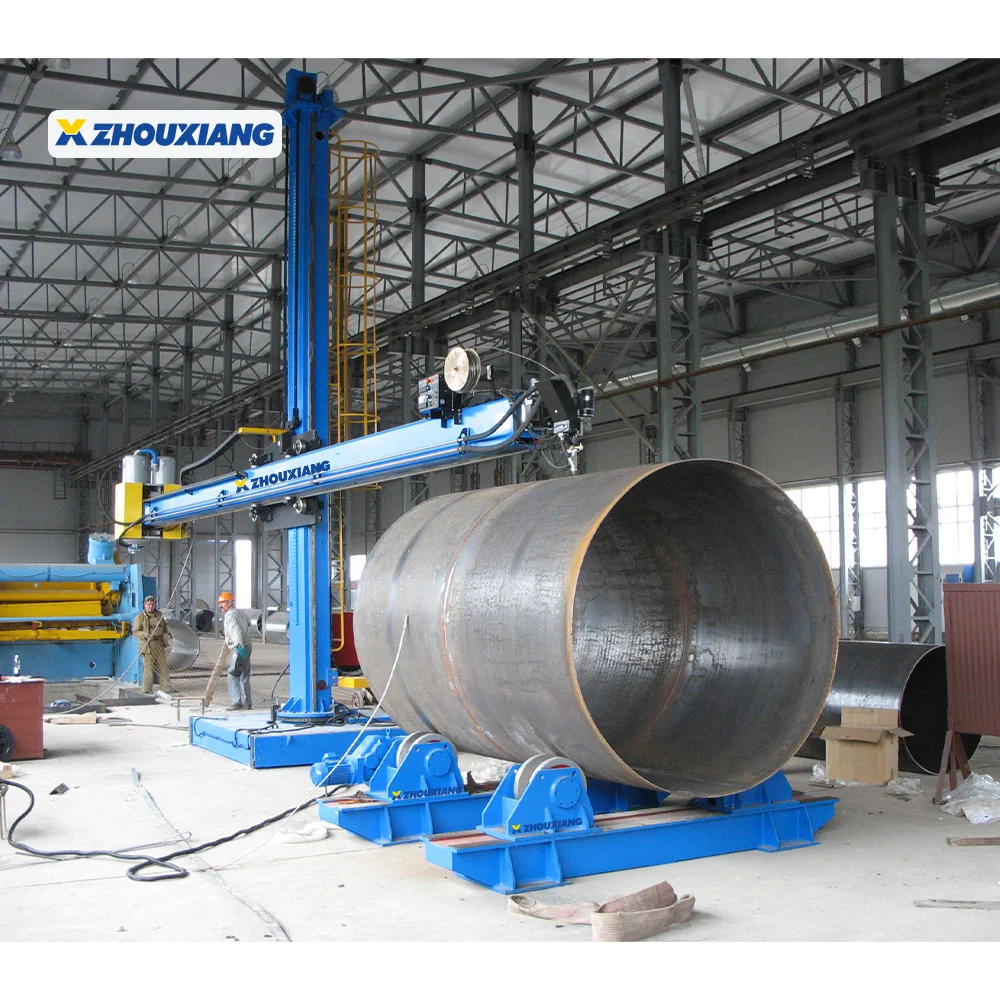

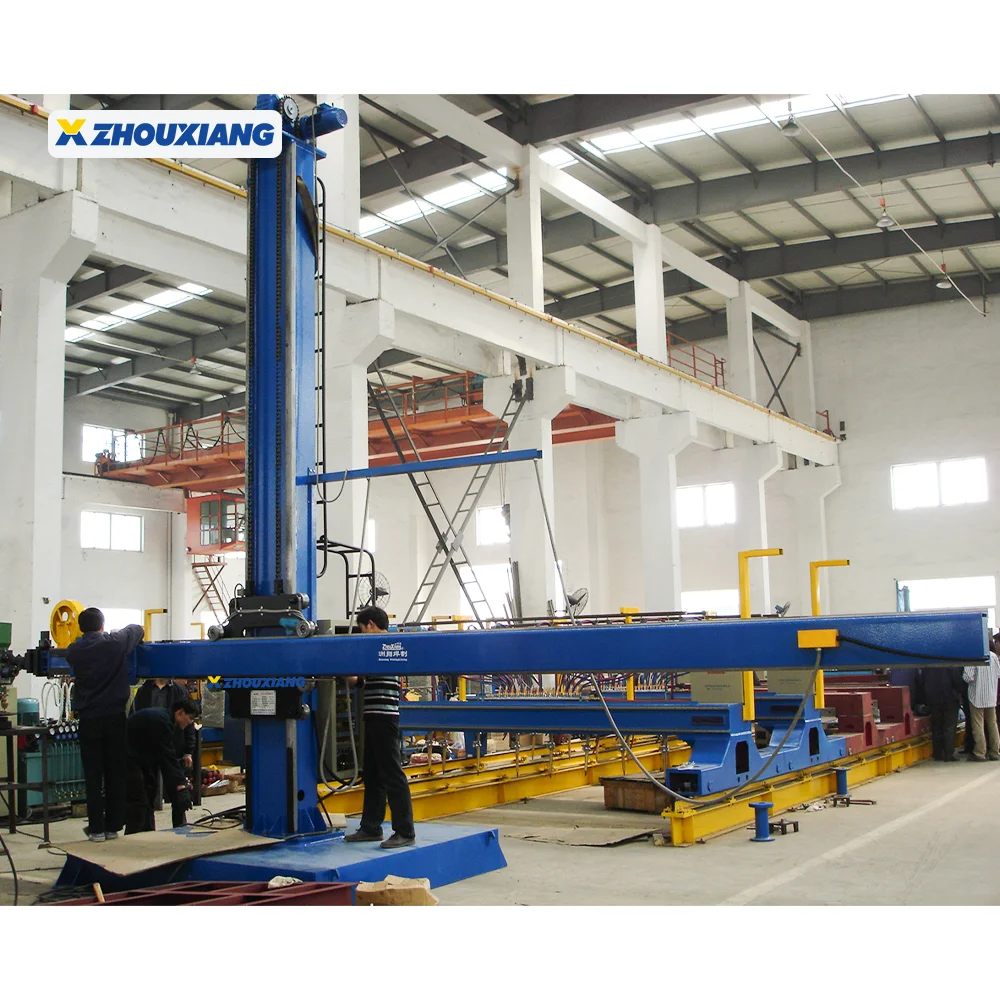

Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
- Category: >>>
- Supplier: Wuxi Zhouxiang Complete Set Of Welding Equipment Co. Ltd.Wuxi Ltd.
Share on (1601291471147):
Product Overview
Description
Product Paramenters

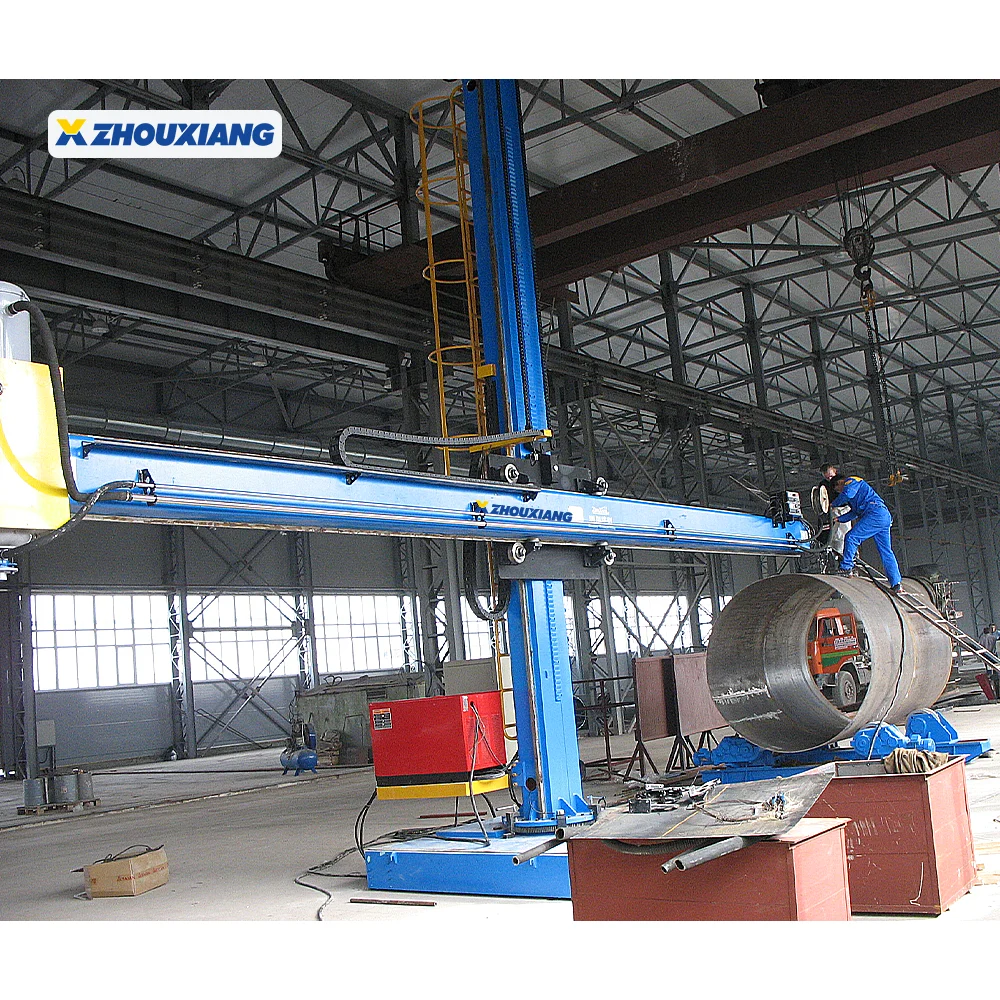

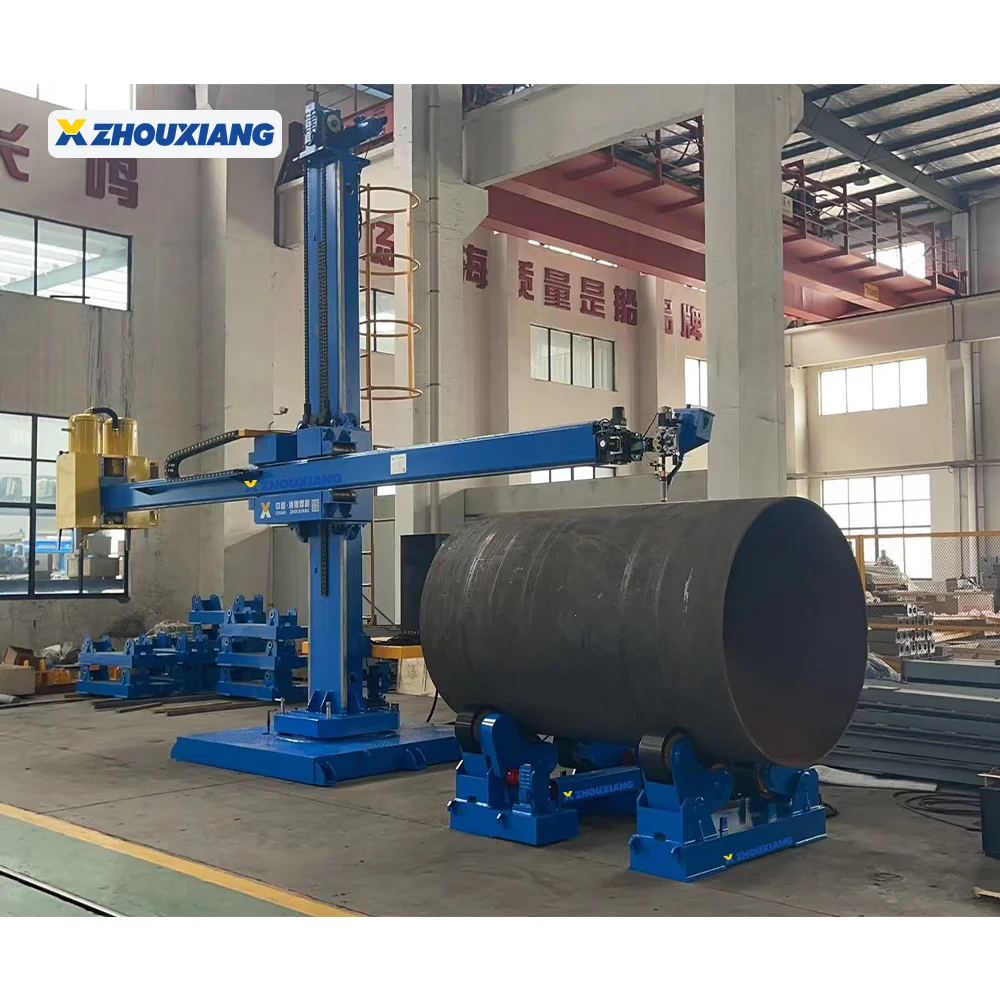

We have built a portfolio of global leading welding machines, Manufactures a wide range of welding product portfolios including column and boom welding manipulators、welding rotator and welding positioner.Our column and booms welding manipulator consists of stationary, mobile, light duty, extra heavy duty and telescopic, etc. Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
If your project demands are non-typical, our in-house capabilities and next-level engineering expertise enable us to develop special purpose welding manipulators for those more‘complex’ project needs.
Our welding manipulator can be supplied full loaded with welding equipment (SAW, GTAW, GMAW and K-Tig) as a “turnkey” package or as the “steel work only”.
If your project demands are non-typical, our in-house capabilities and next-level engineering expertise enable us to develop special purpose welding manipulators for those more‘complex’ project needs.
Our welding manipulator can be supplied full loaded with welding equipment (SAW, GTAW, GMAW and K-Tig) as a “turnkey” package or as the “steel work only”.

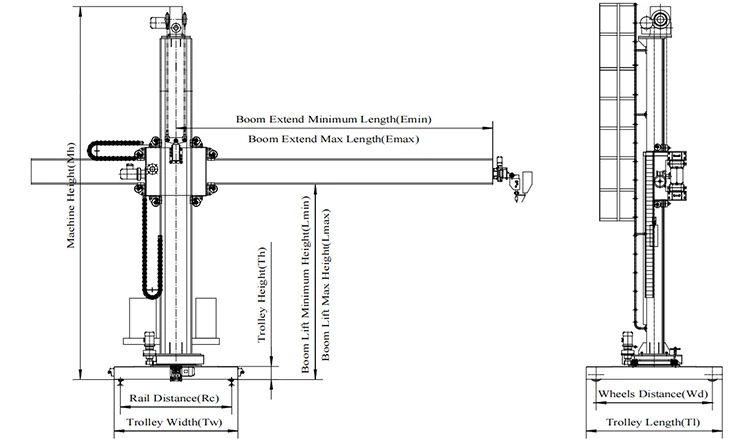

Model | Boom In-Out Speed（m/min） | Boom Up-Down Speed（m/min） | Column Rotation Angle (±180°) | Trolley Speed (m/min) | Machine Height（mm） | Boom | Rail & Wheels Distance （M） | Trolley Size (mm) | ||
Horizontal Expansion (mm) | Vertical Expansion (mm) | |||||||||
Mh | Emin--Emax | Lmin--Lmax | Rc * Wd | Tl*Tw*Th | ||||||
LCH2020 | 0.12-1.2 | 0.3 | manual | 1.5 | 3474 | 625 -- 2625 | 775 -- 2775 | 0.84*1.24 | 1454*1100*174 | |
LCH3040 | 1 | motorized | 1.5 | 5908 | 1500 -- 5500 | 950 -- 3950 | 1.71*1.90 | 2144*2000*225 | ||
LCH3550 | 1 | 1.5 | 6408 | 1500 -- 6500 | 950 -- 4450 | 1.71*1.90 | 2144*2000*225 | |||
LCH4050 | 1 | 1.5 | 6908 | 1500 -- 6500 | 950 -- 4950 | 1.71*1.90 | 2144*2000*225 | |||
LCH5060 | 1 | 1.5 | 7908 | 1500 -- 7500 | 950 -- 5950 | 1.71*1.90 | 2144*2000*225 | |||
LCH8060 | 0.9 | 1.5 | 11090 | 1500 -- 7500 | 1330 -- 9330 | 3.00*2.68 | 3034*3270*305 | |||
Product Advantages

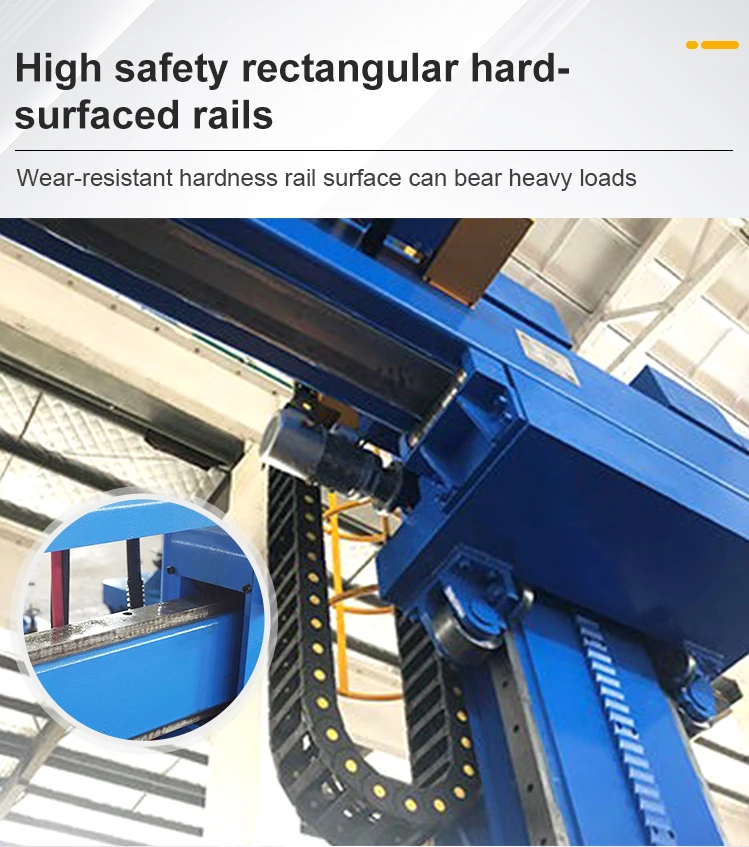

A1: Hard-surfaced rails can withstand enormous pressure.The guide rail surface is not deformed, makes the boom move smoothly, ensuring that the equipment still has high precision and safety after long-term use. Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator

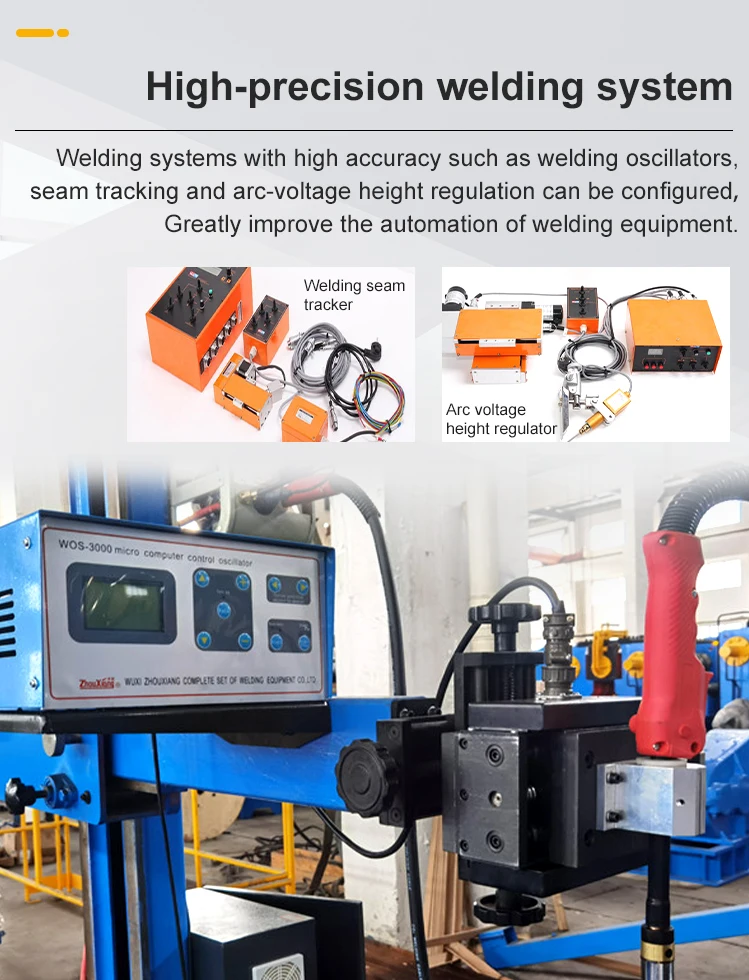

A2: The swing speed and swing range of the welding oscillator can be adjusted, and it is easy to meet the requirements of different welding seam widths and swing speeds, greatly reducing the labor intensity of the welder and improving the work efficiency.

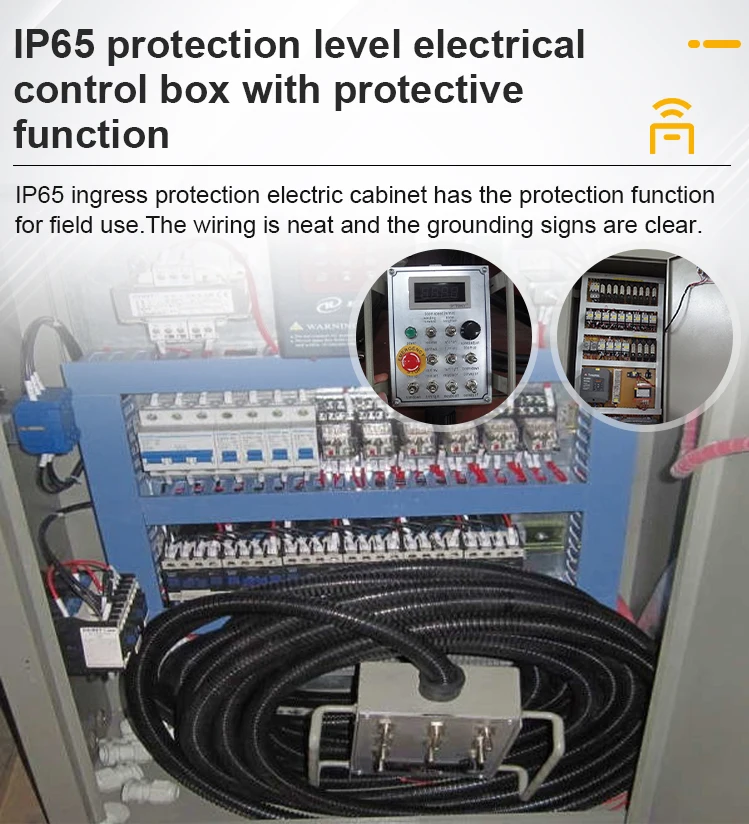

A3: Electrical control system adopts IP65 protection against dust and heavy rain and remote wire / wireless control box operation. The high-standard electrical control box has neat wiring and clear grounding signs. Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
A3: Electrical control system adopts IP65 protection against dust and heavy rain and remote wire / wireless control box operation. The high-standard electrical control box has neat wiring and clear grounding signs. Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator

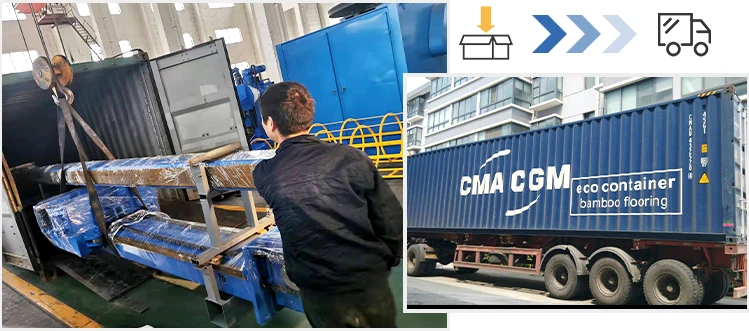

Packaging & Shipping

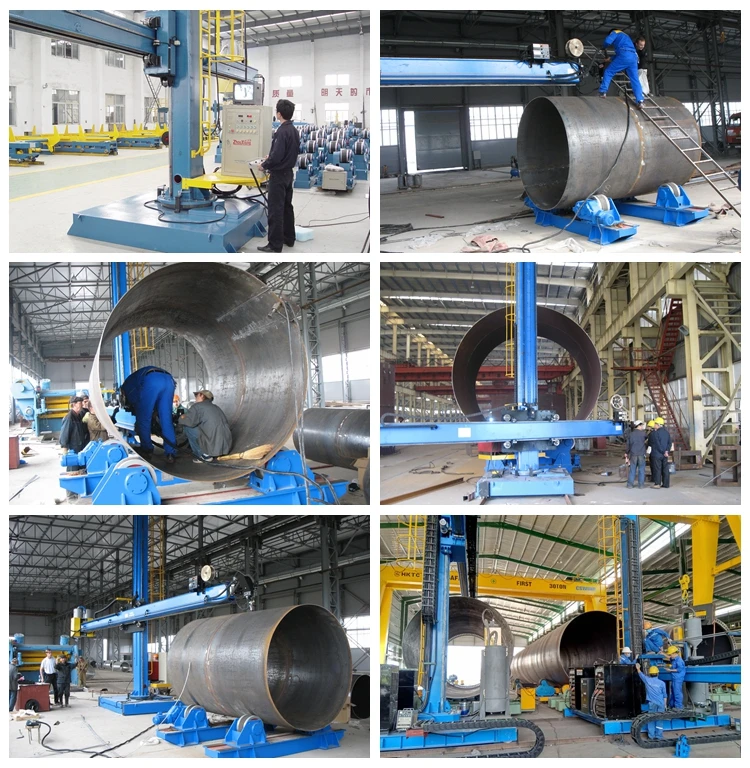

Customer Cases
About Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
Our Services
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
2.Q: What are the payment terms?
A: L/C; T/T.
Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
3.Q: How long is the delivery time?
A: 30 Days.
Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
4.Q:How long is the warranty period?
A: 1 Years.
A: 1PCS.
Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
2.Q: What are the payment terms?
A: L/C; T/T.
Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
3.Q: How long is the delivery time?
A: 30 Days.
Heavy Type Pipe Seam Welding Submerged Arc Welding Column And Boom Manipulator
4.Q:How long is the warranty period?
A: 1 Years.
