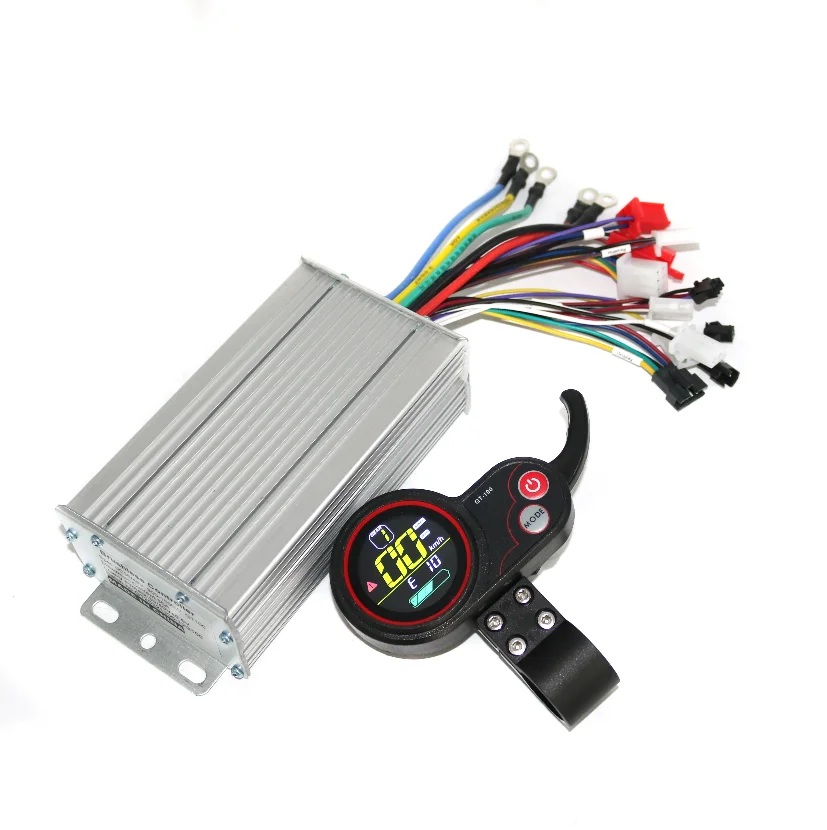

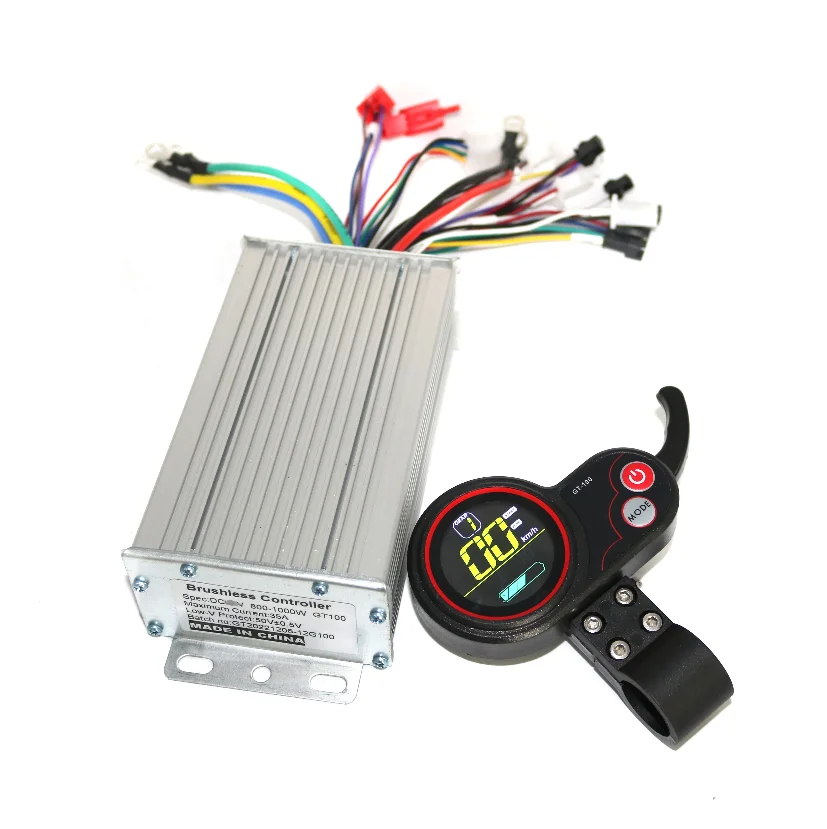

GREENTIME 36V/48V/52V/60V 800/1000W BLDC Electric scooter controller E bike brushless driver and smalrt LCD Display one set

GREENTIME 12Mosfets 36V/48V /60V 800/1000W BLDC Electric scooter controller E-bike brushless speed driver and GT-100 LCD Display one set

Rated Voltage: 36V/48V/60V Low Voltage Cutoff: 30/40V/50V+-0.5V Rated Power: 800/1000W Limit Current: 35A+-1A

1)Super low noise when start up

2)Under-voltage protection

3)Over-current protection

4)E-ABS, low level brake

5)With PAS connector ( only 5 or 6 magnet pas works good)

6)With self learn wires(Self learn function only can be used when the PAS set at 2 or more )

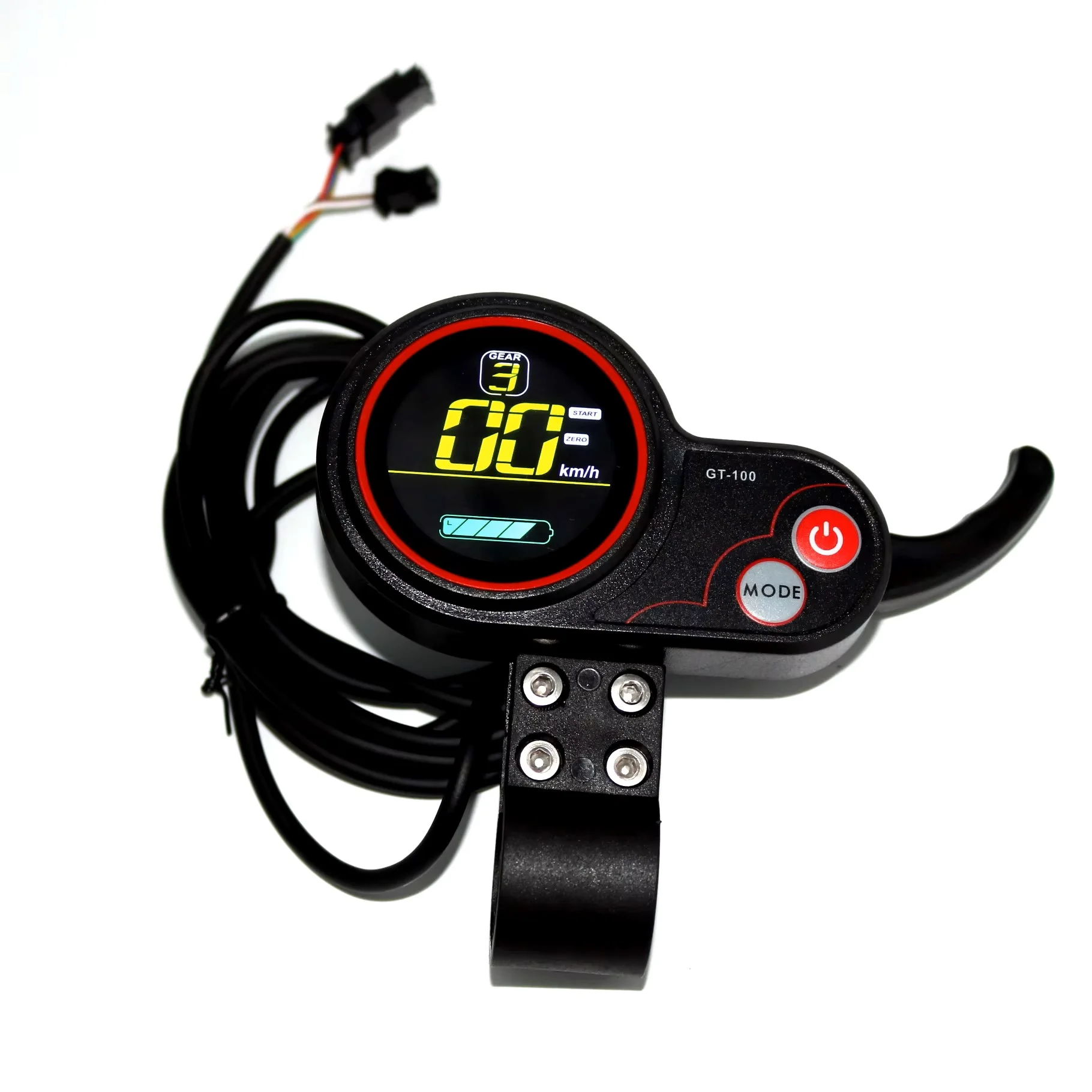

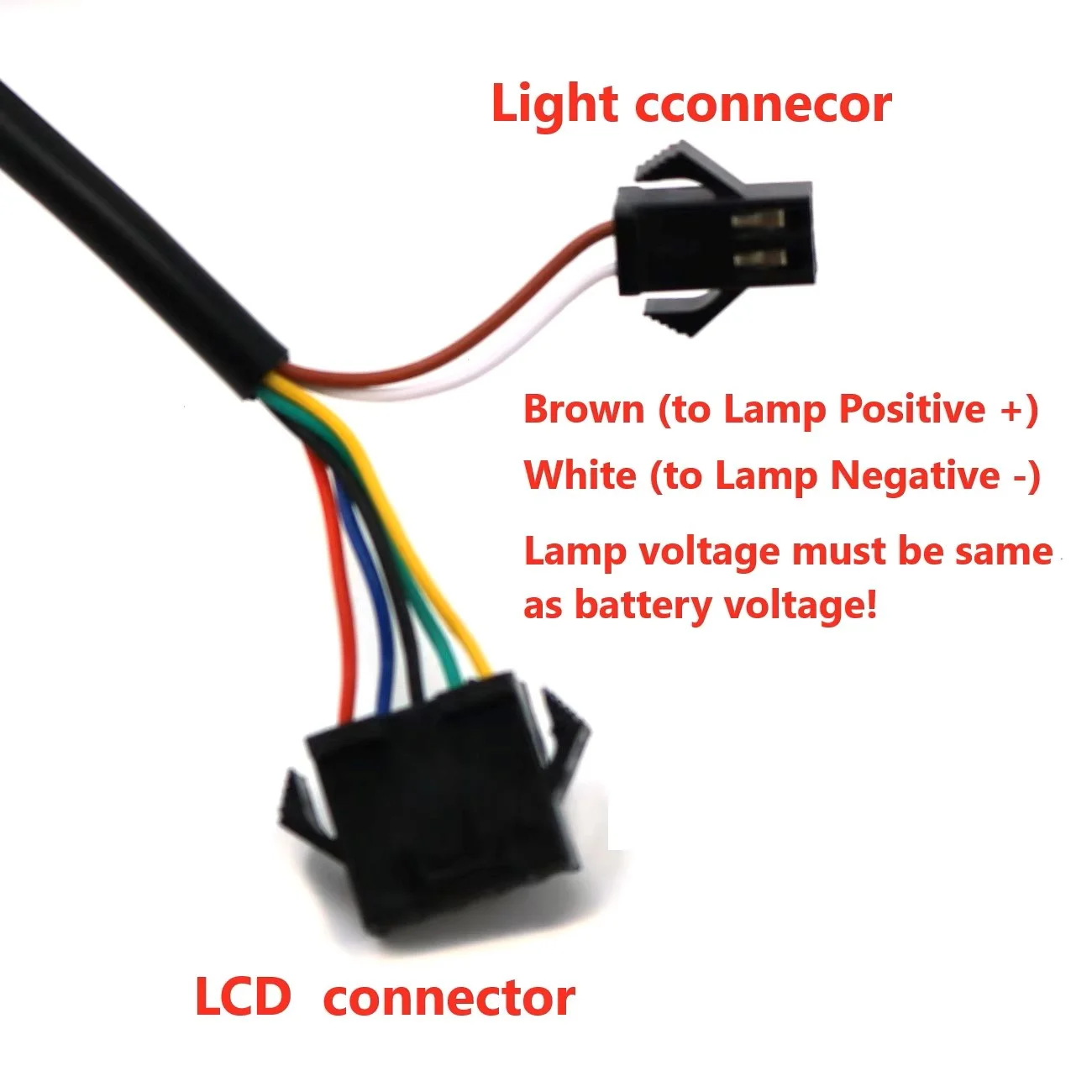

7) With GT-100 display connector

8)Throttle of the display and throttle of the controller can't work at the same time .

This controller and lcd display must connect the motor hall sensor and throttle! And the speed limit can works for pedal assist and throttle . All of our standard LCD and controller sets 1-5 speed only for pedal assist and throttle , all the standard sets works like this. If you want the 1-5 speed change only for PAS, you should tell us before placing the order.
