200kg payload Unmanned pathing warehouse delivery robot chassis RTK self driving personal transportation robotic vehicle
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601292431656):
Product Overview
Description
Product Overview

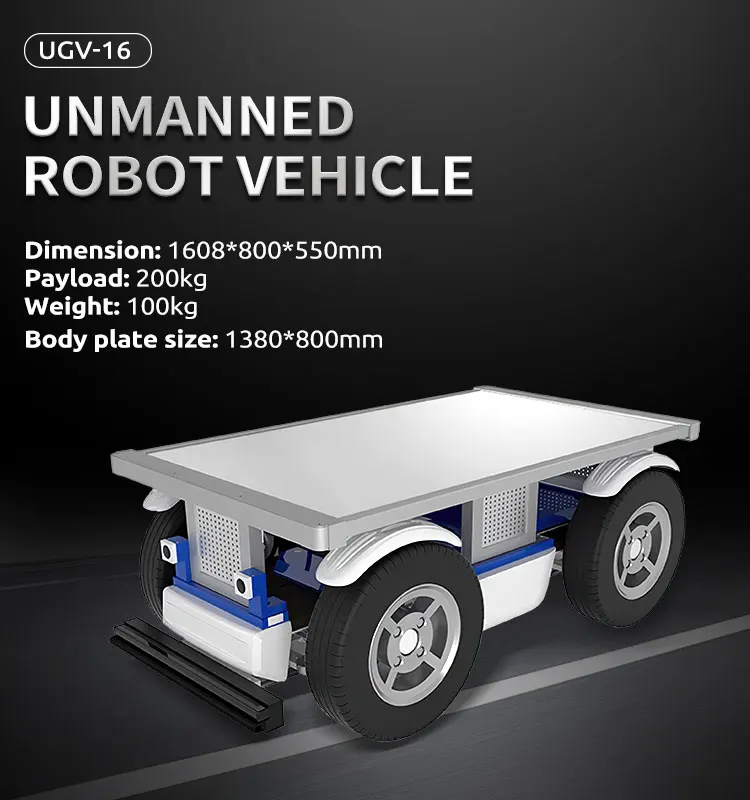

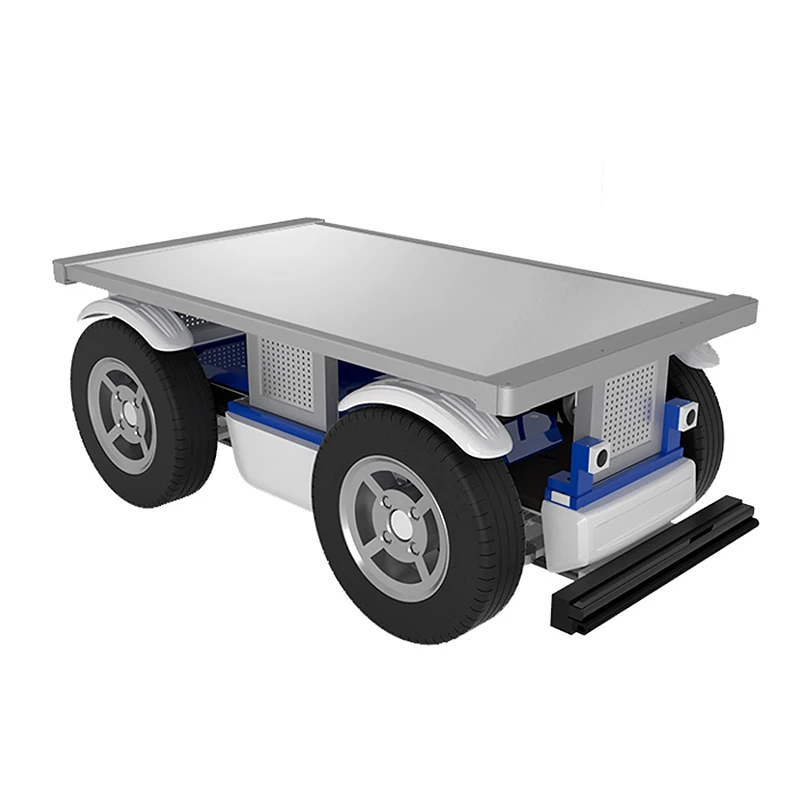

UGV-16 200kg payload Delivery Robot Undercarriage
UGV-16 flatbed vehicle is equipped with a tabletop capable of carrying 200kg on the basis of the chassis. The table top is 1385mm long and 820mm wide. It can be used as a workbench, and can also be used for the secondary development of industrial transport vehicles.
FEATURES AT A GLANCE
Unmanned Robot Vehicle : Lightweight, Modular, Intelligent
High power hub motor: Hige efficiency, easy control
Rail Level Driver Controller(MCU): Fast response, Stable and reliable
Rail Level drive-by-wire control system VCU: Read parameters, Intelligent body system
High power hub motor
Hige efficiency, easy control
Rail Level Driver Controller(MCU)
Fast response, Stable and reliable
Rail Level drive-by-wire control system
VCU, Read parameters, Intelligent

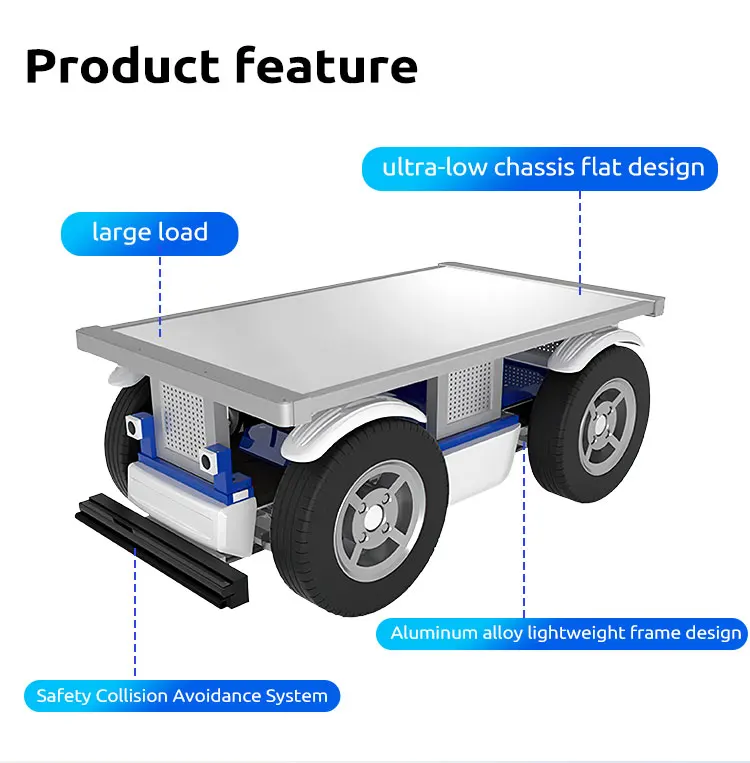

Features
1. Independent research and development of vehicle-grade VCU

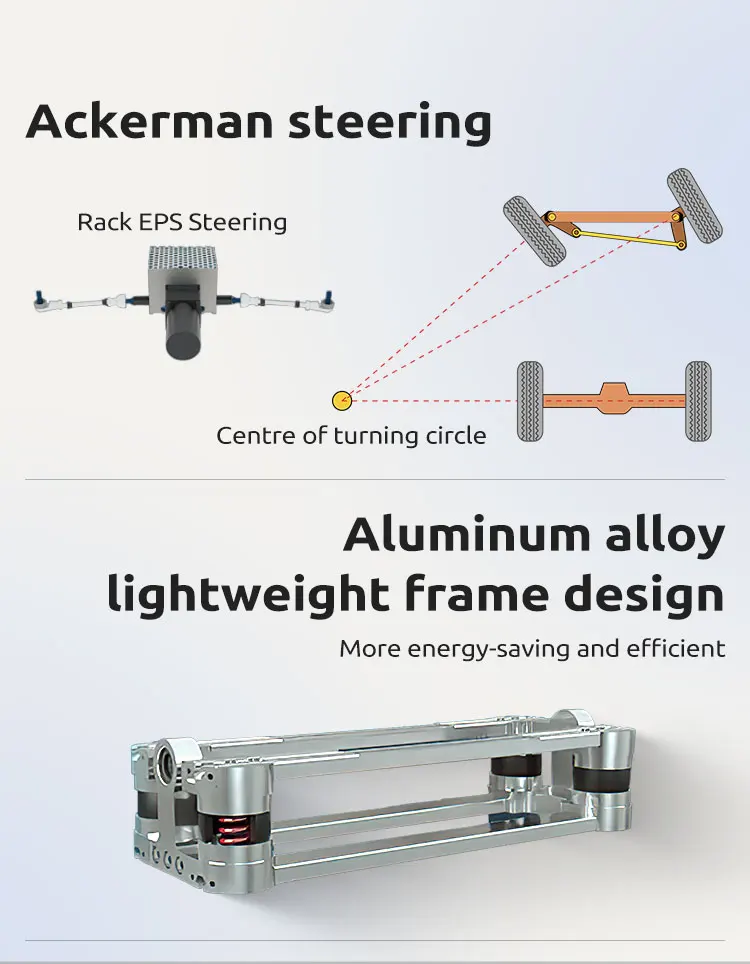

2. Ackerman steering mechanism. Rack and pinion electric steering system
3. Bilateral hub motor drive
4. Aluminum alloy lightweight frame design, ultra-low chassis flat design
5. Hidden air spring shock absorption, large load
6. Three-level safety anti-collision system to reduce collision safety hazards.

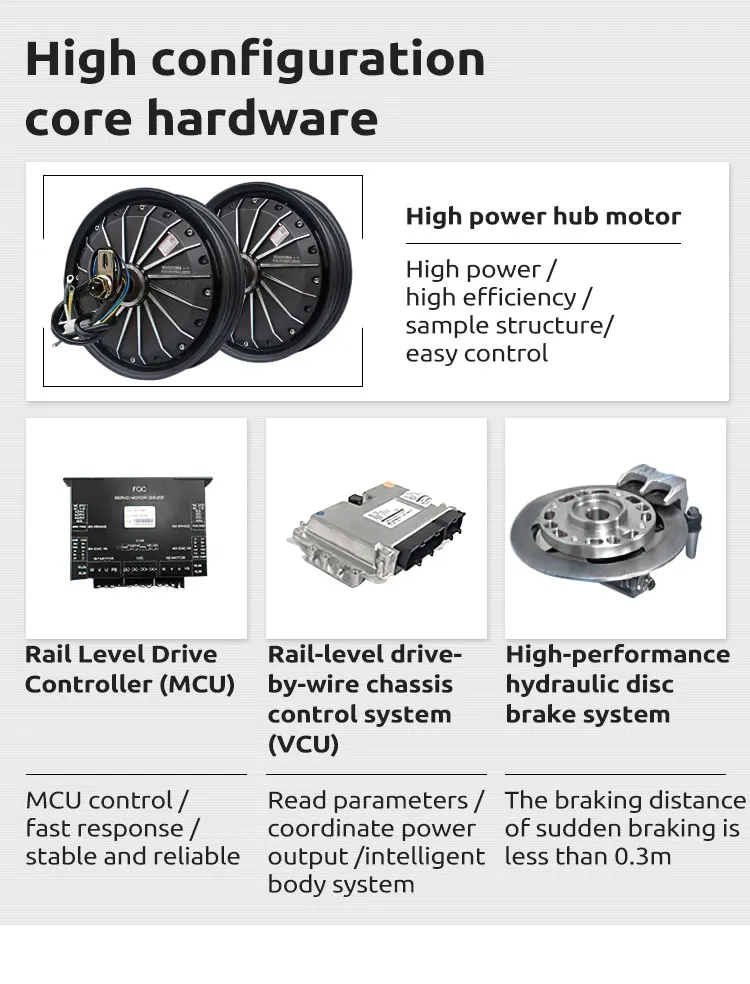

7. High configuration core hardware
8. Two 800W high-power hub motors
9. Rail Level Drive Controller (MCU) control / fast response / stable and reliable
10. Rail-level drive-by-wire chassis control system (VCU)
11. Electronic control logic design more suitable for autonomous driving needs
12. Read parameters, coordinate power output, intelligent body system
13. High-performance hydraulic disc brake system. The braking distance of sudden braking is less than 0.3m
2. Ackerman steering mechanism. Rack and pinion electric steering system
3. Bilateral hub motor drive
4. Aluminum alloy lightweight frame design, ultra-low chassis flat design
5. Hidden air spring shock absorption, large load
6. Three-level safety anti-collision system to reduce collision safety hazards.
7. High configuration core hardware
8. Two 800W high-power hub motors
9. Rail Level Drive Controller (MCU) control / fast response / stable and reliable
10. Rail-level drive-by-wire chassis control system (VCU)
11. Electronic control logic design more suitable for autonomous driving needs
12. Read parameters, coordinate power output, intelligent body system
13. High-performance hydraulic disc brake system. The braking distance of sudden braking is less than 0.3m
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Dimension | 1608*800*550mm |
2 | Payload | 200kg |
3 | Weight | 100kg |
4 | Body plate size | 1380*800mm |
5 | Wheel truck | Front 686mm; Rear 692mm |
6 | Wheelbase | 900mm |
7 | Minimum ground clearance | 132mm |
8 | Drive mode | Front Ackerman steering, rear hub motor drive |
9 | Brake mode | Hydraulic holding brake, anti-cracking brake |
10 | Front and rear suspension mode | Hidden spring shock |
11 | Speed | ≤5km/h(50km/h adjustable) |
12 | Endurance | 45km(payload 100kg,uniform speed 5km/H) |
13 | Braking distance | 10 OR 8KM/H |
14 | Turning radius | 2.54m |
15 | Max. Climbing | 20° |
16 | Obstacle clearance height | 80mm |
17 | Security | Touch stop bar, emergency brake button |
18 | Motor type | In-wheel motor (permanent magnet) |
19 | Motor Power | 800W*2 |
20 | Battery | 48V,10Ah can customize 20Ah |
21 | charger | AC220V independent charger |
22 | Charging time | 6 hours |
23 | External power supply | 12V,can customize 5v |
24 | Protection class | IP35, IP66 customizable |
25 | Communication Interface | Open the underlying CAN protocol |
26 | Move control | VCU control |
27 | Sensor type | Steering feedback sensor Walking wheel speed sensor Front and rear brake feedback sensors |
Successful Project

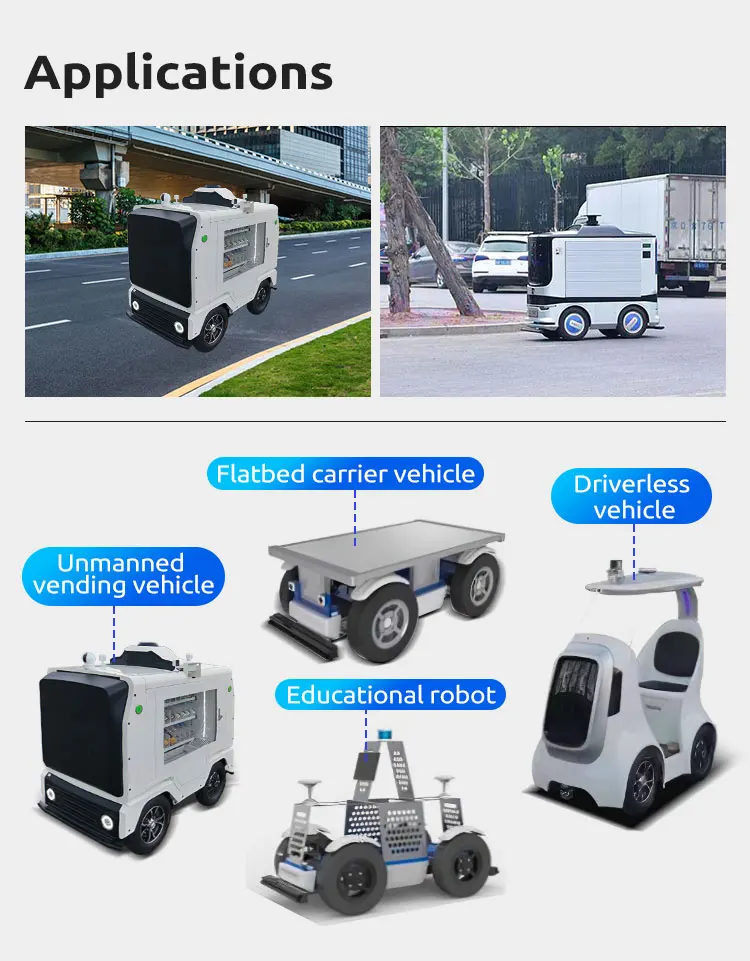

Application
Transport vehicle
Unmanned vending vehicle
Educational robot
Unmanned Food delivery robot
Logistics and distribution robot
Unmanned vending vehicle
Educational robot
Unmanned Food delivery robot
Logistics and distribution robot
Unmanned vending vehicle
Unmanned Transportation vehicl
Unmanned working vehicle
Company Profile
Zhengzhou Defy Mechanical&Electrical Equipment.,Ltd is a leading robot manufacturer in China, offering robot and mobile solution for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
Up to now, we have built our own three robot brands: Ductdoc for duct cleaning robot, Trailbreaker for robot platform and Innocorner for mechanical hand, applied to housekeeping, municipal engineering, university education, mobile solutions for other robotic research institution, etc.
Our robots are widely exported to more than 30 countries, such as Canada, America, Panama, Philippines, Italy, Norway, Austria, Saudi Arabic, South Korea, Malaysia, etc.
Our company strategy is to start with robot mobile solutions and mechanical hand, with relentless pursuit of innovative technology and high quality, to make our robots do complicated and dangerous jobs instead of human beings in the worldwide finally.
Our business philosophy is trust, high quality and quick service, not let any of our clients down. To achieve our same goal, we are here waiting for your join.
