Hot selling SHANTUI 0.9m3 Bucket Capacity SE210 Medium Crawler Excavator With Factory Price For Sale
- Category: >>>
- Supplier: Superegn Mechanical Engineering (shanghai) Co. Ltd.Superegn Ltd.
Share on (1601292595088):
Product Overview
Description
Contact
Ashita Li/ Sales Manager
Email: ashita@superegn.com
Wechat/Mobile/Whatsapp:L18949879842/008618949879842
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
Add: 21F Gubel International Fortune Center, No. 1438 HongqiaoRoad, Changning District, 201103 Shanghai, China
Web: www.evangelchina.com

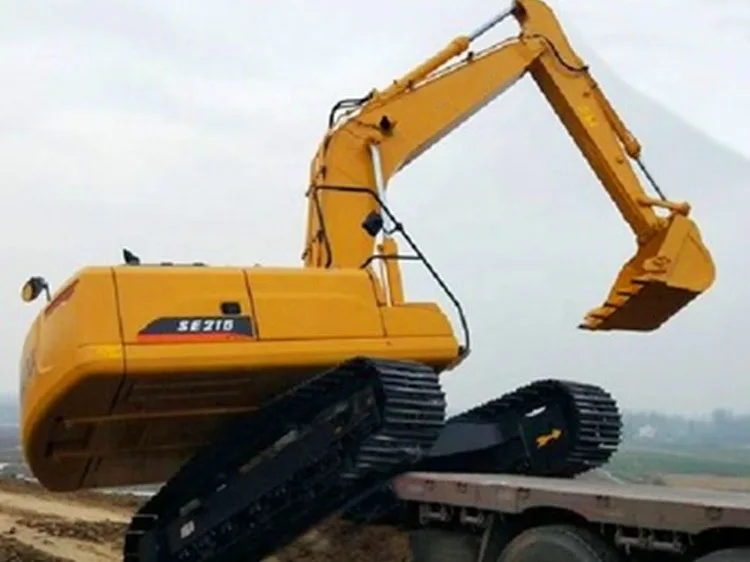

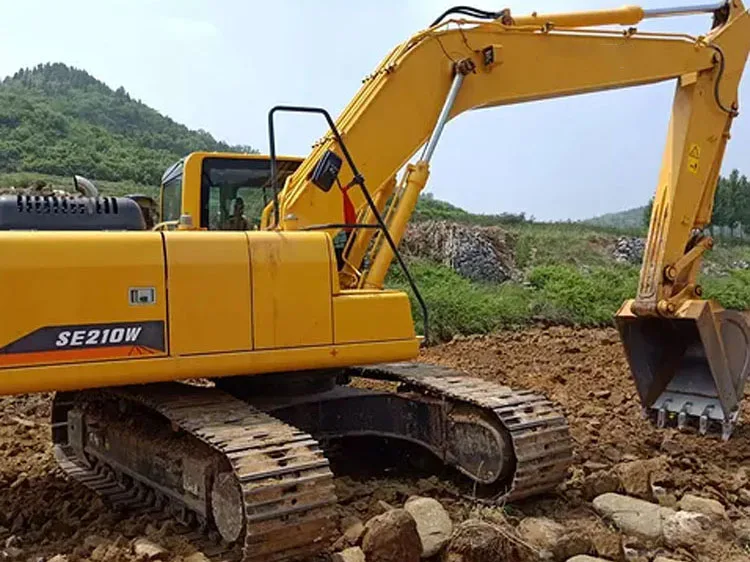

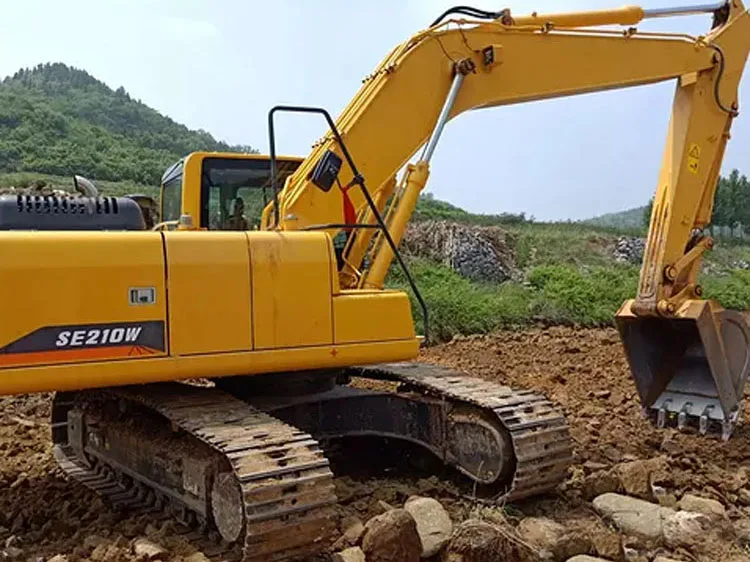

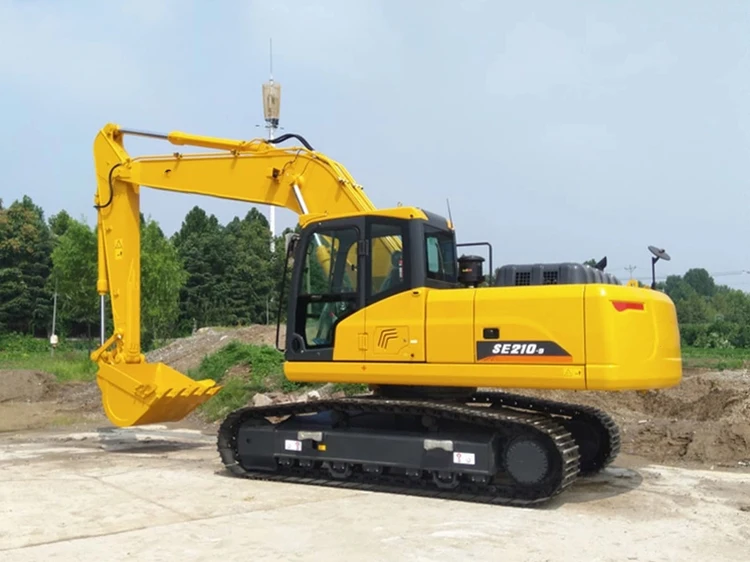

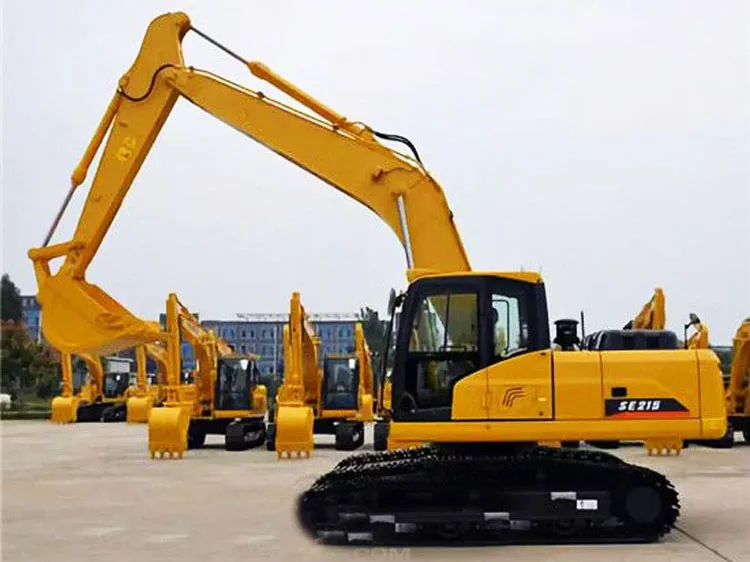

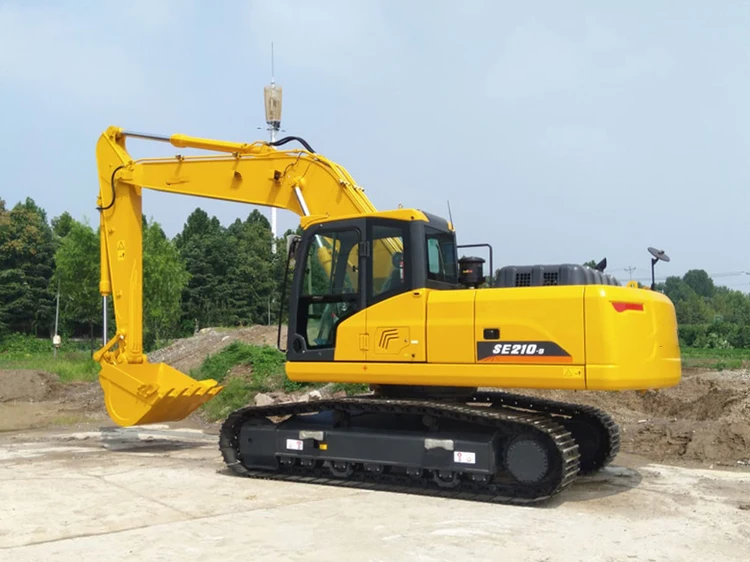

Details Images
Overview

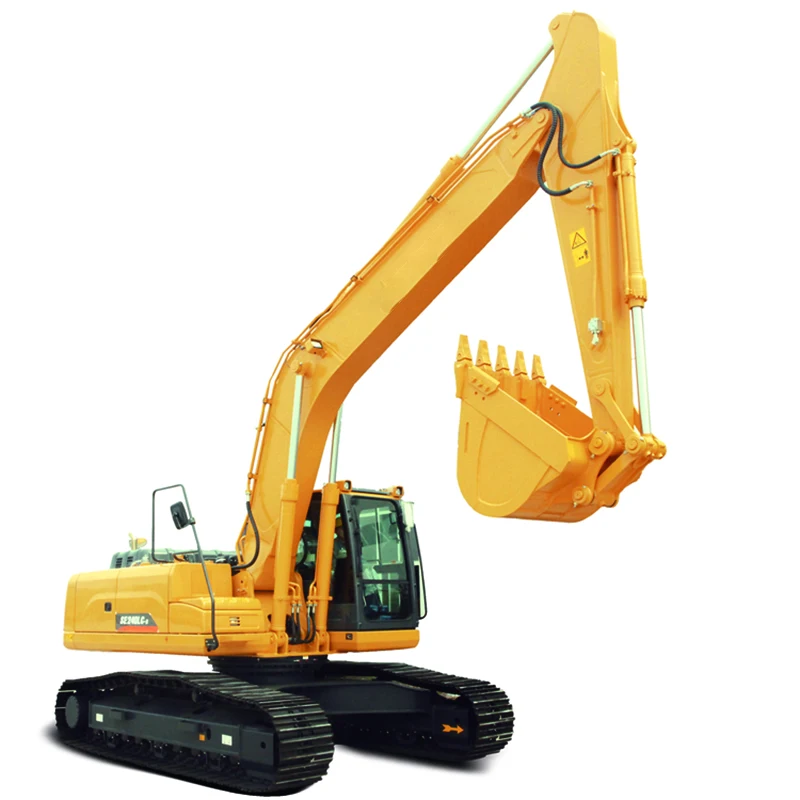

SHANTUI 21Ton SE210 Crawler Excavator With Price For Sale
Top Brand LW200KV china cheap mini 2 ton wheel loader with price for sale
* Optional attachments
Breaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, quick change coupling, and breaking hammer pipeline.
Breaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, quick change coupling, and breaking hammer pipeline.
* Optional equipment of machine
Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track
Narrow bucket
Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track
Narrow bucket
* Quick and convenient maintenances
● The fuel filter element, engine oil filter element, and pilot filter element are centrally arranged so that all maintenances
and replacements can be completed from on same position.
● The high-precision fuel filter element features high water capacity and powerful fuel adaptability and the electric fuel
pumping function is provided for automatic fuel refilling and easy start.
● With pneumatic struts, the engine hood can be opened and closed easily to realize handy opening, large opening angle, and easy maintenances and repairs.
● The radiator features convenient maintenances and easy accessibility.
● The filling of coolant and the replacement of air filter element are easily accessible to ease the checking and maintenances.
● The tandem radiator effectively avoids the overheating and eases the cleaning.
● The fuel filter element, engine oil filter element, and pilot filter element are centrally arranged so that all maintenances
and replacements can be completed from on same position.
● The high-precision fuel filter element features high water capacity and powerful fuel adaptability and the electric fuel
pumping function is provided for automatic fuel refilling and easy start.
● With pneumatic struts, the engine hood can be opened and closed easily to realize handy opening, large opening angle, and easy maintenances and repairs.
● The radiator features convenient maintenances and easy accessibility.
● The filling of coolant and the replacement of air filter element are easily accessible to ease the checking and maintenances.
● The tandem radiator effectively avoids the overheating and eases the cleaning.
* Spacious and comfortable operating environment
● The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the
operator’s visual fatigue.
● The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
● The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding.
● The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the
operator’s visual fatigue.
● The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
● The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding.
Specification
Comparative item | SE210W (Standard version) |
Overall length (mm) | 9543 |
Ground length (During transport) (mm) | 4860 |
Overall height (To the top of boom) (mm) | 3039 |
Overall width (mm) | 2800 |
Overall height (To top of cab) (mm) | 2977 |
Ground clearance of counterweight (mm) | 1120 |
Minimum ground clearance (mm) | 470 |
Tail turning radius (mm) | 2905 |
Track length (mm) | 4160 |
Track gauge (mm) | 2200 |
Track width (mm) | 2800 |
Standard track shoe width (mm) | 600 |
Turntable width (mm) | 2726 |
Distance from slewing center to tail (mm) | 2853 |
Maximum digging height (mm) | 10029 |
Maximum dumping height (mm) | 7320 |
Maximum digging depth (mm) | 6541 |
Maximum vertical digging depth (mm) | 5735 |
Maximum digging distance (mm) | 9860 |
Maximum digging distance at ground level (mm) | 9673 |
Working device minimum turning radius (mm) | 3041 |
Model | Weichai WP7(China III) |
Type | 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
Displacement (L) | 7.14 |
Rated power (kW/rpm) | 116/2000 |
Type of hydraulic pump | Variable displacement duplex plunger pump |
Rated working flow (L/min) | 2×218 |
Bucket capacity (m³) | 0.9 |
Maximum swing speed (r/min) | 11.5 |
Brake type | Mechanically applied and pressure released |
Bucket arm digging force (KN) | 92.5/99.5 |
Bucket digging force (KN) | 115/124 |
Operating weight (kg) | 20500 |
Ground pressure (kPa) | 45 |
Traveling motor | Axial variable displacement plunger motor |
Traveling speed (km/h) | 3.3/5.4 |
Traction force (KN) | 201 |
Gradeability | 70%（35°） |
Fuel tank capacity (L) | 360 |
Cooling system (L) | 25 |
Engine oil capacity (L) | 24 |
Hydraulic oil tank/system capacity (L) | 250/420 |
Company Profile
Superegn Mechanical Engineering (Shanghai) Co., Ltd. is a professional Chinese construction machinery exporter.
Since our company was founded, we persistently introduce Chinese construction machinery to international markets. We make more international customers know and approbate Chinese machinery, and gradually build up friendship with industrial customers all over the world.
Our strengths are as follows:
(i) Seven years professional experience in trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(ii) Proactive and professional sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese;
(iii) our products are original brand new ones with competitive price;
(iv) logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(v) Comprehensive after-sales service, including two-years warranty, spare parts supply, installment and maintenance, training and technical advice;
We sincerely hope to cooperate, develop together and build a good future with you.
Superegn, your genuine and professional partner in China!
Since our company was founded, we persistently introduce Chinese construction machinery to international markets. We make more international customers know and approbate Chinese machinery, and gradually build up friendship with industrial customers all over the world.
Our strengths are as follows:
(i) Seven years professional experience in trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(ii) Proactive and professional sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese;
(iii) our products are original brand new ones with competitive price;
(iv) logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(v) Comprehensive after-sales service, including two-years warranty, spare parts supply, installment and maintenance, training and technical advice;
We sincerely hope to cooperate, develop together and build a good future with you.
Superegn, your genuine and professional partner in China!
