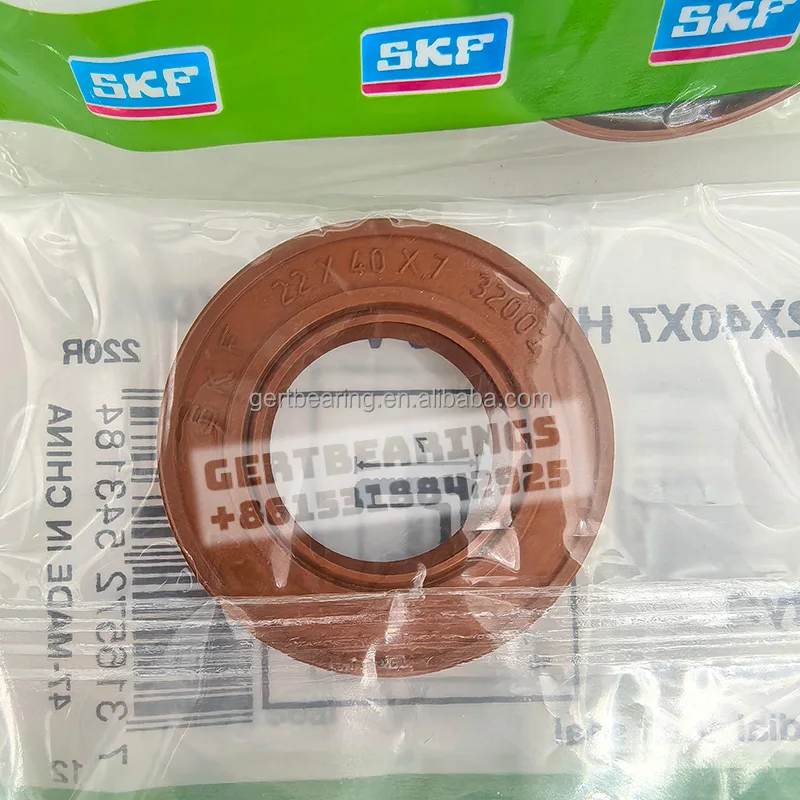

FKM non contacting auxiliary lip SKF Oil Seal 22x40x7 HMSA10V With Garter Spring Genuine SKF Oil Seal 22x40x7 HMSA10V
- Category: >>>
- Supplier: JINAN GERT INTERNATIONAL TRADE LTDJINAN LTD
Share on (1601293350161):
Product Overview
Description
Specification
Product Type | Oil Seal |
Brand | SKF |
Model NO. | 22x40x7 HMSA10V |
Size | 22x40x7 mm |
Lip Material | Fluoro rubber (FKM) |
Design Type | HMSA10 |
Number of Lips | single lip |
Spring | Steel |
Operating Temperature Range | -25 to 200 °C |
Weight | 0.0117 kg |
Product Description
About SKF OIL SEAL HMSA10V:
SKF metric rubber outside diameter radial shaft seals, HMS5 and HMSA10, are designed in accordance with ISO 6194-1 and DIN 3760 for use in a wide range of industrial applications. The available size range of HMS5 and HMSA10 seals includes a full coverage of the ISO 6194-1 and DIN 3760 dimensions for shaft diameters up to 250 mm (9.842 in) as well as an extensive range of dimensions commonly used in the market. New dimensions are continually added. Main features of SKF Oil Seal HMSA10V:
• Optimized sealing lip material
• Spring-loaded sealing lip
• Optimally balanced sealing lip and flex section
• Beaded outside diameter
• Auxiliary lip (HMSA10) seals only
Design of SKF Oil Seal HMSA10 V:
The rubber outside diameter provides optimized sealing ability in the housing, also at considerable surface roughness or in split housings. The beads on the outside diameter provide improved sealing ability and retention in the bore. They also prevent spring-back during installation. The spring-loaded sealing lip contributes to a quick response in handling dynamic runout and maintaining the sealing performance, even when sealing lip wear is excessive. Sealing lip and flex section are optimally balanced to withstand both high dynamic runout and shaft-to-bore misalignment. The auxiliary lip on HMSA10 seals is non-contacting, which means that the seals normally can operate at the same speeds as the single-lip HMS5 seals.
Material of SKF Oil Seal HMSA10 V:
The optimized nitrile rubber compound used for the HMS5 and HSMA10 seals has the desig nation suffix RG. The compound is the result of long experience and the latest findings from the SKF sealing material developments.
Advantages of this material include:
• Good resistance to ageing
• Very good compatibility with synthetic oils
• Very good pumping ability
• Good wear resistance
HMSA10 RG with auxiliary lip, nitrile rubber
• Good resistance to ageing
• Very good compatibility with synthetic oils
• Very good pumping ability
• Good wear resistance
HMSA10 RG with auxiliary lip, nitrile rubber
Packing & Delivery

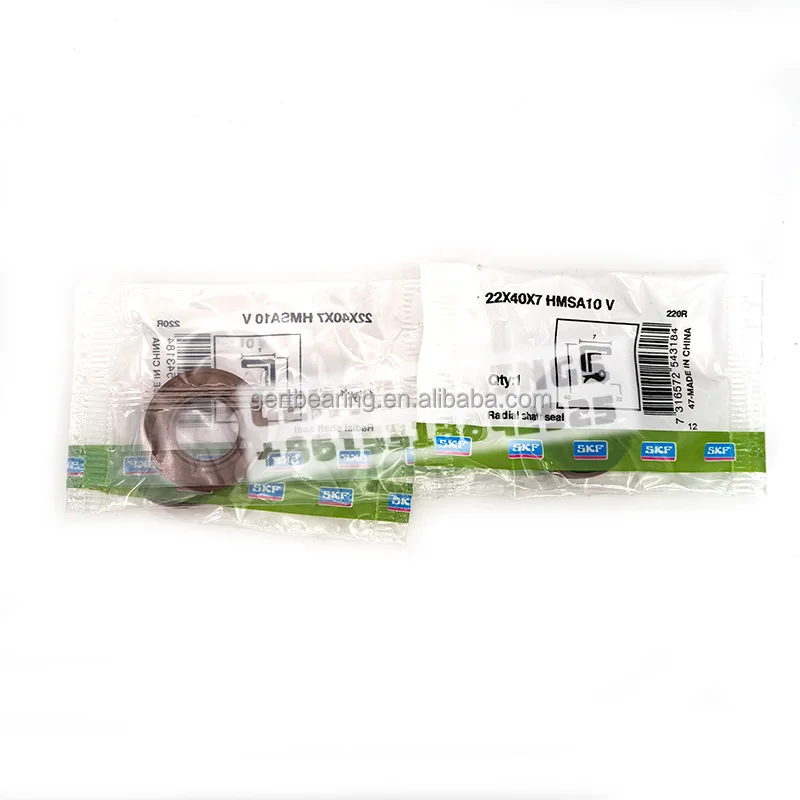

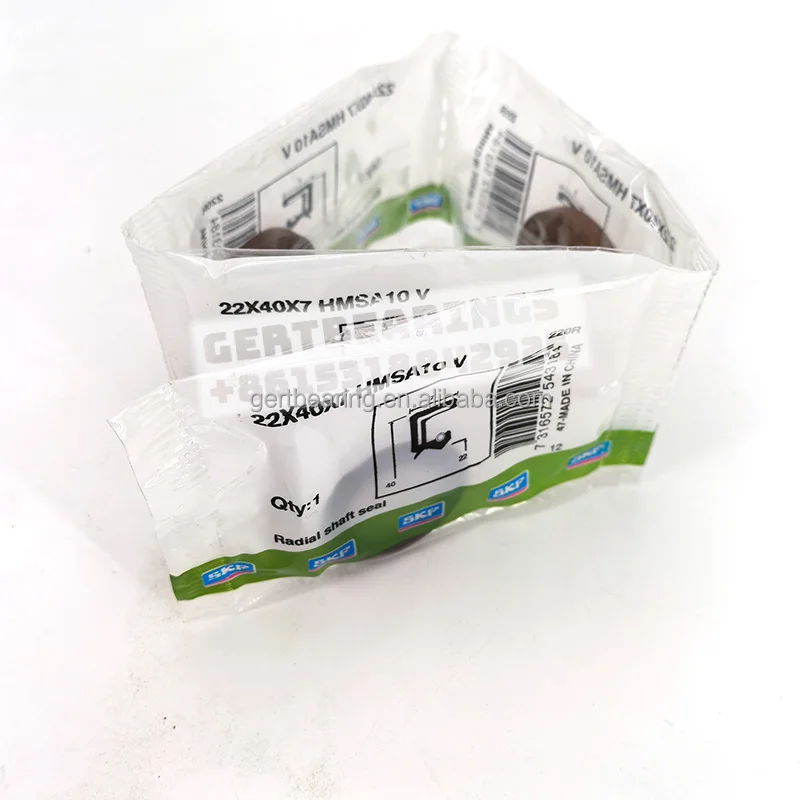

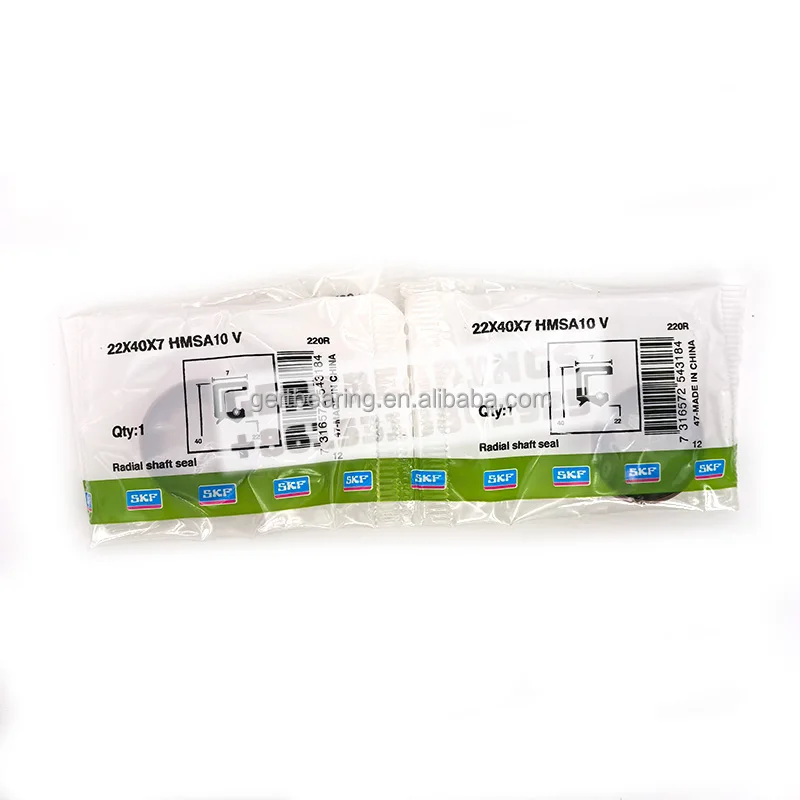

The Package of SKF Oil Seal 22x40x7 HMSA10 V:

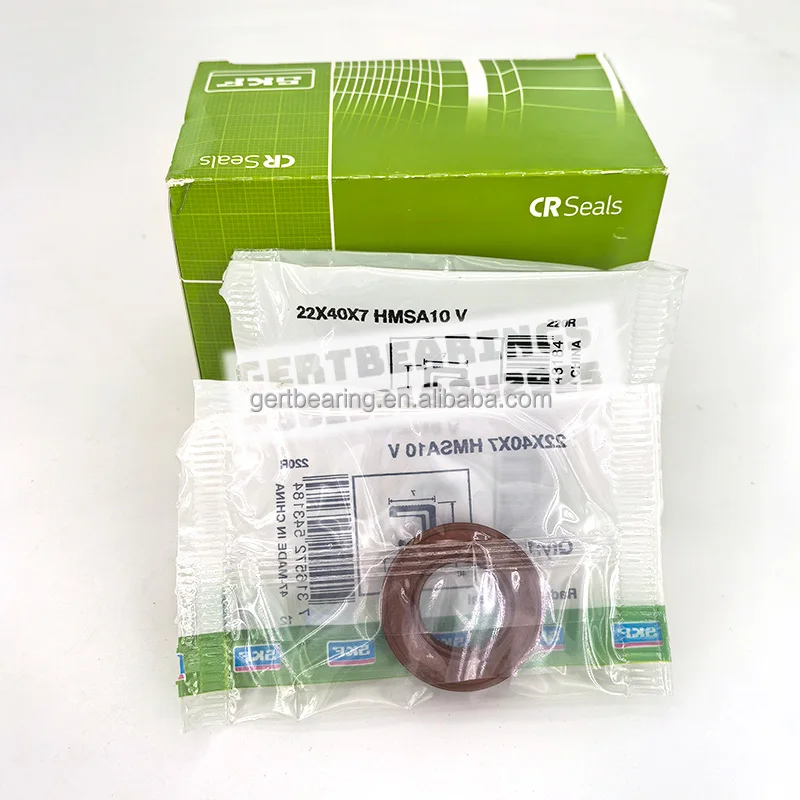

1. Original SKF Box Packing
2. Package SKF oil seal 22x40x7 HMSA10 V into Carton Boxes
3. Put woven bags on the carton boxes
4. Package all the boxes into pallet
We guarantee that our customers will receive clean, new and no damaged products.
The SKF Oil Seal can be sent to customers in many ways:
1. For small quantity, we can send to you by express, DHL/ FedEx/EMS/ UPS/ ARAMEX. All these express are door to door. The freight charge is higher than other ways.
2. For bigger quantity, we can send to you by airport. This way is fast and cheaper than express. But the customer should pick up bearings at airport.
3. For large quantity, we can send to you by sea. This way is the cheapest one, but also spends the longest time.
