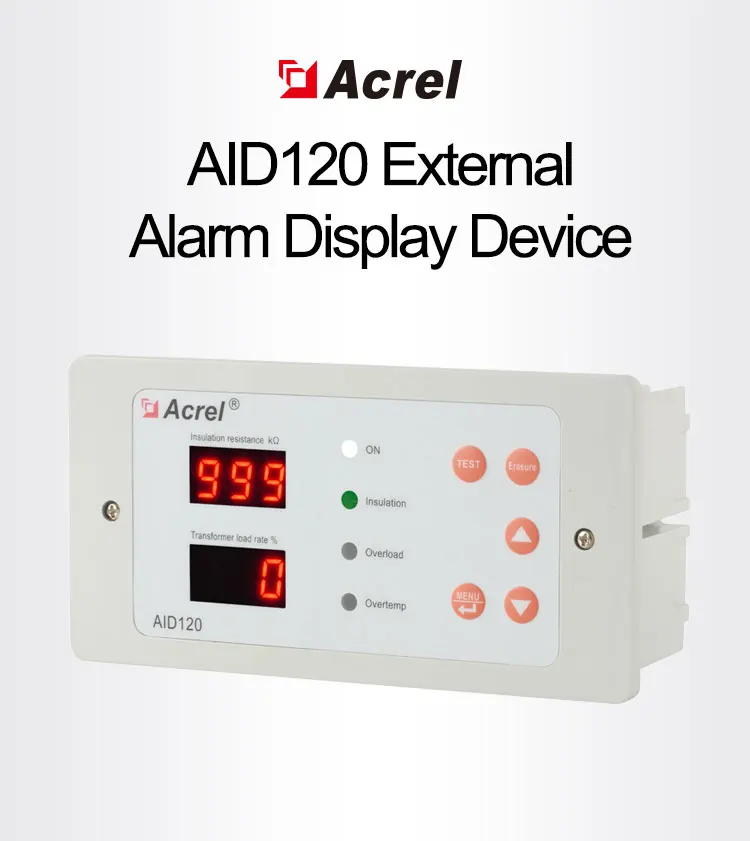

Acrel AID120 IT system insulation alarm and display Indicator/RS485 MODBUS/Remote monitoring
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.Jiangsu Ltd.
Share on (1601293787653):
Product Overview
Description
Technical Parameters
Input voltage | DC 24V | ||||||
Power consumption | ≤0.6W | ||||||
Insulation alarm range | 50…999kΩ | ||||||
Transformer Load Rate | Percentage display | ||||||
Current alarm range | 14A、18A、22A、28A、35A、45A | ||||||
Temperature alarm range | 0…+200℃ | ||||||
Alarm mode | Sound and light alarm | ||||||
Alarm type | Insulation fault, overload, over temperature, equipment failure | ||||||
Communication mode | RS485,MODBUS-RTU | ||||||
Display mode | LCD liquid crystal display，128*64 dot array | ||||||
