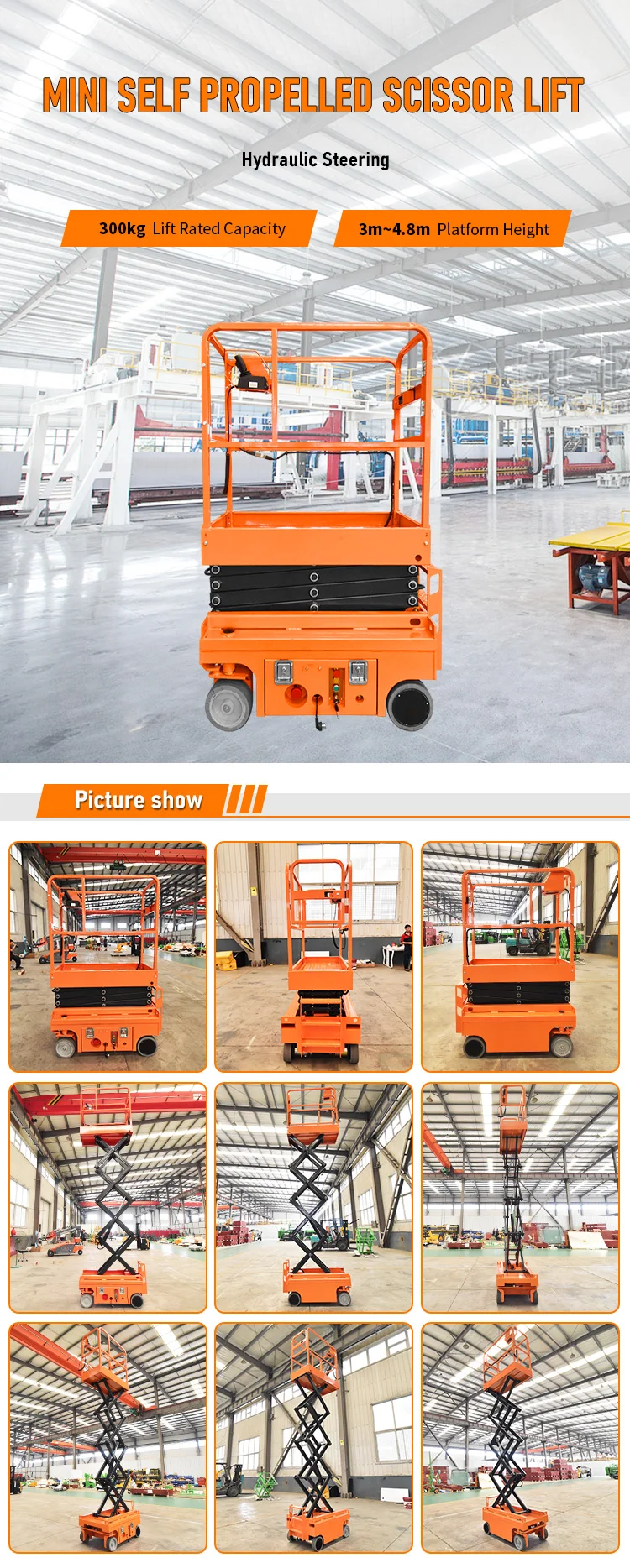

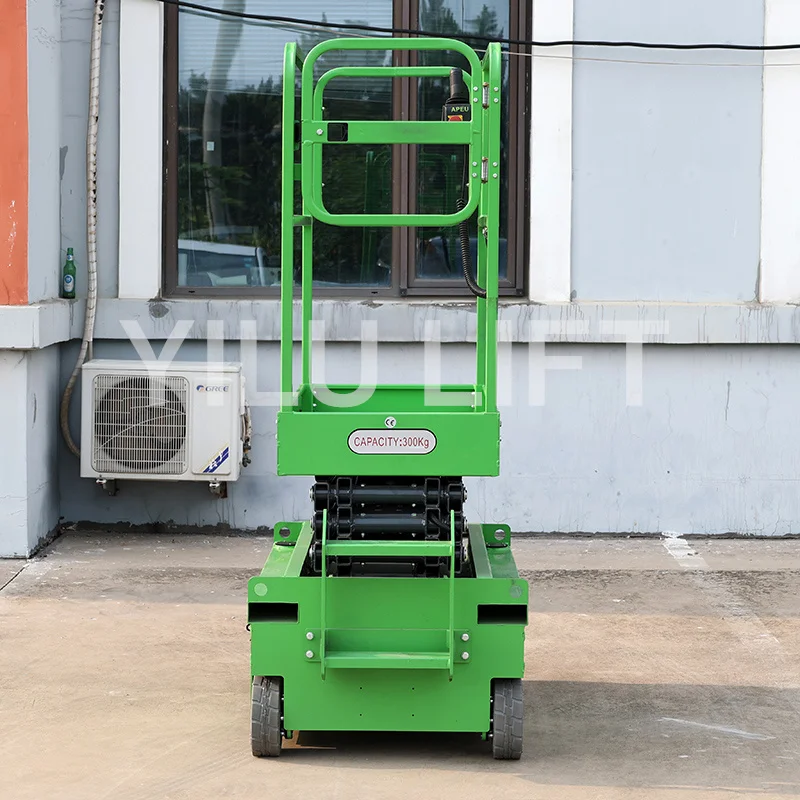

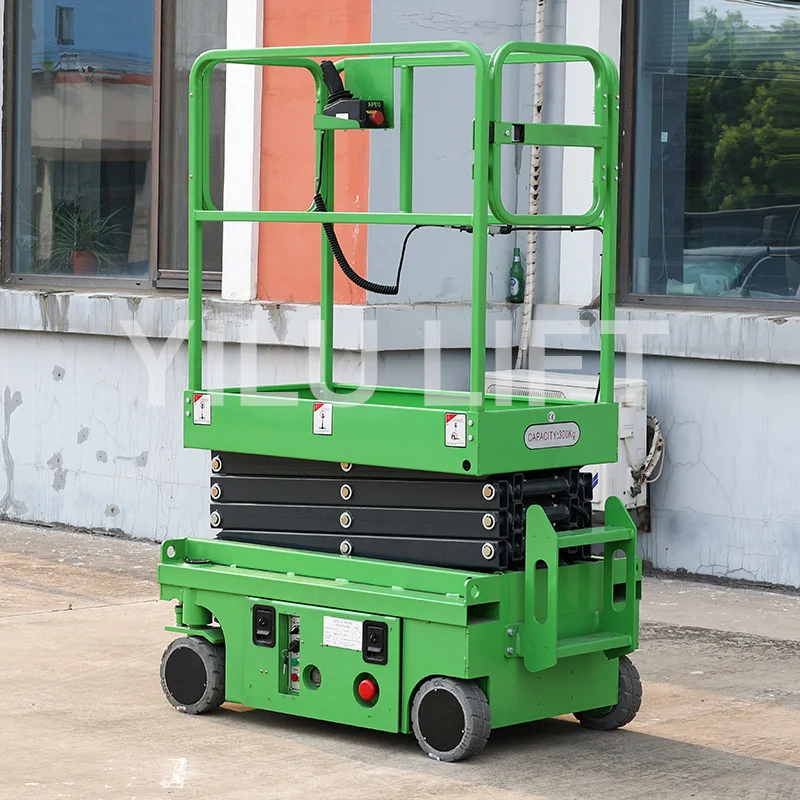

Compact 5M 6M 7M Electric Self Propelled Hydraulic Man Lift

Model Number

GTJZ-5.0H

GTJZ-5.9H

GTJZ-6.8H

Lift Rated Capacity

kg

300

300

300

Maximum working height

mm

5000

5900

6800

Maximum platform height

mm

3000

3900

4800

Platform size

mm

1170x600

1170x600

1170x600

Ground clearance

mm

60

60

60

Driving Motor

V/kw

2×24/0.4

2×24/0.4

2×24/0.4

Lifting Motor

V/kw

24/1.2

24/1.2

24/1.2

Running speed ( platform Stowed )

km/h

4

4

4

Running speed ( platform Elevated )

km/h

0.8

0.8

0.8

Rising/falling speed

sec

20/30

20/30

20/30

Battery

V/Ah

2×12/80

2×12/80

2×12/80

Charger

V/A

24/10

24/10

24/10
