200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source
200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source
200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source
200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source
200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source
200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source
200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source

200AMPS PLASMA CUTTING MACHINE HD200W Low Rectangularity Tolerance cnc plasma cutter plasma power source

Share on (1601295217588):


Price:$10,050.00

Quantity:


Product Overview

Description

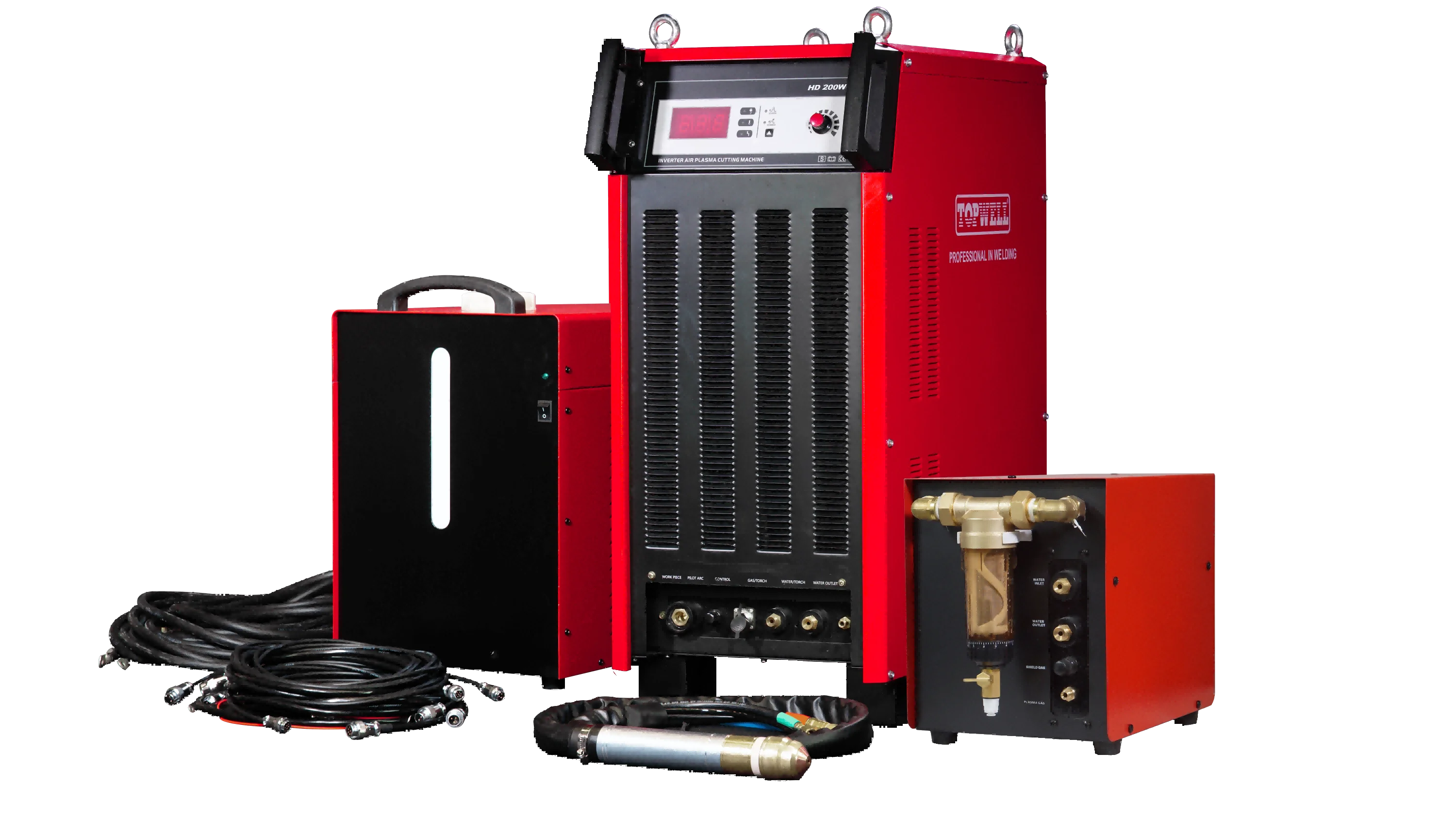

HD 200W



Specifications


System
HD 200W
Input Voltages
380VAC, 3PH, 50Hz/60Hz
400VAC, 3PH, 50Hz/60Hz
Max. Load Power Capacity
50KVA
Rated output voltage
50~200VDC
Max output current
200A
Open circuit voltage(OCV)
430VDC
Duty cycle rating
100% @ 200A,
at 40°C (104°F)
Operating temperature
-10 °C~40°C
Torch
TP300, 1.5m
Dimensions
960*420*1100
Weight(complete）
165KG
Certifications
CE,ROHS
Gas supply:
-Plasma gas
-Shield gas

Air
Air、Water-spray
Supply gas pressure
6.2±0.7Bar

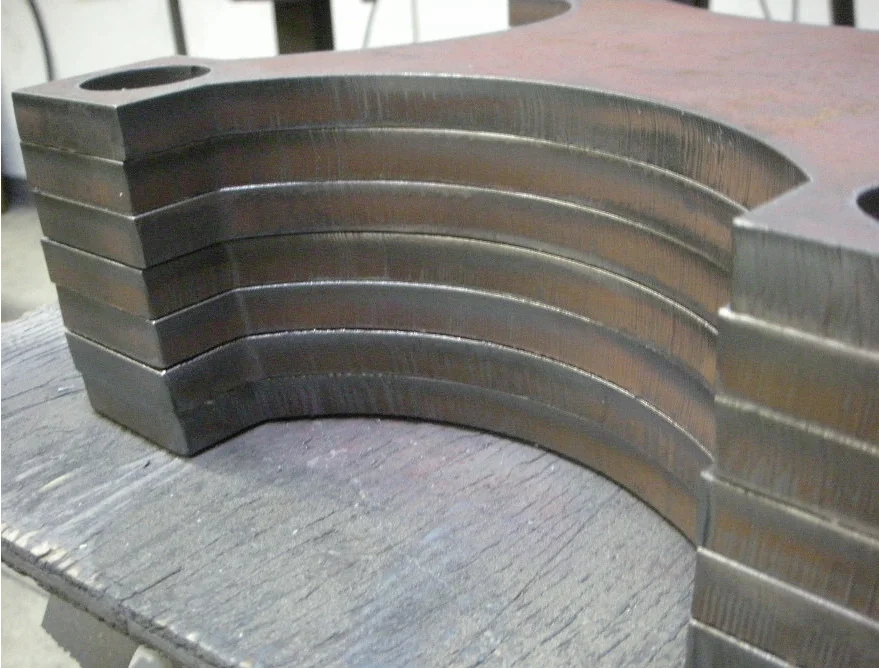

Low rectangularity tolerance
High performance cutting with high speed,make a smooth surface and remain low rectangularity tolerance on parts.
Maximum productivity
Higher arc density for faster speeds,delivery maximum productivity to industry.




*35mmM.S Air&Air

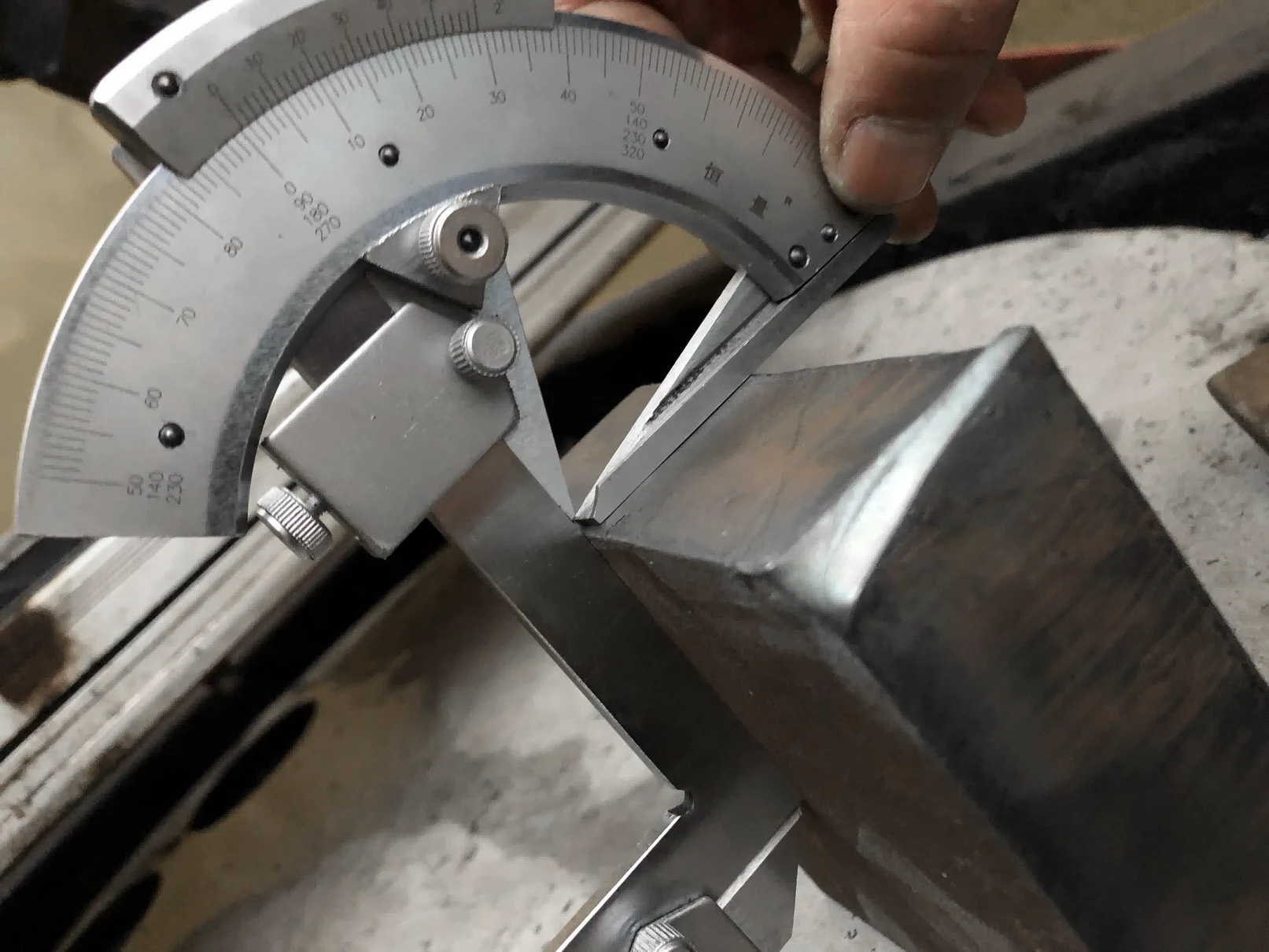

*Taper degree less than 0.2 degree



*25mm M.S.


Also Capable For S.S.Cutting
TOPWELL HD series plasma system provides faster cutting speed to maximize productivity，cutting speed of dross free can reach 1000mm/min for 25mm mild steel.









Operating date {mild steel}
TOPWELL HD series plasma system provides faster cutting speed to maximize productivity，cutting speed of dross free can reach 1000mm/min for 25mm mild steel.


Product Name
HD 200W
Material thickness(mm)
Cutting current(A)
Cutting speed(mm/min)
12
200
2500
16
200
1800
20
200
1200
25
200
 960
30
200
 680





Water Mist Secondary (WMS) Technology


During the cutting process, the water in the shield stream is divided into its principal components—hydrogen and oxygen. The hydrogen creates a reduced atmosphere in the cut zone, isolating it from contaminants at a much lower cost per metre than other cutting processes. Since it uses normal tap water, Water Mist Secondary also reduces production costs and keeps overall energy usage to a minimum.production costs and keeps overall energy usage to a minimum.



*Ignitions per cutting time in seconds


*32mm SS
*25mm SS





WMS Benefits

*Excellent non-ferrous metal cut quality.

*Narrow kerf for tighter angles.

*Easy-to-use.

*Fast cuts with Air/Air on Stainless Steel non-ferrous metals.




*Small heat affected zone and smooth surface.

*Wide low dross parameter windows.

*Lower operating cost.

*More accessible and cheap gas supply.


Long-life Consumables

*12mm mild steel

*200A Air/Air

*20s duration

*The number of consumable starts can reach more than 500 times (ISO9013 Range 2)




Fast Cutting Speed




*The cutting speed of dross free can reach 1600mm/min for 20mm mild steel




Lower Operate Cost

*High cut speed to produce more parts per hour.

*Highest kW output in its class.

*Self-designed torch by TOPWELL.

*Outstanding parts life.

*More accessible and cheap gas supply.

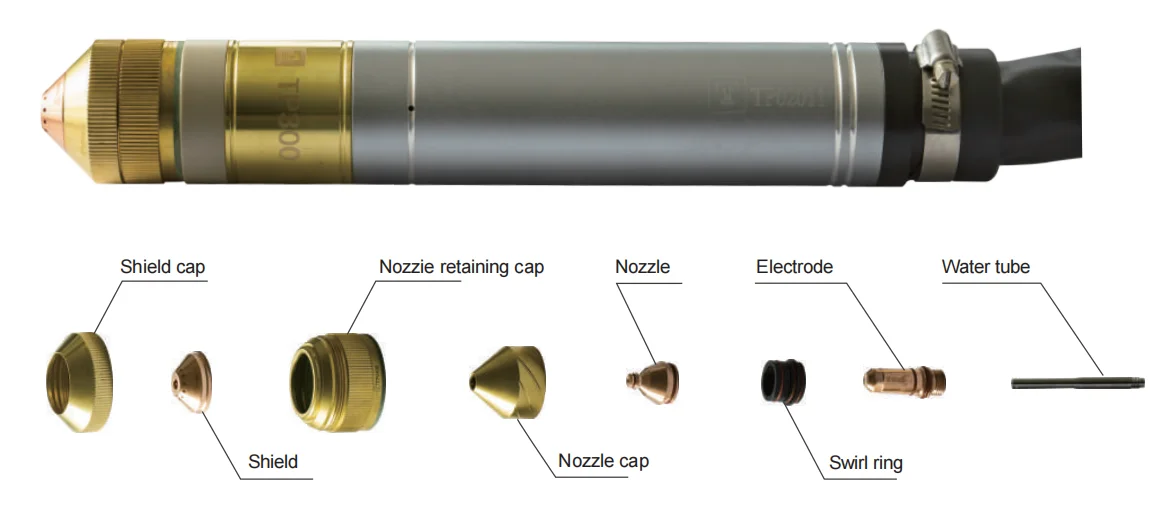

TP 300
