Excellent Material Bits Rock Drill 34mm 7 Degree Drill Bits Core Drill Bit

Excellent Material Bits Rock Drill 34mm 7 Degree Drill Bits Core Drill Bit

Category: >>>
Supplier: Yantai Panda Equipment Co. Ltd.Yantai Ltd.

Price:$2.00

Quantity:

Product Overview

Description

Product Description

Perfect designs, tungsten carbide and skirt steel , We provides leading strength and penetration rates for more productivity, excellent straightness and hole clean quality, get max drilling performance to save up fuel cost rate.

We can design and manufacture according to customers' samples or drawings of the diameter., buttons and flushing holes
quantity, button shape and face shape. Our button bit is made by high quality tungsten carbides and steel, through heat
treatment so that it can be used for hard rock drilling, and transmit intensive impact energy into the rock with the least
possible loss of energy. Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer
primary drilling time and higher drilling efficiency. According to the buttons, tapered button bits can be divided into the types
of Dome, Ballastic, etc.

PANDADRILL can make all sizes and shapes according to your request!

Notice:

1, All diameters as above are only our standard diameters, but other diameters are also available upon request.
2, The unit weight for each size is for reference only.
3, Face design, buttons shape, buttons configuration and flushing holes number must be confirmed when the order is confirmed.
4, Please be cautious when order some bigger diameter of button bits since some bigger diameters are oversized.
5, Other model bits are also available as per request.

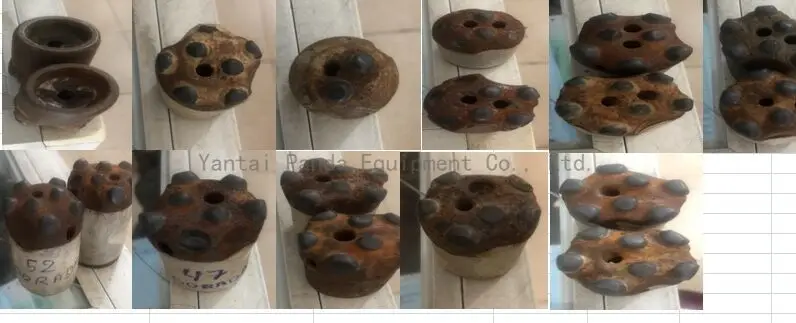

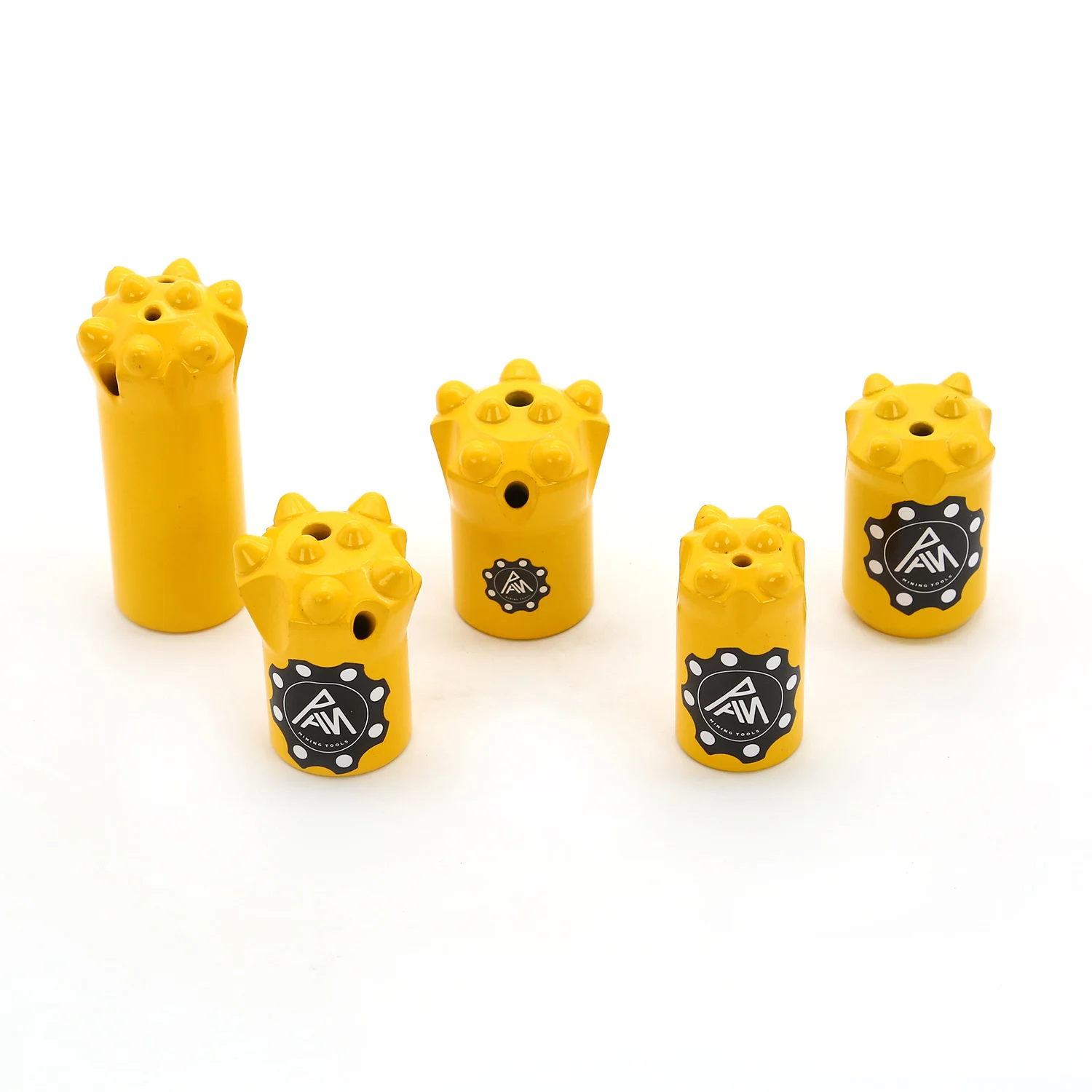

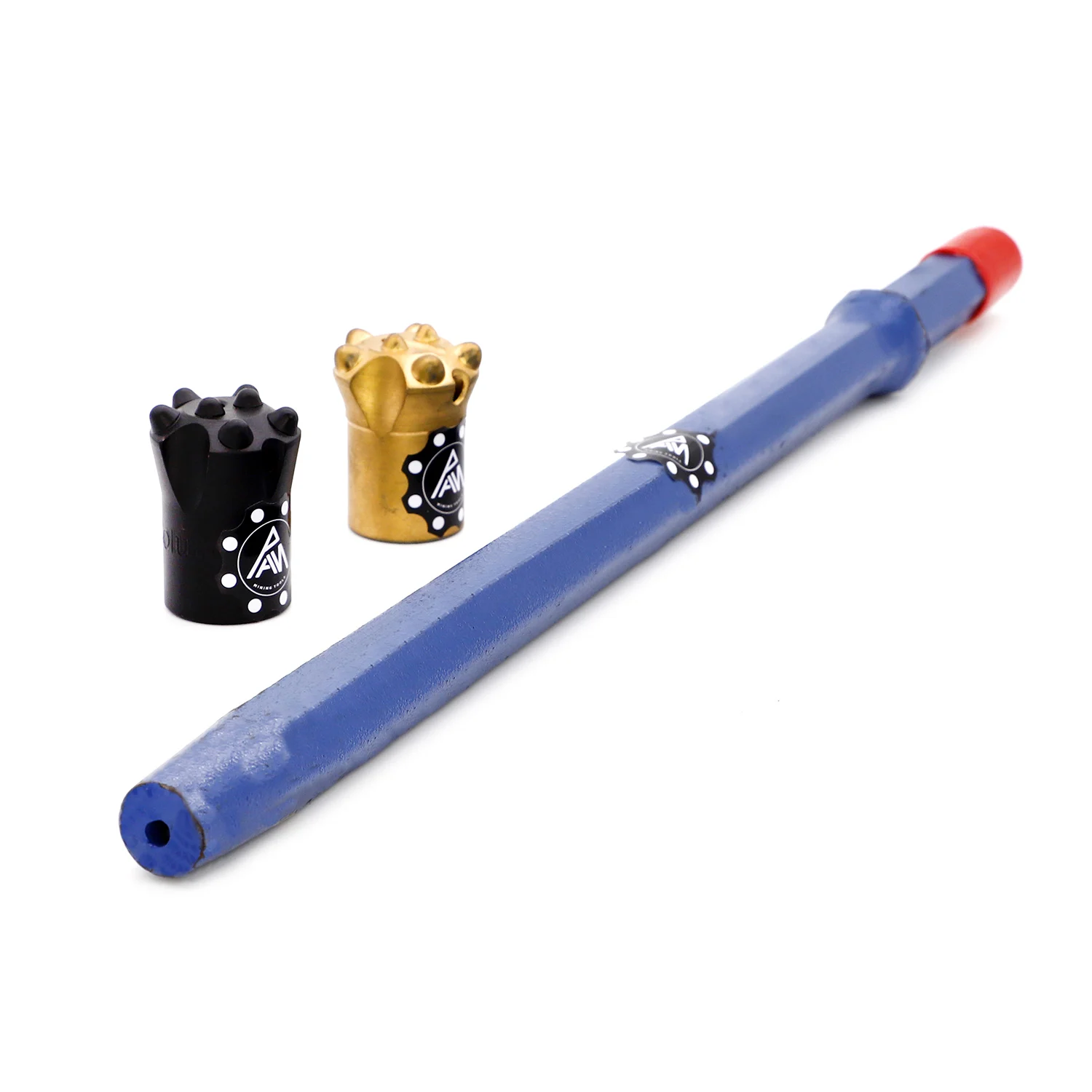

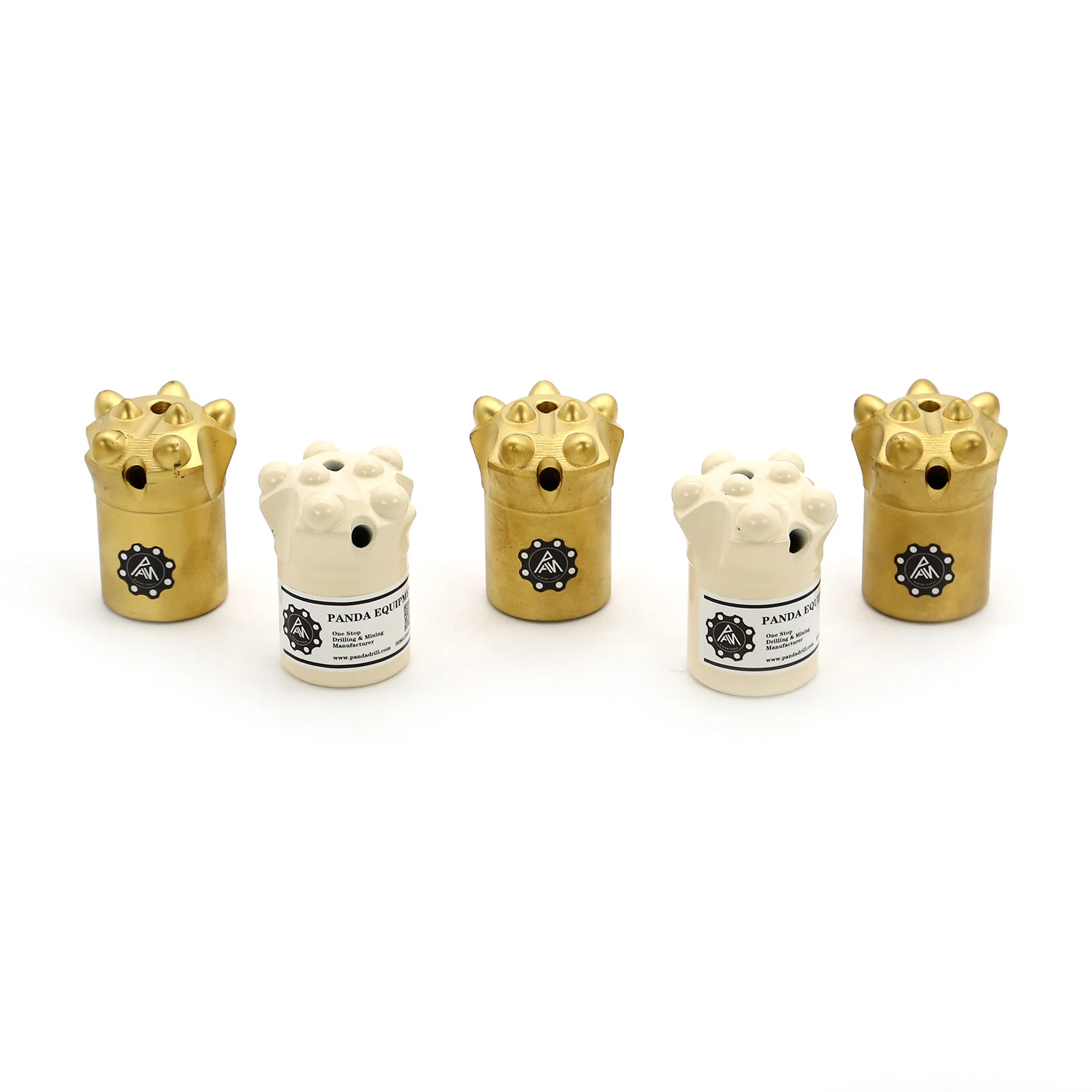

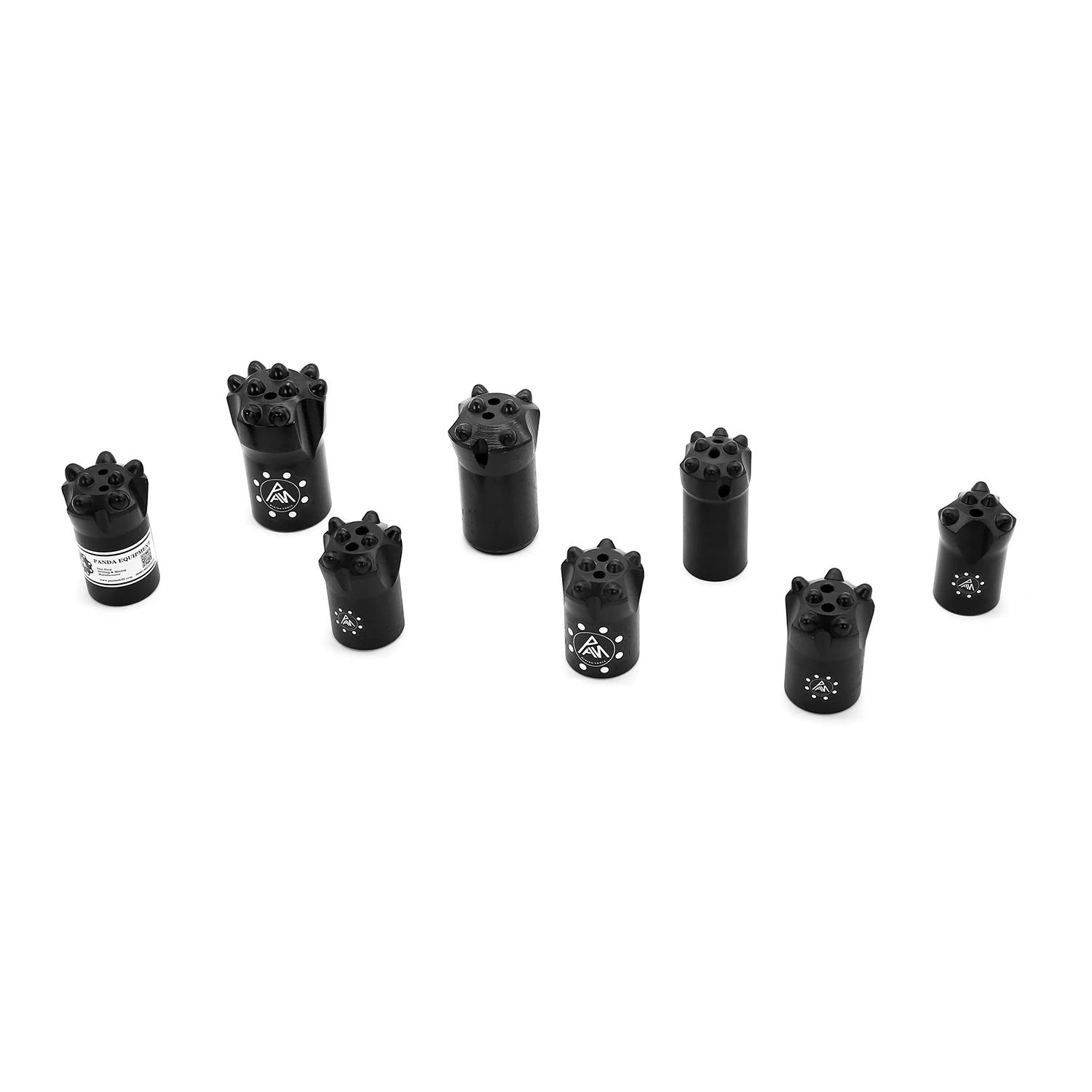

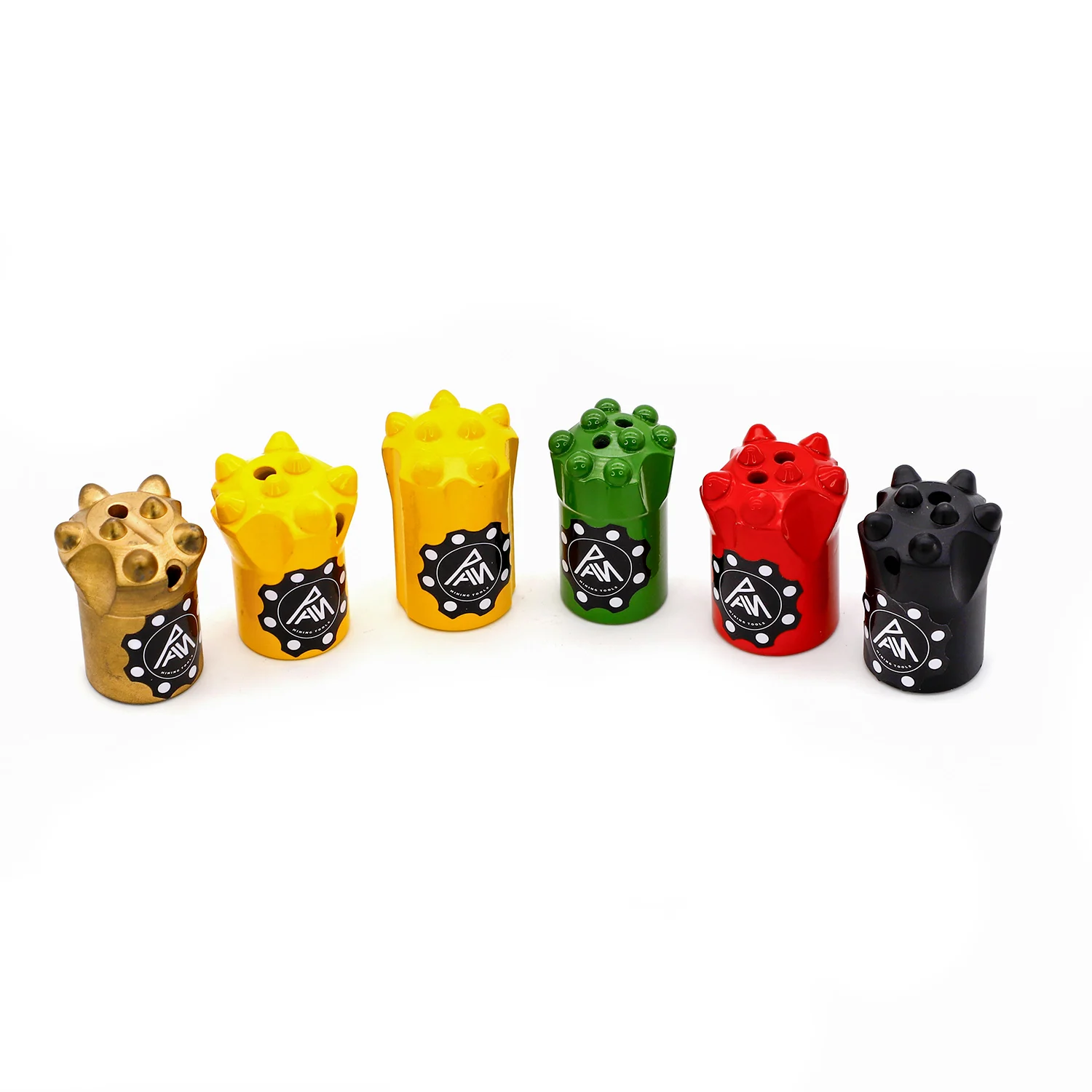

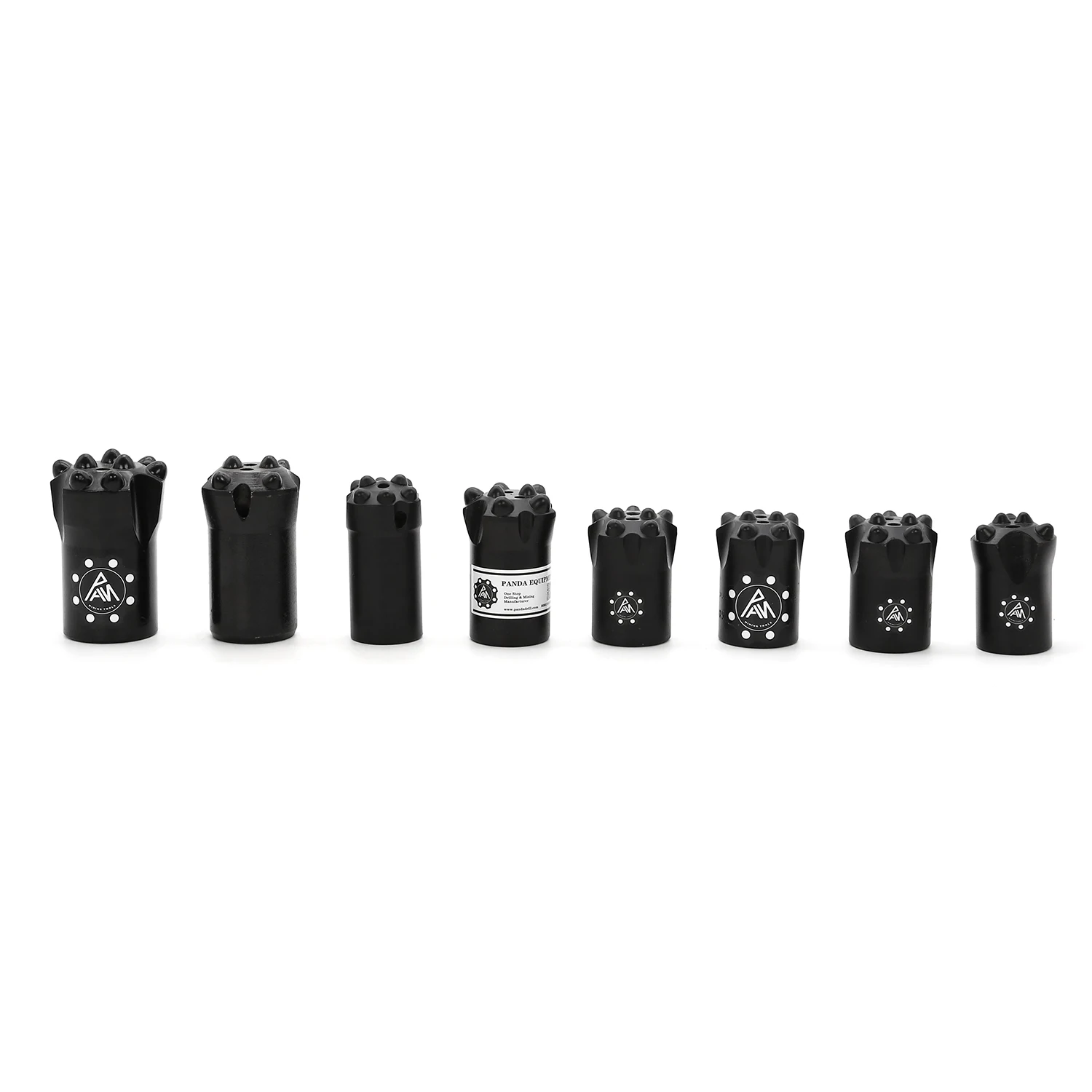

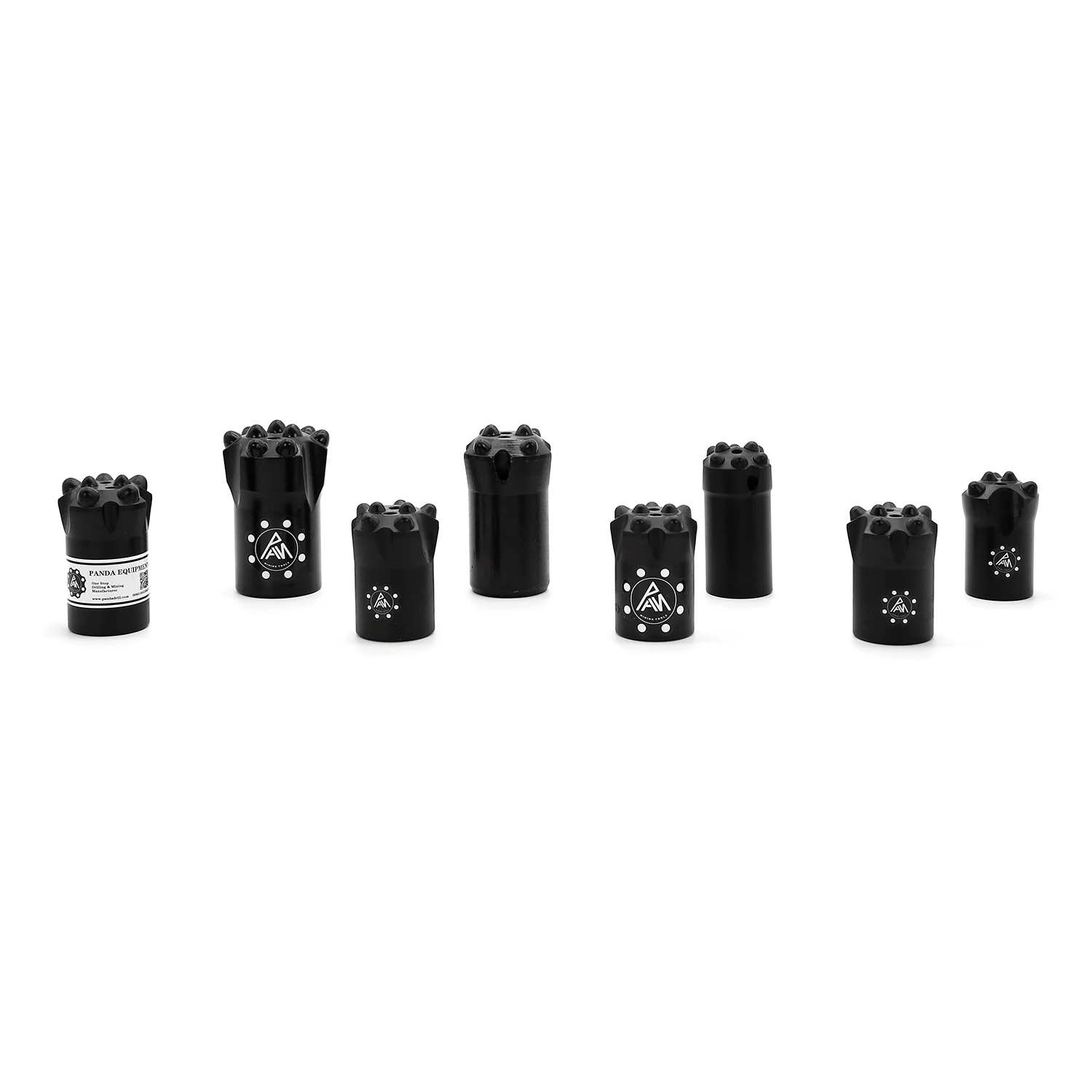

Detailed Images

Specifications:

Drill bit	Diameter			No * button diameter					Flushing hole	Weight approx
Drill bit		mm	inch	Front	Gauge	Angle	Front	Side	KG
Button bit. Short skirt	32	1 1/4	1x8	3x8	35°	1	1	0.24
		33	1 19/64	2x7	5x7	35°	2	1	0.26
		34	1 11/32	2x7	4x7	40°	1	1	0.29
		35	1 3/8	2x7	5x8	35°	1	1	0.33
		36	1 27/64	1x8	3x9	40°	1	1	0.37
		36	1 27/64	2x7	5x8	35°	1	1	0.37
		38	1 1/2	1x8	3x9	35°	1	1	0.38
		38	1 1/2	2x7	5x8	35°	1	1	0.38
		38	1 1/2	2x7	5x9	40°	2	1	0.38
		40	1 37/64	1x8	3x9	30°	1	1	0.40
		40	1 37/64	1x9	3x10	30°	1	1	0.40
		40	1 37/64	1x9	3x9	35°	1	1	0.40
		40	1 37/64	2x7	5x9	35°	1	1	0.40
		42	1 21/32	1x8	3x9	30°	1	1	0.43
		42	1 21/32	1x9	3x10	30°	1	1	0.43
		42	1 21/32	1x9	3x9	35°	1	1	0.43
		42	1 37/64	2x8	5x9	35°	1	1	0.43
Long skirt	32	1 1/4	2x7	5x7	35°	1	1	0.30
		33	1 19/64	2x7	5x7	35°	1	1	0.31
		35	1 3/8	2x7	5x8	35°	1	1	0.36
		38	1 1/2	2x7	5x9	35°	1	1	0.41
		41	1 5/8	2x7	5x9	35°	1	1	0.42
