Multi Function Cnc 5 Axis Bridge Saw Machine Stone Cutting Machine 5 Axis 3D Cnc Machine For Marble
- Category: >>>
- Supplier: Jiahe Cnc Router (Shandong) Co. Ltd.Jiahe Ltd.
Share on (1601295582998):
Product Overview
Description
Products Description

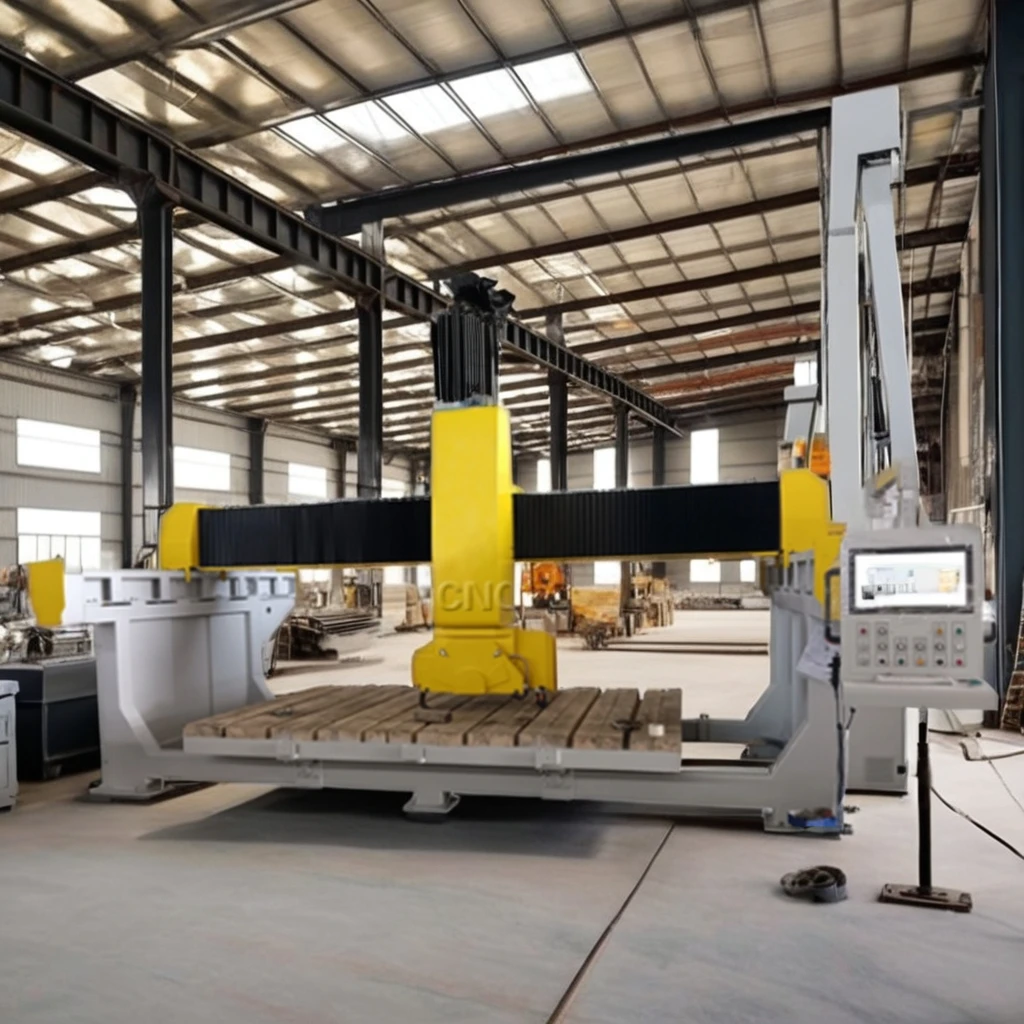

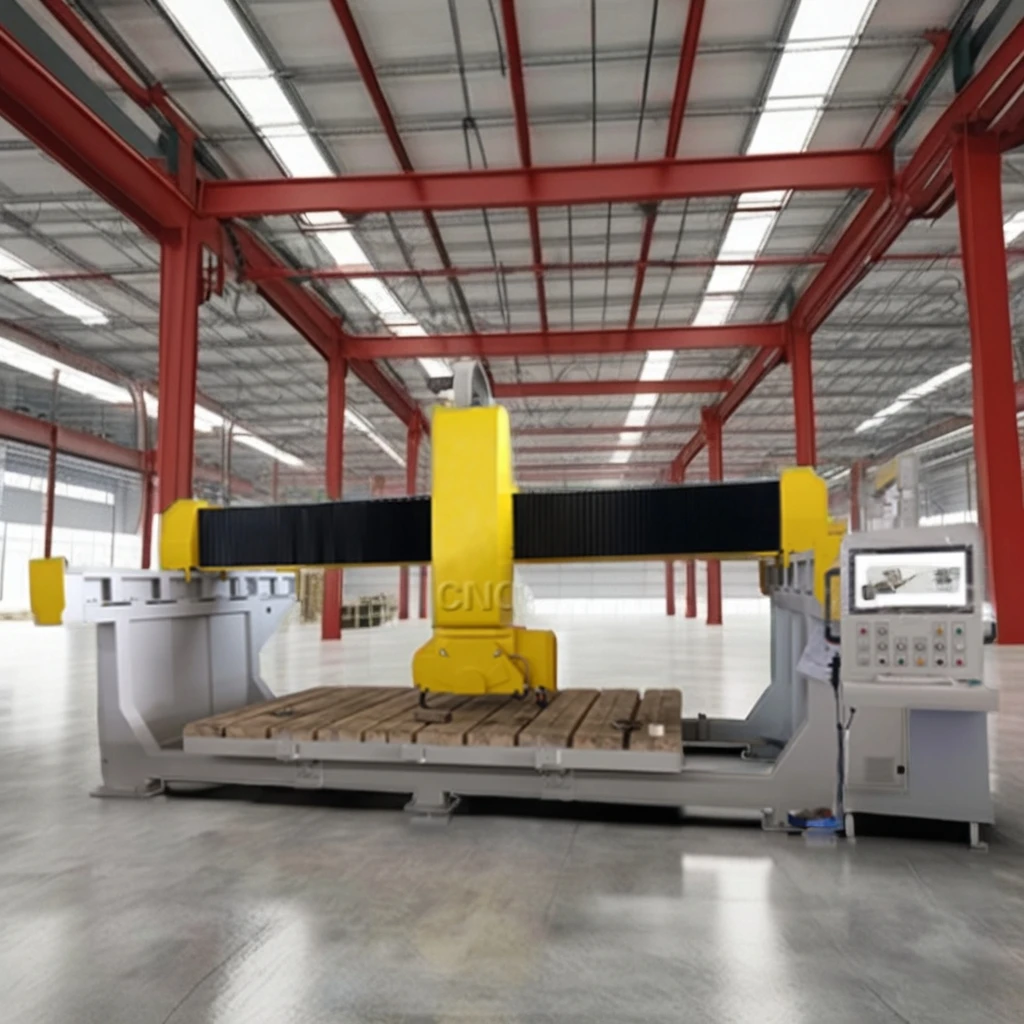

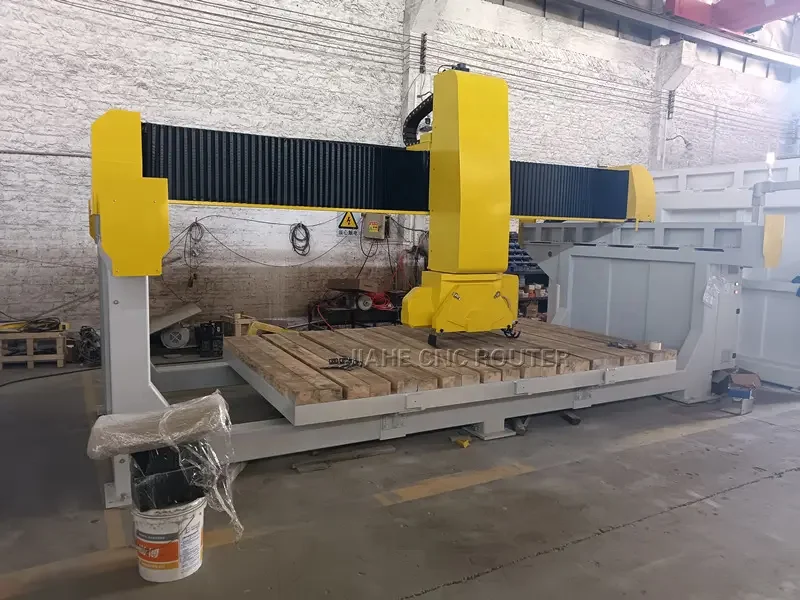

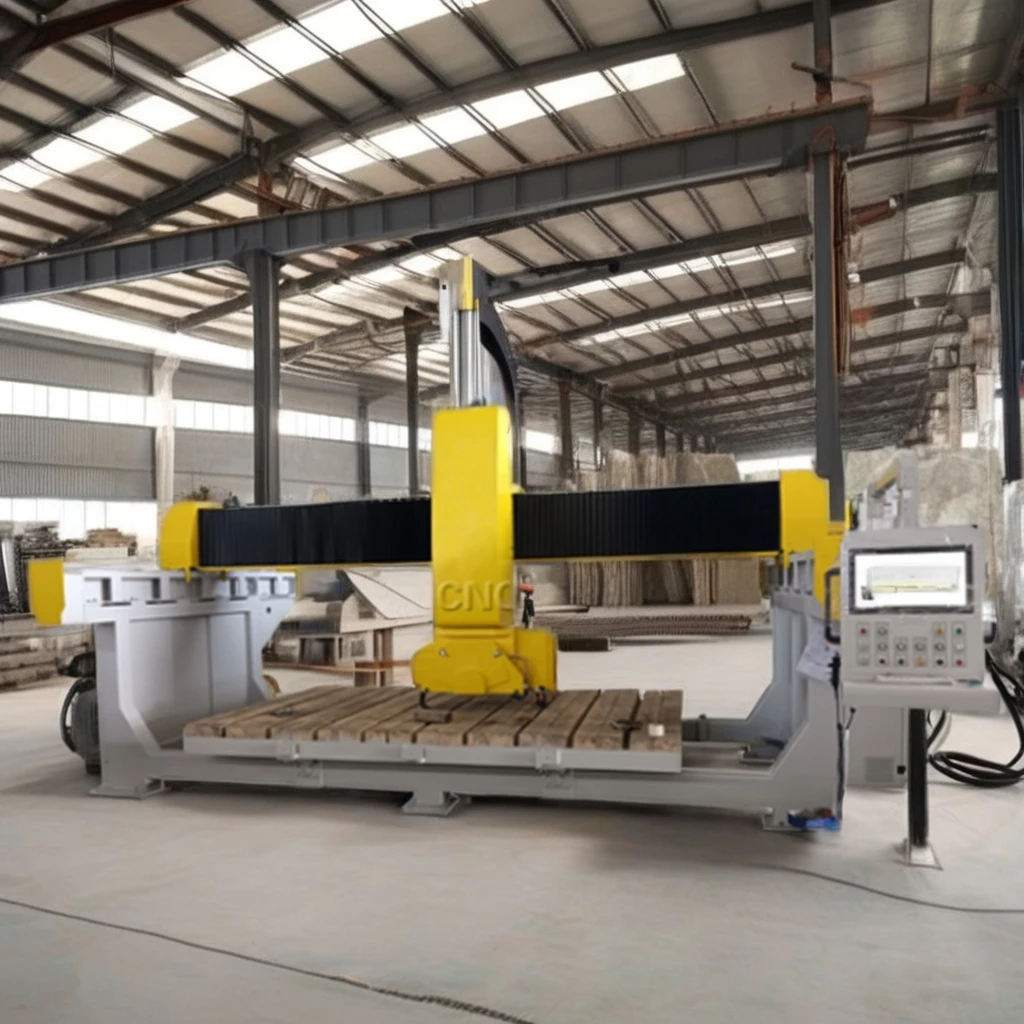

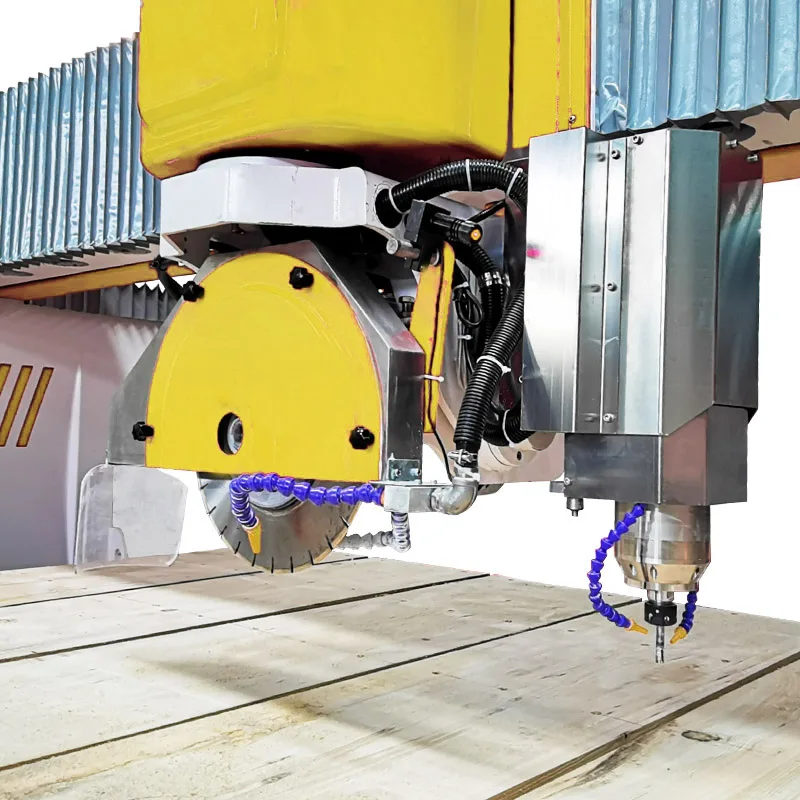

Multi Function Cnc 5 Axis Bridge Saw Machine Stone Cutting Machine 5 Axis 3D Cnc Machine For Marble
This Multi Function Cnc 5 Axis Bridge Saw Machine Stone Cutting Machine 5 Axis 3D Cnc Machine For Marble with PLC controlled head rotation, is a 4-axis mono-block bridge sawing machine easy to perform any types of straight and curve cutting, surface profiling and shaping with blade shoulder. It allow you to input module data simply through touching human-machine interface, with no programming required. The operation is easy and intuitive.This Multi Function Cnc 5 Axis Bridge Saw Machine Stone Cutting Machine 5 Axis 3D Cnc Machine For Marble is designed for cutting sintered stone tile, granite, marble, quartz or other natural and engineered stone slabs.
Main Features

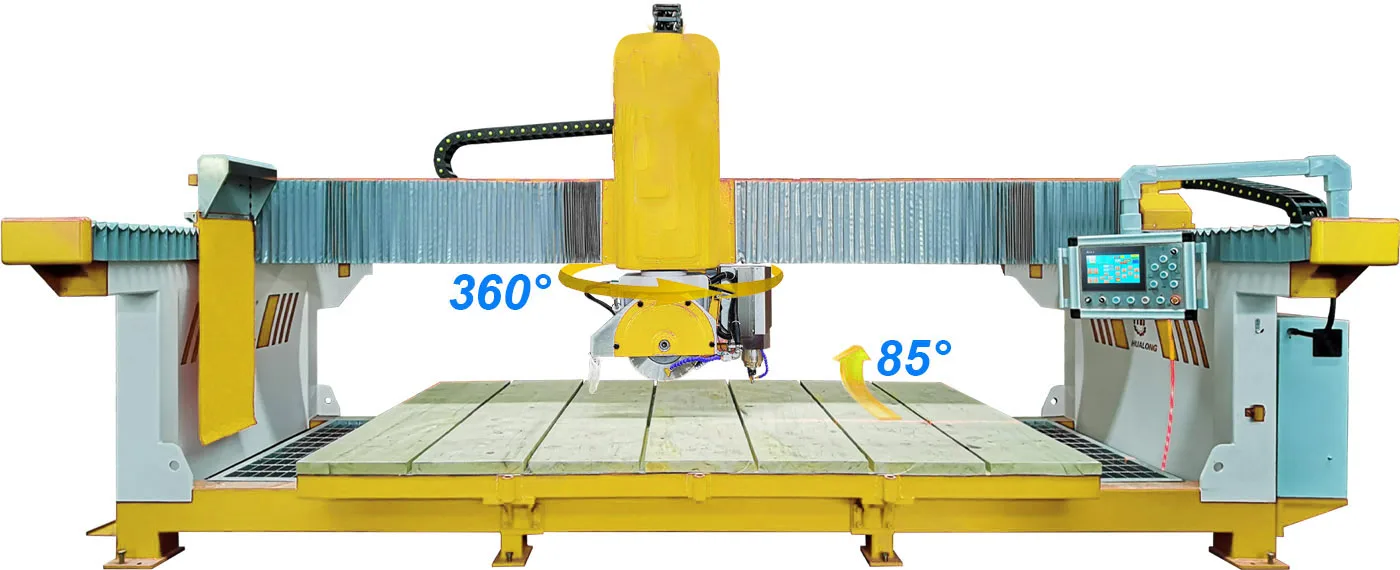

1.XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree au-tomatic rotation.
2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides miter (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.5.Cutter bits, Contouring, Suction
moving.
6. Intelligent control system.
7.Table tilts 85 degree to load slabs easily.
2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides miter (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.5.Cutter bits, Contouring, Suction
moving.
6. Intelligent control system.
7.Table tilts 85 degree to load slabs easily.
Programming method 1 | Manual programming |
Programming method 2 | Image input |
Control method | CNC |
Power | 4000W |
Working voltage | 380V/50HZ |
R.P.M | 2800r/min |
Blade size | 350mm |
X-axis working stroke | 3000mm |
Y-axis working stroke | 2000mm |
Z-axis working stroke | 260mm |
A-axis working stroke | 360°free rotation |
X/Y-axis cutting speed | 1-2000mm/min |
Z-axis cutting speed | 1-1000mm/min |
A cutting speed | 0-7r/min |
Cutting thickness | 100mm |
Processing precision | 0.2mm |
Working table size | 3000*2000mm |
Overall size | 4500*2750*2100mm |
Weight: | 2000KG |
ER25UM connector
Cutting case
1)XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree au-tomatic rotation.
2)Vertical and horizontal cutting, multi-angle diagonal cutting.
3)Four sides miter (any angle between 0°-90°).
4)Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.
5)Cutter bits, Contouring, Suction moving.
6)Intelligent control system.
7)Table tilts 85 degree to load slabs easily.
2)Vertical and horizontal cutting, multi-angle diagonal cutting.
3)Four sides miter (any angle between 0°-90°).
4)Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.
5)Cutter bits, Contouring, Suction moving.
6)Intelligent control system.
7)Table tilts 85 degree to load slabs easily.
Details Images
Control system - PLC
Use advanced PLC control system and human-machine interface with touch screen to offer friendly and inteligent control.
Operator Panel on Swivel Arm for Easy operation.
Operator Panel on Swivel Arm for Easy operation.

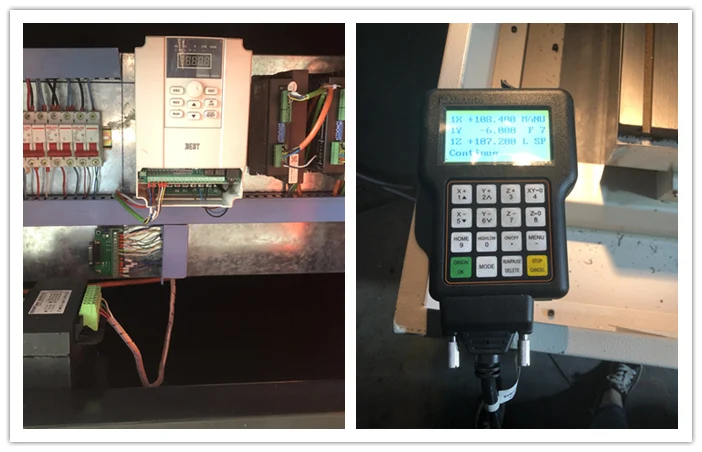

Electric Cabinet
Quality electrics and control components used to ensure stable performance.
Remote Control (Optional)
Radio Frequency Wireless Remote Control Available for control the movement of 3 axises conviniently.
Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.Linear Guide
Quality linear guides fitted with recirculationg ball sides used on crossbeam (X axis), carling (Y axis) and Z axis to gurantee perfect cutting accuracy and long lifespan.Guide rail for crossbeam and side beam is oil-immersed.
Quality linear guides fitted with recirculationg ball sides used on crossbeam (X axis), carling (Y axis) and Z axis to gurantee perfect cutting accuracy and long lifespan.Guide rail for crossbeam and side beam is oil-immersed.
Application
Product packaging
Company Profile
Jiahe CNC Router (Shandong) Co., Ltd. is a professional CNC machines manufacturer dedicated to the development and research of CNC stone router, CNC metal engraving machines, CNC wood router, and laser machines. Professional design solutions meet various of customized needs from customers, and are committed to the research and development, production and sales of high-end stone CNC router, four-axis and five-axis stone engraving machines.
The professionally matched design solution achieves a perfect combination of performance, precision and appearance, and various types and specifications of equipment can meet the needs of different customers. Through computer control and software and hardware system integration, the CNC machines developed and produced by our company are widely used in stone art processing, three-dimensional animals and three-dimensional Buddha statues, jade processing, large-scale casting, mold modeling, glass carving, metal processing, plasma cutting, Copper and aluminum mold manufacturing, ceramic tile carving, real estate model, packaging and printing industry, computer graphics, handicraft production, furniture stamping, interior decoration, wave plate processing, seal, sign nameplate production, clothing, leather, embroidery, advertising art, plastic processing , Wood processing, and other industries.
Our company's equipment strictly implements ISO9001 quality management system certification and European CE certification standards. We have exported our machines to many countries, for example, USA, Peru, Mexico, Canada, India, Thailand, Vietnam, Korea, Japan, Indonesia, Pakistan, Bangladesh, Greece, Romania, Spain, Saudi Arabia, Jordan, Israel, Russia, Nigeria, Cameroon, etc. Our good quality machines and perfect after-sales service have gotten the positive feedback and support from customers.
FAQ
Q1: How do I get the best price?
A: As you may know,the different type of CNC machine apply to the different pricre.
Q2: What machine suits me best?
A: Different material and the different model apply to the different machine.
Please tell us what’s material you want to cutting or engraving ?
And what’s MAX size of carved material ?
Then we will recommend the most suitable model and the best price for you.
Q3: In case of failure,how to do?
A: Call us----our enginers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: Are you trading company or manufacturer ?
Q5: How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
A: As you may know,the different type of CNC machine apply to the different pricre.
Q2: What machine suits me best?
A: Different material and the different model apply to the different machine.
Please tell us what’s material you want to cutting or engraving ?
And what’s MAX size of carved material ?
Then we will recommend the most suitable model and the best price for you.
Q3: In case of failure,how to do?
A: Call us----our enginers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: Are you trading company or manufacturer ?
A: We are factory.
Q5: How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
