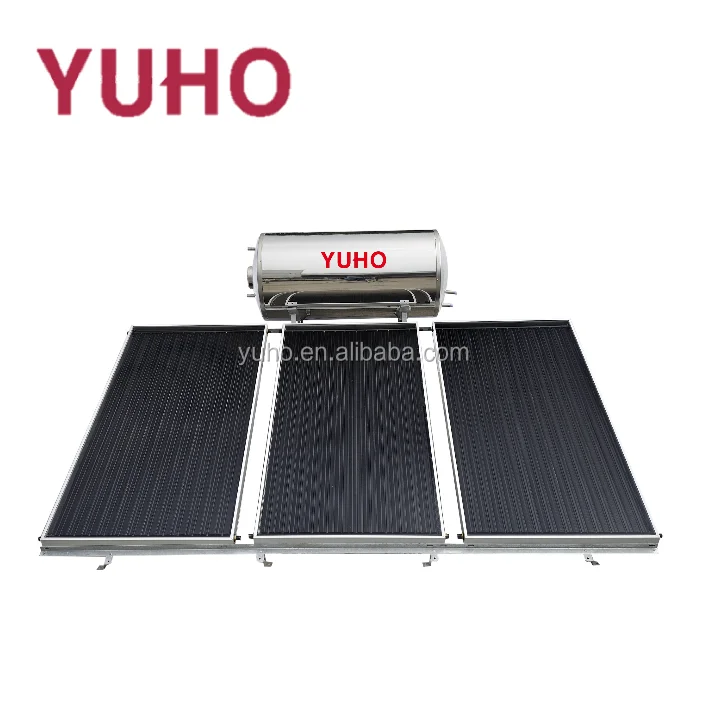

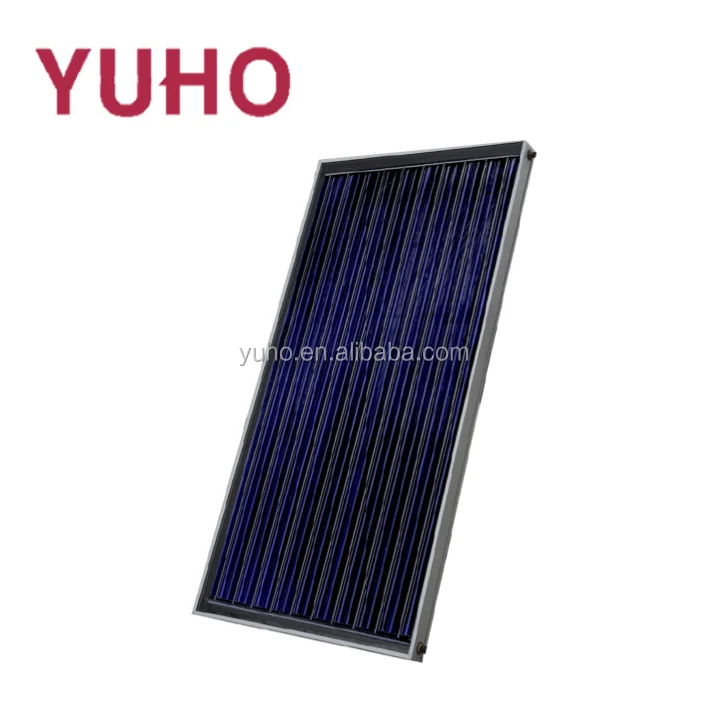

Flat panel solar collector SRCC / solar keymark
Specification
| HP-3008 | |
Dimension | 2010x1010x80mm |
Absorber | Painted AL |
Flow pipe | Φ12.7mm Stainless Steel #304 |
Manifold | Φ25.4mm |
No. of Riser | 8 |
Glass | 3.0mm Low Iron Tempered |
Leak Proofing | Silicone |
Casing | Stainless steel #304 or Aluminum |
| Insulation | PU foam |
| Efficiency | 0.77 |
* Accept customized
`

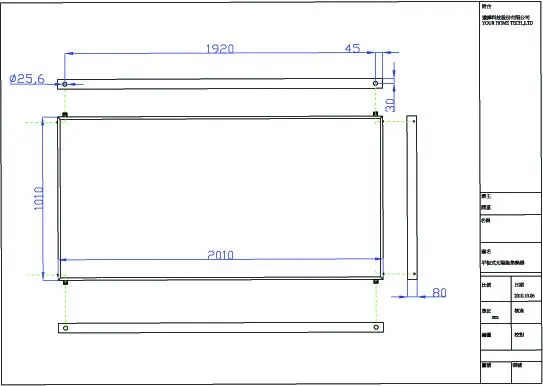

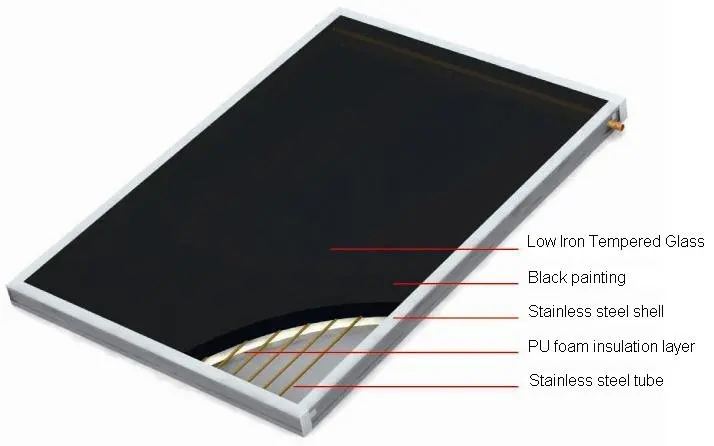

Drawing of flat plate solar collector

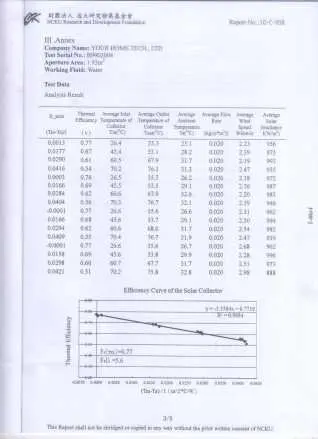

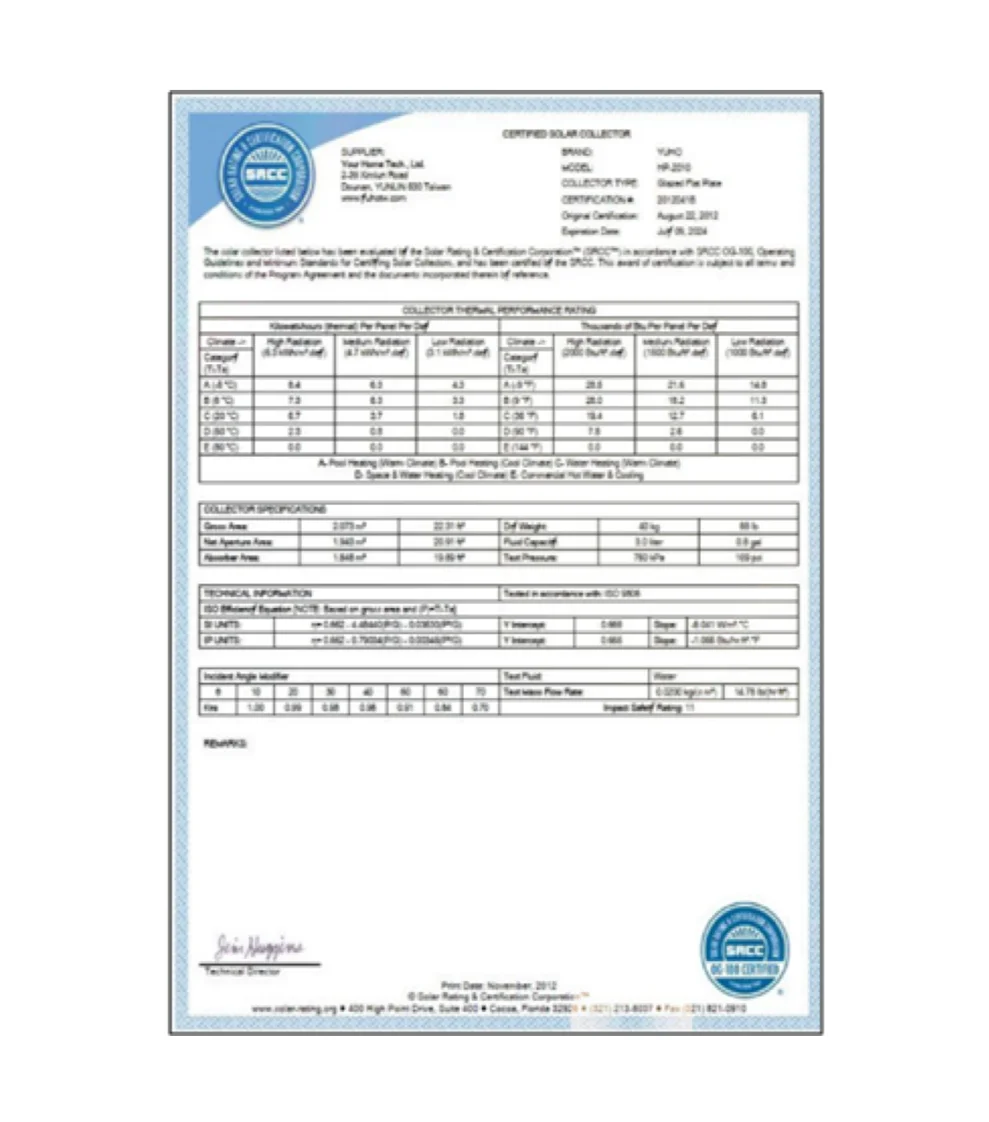

Testing Report

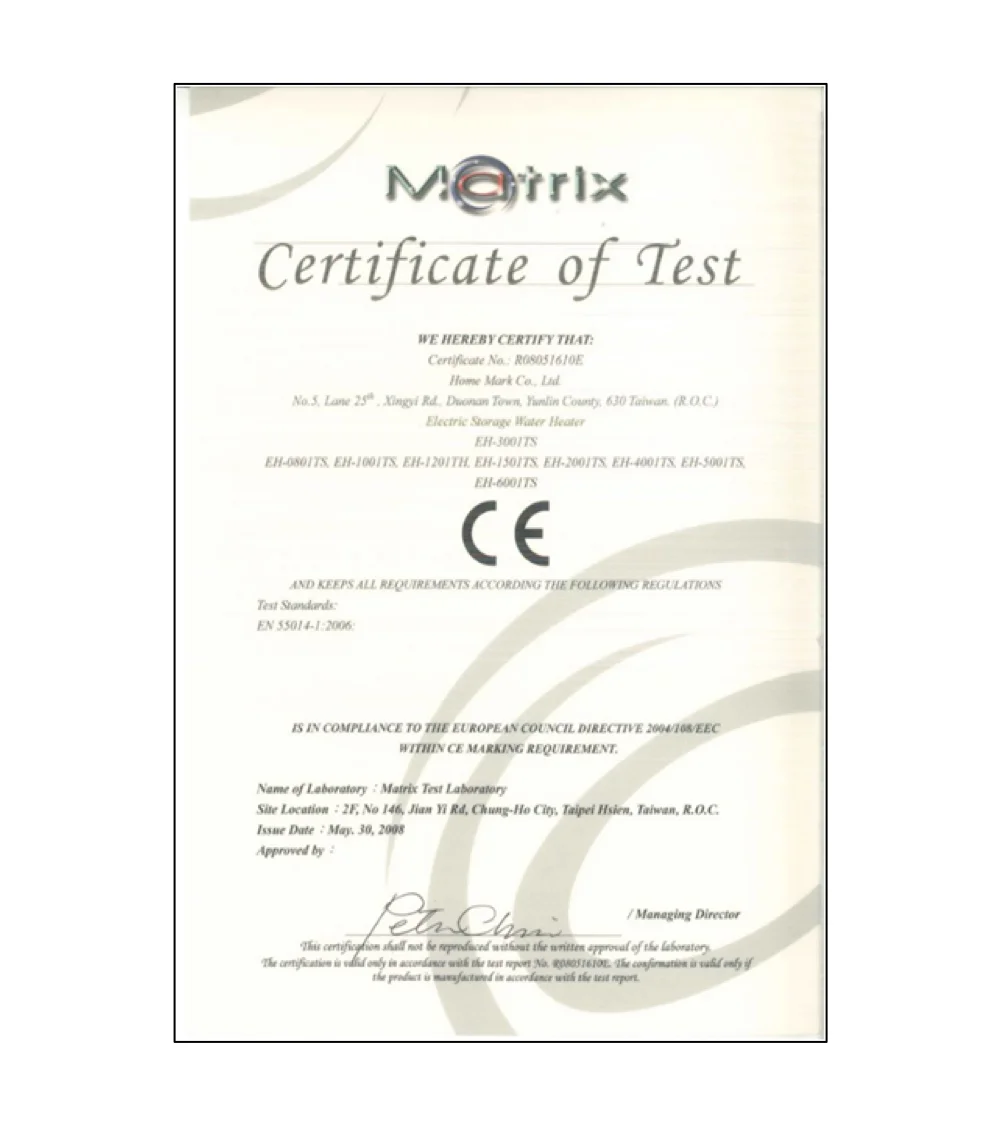

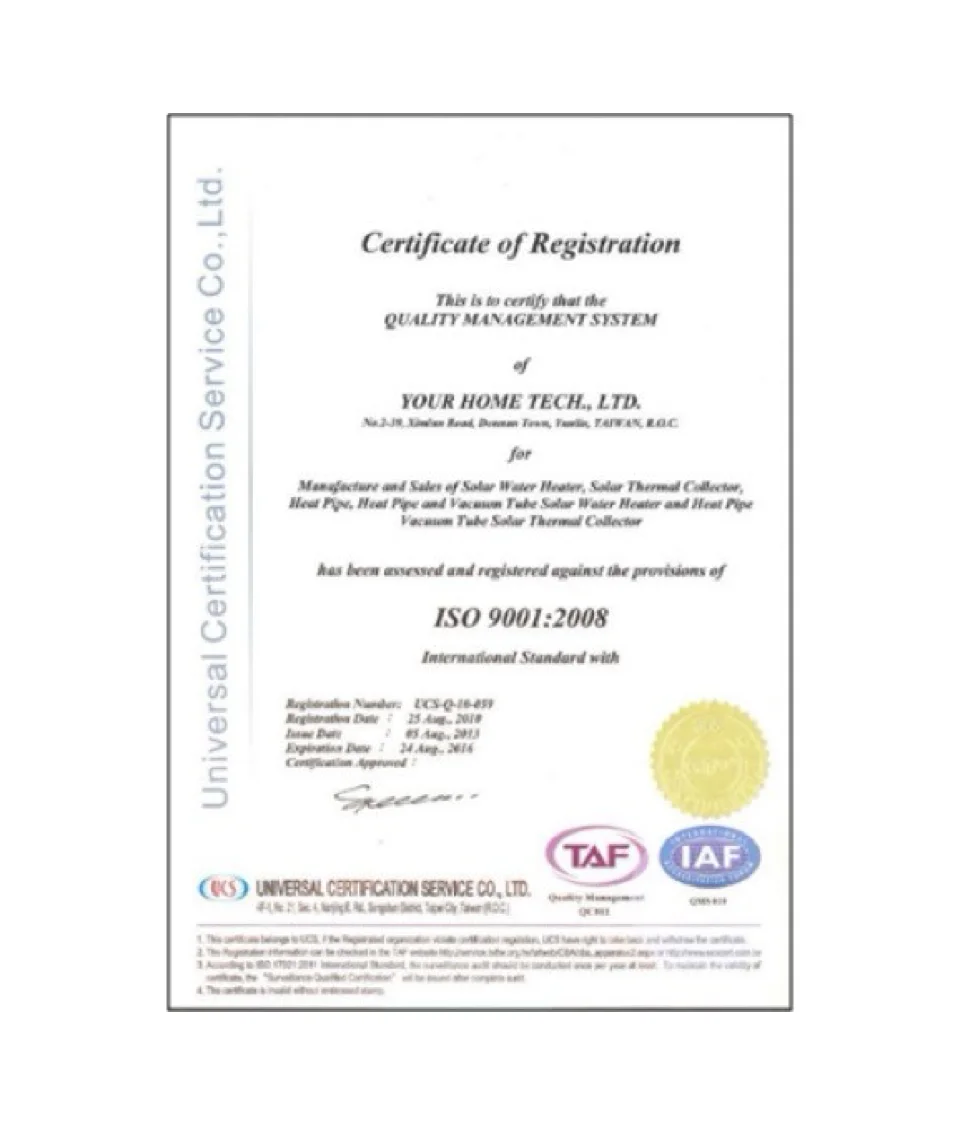

Certifications


| SRCC | ISO 9001 |

| D&B D-U-N-S Registered Certificate | CE |
YUHO is a Taiwan solar water heater manufacturer produces and distributes high quality MADE IN TAIWAN products all over the world. All of our products are pressurized and can be used both domestically and industrially. With our advanced R&D ability and 15 years service experiences, we are the only manufacturer in Taiwan who can provide the large commercial solar water heater system solution. Additionally, our products have already past all tests, and get the solar keymark ( Europe ) and the SRCC ( U.S.A.) certificate.

YUHO has two production lines.
One is [solar water heater], the other is [corrugated flexible metal hose and pipe].

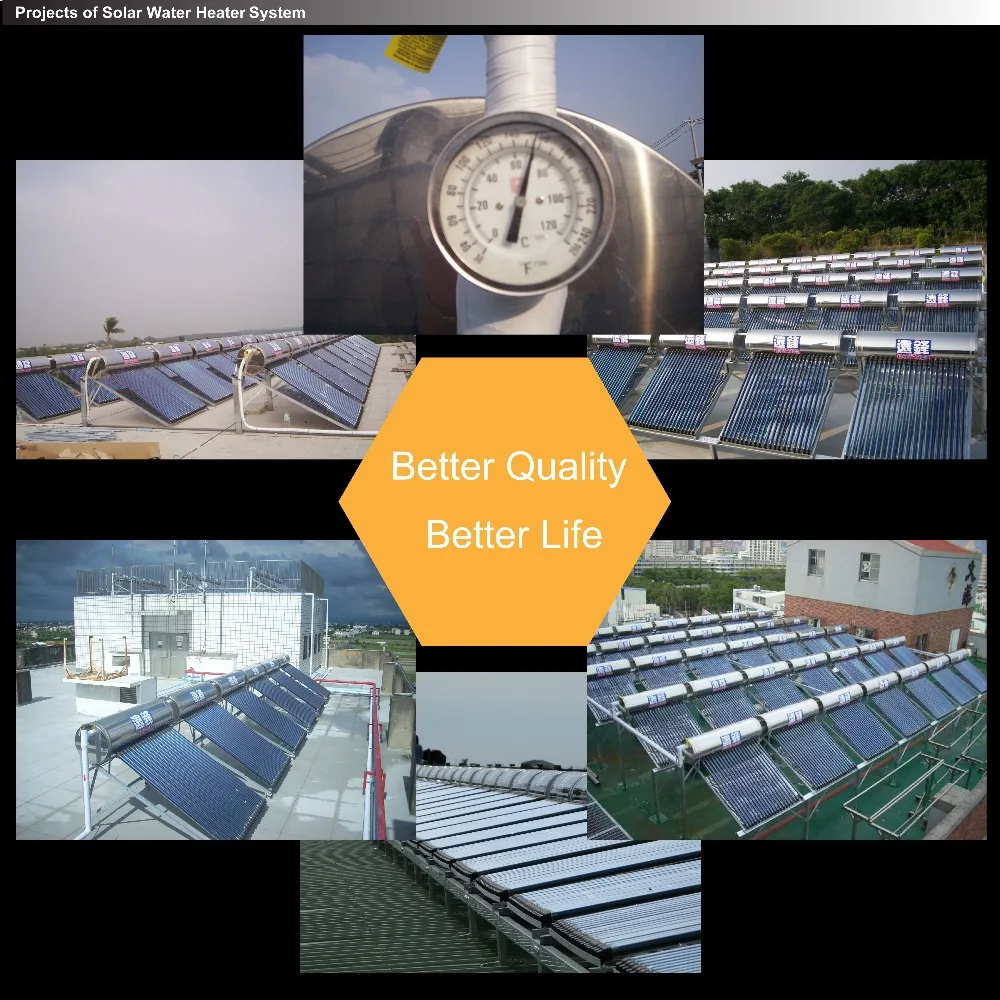

Projects of solar water heater system
YUHO is a professional manufactuer as below;
1) Heat pipe vacuum tube solar water heater ( 150 / 200 / 300 Liter )
2) Heat pipe vacuum tube solar collector

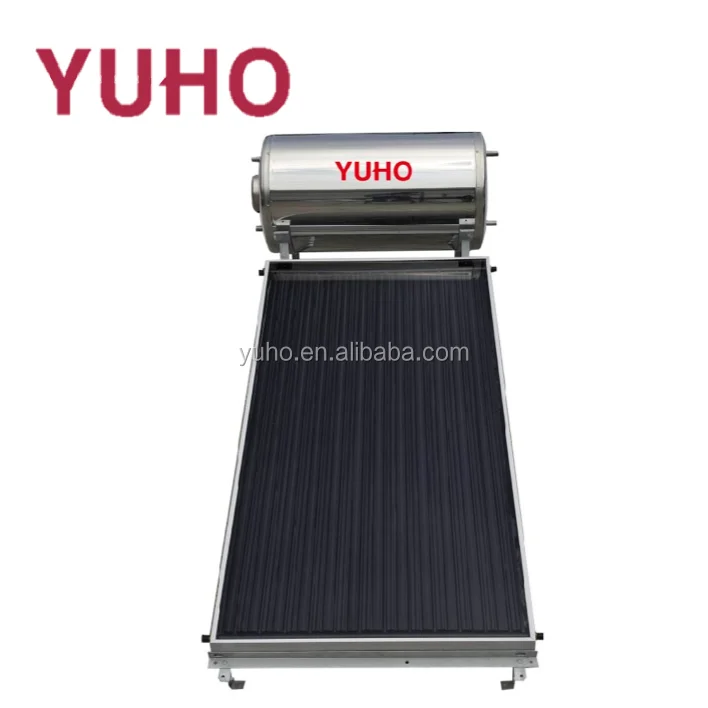

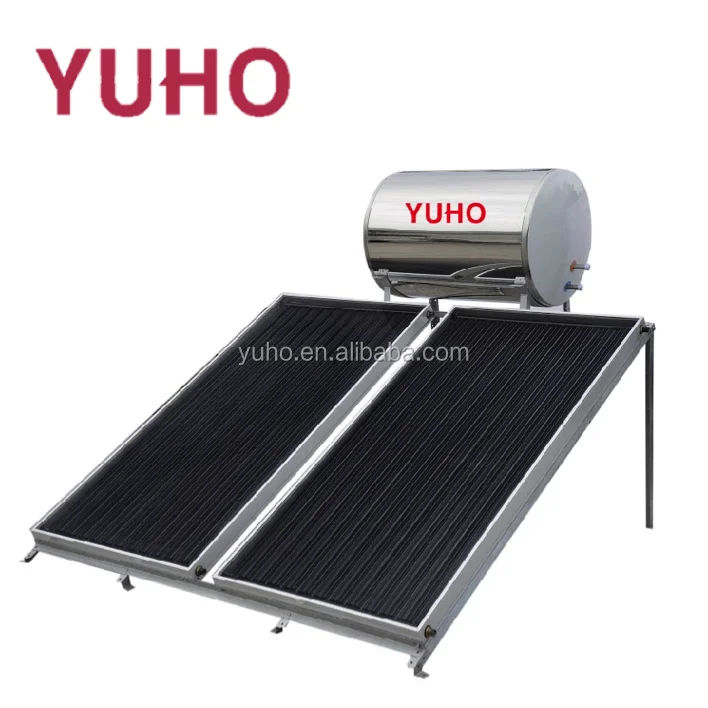

3) Flat plate solar water heater ( 150 / 200 / 300 / 400 / 500 Liter )
4) Flat plate solar collector ( Solar keymark and SRCC approved )
5) Stainless steel 304 / 316L corrugated pipe
6) Brass fitting parts of SS corrugated pipe
7) Yellow / white color PE coating corrugated pipe

YOUR HOME TECH., LTD is professional Corrugated Stainless Steel Tube, Flex Metal hose, Insulated Solar Hose,
Water Connection Hose, Fan Coil Connection Hose, Gas Extensible Flexible Metal Hose, Pipe Gas, Sprinkler Hose
and Connection Set, Spiral Hose, soalr water heater and solar thermal collector in Taiwan Since 2000.
