GANGER CNC Machinery Automatic stone countertop edge profiling and polishing machine CNC 3 Axis Stone Processing Center
- Category: >>>
- Supplier: Jinan Ganger Cnc Technology Co. Ltd.Jinan Ltd.
Share on (1601299879852):
Product Overview
Description
RECOMMEND PRODUCTS
PRODUCT INFORMATION
Applicable Industry & Material:
Applicable materials: widely used in granite, quartz stone, artificial stone, marble and
other stone.
Machine Features:
2. Do cutting, drilling holes, edge profiling and polishing, recessed drainer, etc, finish one countertop automatically, high efficiency.
3. Humanized control system, easy to operate.
4. ”Mono-block” construction ensures high stability.
5. With thickness detector.
Product details：
Front roman edge shaping
Multifunctional, cut and polish as you want

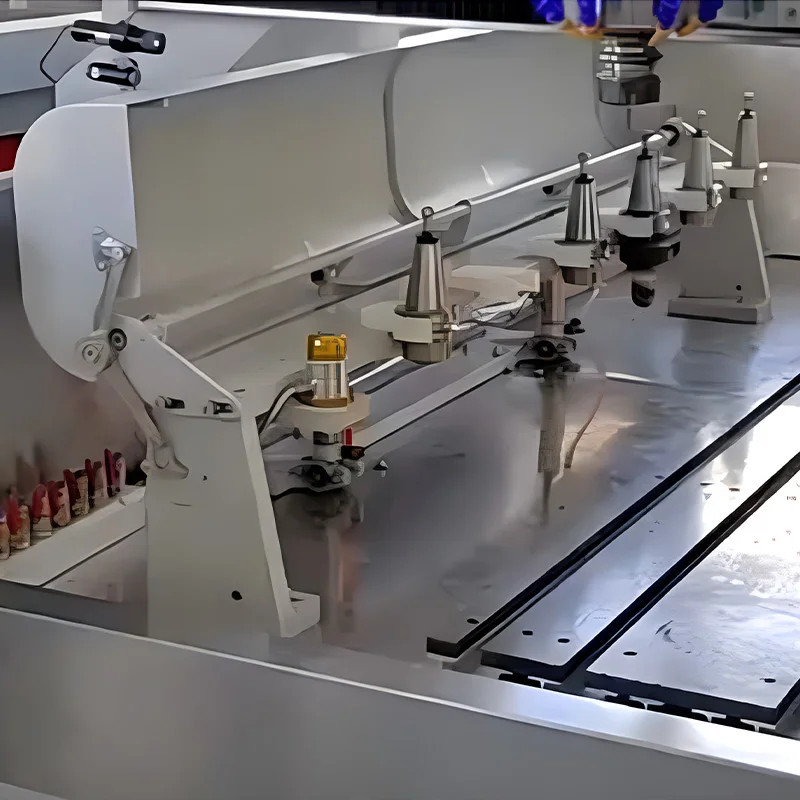

Auto tool setting
12Tools, auto change profiling tools,polishing tools

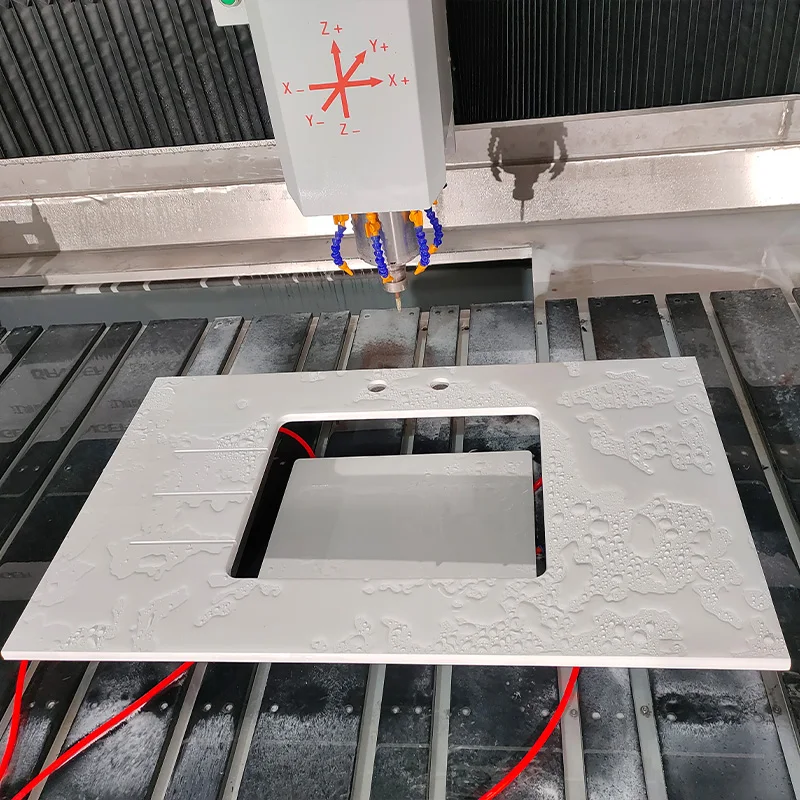

Basin sink cut+rough polish+fine polish
(under-counter/up-counter/in counter)
Height measuring instrument
Automatic measurement of slab thickness for more accurate cutting

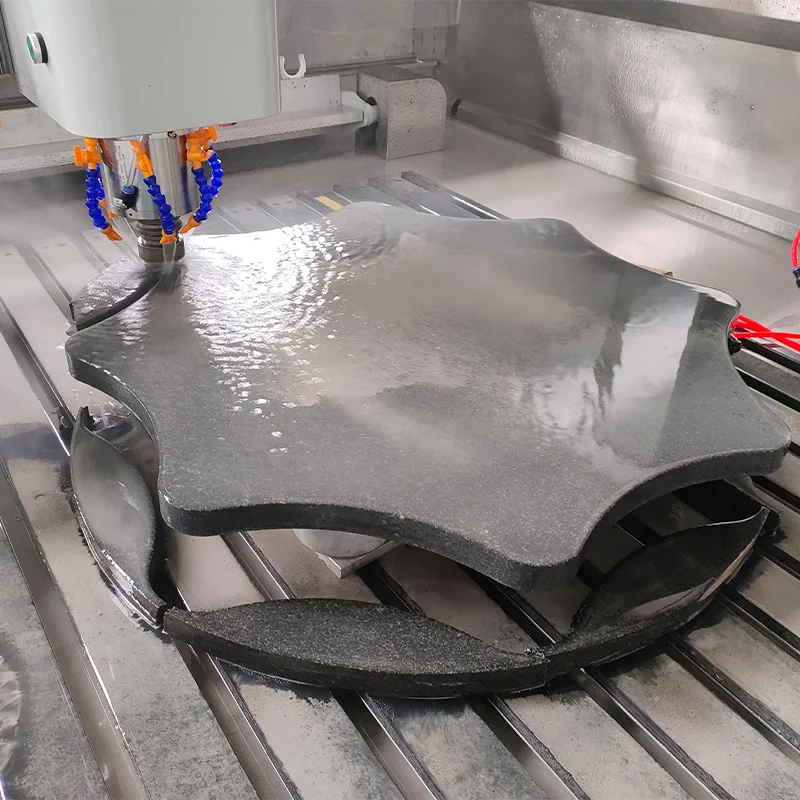

Grinding wheel
Polishing the edges of the board
Milling cutter
Milling cutter cutting outer contour
Protective cover
Automatic flipping protective cover for tools
Drain geoove
Inclined groove
Parameter：
Model | GSY-3015PLUS | ||||||
X/Y/Z Axis working size | 3000*1500*430mm | ||||||
Working table | Aluminum profle with T-slot and water tank | ||||||
X/Y/Z Axis transmission | X/Y Axis helical Gear and rack, Z Axis Ball screw | ||||||

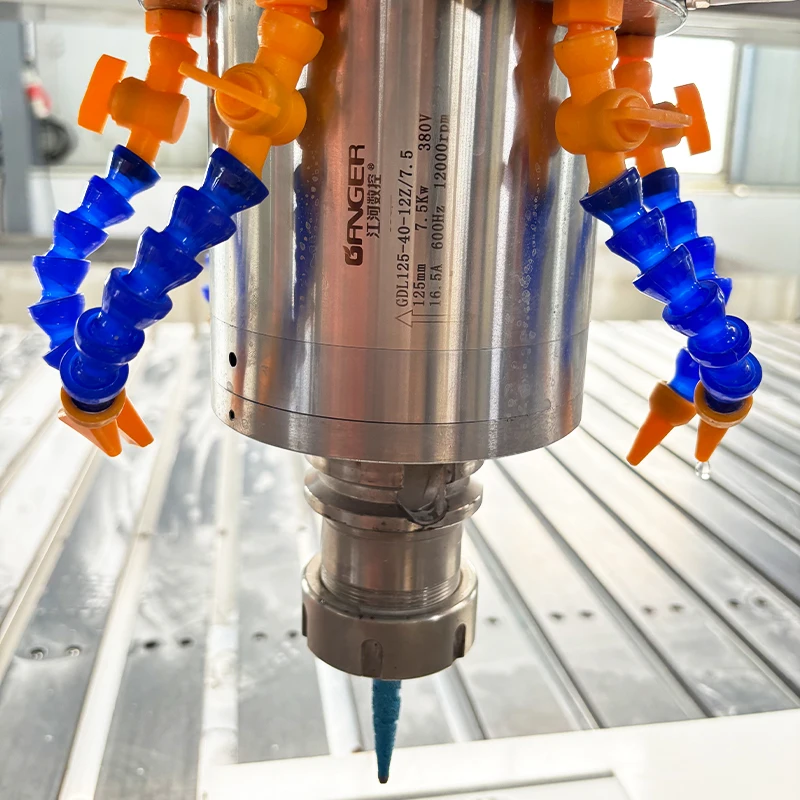

Spindle power | ATC spindle 7.5KW(optional) | ||||||
Max spindle speed | 15000/18000rpm | ||||||
ATC type and capacity | Linear ATC, 12 tools | ||||||
Driver motor | Servo | ||||||
Control system | GANGER | ||||||
Gross weight | 3500KGS | ||||||
COMPANY PROFILE
Main productseries: Stone automatic production line, Stone bridge saw cutting machine. Stone countertop CNC machining center, Stone CNC machining center. Brand: "GANGER" and "SANHE" All products are with CE certificate and lS0 9001 standard.
GANGER quality standard is synchronized with Europe and the United States. Exported to more than 90 countries and regions, such as Europe, America, Middle East, East Asia and Southeast Asia etc. GANGER development concept: GANGER CNC Keep Moving Forward.
The company has a professional service team in R&D, production, sales and after-sales. Engineers can customize the development system according to customer functional requirements. The after-sales service team and customers establish an after-sales service group to answer customers' questions through video calls and remote control of machines, and solve customers' installation and operation problems in a timely and efficient manner.
