Good price XQ140/12A 2 7/8 to 5 1/2 TEDA Hydraulic Power Tong for well service
- Category: >>>
- Supplier: Puyang Baolitong Petroleum Machinery Co. Ltd.Puyang Ltd.
Share on (1601300933614):
Product Overview
Description
Product Description
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Description

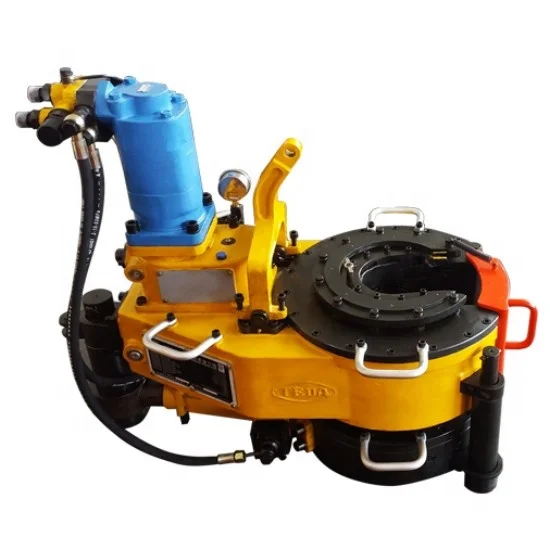

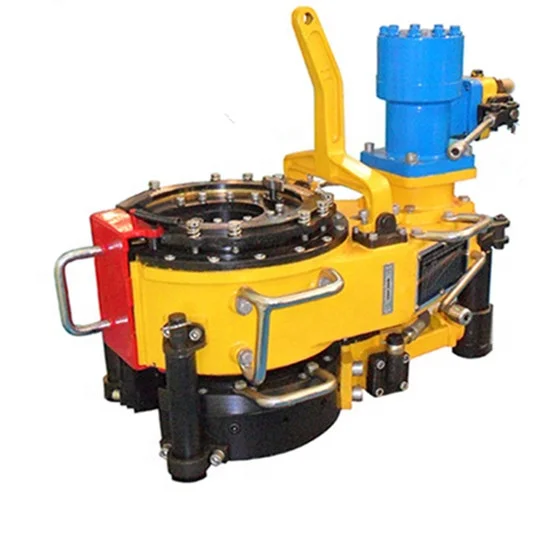

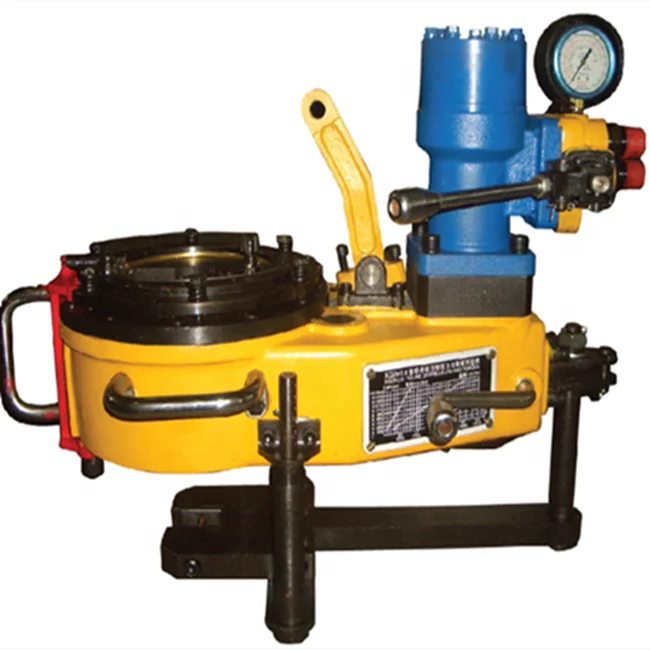

Teda Tubing Tongs Xq114 6yb Hydraulic Tubing Power Tong :
The series of hydraulic tubing power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The power tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.
Model | X089/3YC | XQ114/6YB | XQ140/12Y | XQ140/20 | XQ140/30 | XQ194/40 | ||
mm | 60-89 | 60-114 | 73-140 | 42-140 | 42-140 | 42-194 | ||
Applicable range main tong | in | 23/8~31/2 | 23/9~41/2 | 27/8~51/2 | 1.66~51/2 | 1.66~51/2 | 23/8~75/8 | |
mm | 60-114 | 73-141.5 | 89-156 | 60-153.7 | 60-153.7 | 60-215.9 | ||
Applicable range backup tong | in | 23/8~41/2 | 27/8~51/8 | 31/2~61/8 | 23/8~6.05 | 23/8~6.05 | 23/8~81/2 | |
N.m | 3300 | 6000 | 12000 | 20000 | 30000 | 40000 | ||
Max.torque | ft.lbf | 2213 | 4425 | 8850 | 15000 | 22500 | 30000 | |
Speed | rpm | 30-90 | 20-85 | 14-72 | 13.5-58 | 9-40 | 5.9-25 | |
Rated pressure | Mpa | 10 | 11 | 12 | 17.5 | 17.5 | 17.5 | |
psi | 1450 | 1595 | 1740 | 2500 | 2500 | |||
Max.oil supply | L/min | 80 | 100 | 120 | 140 | 140 | 140 | |
gpm | 21 | 26 | 32 | 38 | 38 | 38 | ||
size | mm | 650*430*550 | 750*500*600 | 1024*582*539 | 1115*962*1665 | 1180*1000*1665 | 1400*1190*1935 | |
in | 25.6*16.9*21.7 | 29.5*19.7*23.6 | 40*22.9*21.2 | 44*38*65.3 | 46.5*38*65.3 | 55*47*76 | ||
Weight(c/w backup tong) | kg | 158 | 220 | 840 | 840 | 860 | 1180 | |
lb | 348 | 485 | 1840 | 1840 | 1910 | 2600 | ||
Hot Sale
About Us
PuYang Baolitong Petro, a professional manufacturer of varous oilfield equipment, including oil drilling and service equipment ,Oil production equipment ,OCTG products, wellhead & downhole tools and spare part. Our design and products are restrictly under API SPEC 5CT/ 7K/8C/6A.
Currently ,Our products have been already been export to USA ,South East,Europen,Russsia and South America and other countries. Our company has always focused on research, development and innovation. Our company regards "reasonable price, efficient production time and good after-sales service" as our tenet.
PuYang Baolitong Petro Co has built an excellent global distribution network and the capability of providing value added services to end users.We welcome potential buyers to contact us
Currently ,Our products have been already been export to USA ,South East,Europen,Russsia and South America and other countries. Our company has always focused on research, development and innovation. Our company regards "reasonable price, efficient production time and good after-sales service" as our tenet.
PuYang Baolitong Petro Co has built an excellent global distribution network and the capability of providing value added services to end users.We welcome potential buyers to contact us
Exhibition
Packing & Delivery
FAQ
The information you may like to know before order:
Q1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
Q2. Delivery time
Based on order quantity, normally it takes 7~15 days for production.
Only 2 or 3 days if we have stock on your request size.
Q3. Shipping Methods
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Q4. Quality Control
We have our own experienced QC.
Each production process under control. From purchasing raw materials to deliverying products
Q5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available at any time
3. Free replacement will provide once the failure confirmed caused by our product quality
Q1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
Q2. Delivery time
Based on order quantity, normally it takes 7~15 days for production.
Only 2 or 3 days if we have stock on your request size.
Q3. Shipping Methods
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Q4. Quality Control
We have our own experienced QC.
Each production process under control. From purchasing raw materials to deliverying products
Q5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available at any time
3. Free replacement will provide once the failure confirmed caused by our product quality
