LGK 100DY&LGK 80DY Plasma cutting and manual arc welding dual gas source full network welding machine
LGK-100DY&LGK-80DY Plasma cutting and manual arc welding dual gas source full network welding machine
LGK-100DY&LGK-80DY Plasma cutting and manual arc welding dual gas source full network welding machine
LGK-100DY&LGK-80DY Plasma cutting and manual arc welding dual gas source full network welding machine
LGK-100DY&LGK-80DY Plasma cutting and manual arc welding dual gas source full network welding machine

LGK 100DY&LGK 80DY Plasma cutting and manual arc welding dual gas source full network welding machine

Share on (1601307659469):


Price:

Quantity:


Product Overview

Description



Product Paramenters


Technical parameter table
Parameter
unit
model
LGK-80DY
100DY
Input power supply
V/Hz
1～220/380±10%50/60
1～220/380±10%50/60
Rated input capacity
KVA
12
19.4
Rated input current
A
20
25
Rated output current (plasma)
A
80
100
Rated output current (manual welding)
A
190
230
Rated output voltage
V
104
120
Rated no-load voltage (plasma)
V
300
315
Rated no-load voltage (manual welding)
V
75
75
Built in gas source power
W
980
1380
Rated load duration rate
/
0.6
0.6
efficiency
/
0.88
0.88
Power factor
/
0.92
0.92
Arc ignition method
/
Non contact arc ignition
Non contact arc ignition
Suitable for plasma gas
/
compressed air
compressed air
Quality cutting capability (carbon steel)
MM
12
15
Maximum cutting capacity (built-in air source)
MM
20
25
Maximum cutting capacity (external gas source)
MM
25
30
Electrode diameter
MM
1.6-4
1.6-4
Power cooling method
/
Air cooling
Air cooling
Torch cooling method
/
Air cooling
Air cooling
Insulation level
/
Grade F
Grade F
Shell protection level
/
IP21S
IP21S
Dimensions (length * width * height)
MM
510*285*520
620*310*650
Net weight of power supply
KG
25
35


Products Description

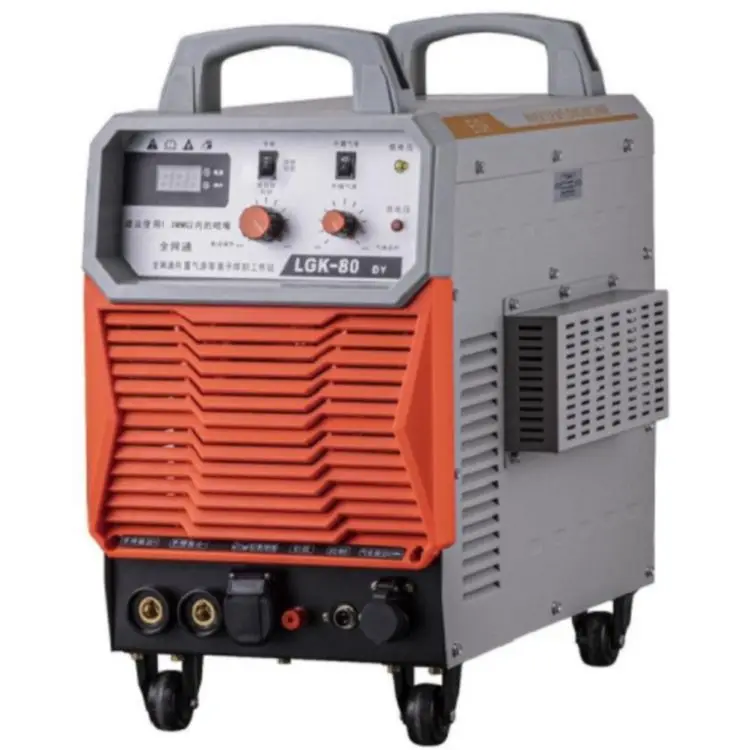

LGK-80DY/100DY
Full network IGBT inverter plasma welding and cutting workstation
A. 220V/380V power supply voltage can be used!
B. Dual gas source: both built-in and external gas sources can be used;

1. Dual function: plasma cutting and manual arc welding;
2. High quality cutting can be achieved without the need for an external air source, and there is no longer any trouble with the
air source;
3. One machine dual-use, welding and cutting integrated, an absolute tool for outdoor construction/repair;
4. The unique three proof air duct structure isolates power devices and control circuits outside the duct, greatly improving
stability;
5. A comprehensive protection system: overcurrent, overheating, and overload protection to ensure reliable operation of the equipment;
6. Adopting a 20K frequency IGBT inverter platform, excellent dynamic response has achieved outstanding arc characteristics;
7. It can cut untreated metal with rust paint and automatically re arc cut mesh workpieces;
8. It can be powered by a generator, and outdoor construction is not afraid of power supply problems.
