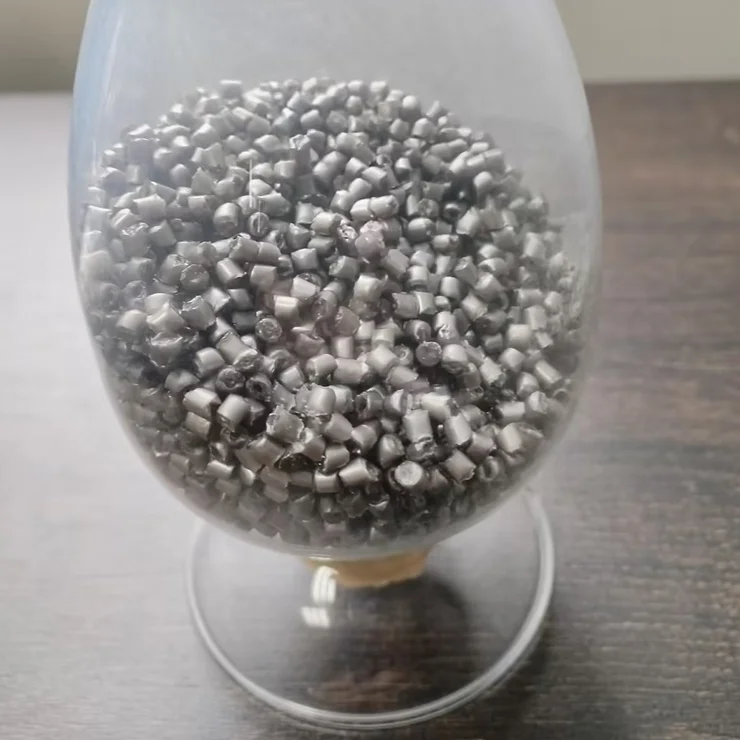

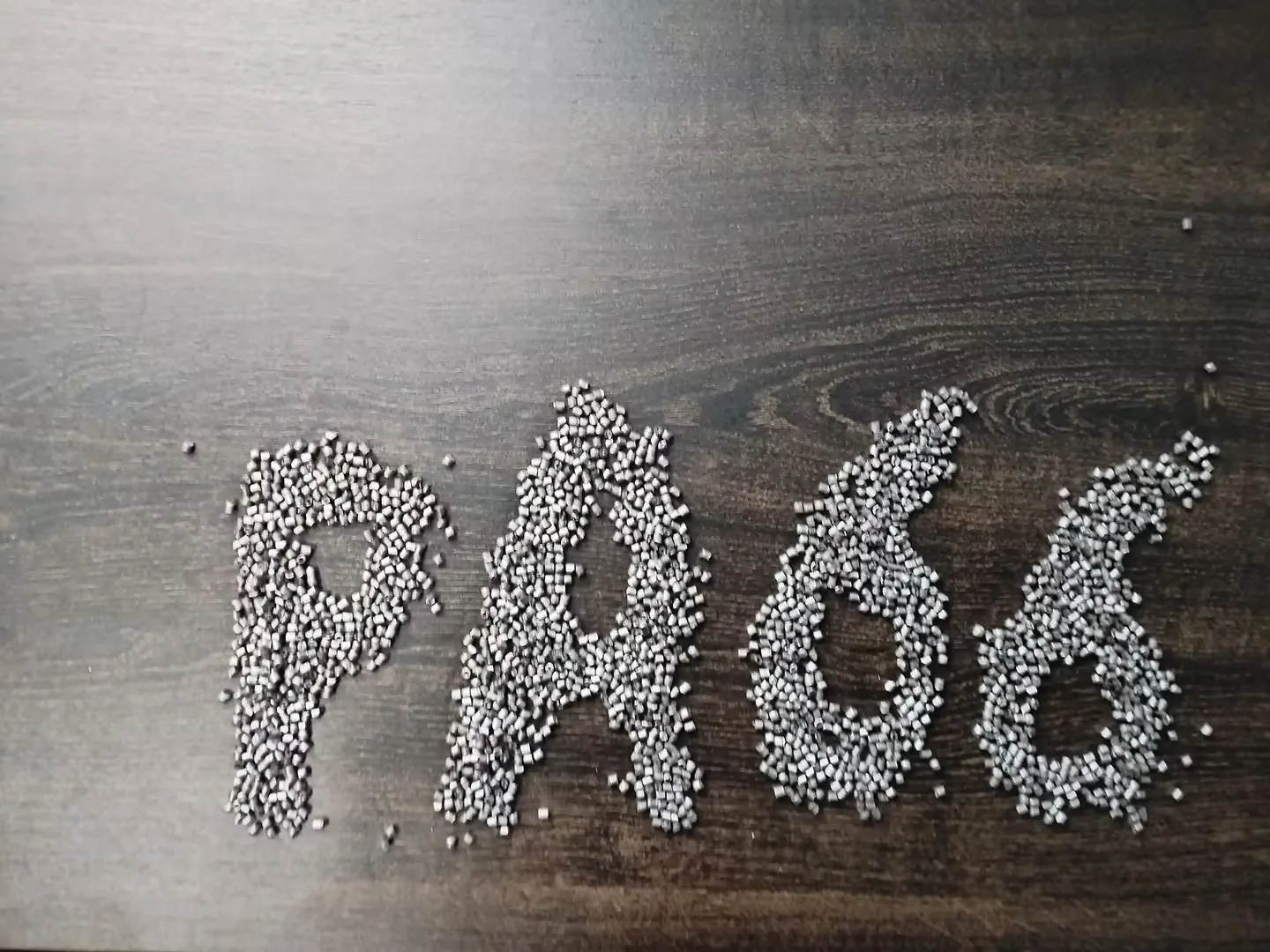

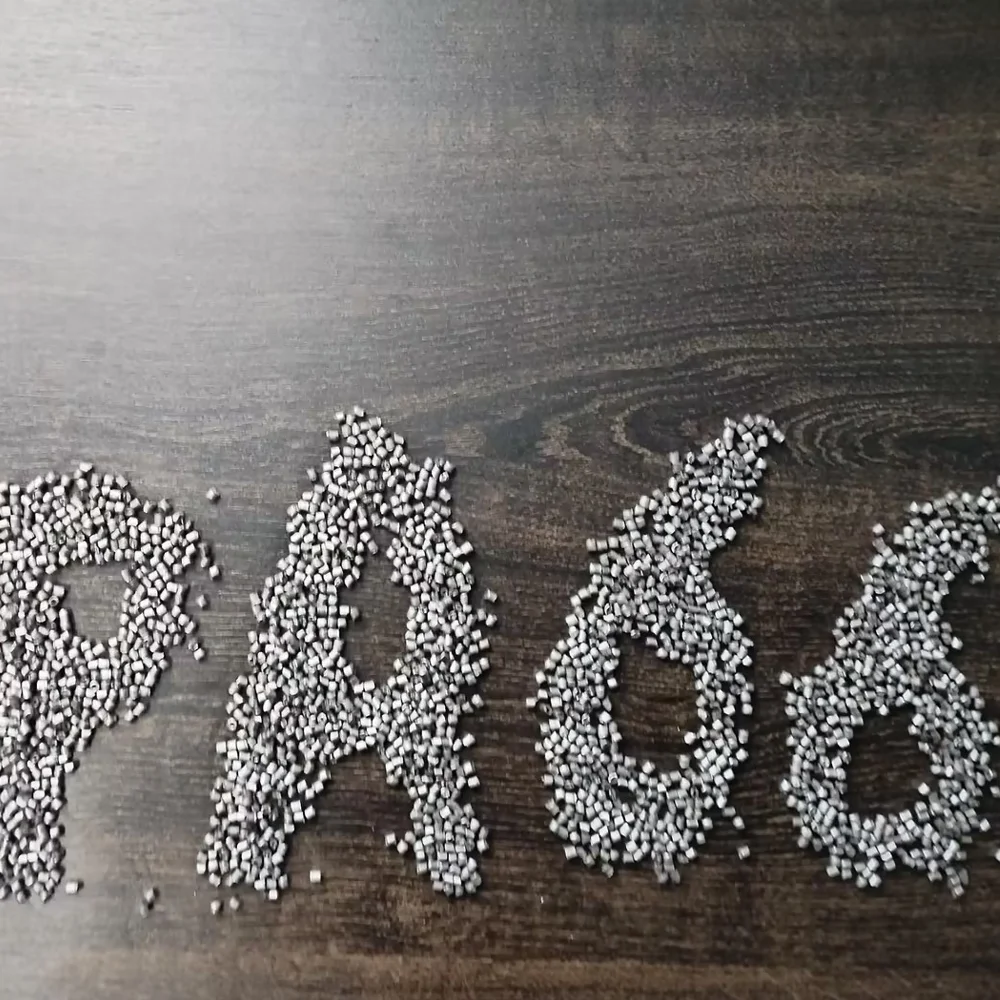

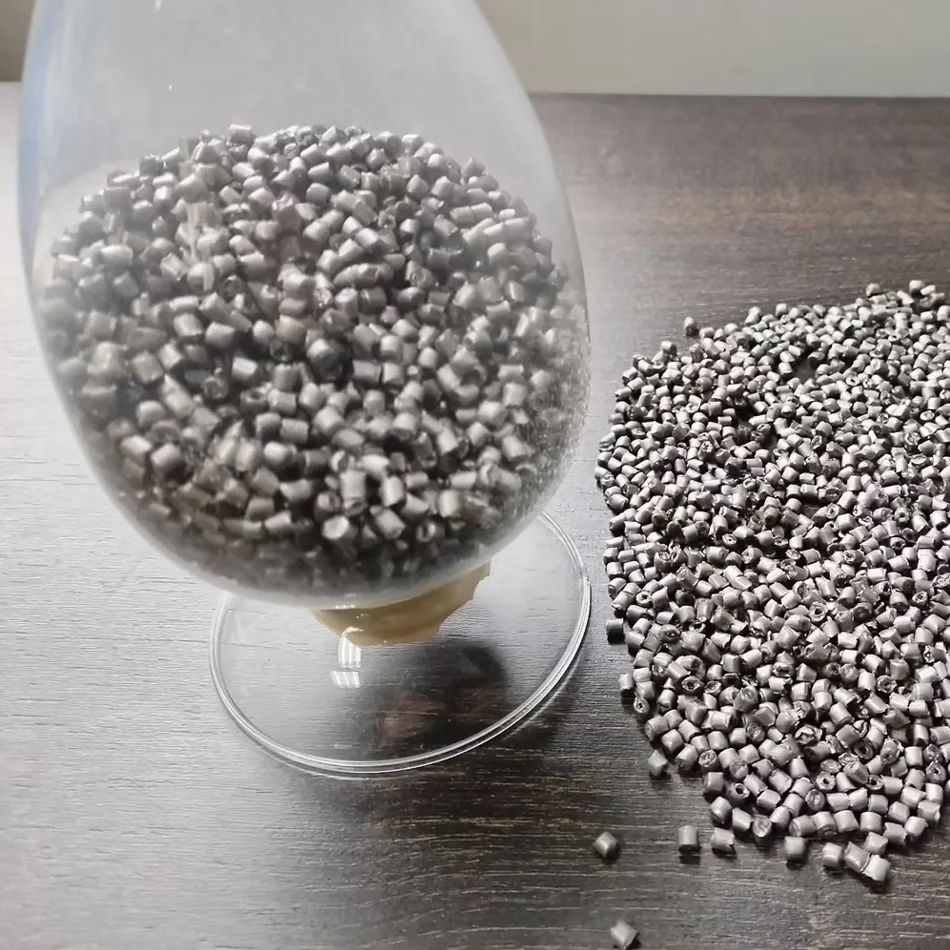

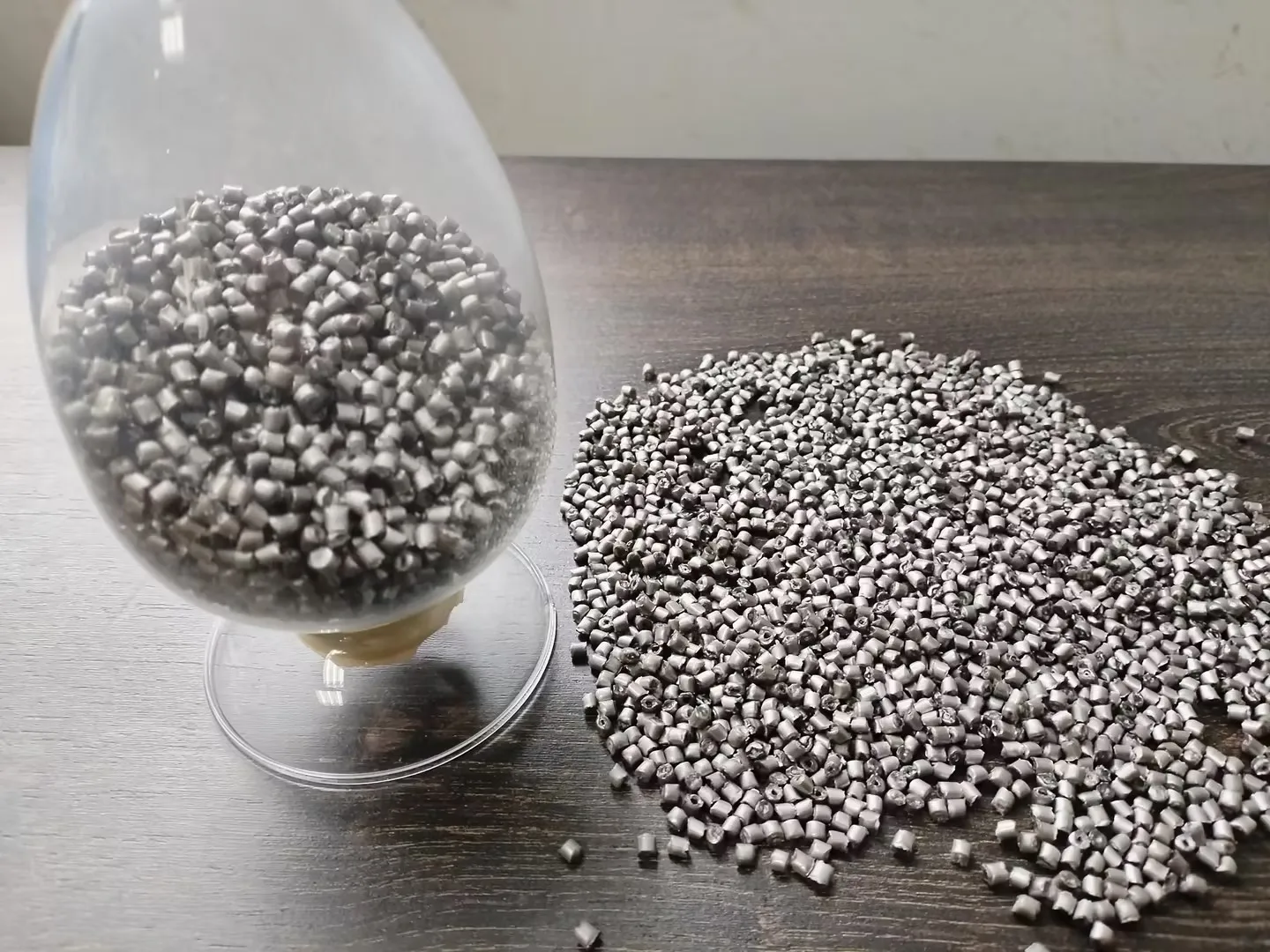

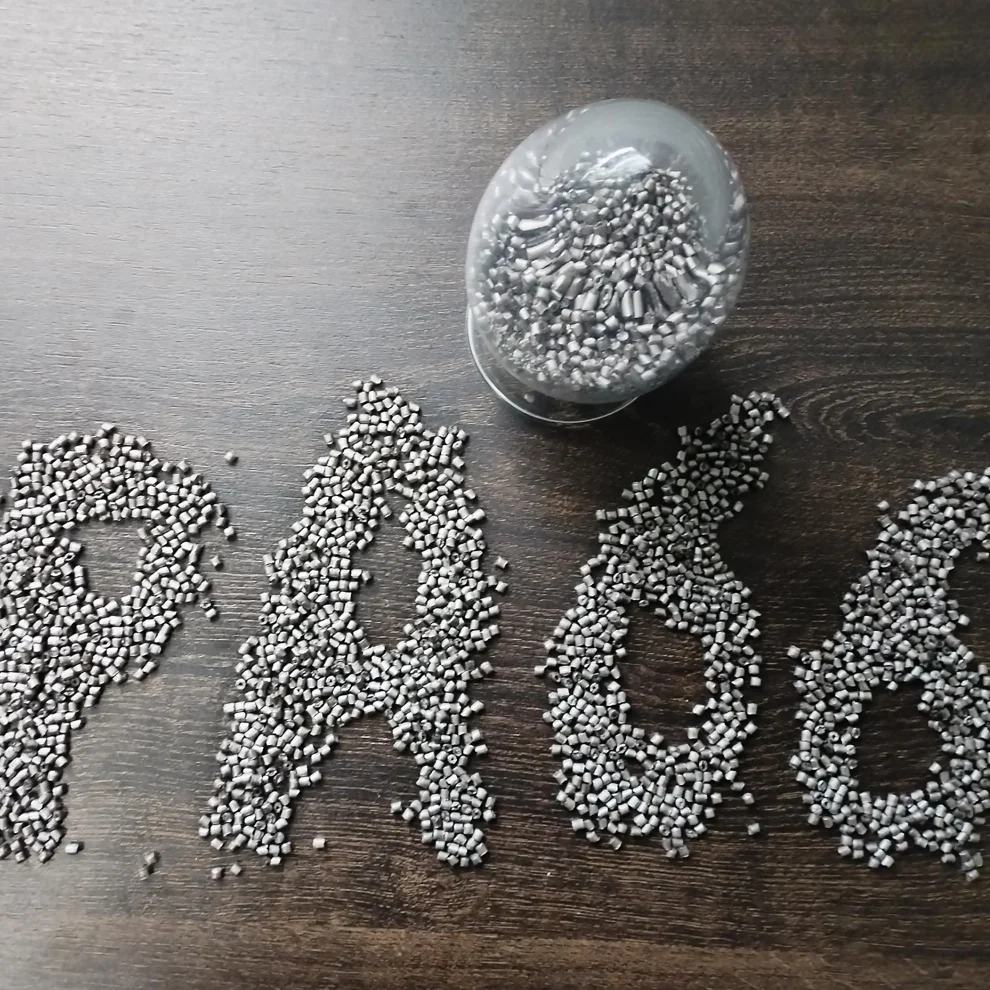

PA66 GF30 MOS2 modified Plastic granuals with nylon glass fiber and molybdenum disulfide has reinforced and wear resistance
- Category: >>>
- Supplier: Zhejiang Lisu Composite Material Co. Ltd.Zhejiang Ltd.
Share on (1601308122929):
Product Overview
Description
Products Description
PA66 plastic material is a translucent crystalline polymer. PA66, commonly known as Nylon, is the product with the largest output variety, and use among the five engineering plastics.Our company can be customized according to product requirements, such as customized various colors, anti-static, wear-resistant high impact, conductive, carbon fiber reinforced, anti-aging, cold and high temperature resistance, flame retardant and so on.
Nylon filled with molybdenum disulfide (MoS₂), compared with other nylon products, has excellent wear strength and rigidity, and low linear thermal expansion coefficient, often used in bushings, bearings, rollers, pulleys, sliding wheels, wear pads, seats and seals.
Product Paramenters
PA66 MOS2 产品资料 Product Information | ||||||||
产品描述 Product Description | ||||||||
材料定义 Resin Identification | 耐磨abrasion resistance | |||||||
颜 色 Color | 黑色/深灰色 Black/Dark Grey | |||||||
主要应用Main applications | 电器部件、 电子部件、开关、汽车电子等 Electrical components, electronic components, switches, automotive electronics, etc | |||||||
成型方法 Processing Method | 注塑/挤出成型 Injection /extrusion Molding | |||||||
典型性能 Typical Properties | 测试方法 Test Method | 测试条件 Test Condition | value单位 Unit | 典型值 value | ||||
物理特性Physical Properties | ||||||||
密度Density | DIN EN ISO 1183 | 23℃ | g/cm³ | 1..39 | ||||
吸水率Water absorption | DIN EN ISO 62 | 24hr 在水里In the water | % | 3.6 | ||||
收缩率Shrinkage | DIN EN ISO 294 | 流动/垂直Flowing/vertical | % | 0.2-0.4 | ||||
摩擦系数 静态 Static friction coefficient | ASTM D1894 | 0.46 | ||||||
动态摩擦系数 Dynamic friction coefficient | ASTM D1894 | 0.39 | ||||||
力学性能 Mechanical Properties | ||||||||
拉伸强度Tensile Strength | DIN EN ISO 527 | 50mm/min | MPa | 155 | ||||
断裂伸长率 Elongation at Break | 5mm/min | % | 2.2 | |||||
弯曲强度 Flexural Strength | DIN EN ISO 178 | 2mm/min | MPa | 230 | ||||
弯曲模量Flexural Modulus | MPa | 9700 | ||||||
拉伸模量Tensile modulus | DIN EN ISO 527 | 5mm/min | MPa | 11000 | ||||
悬臂梁缺囗冲击强度 Izod Notched Impact Strength | DIN EN ISO 180 | 4mm,23℃ | KJ/M2 | 13.5 | ||||
悬臂梁无缺囗冲击强度 The cantilever beam has no lack of impact strength | DIN EN ISO 180 | 4mm,23℃ | KJ/M2 | 70 | ||||
热性能 Thermal Performance | ||||||||
热变形温度 Heat Deformation Temperature | DIN EN ISO 75 | 1.8MPa | ℃ | 215 | ||||
热变形温度 Heat Deformation Temperature | DIN EN ISO 75 | 0.45MPa | ℃ | 250 | ||||
熔融温度 Melting temperature | DIN EN ISO 11357 | 10℃/Min | ℃ | 255 | ||||
电气性能 Electrical properties | ||||||||
CTI | IEC 60112 | A熔液A melt | V | 400 | ||||
体积电阻Volume resistance | IEC 60093 | Ω.cm | 1E+15 | |||||
阻燃性能 Flame retardancy | ||||||||
燃烧等级 (Flammability) | UL 94 | 0.75mm | Class | HB | ||||
燃烧等级 (Flammability) | UL 94 | 1.5mm | Class | HB | ||||
燃烧等级 (Flammability) | UL 94 | 3mm | Class | HB | ||||
说明: 1.数据为典型值，只作为客户使用的参考，不作为品质指标最低值或最高值的保证及其他任何用途的保证。 2.不同的颜色性能可能会不同。 Note: 1. The data is a typical value, which is only used as a reference for customers, and is not used as a guarantee for the minimum or maximum value of the quality index and any other use Guarantee of the way. 2. Different color properties may be different. | ||||||||

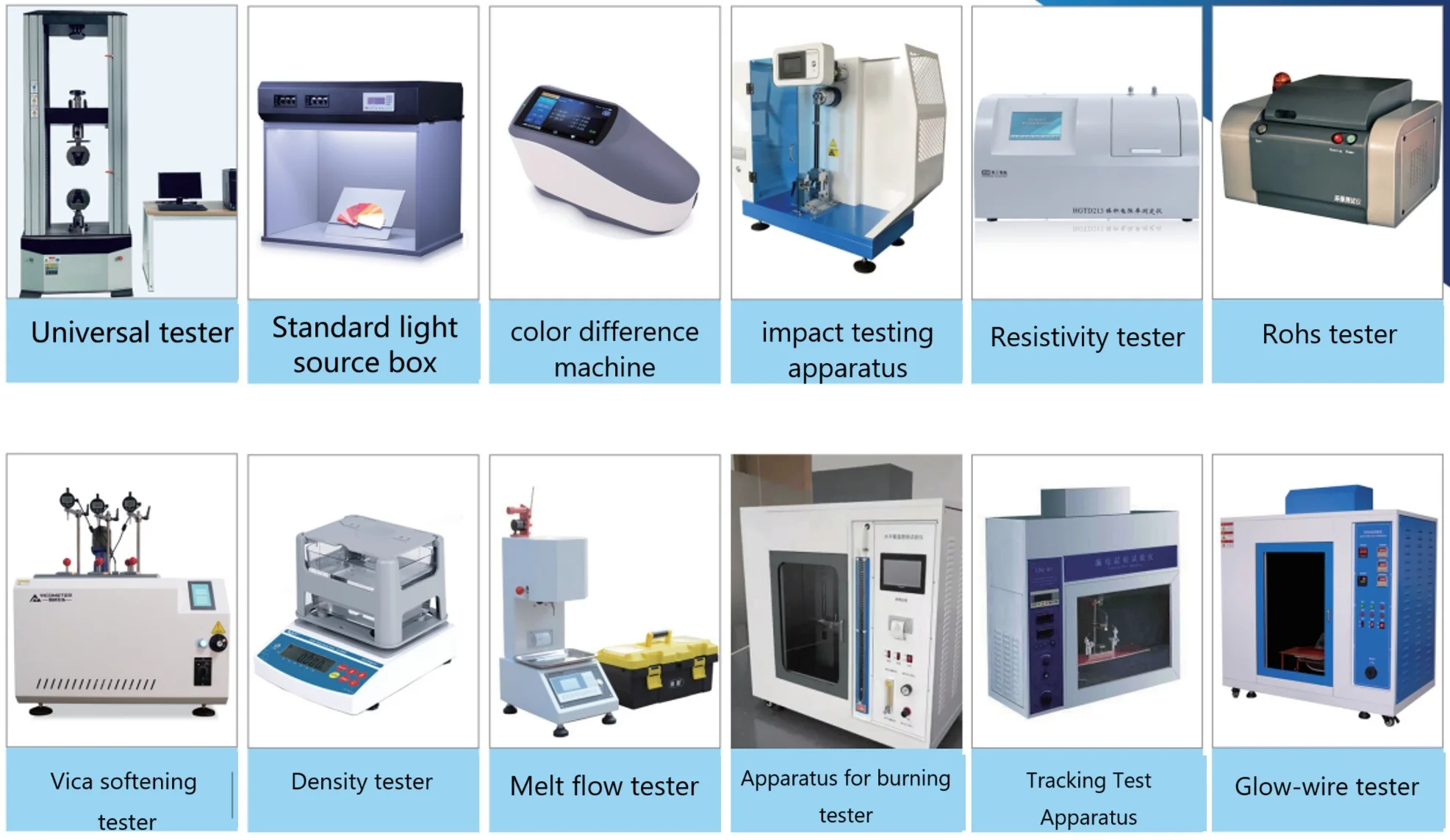

Quality Control
Every batch of our products is rigorously tested:
1. Raw materials into the warehouse need to be fully inspected;
2. Strict sampling inspection in the production process;
3. The finished product needs a full inspection
1. Raw materials into the warehouse need to be fully inspected;
2. Strict sampling inspection in the production process;
3. The finished product needs a full inspection

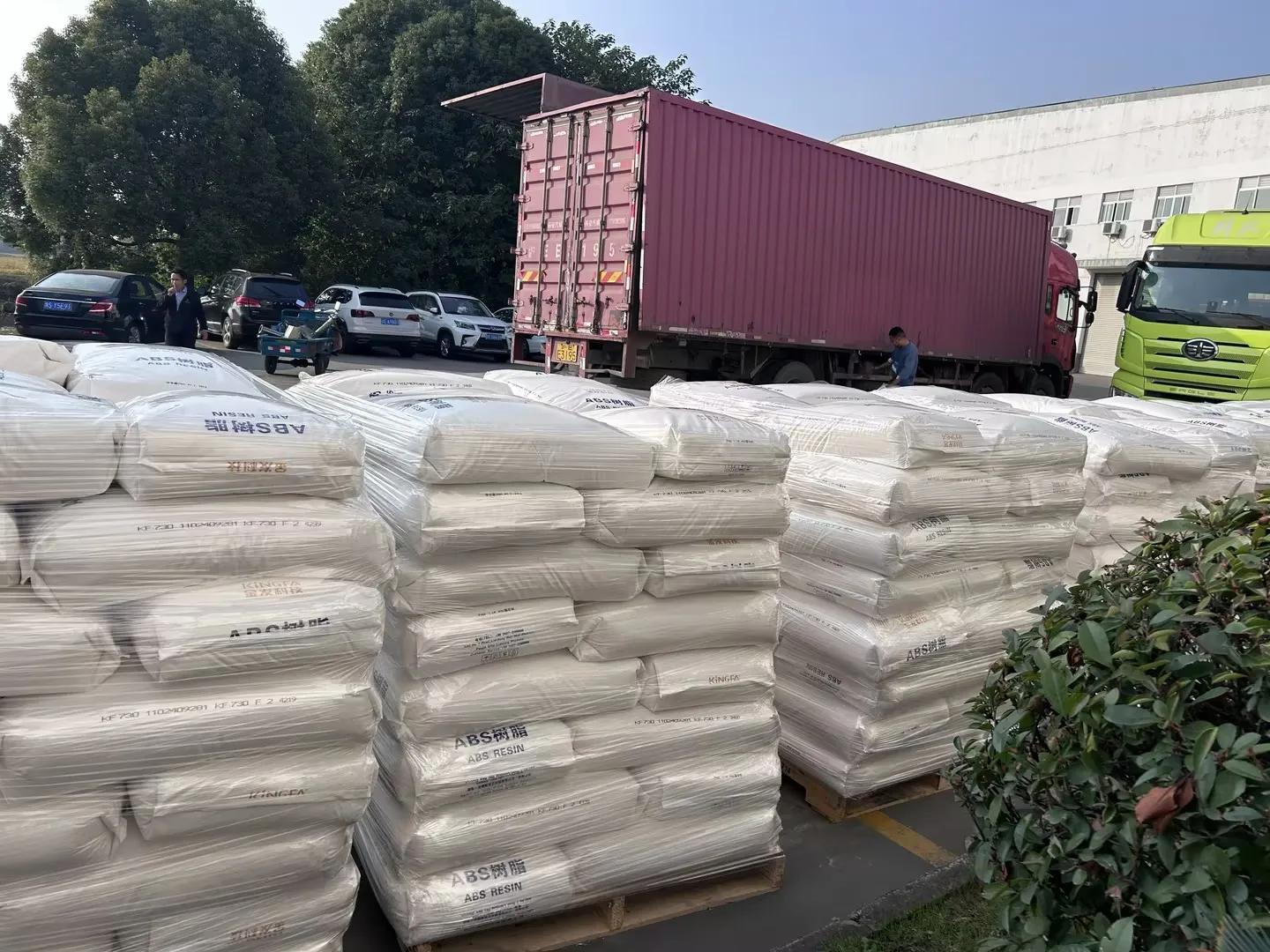

Packing & Delivery
Packaging Details： 25 kg/bag Standard package: Inner (Plastic film) and outer: (Paper bag or woven bag).
Or we can make it per customers' requirement.
Or we can make it per customers' requirement.
FAQ
Q1. Are youtrading company or Manufacturer ?
A.We are factory
Q2.Do you provide samples ? is it free or extra ?A: Yes, we could offer the Less than 5 KG Free sample , but do not pay the cost
of freight
Q3.About Material
A.We can customize the material according to customers' requirement.
Q4. About Color
AWe are based on customer requirements
Q5. About Quality
A.All the products must be tested strictly according to the testing procedurebefore shipment.
Q6. About Delivery Period
A.Normally delivered in 10-15 working days after the confirmation of order& payment. And it varies according to the materialand
quantity.
Q7.Accepted payment methods
A. FOB , 30% Deposit in advance, the 70% balance against copy of B/L or before embark.
A.We are factory
Q2.Do you provide samples ? is it free or extra ?A: Yes, we could offer the Less than 5 KG Free sample , but do not pay the cost
of freight
Q3.About Material
A.We can customize the material according to customers' requirement.
Q4. About Color
AWe are based on customer requirements
Q5. About Quality
A.All the products must be tested strictly according to the testing procedurebefore shipment.
Q6. About Delivery Period
A.Normally delivered in 10-15 working days after the confirmation of order& payment. And it varies according to the materialand
quantity.
Q7.Accepted payment methods
A. FOB , 30% Deposit in advance, the 70% balance against copy of B/L or before embark.
